DemoPad DM-CENTRO8 Bedienungsanleitung

DM-CENTRO8

Demopad Centro 8 Controller

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and is believed

to be accurate. DemoPad Software Ltd assumes no responsibility for any

infringements of patents or other rights of third parties which may result

from its use.

DemoPad Software Ltd assumes no responsibility for any inaccuracies

that may be contained in this document. DemoPad Software Ltd also

makes no commitment to update or to keep current the information

contained in this document.

DemoPad Software Ltd reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted, transcribed,

stored in a retrieval system, or any of its part translated into any language

or computer le, in any form or by any means—electronic, mechanical,

magnetic, optical, chemical, manual, or otherwise—without express

written permission and consent from DemoPad Software Ltd.

Version 1.1 January 2014

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate

this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts inside

the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if

it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sucient space for air to circulate around the unit.

ACCEPTABLE USE

This product has been designed for use in general purpose automation

applications. It is not suitable for use in applications where any failure of

the equipment to operate correctly might lead to injury or death.

CONTENTS

1. Introduction...........................................6

2. Package Contents ..................................6

3. Features..................................................7

4. Physical Connections.............................8

4.1 Rear Panel..................................................... 8

4.2 Conguration and Setup ........................ 8

5. Specications.........................................9

1. INTRODUCTION

The CENTRO 8 controller is a powerful automation processor enabling an

installer to create customised commercial or residential control systems.

Utilising advanced embedded software, and programmable using

DemoPad Designer Software, the CENTRO 8 processor is the heart of your

control system providing complete control over automated and manual

control functions. DemoPad is the fastest and most cost eective solution

for controlling audio, video, lighting, HVAC (Heating, Ventilation, Air

Conditioning), and security systems (CCTV) directly from an iPhone, iPad,

or Android device. The GUI can be user-branded for that nishing touch

to any professional or bespoke control system interface.

The CENTRO 8 controller incorporates a vast array of connectivity ports

for integration of IR, RS-232, Contact Closures, Low Voltage Relays,

HDMI, USB, Audio, and LAN. Existing DemoPad software projects can

be seamlessly integrated with the controller delivering the ultimate in

exibility for professionals committed to delivering World class control

solutions.

2. PACKAGE CONTENTS

1x Multi-PSU

8x IR Emitters

8x Jack to Jack Cables

1x Pair of Rack Ears

1x Installation and Operating Manual

4x Relay output connectors

1x Input block connector

3. FEATURES

Powerful IP Networking Capabilities

Connect up to 20 simultaneous client devices (iOS/Android), and

communicate with many more control devices throughout the

network

Astronomically-Aware and Date-Aware Timer Events

For example : turn your lights o 25 minutes after sunset, except on

weekends and in the summer

Centrally Stored System Variables

When one user turns a zone On, any other user (including remote

ones) also know about it

Programmable Audio Output

Play a custom doorbell or security alert sound through your audio

system when an input triggers, or at certain times

Programmable HDMI Output

Have another input to your HDMI distribution system to show web

pages or a photo frame slideshow, which can be timer-driven.

Built-in Web Server

Store the DemoPad project on the CENTRO 8 and allow

communication of any device with a web browser

Advanced Macros

Uses the same powerful macro generation routines as our control app

Upgrade in the eld

Return to your clients after installation to enable new features and

benets

HDMI Resolution Support up to 1080p@60Hz

Dolby True HD, Dolby Digital Plus and DTS Master Audio Pass-through

Supported via HDMI

4. PHYSICAL CONNECTIONS

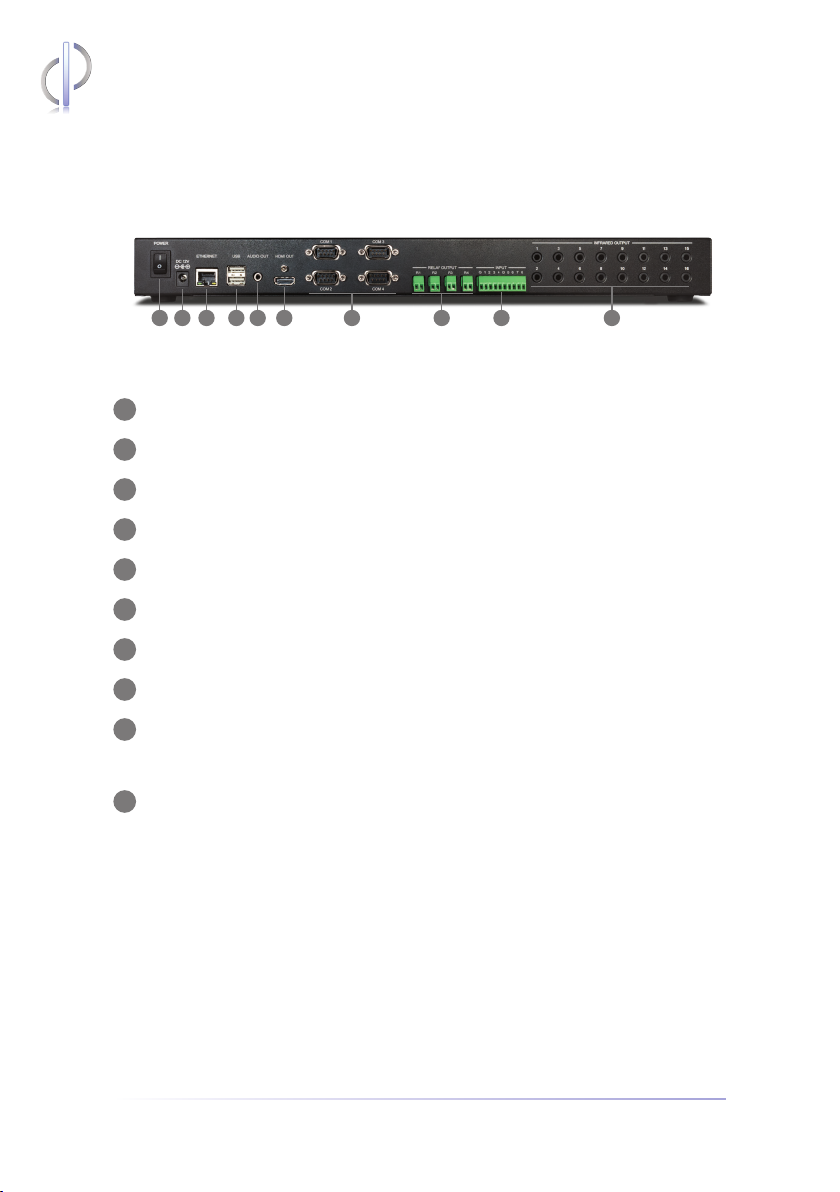

4.1 Rear Panel

1 2 3 4 5 6 7 8 9 10

1Power On/O switch

212V DC Power connection

310/100 Ethernet network connection

4USB (2.0) Connections

5Stereo Audio output (line level)

6HDMI video output

74 x RS-232 COM ports

84 x low voltage (1A/30V DC) relays

98 x volt free inputs (do not connect any voltage to these, only

connect each input pin to Ground G to trigger)

10 16 x Infra-Red outputs

4.2 Conguration and Setup

Connect the Ethernet (3), HDMI (6) & Power (2) to the unit, and power

the unit up using the power switch (1). When the unit has powered up,

you should see the DemoPad logo on screen, along with the unit's DHCP

assigned IP address.

All conguration is then performed with the DemoPad Designer software

from your computer. Please refer to www.demopad.com/centro.php for

full details.

5. SPECIFICATIONS

Power Supply : 12V DC

Weight (g) : 1963

Dimensions(mm): 430(W) x 180(D) x 50(H)

Operating Temperature : 0 ˚C ~ 40 ˚C / 32 ˚F ~ 104 ˚F

Storage Temperature: −20 ˚C ~ 60 ˚C / −4 ˚F ~ 140 ˚F

Relative Humidity: 20 ~ 90% RH (non-condensing)

Power Consumption: 3.8 W

HDMI Specication: 1.3a
