Denver TFD-1903DVBT Bedienungsanleitung

19"LCD TV WITH DVD & DVB-T

TFD-1903DVBT

DVB-T

Safety Information

The lightening flash with arrowhead symbol, within an equilateral triangle, is

intended to alert the user to the presence of un-insulated “dangerous

voltage” within the products enclosure that may be of sufficient magnitude

to constitute a risk of electric shock to the persons.

The exclamation point within an equilateral triangle is intend to alert the user

to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the appliance.

Correct disposal of this Product

(Waste Electrical & Electronic Equipment (WEEE)

The crossed out “Wheelie bin” is intended to show that this appliance must not

be placed with ordinary household waste at the end of its useful life. To prevent

possible harm to the environment or human health from uncontrolled waste

disposal, please keep separate from other household waste and recycle it

responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where you purchased the

product, or their local government office for details of where and how you can

take this item for environmentally safe re-cycling.

Business users should contact their supplier and check the terms and conditions

of the purchase contract. This product must not be mixed with other

commercial wastes for disposal

1. THIS LABEL IS ATTACHED TO THE PLACE AS ILLUSTRATED TO INFORM

THAT THE APPARATUS CONTAINS A LASER COMPONENT.

2. THE WARNING LABEL INFORMING OF RADIATION IS PLACED INSIDE

THEn UNIT. AS SHOWN IN THE ILLUSTRATION. TO WARN AGAINST

FURTHER MEASURES ON THE UNIT. THE EQUIPMENT CONTAINS A

LASER RADIATING LASER RAYS ACCORDING THE LIMIT OF LASER

PRODUCT OF CLASS

This unit complines with European safety and electrical interference directives.

Safety Information cont.

Do not place the Tv on an unstable surface, it may tip over and cause injury or damage

to the LCD screen.

Do not place the tv in a cabinet where airflow is restricted, ensure the ventilation holes

are not covered to prevent overheating. Do NOT cover the DC mains adaptor, this will

feel warm to the touch and must be allowed to radiate the heat.

Do not use the Tv in wet or damp conditions, if water or liquids are allowed to enter the

case, disconnect the power and call the Technical Help line. Do not handle the Tv or

Power adaptor with wet hands.

During an Electrical storm or when going on holiday, disconnect from the mains supply

and aerial (if external or rooftop).

Do not place heavy objects on the mains lead or DC supply lead, do not place where

they can be stepped on, cut or damaged. If the leads do become damaged please call

the Technical Help Line for advice.

Do not drop or damage the Tv. If the casing becomes damaged it may cause a safety

issue, Do not open the case or Power adaptor, you risk a severe electric shock, injury

or death.

Do not drop objects into the Tv ventilation slots or DVD disc slot. Should an object enter

the Tv, contact the Technical Help Line for advice.

Do not place the Tv near heat sources such as radiators or direct sunlight

Cleaning the Tv. Disconnect from the supply before cleaning. Do NOT use petrol

based or chemical cleaning fluids. You may wipe with a soft damp cloth. For stubborn

sticky dirt use a dilute detergent solution..

LCD Screen. Do NOT use chemical solvents on the screen surface, sticky finger

marks must only be removed with a dilute detergent solution. Occasionally one or two

bright dots may be seen on the screen, this is not considered a fault.

3.Front View

1(IR)Infrared Receiver:Receives IR signals from the remote control.

(Power on/Standby)LED Indicator: Press POWER to turn on and off.

The effective receiving range for the signal is within 5-8 metres from the

front of the remote control window,and 30 to the left or right side and

20 above or below the control window.

2 The functions of the buttons are described as below:

MENU: Press to display the OSD menu, Press again to exit the menu.

CH-/CH+: Press to scan through channels. When pressing and holding down either button

user can scan channels quickly.

They can also be used to move down/up in the OSD menu screen.

VOL-/VOL+: Press to adjust the volume.

they also be used to move left/right in the OSD menu screen.

VOL+ button can be used to skip forward to next menu.

TV/AV: Press to select the source: TV,AV,DVB,DVD,SCART,PC

Power: Turn on/off the TV set.

through the

can

the

Indicator on(Red) Standby mode

Indicator on(Green) Power on mode

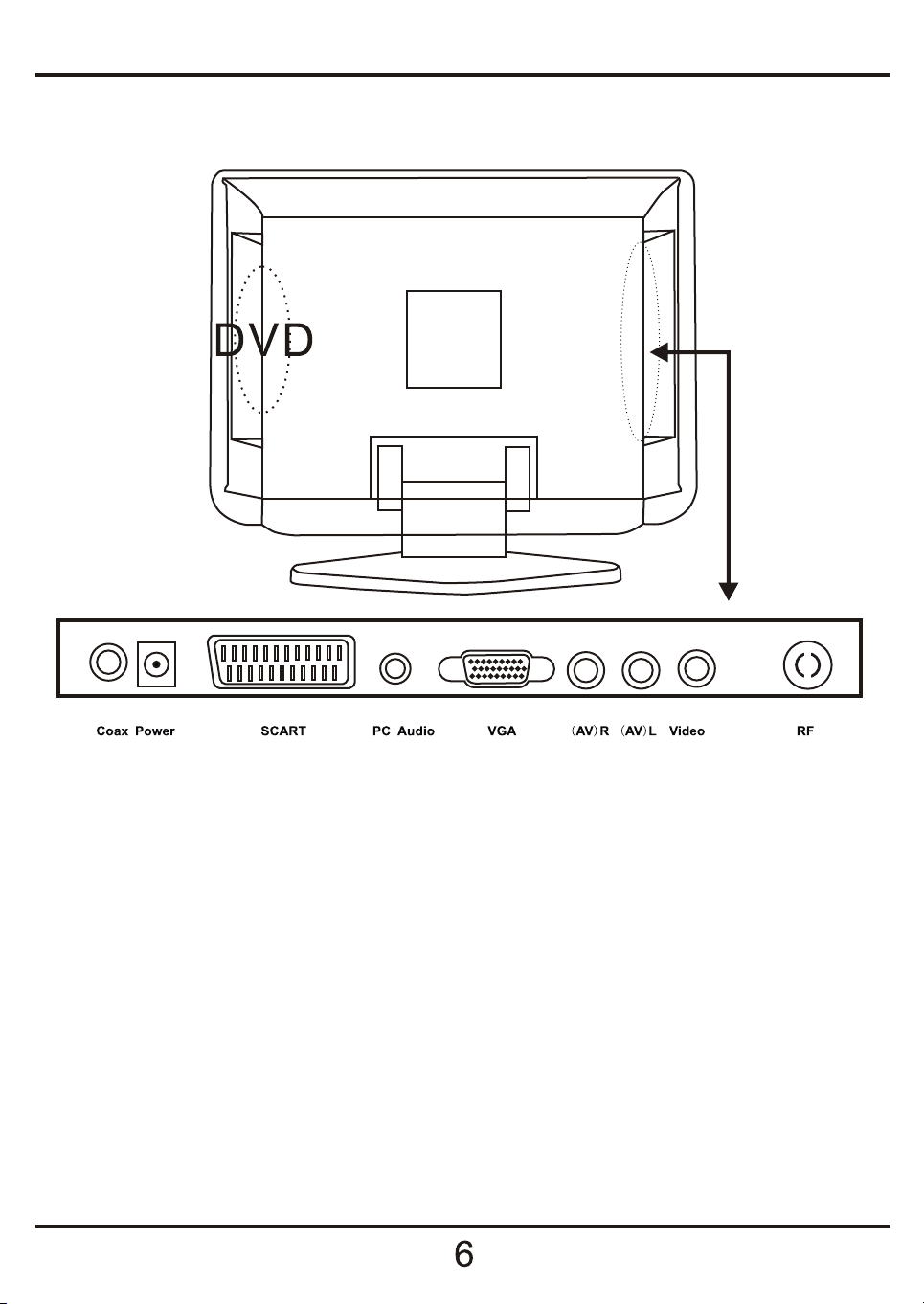

4.Rear View

Coax : Output to Audio amplifier (RF encoded)

Power : Connection to Power adaptor.

SCART : Composite video and Audio input from VCR or other devices.

PC Audio : Audio connection from PC.

VGA : PC Monitor display input. Connect to your Pc Mini D15 pin connector.

AV-R,AV-L: Right and Left Audio input from other sources such as Camcorder.

Video : CVBS video input from other sources such as Camcorder.

RF : Tuner / Antenna RF input.

/RADIO change between TV and Radio condition.
