Denver DTX-1410 Bedienungsanleitung

DTX-1410

MANUAL

14" COLOUR TELEVISION

ON SCREEN DISPLAY

REMOTE CONTROL

HYPERBAND TUNER

PERITELEVISION(SCART JACK)

NTSC PLAYBACK

TELETEXT

Description:

Job No.

Model:

Revised:0

Engineering Dept:

Artwork By:

Checked By:

Approved By:

Brand Name:

P/No.

Scale:

Date:

MANUAL

14NI

02-18-04

DENVER42088

www.denver-electronics.com

-1-

SPECIFICATIONS

Design and specifications are subject to change without prior notice.

Receiving System : BG , DK

Colour System : PAL / NTSC Playback

Picture Tube : 37cm ( ") diagonal

Ext. Antenna : 75 Ohm Coaxial Cable

Ext. In/Out :

Speaker : 16 O

REMOTE CONTROL

Transmitting System : Infrared

Power Supply :

hm x 2

Audio Output : >3W

Power Consumption : AC 150-260V 50/60Hz, 60W

Dimension : 400(W) x 355(D) x 321(H)mm

Net Weight : 10.1 kg

DC 3V (1.5 x 2)

Dimension : 55(W) x 184(L) x 34(D)mm

Net Weight : 130 g

Peritelevision(Scart Jack)

-1-

SPECIFICATIONS

INSTALLATION

CAUTION

Thank you very much for your purchase of this product-the most natural Colour Television Receiver.

To enjoy your set to the full from the very beginning, read this manual carefully and keep it handy for ready

reference.

Locate the receiver in the room where direct light does not strike the screen.

Total darkness or a reflection on the picture screen can cause eyestrain. Soft and indirect lighting is

recommended for comfortable viewing.

Allow enough space between the receiver and the wall to permit ventilation.

Avoid excessively warm locations to prevent possible damage to the cabinet or premature component

failure.

This TV receiver can be connected to AC 150-260 Volts. 50/60 Hz. Never connect to DC supply or any

other power supply.

Do not install the receiver in a location near heat sources such as radiator, air ducts, direct sunlight, or in

a place somewhere like close compartment and close area.

Do not cover the ventilation openings when using the set.

Never tamper with any components inside your set, or any other adjustment controls not mentioned in

this manual. All television receivers are high voltage instruments. Your PICTURE TUBE is highly evacuation.

If broken, glass fragments will be violently expelled. Scratching, chipping or undue pressure is dangerous

and should be avoided. When you clean up dust or stick of a water drop on the PICTURE TUBE FACE or

CABINET, the power cord should be pulled out from the plug receptacle, then wipe the receiver with dried

soft cloth. During thunder and lighting, unplug the power cord and antenna cord to prevent your TV set

from damage. All "inside work" on your receiver should be performed only by the TV service personnel.

-2-

CONTROL LOCATION

11 12 13

7 7 6 6 8 5 4

1. Main Switch

2. Power Indicator

3. Remote Sensor

4. AV/TV

5. Mute Button

6. Volume Down & Up Button

7. Program Down & Up Button

8. Menu Button

9. Speakers

10. Side AV in(Option)

11. AC Power Cord

12. Peritelevision (Scart Jack)

13. Terminal Antenna (75 Ohm)

2 9 10

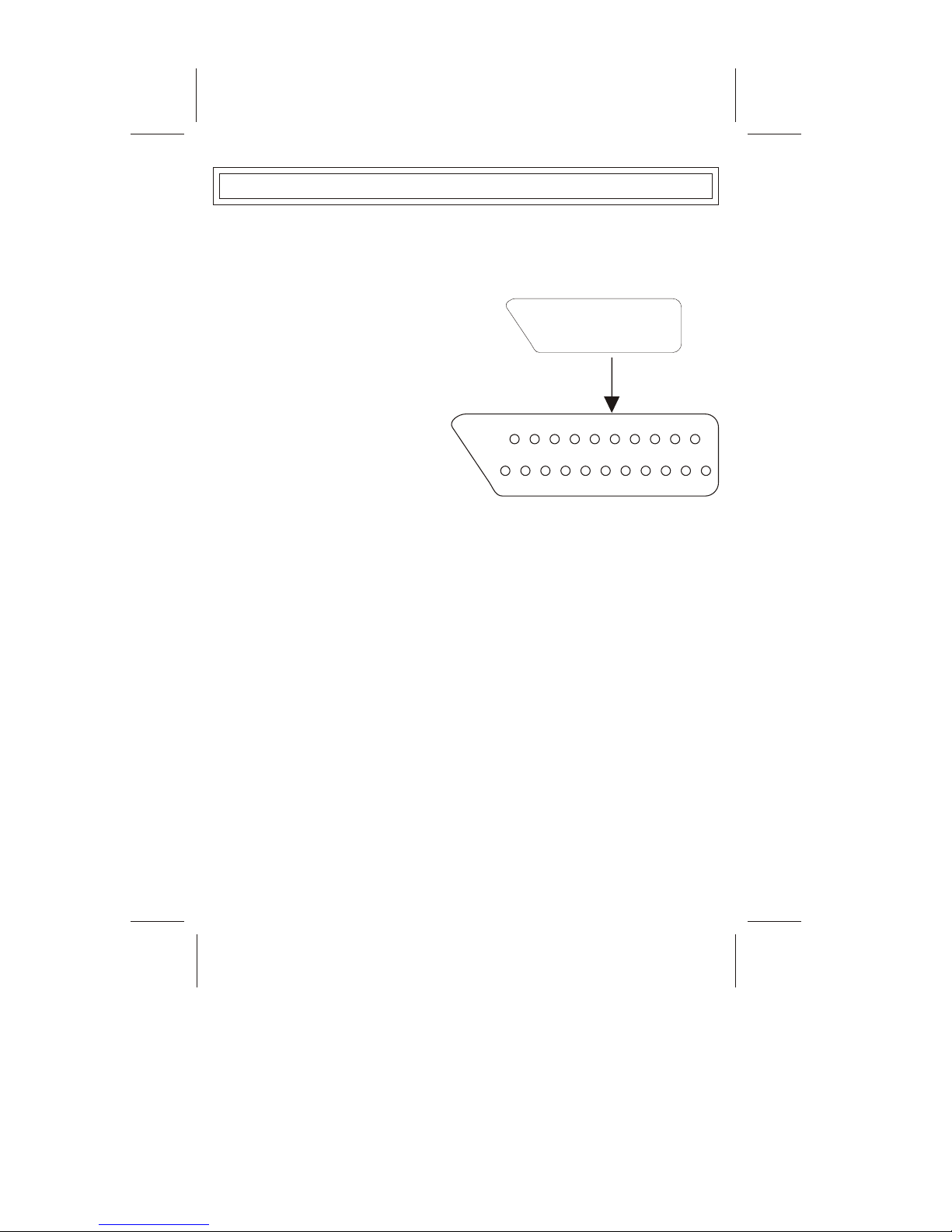

INPUT AND OUTPUT TERMINALS

1. Audio Out

Right channel Audio out

2. Audio In

Right channel Audio in

3. Audio Out

Left channel Audio out

4. Ground "Audio"

5. Ground of luminance signal "Blue"

6. Audio In

Left channel Audio in

7. Luminance signal input "Blue"

8. Video switching voltage

9. Ground of luminance signal "Green"

10. No Connection

11. Luminance signal input "Green"

12. No Connection

13. Ground of luminance signal "Red"

14. Ground

15. Luminance signal input "Red

16. R.G.B. switching voltage

17. Ground "Video"

18. Ground of switching input

19. Video Out

20. Video In

21. Ground chassis

21 19 17 15 13 11 9 7 5 3 1

18 16 14 12 10 8 6 4 2

It can be connected to the following appliances: video-tape recorder, video camera, tape recorder and

audio amplifier, etc.....

*Please keep AC cord unplugged when connecting TV system.

-3-

-4-

OPERATION INSTRUCTIONS

PRESET

CHANNEL 00

SKIP OFF

BAND V-L

ASM.SIF 6.5M

FINE

ASM

1. CHANNEL

In this item, you can store the channel number which are watching, and change

the channel number by VOL.+/- Buttons (or number keys).

2. SKIP

You can set "ON" by VOL.+/- Buttons if you want to cancel the channel number

which you are watching.

3. BAND

You can select V-L, V-H or UHF.

4. ASM.SIF

You can select 6.0M, 4.5M, 6.5M or 5.5M.

5. FINE

To tune in weak station this item must be used.

6. SEARCH

Press VOL.+/- Buttons to start searching. The VOL- button searches for lower-

numbered channels; the VOL+ button for higher-numbered channels. When a

TV station signal is received ,the searching will stop.

7. ASM

Press VOL.+/- Buttons, then the TV set will automatically search from V-L band

to U band.

2.After enters each menu, you can select the item which you will adjust by PROG.+/- buttons, and adjust

this item by VOL. +/- buttons.

*The item which you select will change blue.

Preset menu


BRIGHTNESS

CONTRAST

COLOR

SHARPNESS

TINT

You can select BRIGHTNESS, CONTRAST, COLOR, SHARPNESS, and TINT

item by PROG.+/- Buttons , and adjust the item which you select by

VOL.+/- Buttons.

*TINT is displayed only for NTSC and is not available for PAL or SECAM.

Picture menu

Preset Menu Picture Menu System Menu Exit Menu

MENU BUTTON

1.Press this button to select menu. PRESET, PICTURE, SYSTEM ,and TIME menu can be selected

cyclically.

Time Menu

Turn the TV set on, then power indicator will light up. Press the program up or down button on the TV

set,or press the on/off button on the remote control.The picture will appear after a few seconds . (If tuned

on) The program number is displayed on the top right-hand corner of the screen.

-5-

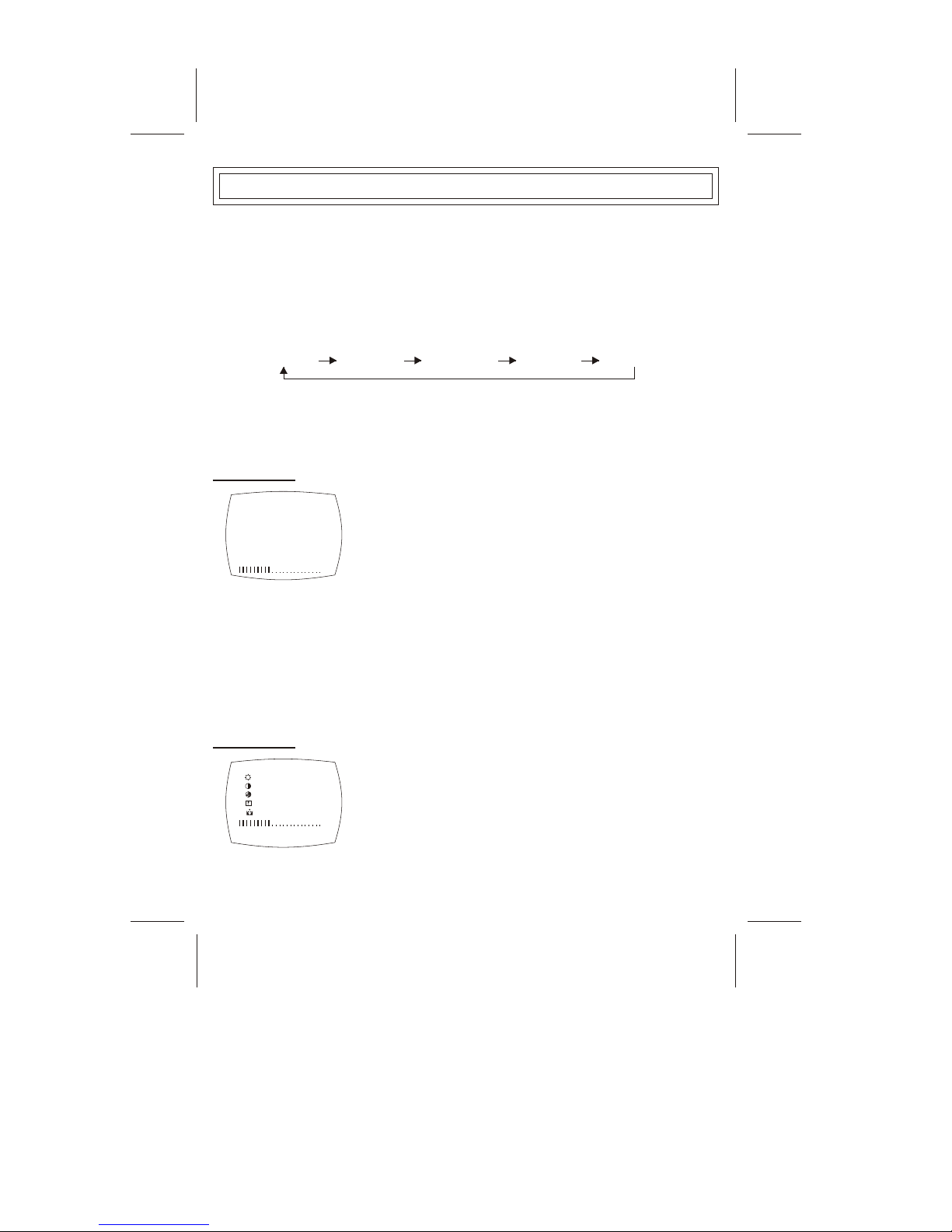

OPERATION INSTRUCTIONS

SELECTING PROGRAM

Use 0-9 digit buttons to call directly on the program number that you want. If you want to select a double digits

program number , firstly press "- / - -" button, then input the two digits.

Program number can also be changed by "PROGRAM DOWN" and "PROGRAM UP" buttons. Press

"PROGRAM UP" button, program number will increase. Press "PROGRAM DOWN" button, program number

will decrease.

CHILD LOCKED

The TV set can provide the locked key for control or prevent your children from watching the program.

SET CHILD LOCKED:

Press the "LOCK" button on remote unit.The key locked ( ) is displayed on the screen. Then the

symbol will disappear after five seconds and enter child locked mode. You can't use any key on the TV set.

RELEASE CHILD LOCKED:

You can cancel this mode by pressing the 'LOCK" button again.

TIME

CLOCK

TIMING OFF

TVON

TVOFF

AWOKE OFF

AWTIME

_ _:_ _:_ _

_ _:_ _

Time menu

1. CLOCK

You can adjust the currently time by this item. Press the VOL+button set

hour , and the VOL-button set minute .

2. TIMING

If you set the item is TIMING ON , you can set the time of TV ON and TV

OFF .

3.TV ON

Set the time when the TV set turn on .

4.TV OFF

Set the time when the TV set turn off .

5.AWOKE

Selecting AWOKE ON , you can set the AWTIME item.

6.AWTIME

Set the awake time that you want . If you set the AWTIME is 12:00, The

CATCH TIME11:58:00¡±will display on the screen for awaking you .It will

disappear from the screen until¡°CATCH TIME 12:00:00¡±.

System menu

1. COL.SYS

You can change present color system in this item.

2. SIF.SYS

You can change present sound system in this item.

3.BLUE BACK

Blue back function can be opened by setting this itemON.

4.LOGO

You can see the brand logo as you turn the Tv set on ,by setting this item£¢

ON.

SYSTEM

COL.SYS AUTO

SIF.SYS 6.0M

BLUE BACK ON

LOGO ON

-6-

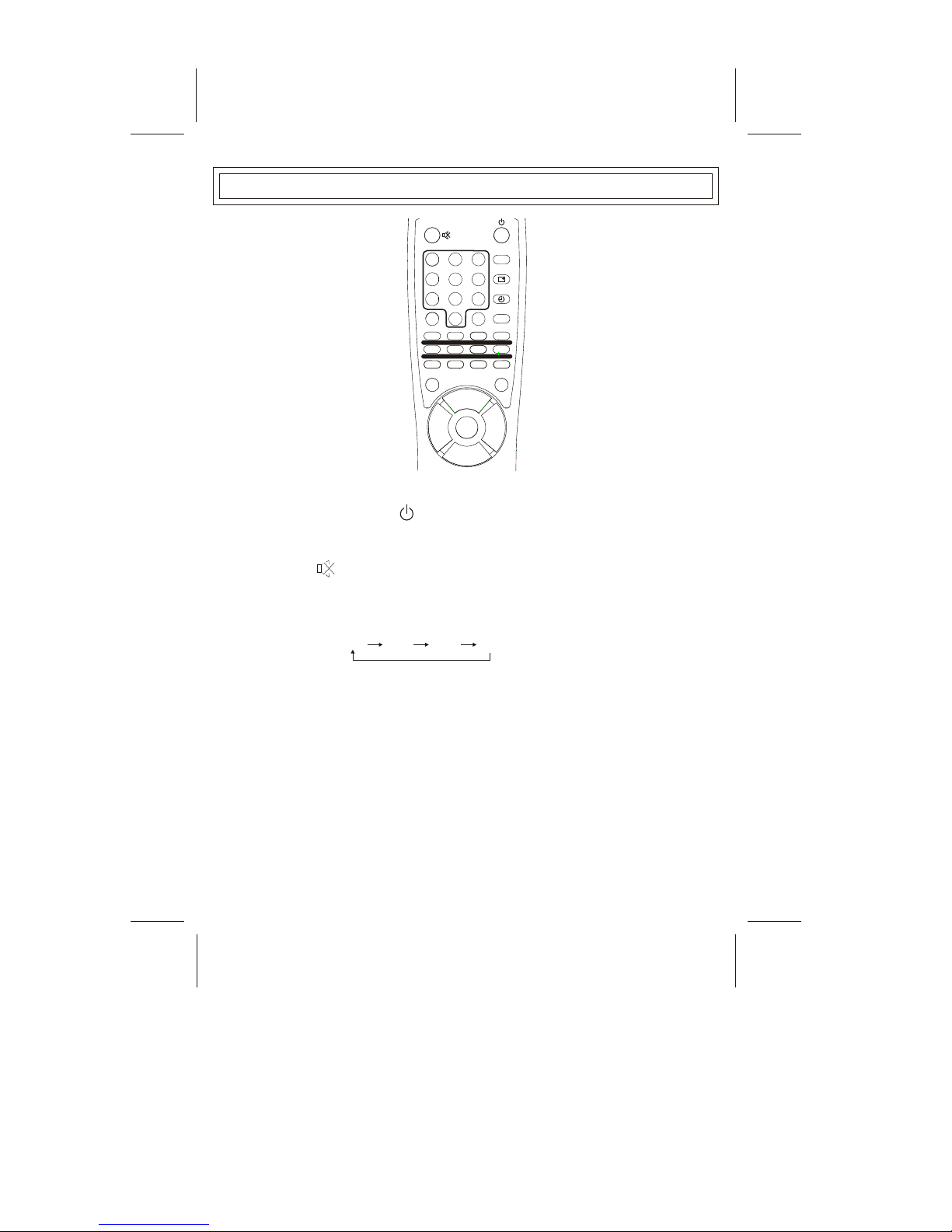

LOCATION OF CONTROL (REMOTE HANDSET UNIT)

POWER (STAND BY) BUTTON ( )

Press this button to turn the TV on/off. Press any Number Button or Program Up/Down Button, picture and

sound will come on within a few seconds.

PROGRAM SELECTION BUTTONS (0-9, -/--)

Push the number for your desired program and the program indicator will be displayed on the screen.

Press -/-- key to select one digit or two digit entry, to select program 0-9, use one digit entry, to select 10-

99 use two digits entry.

Press number key 0-99 for program selection.

Press the number keys to select teletext pages in teletext mode.

MUTE BUTTON( )

Press once to mute the sound, press again to return to previously set sound level.

SOUND SYSTEM BUTTON (SYS)

Press this button to select the correct sound system.

5.5M 6.0M 4.5M 6.5M

PROGRAM UP/DOWN BUTTON (PROG +/-)

Press the Program Up Button to select the program forwards.

Press the Program Down Button to select the program backwards.

(Use this button for Page Up/Down to increase/decrease page number in TELETEXT mode.)

112233

5566

PROG.+

PROG.-

VOL.+VOL.-

SYS

P.P.P.P.

VIEW LOCK

OFFOFF ON/MIXON/MIX SUB.PAGESUB.PAGE

INDELINDEL

SIZESIZE STOPSTOP CLOCKCLOCK

REVEALREVEAL

- -/- - -

A.V.

-7-

LOCATION OF CONTROL (REMOTE HANDSET UNIT)

SLEEP BUTTON( )

This key is used to set the sleep timer in 15 minutes step up to two hours. When the preset time runs to 0.

TV set will go into stand by mode. To switch off this function, press this key step by step until " --" is

displayed on the screen.

LOCK BUTTON

The key is to prevent a child watching the TV, please refer to page 5 for the details.

A.V. BUTTON

Press this button to display external video signal such as VCR or CD video player. AV will be displayed on

the screen. Press this button again to switch back to TV signal from AV.

MENU BUTTON (MENU)

Use "MENU" button for tuning procedure, please refer to page 4-5 for the details.

RECALL BUTTON( )

Press this button sequentially to recall for the program number, color system and sound system on the

screen.

QUICK VIEW BUTTON (Q.VIEW)

Press this button to return to the previously viewed program.

VOLUME UP/DOWN BUTTONS (VOL+/-)

Press Volume Up/Down Buttons to adjust sound level.

PERSONAL PRESETS BUTTON (P.P.)

You can select DYNAMIC, MILD, COLORFUL, STANDARD and CUSTOM by pressing this button.

-8-

LOCATION OF CONTROL (REMOTE HANDSET UNIT)(TELETEXT OPTION)

SIZE (OPTION)

The top or bottom half of any page can be enlarged teletext character size to double height by pressing

this button.

STOP (OPTION)

Stop page acquisition on current page to prevent text to be updated.

SUBPAGE BUTTON (SUBPAGE) (OPTION)

Page number may contain several subpages which are automatically paged in a certain cycle by the TV

station. Press this button once. "0001" will by displayed on screen, enter number key (0-9) to look for other

subpages if available. If these is no subpage, "****" will be displayed. To cancel this, press this button

again.

COLOR BUTTONS (RED, GREEN, YELLOW, BLUE)(OPTION)

In teletext mode, the same color page number which is on the bottom of screen will respond to pressing

these color keys.

INDEX (OPTION)

INDEX page or P100 will be requested.

CLOCK(OPTION)

Display the time on the top right corner of the screen.

REVEAL (OPTION)

Display hidden characters. Press this button repeatedly to switch between "CONCEAL MODE" and

"REVEAL MODE"

Conceal mode will always be resumed when any of the teletext key is pressed except "REVEAL" key.

OFF and ON/MIX BUTTON (OPTION)

You can select the following modes by pressing these buttons.

*The above buttons are applicable only to Teletext models.

REVEAL MODE

TELETEXT ON MIX MODE TELETEXT OFF

CONCEAL MODE

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Denver Fernseher Handbücher

Denver

Denver TVD2101 Bedienungsanleitung

Denver

Denver DTX-2128 Bedienungsanleitung

Denver

Denver DTX-2910 Bedienungsanleitung

Denver

Denver TVD2101 Bedienungsanleitung

Denver

Denver TVD-1404 Bedienungsanleitung

Denver

Denver DTX-1426 Bedienungsanleitung

Denver

Denver LED-3264MC Bedienungsanleitung

Denver

Denver DTV-540 Bedienungsanleitung

Denver

Denver TVD-2148 Bedienungsanleitung

Denver

Denver DTN-2822 Bedienungsanleitung

Denver

Denver TVD-1410 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
