Smart EntryTM

Model 20083 / 25583

Model 20084 / 25584

Installation Manual

7955 Cameron Brown Court

Springfield, Virginia 22153 USA

Tel: 703-866-2000 ; Fax: 703-866-2001

Page 2 20083 / 20084

Congratulations on your purchase of the Smart Entrytm from DesignTech.

Smart EntrytmProtects You:

Lock and unlock your doors & trunk by remote control.

Optional Features Include (external relays necessary):

Car Locator

Remote Panic/Rescue alarm

Turn on your domelight by remote control.

Starter-kill to prevent vehicle from being stolen.

Additional alarm input for other sensors.

Passive or active operation (also locks doors).

This system allows for a very quick installation using the generic harness (part

#27004)orwith'plug-in'vehiclespecificharnesses. Thetransmitterwhichcomes

withtheunitisalreadyprogrammedtothereceiverandincludesalonglifelithium

battery that will last many years.

CONTENTS: Model

20083 20084

25583 25584

Smart Entrytm Module YES YES

Transmitters (3 button) 1 1

Parts Baggie Yes Yes

Type of Lock and Unlock Outputs Transistor Relay

Contained in the baggie:

4 cable ties

2 "Protected by DesignTech" window stickers

ToolsRequired:

Set of screw drivers Drill and 1/2" drill bit for switch hole

Wire cutter and strippers Crimping tool

Soldering iron and solder Test / Volt meter

Smart Entrytm model 20084 has 2 built-in relays to control Lock and Unlock.

All other outputs are negative transistor outputs (-400mA) and require external

relays.

20083 / 20084 Page 3

1. Mounting and Connecting the module:

The information that follows shows the generic wire harness list. Custom har-

nesses designed to plug into specific vehicles are available and are separately

listed.

Screws or cable ties may be used for mounting the module in the driver's left kick

panel area. We recommend mounting after everything has been completed and

tested fully. Be sure to leave access to the LED and white push button on the side

of the case for programming.

Make sure that the white antenna wire is as straight as possible and not likely to

be touching any moving parts. Make sure not to let this white antenna wire touch

metal ground as this will severely impede transmitter range.

A description of each wire for the GENERIC Harness

(Model #27004) is as follows:

2. BLACK Chassis ground. (strip off 1/2" of insulation of the end of the

wire and screw to the metal frame in the kick panel area).

3. RED +12 volts constant such as the ignition power feed in the steer-

ing column area. (15 amp fuse must remain in-line).

STEP COLOR WIRE FUNCTION

Page 4 20083 / 20084

4. RED/BLACK This is the On/Off Control switch wire. This switch will al-

ready be connected to the harness. You will notice that one

side of the switch goes to the Red/Black wire and the other

side of the switch to Ground.

5. ORANGE Ignition input -- connect to an ignition wire which has +12

volt when key is in the ignition (normal running) position but

has no voltage when the key is out.

6. GREEN/WHITE Trunk or Auxillary output. For Trunk your vehicle must

have an electric trunk release. This is a negative transistor

output (-400mA) - you must use an external relay (not sup-

plied) when hooking up this wire. See Page 9 for a detailed

hook-up using a relay.

7. VIOLET Optional Starter Kill, Dome Light or Headlight transistor out-

put (-400mA). This wire must drive an external relay. See

Step 14 for details on setting these options.

8. BLUE Horn/Siren. This is a transistor output (-400 mA) which can

be used to drive an external relay which in turn can power a

horn or a siren. See programing options for changing this

output from horn to siren mode.

9. GRAY Optional alarm input. You can hook this wire to the vehicle's

door pin switch so that when the door is opened the alarm will

sound if the system is armed. This input is assuming negative

polarity. You must use a relay to switch the polarity on posi-

tive pin switch vehicles. You can also add additional alarm

sensor inputs -- such as a shock sensor -- to this wire. If you

add more than one input to this wire be sure to diode isolate

each input as shown here.

20083 / 20084 Page 5

10. ForthefollowingLock/Unlockwires --seetheseparateGREENSHEET

for vehicle wiring colors and locations as well as for instructions for

hook-up.

For Model 20083/25583: These are transistor outputs (-400mA) and must

drive relays. (Many Japanese vehicle can be driven directly from these nega-

tive transistor outputs).

WHITE/RED Lock transistor (-) output

WHITE/GREEN Not Used

YELLOW/RED Unlock transistor (-) output

YELLOW/GREEN Not Used

RED/WHITE Not Used

For Model 20084/25584: These are relay outputs.

WHITE/RED Lock Common relay output (Pin 30 of the on-board relay)

WHITE/GREEN Lock Normally Closed relay output (Pin 87a of the on-board

relay)

YELLOW/RED Unlock Common relay output (Pin 30 of the on-board re-

lay)

YELLOW/GREEN Unlock Normally Closed relay output (Pin 87a of the on-

board relay)

RED/WHITE Lock/Unlock relay polarity input -- must be hooked up.

(normally open, Pin 87 contact for both relays)

11. Plug the harness into the module at this time. Note that upon first power

up -- the red LED light on the module flashes once and gives you a 5 second

window to enter into the Transmitter Code Learning mode described toward the

end of the manual. After 5 seconds, the led flashes 4 short times to indicate the

end of transmitter code learning mode and the start of normal operation.

12. Mount the switch: Drill a 1/2" hole and mount the switch in a

convenient location for the user. Make sure the dot on the switch is facing

upward for correct orientation of up being 'On'.

Page 6 20083 / 20084

13. TRYING OUT THE UNIT:

Always keep one window rolled down to avoid locking yourself out of the vehicle.

Your transmitter has already been factory coded to the Smart Entrytm . (If it does not

trigger any of the following functions, and you have already checked your connections,

follow the steps for Transmitter Code Learning at the end of the manual.) Generally,

the transmitter button should be held down until the Smart Entrytm unit responds

with the desired feature.

Button 1: Hold for one second -- Lock and Arm (One chirp, if hooked up)

Button 2: Hold for Onesecond -- Car Locator (Brief Horn/Siren sound, if

hookedup)

Hold fortwo seconds -- Panic (45 second horn/alarm sound, if

hookedup)

Button 3: Hold for onesecond -- Unlock and Disarm (Two chirps, if

hookedup)

Hold for two seconds -- Pop the trunk

NOTE: If the alarm is sounding -- Button 2 held for 2 seconds will turn off the

alarm. Also, when you disarm the alarm -- it will give 4 chirps if the it

has alarmed since the last time it was armed.

20083 / 20084 Page 7

14. PROGRAMMING OPTIONS:

There are 4 options which can be set as described in the Programming Method section

following this section.

A. Horn-vs-Siren (Factory setting is Horn)

This product gives you the option of having a pulsed output for a car horn or a

constant output for a siren.

B. Lock Follow Ignition (Factory setting is "No Lock Follow Ignition")

This option will automatically lock the doors 2 seconds after the car is started,

and will automatically unlock the doors when the key is removed from the igni-

tion.

C. Passive vs Active Arming (Factory setting is Active Arming)

In the Active arming mode -- the alarm will not arm until you Lock the doors

with the Left button on the transmitter -- 1 chirp will be heard for arming.

Passive arming will arm and lock the vehicle 25 seconds after the key has been

removed from the ignition and all of the doors have been closed. You must still

disarm the system in both modes with the keychain transmitter's Left button -- 2

chirps will be heard for disarm. In passive arming the system will arm the door

pin switch, activate starter-kill, and Lock the doors 25 seconds after the ignition

is turned off AND the alarm has seen the last door close. Pushing the Left button

on the transmitter to control lock will override this passive feature. NOTE: The

doors will automatically Lock after the 25 seconds time.

D. Violet Wire Options: Starter Kill / Domelight / Headlight.

(Factory setting is Starter Kill). If you do not want Starter Kill, this VIOLET

wire can be set for two different functions -- Domelight or Headlights. In the

Dome light mode, the output comes on each time the door is unlocked with the

Right button -- and stays on for 25 seconds or until the ignition key is turned on.

In the Headlights mode the headlights will come on along with the horn/siren

during lock/unlock, panic and alarm. See Option 4 of the Programming Options

on the next page for setting these options.

Page 8 20083 / 20084

15. PROGRAMMING METHOD:

This section will set or reset any of the four options.

1) Turn the Control Switch (the toggle switch) OFF (down). (The switch has a

dot on the side which is the ON position).

2) Push the white button on the side of the case of the receiver and the red LED

will flash once letting you know you are in option 1. Push the white button

again to scroll to option 2 (the LED will flash twice) and again for option 3

(the LED will flash 3 times) and again for option 4 (4 flashes) -- then back

to option 1 again if necessary.

3) When you are at the option you want to change -- simply press the Left,

Middle or Right button on the transmitter to choose the function you want.

After a few seconds of holding the transmitter button down -- the red LED

on the receiver will come on signifying acceptance of new option -- then you

can release the transmitter button and push the white button again to scroll

to the next option or wait 5 seconds for this routine to exit out.

Transmitter Button to be pressed

Left Middle Right

Option 1: Lock Follow Ignition

“No Lock Follow Ignition” X

“Lock Follow Ignition” X

Option 2 Passive vs Active Arming

Active X

Passive X

Option 3: Horn vs Siren

Horn X

Siren X

Option 4: Function of Violet Wire

Starter Kill X

Dome Light X

Headlights X

20083 / 20084 Page 9

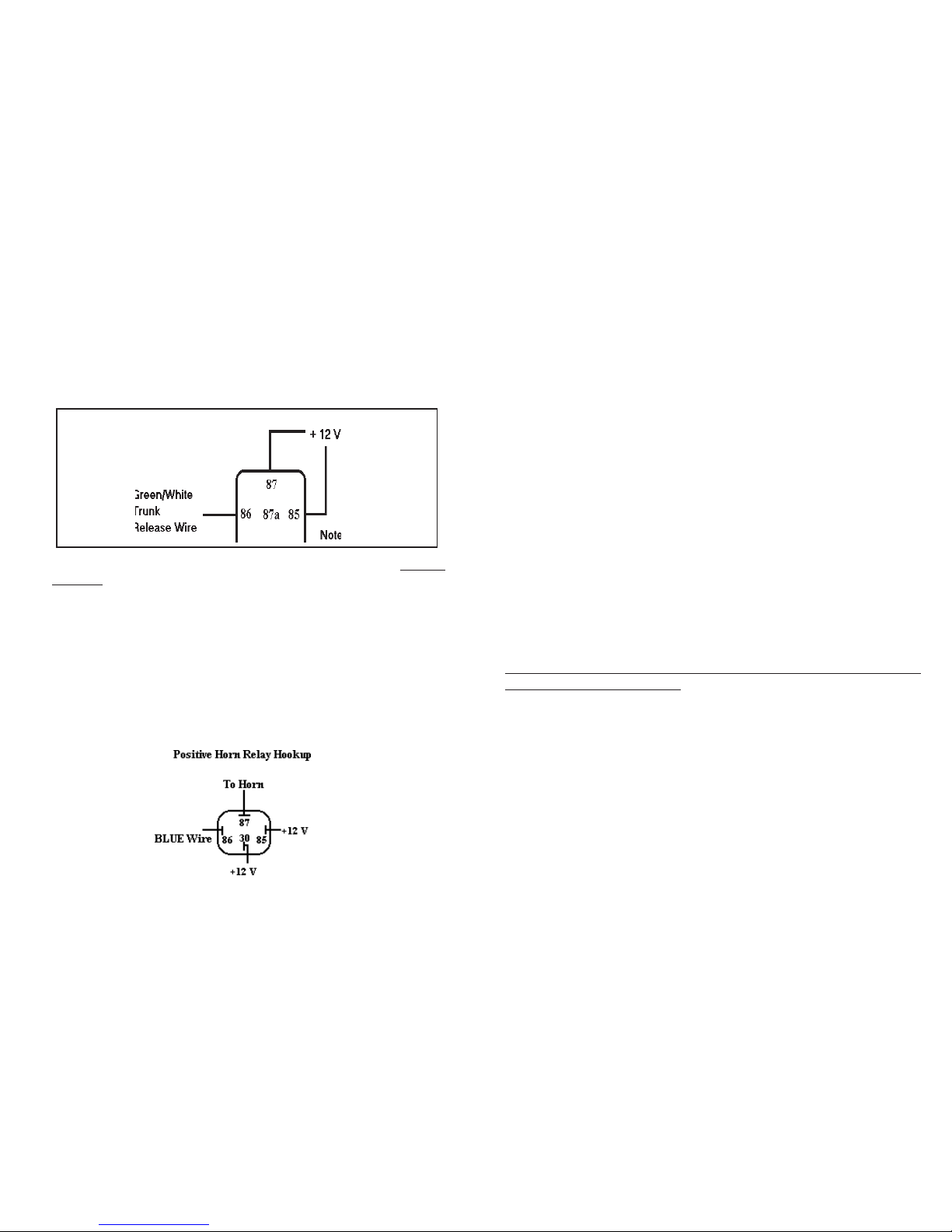

16. Example of optional Trunk hookup using an external relay:

Take a relay with 10 amp or higher capacity and a 12 volt coil. Locate the

push button for the trunk (usually in the glove compartment). You will

noticetwowiresbehindthis push button switch. Connect the Smart Entry's

Green/White Trunk wire to one side of the relay coil and constant +12

volts to the other side of the coil. Both the Common and Normally Open

contacts of the relay go to the push button switch:

If you are using one of the automotive industry standard relays like the Bosch 30

amp relay -- the connections would be as follows:

Pin 85 (Positive side of relay's coil) +12 volts constant

Pin 86 (Negative side of relay's coil) Green/White wire

Pin 30 (Relay's common contact) One side of the trunk push button wire.

Pin 87 (Relay's normally closed contact) The other side of the trunk

push button wire.

Example of Horn hookup using an external relay:

Take a relay with 10 amp or higher capacity and a 12 volt coil. This example

shows a Bosch 30 Amp relay being used.

Page 10 20083 / 20084

17. Transmitter Code Learning: Your Smart Entry module comes

factory coded to one of 16 million different codes and is already programmed. If

you unit does not respond to your transmitter in any way after checking the con-

nections, or you want to have additional transmitters (up to 4) to trigger your

Smart Entry module -- follow the following directions:

1. Disconnect power for 5 seconds. Re-apply power.

2. Within 5 seconds, push the white button on the side of the Smart Entry

(the red LED will flash twice) then push and hold the left button on the

transmitter for 5 seconds until the red LEDon the receiver comes on -

- stop pushing transmitter button.

3. If you have a 2nd transmitter, within 5 seconds push the left button for

a few seconds until the red led on the receiver comes on. Release

transmitter button. Repeat for up to 4 total transmitters.

4. Wait 5 seconds for receiver to exit out of code learning mode -- the red

led on the receiver flashes 4 times.

Note: Teaching the module a new transmitter code will erase all previ-

ously learned codes -- so all transmitters must be taught.

Ifyouhavelost your transmitter and the alarmisarmed,itcanbeturned off

as follows using the valet switch:

1. Insert your key into the vehicle ignition and turn to the "run" position.

2. Toggle the valet switch four times off and on and the alarm will disarm.

For any technical assistance regarding this product you may call DesignTech on our

toll-free telephone number - (800) 337-4468.

20083 / 20084 Page 11

7955 Cameron Brown Court; Springfield, Virginia 22153 USA

Tel: 703-866-2000 ; Fax: 703-866-2001

OTHER ACCESSORIES

A. Extra transmitters for more than one user in the family. Up to four transmitters can be

used with each Smart Entrytm.

B. Garage Door Receiver Unit will allow Your Smart Entrytm transmitter to operate an

electric garage unit.

C. You can remotely control your vehicle with our AutoCommand model 20022.

These products are available through your dealer or directly from DesignTech :

3 button transmitter 20061 $49.95

AutoCommand remote starter 20022 $149.95

30 amp relay 20043 $9.95

Siren 20400 $49.95

Shock Sensor 20610 $49.95

Transmitter batteries 20059 $7.95

Universal Garage Door Module 30021 $49.95

All prices are in US Dollars and include shipping and handling.

Page 12 20083 / 20084

LIMITEDWARRANTY

DesignTech International,Inc. Warrants tothe originalconsumer/purchaser that this product shall be free

ofdefects in material andworkmanship under normal use and circumstances for a periodof two (2) years

from the date of original purchase for use. When the original consumer/purchaser returns the product to

DesignTech International Inc., 7955 Cameron Brown Court, Springfield, Virginia 22153 within the war-

ranty period, and if the product is defective DesignTech International, Inc. will at its option repair or

replacesuch.

This warranty shall constitute the sole liability of DesignTech International, Inc. concerning the product.

DesignTech International, Inc. expressly disclaims all otherwarranties INCLUDING, WITHOUT LIMI-

TATION, THE WARRANTIES OF MERCHANT ABILITY AND FITNESS FOR A PARTICULAR

PURPOSE. NO PERSON, FIRM , OR CORPORATION IS AUTHORIZED TO ASSUME FOR

DESIGNTECH INTERNATIONAL, INC. ANY OTHER LIABILITY IN CONNECTION WITH THE

SALE AND USE OF THE PRODUCT. DesignTech International, Inc. and agents and distributors will

bear no liability whatsoever for incidental or consequential damages or charges of any kind.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above

disclaimer regarding incidental or consequential damages may not apply to you.

This warranty shall be effective only if the registration card is fully completed and mailed with proof of

purchase to: DesignTech International, Inc., 7955 Cameron Brown Court, Springfield, Virginia 22153

within ten (10) days after date of purchase.

This warranty is void if the product or has been damaged or tampered with or if the product or any such

parts have been opened. In all cases of damage during shipment, a claim must be filed with the shipping

carrier and not with DesignTech International, Inc.

Thiswarranty gives you specificlegal rights; you may also have other rights whichvary from state to state.

OUTOF WARRANTY REPAIRS

DesignTech International, Inc. will at its option either (1) replace this product with a functionally similar

(butnot necessarily visually identical) refurbishedproduct or (2) repair the original product and return it to

theoriginal consumer/purchaser C.O.D. covering all reasonable repair or replacement chargesif the prod-

uct is returned prepaid to DesignTech International, Inc., 7955 Cameron Brown Court, Springfield, VIR-

GINIA 22153, after the two year warranty period has expired.

__________________________________________________________________________

This registration card must be returned within ten (10) days of purchase.

NAME__________________________________________________User's Age_________

ADDRESS________________________________________________________________

________________________________________________________________________

City State Zip

PLACE OF PURCHASE_________________________DATE OF PURHASE____________

Product Purchased: _____model 20083/25583; ______model 20084/25584

Purchasedfor : __________YOURSELF _________SPOUSE

__________OTHER FAMILY MEMBER _________FRIEND

Where did you learn about this product?__________________________________________

Vehicle Make:__________________Vehicle Model:________________Year:____________

___________Please send me FREE information on other innovative DesignTech products.

DesignTech International, Inc.

7955 Cameron Brown Court, Springfield, Virginia 22153

Tel: (703) 866-2000 Fax: (703)866-2001

Inhaltsverzeichnis

Andere DesignTech Sicherheitssystem Handbücher

DesignTech

DesignTech Mail Alert 30303 Bedienungsanleitung

Beliebte Sicherheitssystem Handbücher anderer Marken

Inner Range

Inner Range Concept 2000 Bedienungsanleitung

Climax

Climax Mobile Lite R32 Montageanleitung

CADDX

CADDX NX-6 Bedienungsanleitung

FBII

FBII XL-31 Series Bedienungsanleitung

Johnson Controls

Johnson Controls PENN Connected PC10 Bedienungsanleitung

Aeotec

Aeotec Siren Gen5 Bedienungsanleitung

Blaupunkt

Blaupunkt SA 2700 Bedienungsanleitung

IDEAL

IDEAL Accenta Betriebsanleitung

AJAX

AJAX DoubleButton Bedienungsanleitung

Swann

Swann SW-P-MC2 Bedienungsanleitung

Ecolink

Ecolink Siren+Chime Bedienungsanleitung

Digital Monitoring Products

Digital Monitoring Products XR150 Bedienungsanleitung

EDM

EDM Solution 6+6 Wireless-AE Bedienungsanleitung

Highway Safety Group

Highway Safety Group EA401 Bedienungsanleitung

Siren

Siren LED GSM Bedienungsanleitung

Detection Systems

Detection Systems 7090i Montageanleitung

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Bedienungsanleitung

Siemens

Siemens FDM273 Bedienungsanleitung
