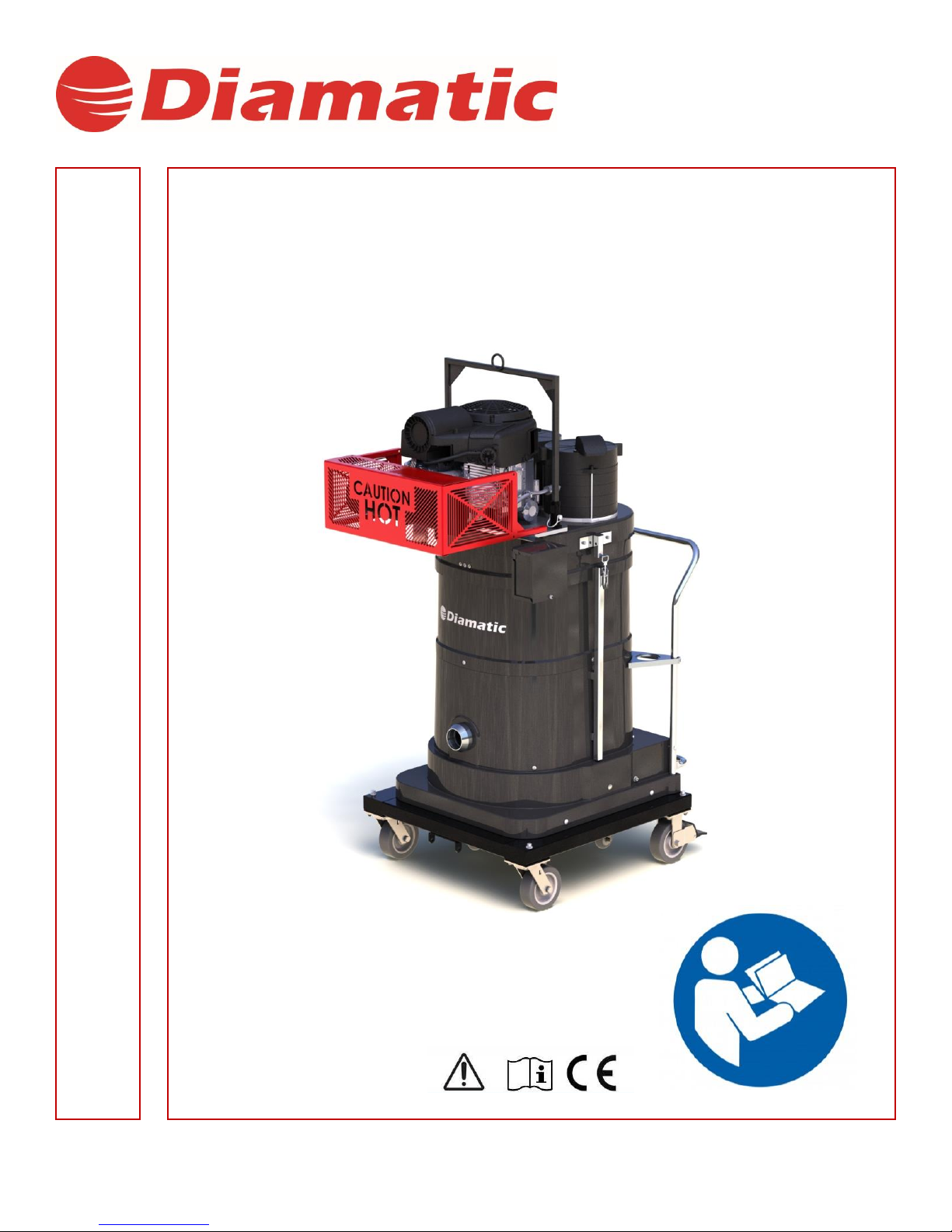

Diamatic BDC 1115-P Bedienungsanleitung

The Choice of Professionals                                                                                   

                                                                                                          

www.diamatic.usa info@diamatic.usa

Operating Instructions

BDC 1115-P

Original Operating Instructions

Version 1.0

Diamatic

622 Grant Rd

Folcroft, PA 19032

Tel: +1 619-295-0893

The Choice of Professionals                                                                                   

                                                                                                          

www.diamatic.usa P a g e | 2 info@diamatic.usa

Table of Contents

1.Introduction ---------------------------------------------------------------------------------------------------------------------------3

2.Machine Description ----------------------------------------------------------------------------------------------------------------4

3.Safety------------------------------------------------------------------------------------------------------------------------------------5

General Safety Warnings:---------------------------------------------------------------------------------------------------------5

1115-P Instructions, Grounding Instructions: -------------------------------------------------------------------------------5

Grounding Check --------------------------------------------------------------------------------------------------------------------5

4.Engine Emissions and CO Safety--------------------------------------------------------------------------------------------------6

Potential Effects of CO Exposure -----------------------------------------------------------------------------------------------6

Methods to Reduce the Risks of CO Poisoning -----------------------------------------------------------------------------6

Potential Effects of CO Exposure -----------------------------------------------------------------------------------------------7

Methods to Reduce the Risks of CO Poisoning -----------------------------------------------------------------------------8

4.1 Work Area Safety ------------------------------------------------------------------------------------------------------------ 13

4.2 Personal Safety --------------------------------------------------------------------------------------------------------------- 13

4.3 Machine Safety General----------------------------------------------------------------------------------------------------14

4.4 Maintenance Safety --------------------------------------------------------------------------------------------------------- 14

4.5 Safety Regarding DustCollectors ---------------------------------------------------------------------------------------- 14

4.6 Transport Safety-------------------------------------------------------------------------------------------------------------- 15

5.Initial Operations-------------------------------------------------------------------------------------------------------------------15

5.1 Checkpoints of Electrical Safety------------------------------------------------------------------------------------------ 15

5.2 Checkpoints of Machine Safety ------------------------------------------------------------------------------------------ 15

5.3 Pretreatment of Filters -----------------------------------------------------------------------------------------------------15

6. Tool Tips for BMG-1115-P -------------------------------------------------------------------------------------------------------16

6.1 Start Up ------------------------------------------------------------------------------------------------------------------------- 16

6.2 Shut Down --------------------------------------------------------------------------------------------------------------------- 16

7.Start Up:------------------------------------------------------------------------------------------------------------------------------ 17

7.1 Standard Filter Inspection: ------------------------------------------------------------------------------------------------ 17

8.Inspection and Maintenance----------------------------------------------------------------------------------------------------- 18

8.1 Standard Filter Inspection: ------------------------------------------------------------------------------------------------ 18

8.2 Standard Filter Replacement Instructions:---------------------------------------------------------------------------- 19

8.3 HEPA Maintenance: ---------------------------------------------------------------------------------------------------------20

8.4 Belt Inspection: --------------------------------------------------------------------------------------------------------------- 21

8.5 Belt Replacement: -----------------------------------------------------------------------------------------------------------21

8.6 Belt Tensioner:---------------------------------------------------------------------------------------------------------------- 22

8.7 Pully Alignment:-------------------------------------------------------------------------------------------------------------- 23

8.8 Turbine Replacement: ------------------------------------------------------------------------------------------------------23

9.Troubleshooting --------------------------------------------------------------------------------------------------------------------24

10.Technical Information----------------------------------------------------------------------------------------------------------- 25

11.Electrical Schematic--------------------------------------------------------------------------------------------------------------26

12. Warranty----------------------------------------------------------------------------------------------------------------- 28

The Choice of Professionals                                                                                   

                                                                                                          

www.diamatic.usa P a g e | 3 info@diamatic.usa

1. Introduction

Before use, operators must be provided with information, instruction and training for the use of the machine and the

substances for which it is to be used, including the safe method of removal and disposal of the material collected. All persons

who are working with or maintaining this machine must read the manual carefully and understand it fully. In case you sell

the unit, hand it on to the next owner.

Keep this manual always with the machine, to enable it to be referred to at any time. Any other

work not covered by this operating manual must not be carried out.

This machine is designed for industrial use by professionals. Only authorized and trained personnel may operate this

machine. This machine is not intended for use by persons (including children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge. Diamatic USA offers a course on the use of the machine in order to make

the operating and maintenance personnel familiar with all elements of the machine.

The Choice of Professionals                                                                                   

                                                                                                          

www.diamatic.usa P a g e | 4 info@diamatic.usa

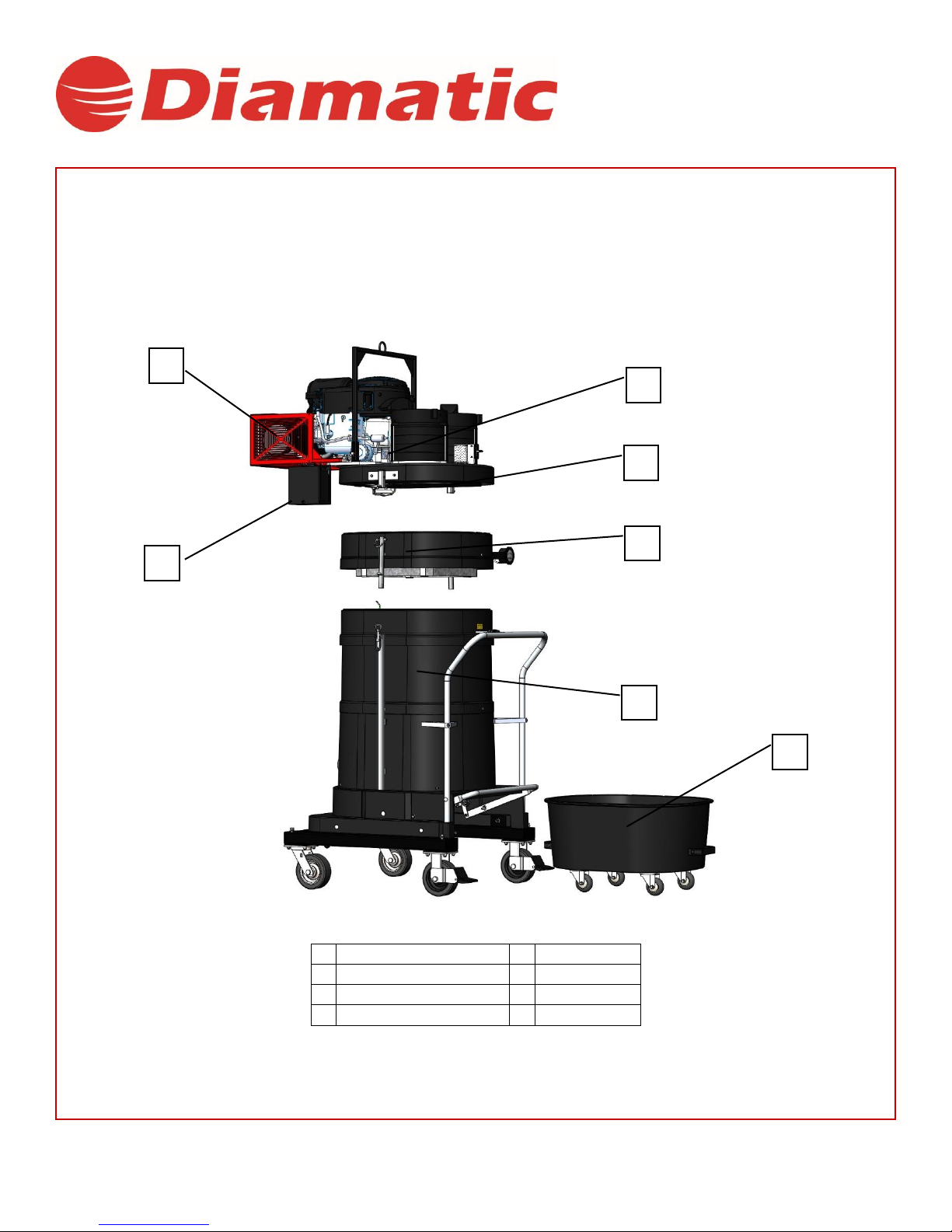

2. Machine Description

The BMG- 1115-P is a propane powered dust collector that provides a dust free environment when attached to a Diamatic

grinder or burnisher in dry grinding applications only. Utilizing microclean filtration, the 1115-P can achieve 99% efficiency at

0.5 microns. The 1115-P will produce up to 630 CFM and can run 7-8 hours on a single 33lb propane tank. Included on the 1115-

P is a detachable dust pan fitted for 24 gallons. Using the 1115-P ensures a dust free environment that provides clean air to the

workspace.

1

20 HP Propane Engine

2

Engine Deck

3

Filter Ring

4

Frame

5

Dust Bin

6

12V Battery

7

Muffler Guard

8

-------------

2

1

3

4

5

6

7

The Choice of Professionals                                                                                   

                                                                                                          

www.diamatic.usa P a g e | 5 info@diamatic.usa

3. Safety

General Safety Warnings:

a. CAUTION: Standard DIAMATIC 1115-P machines are not to be used for the removal of liquids or any volatile,

viscous, flammable or explosive media. If you are unsure about your application requirements consult your

DIAMATIC representative.

b. CAUTION: Standard DIAMATIC 1115-P machines are designed for continuous use, provided the vacuum is not

held under constant stress. If you are unsure about your application requirements consult your DIAMATIC

representative.

c. CAUTION: The components in this machine can be very heavy. Always follow safe lifting procedures.

d. CAUTION: A dust mask should be worn when working with fine materials.

e. CAUTION: Check motor direction. Vacuum can be produced while operating in both directions. A backwards

rotation will produce 40% less while heating the bearings, however. The motor should always run clockwise.

f. CAUTION: Vacuums are not design for working in classified explosion atmospheres in accordance to OSHA /

NFPA regulations.

1115-P Instructions, Grounding Instructions:

This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path

of least resistance for electrical current to reduce the risk of electric shock.

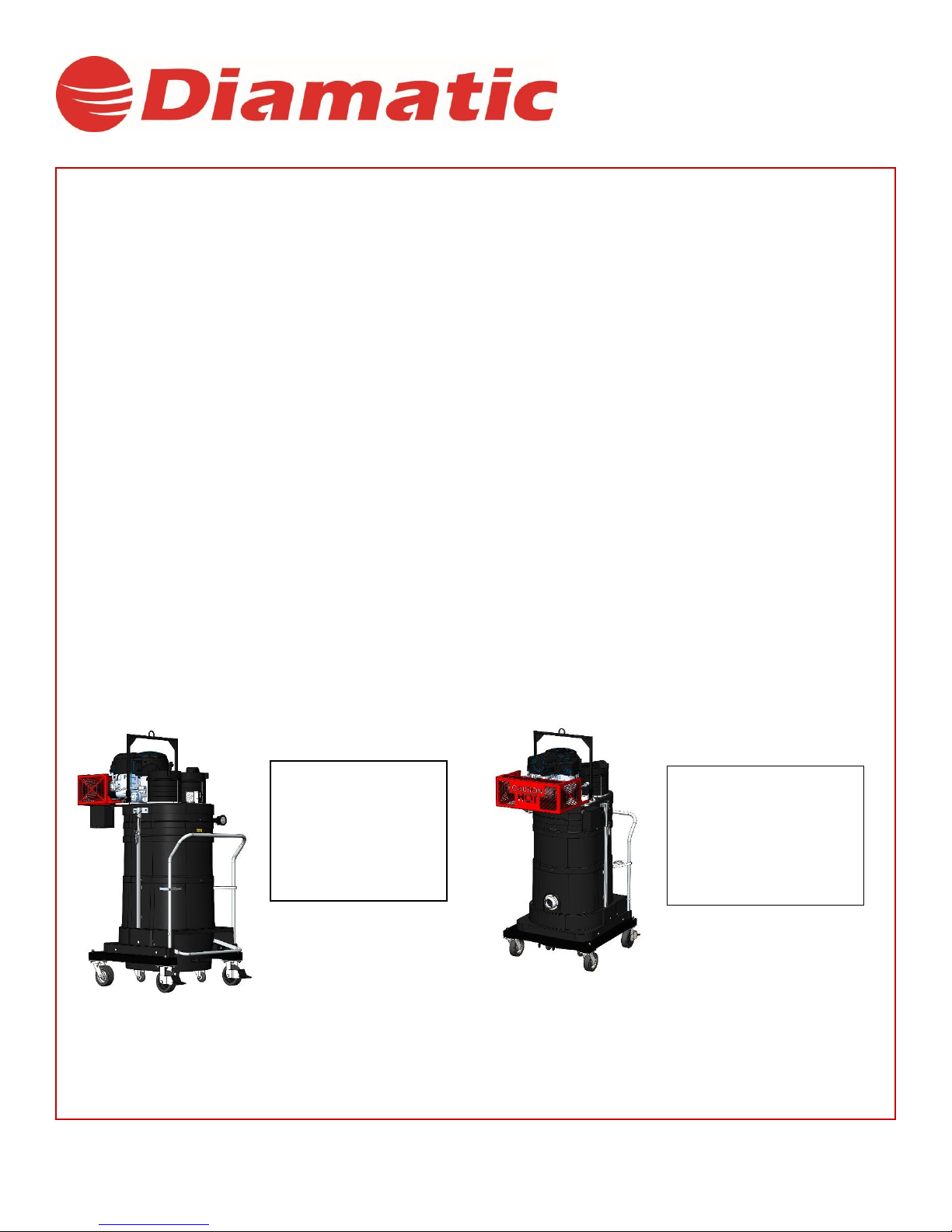

Grounding Check

•ABOUT DIAMATIC’S 1115-P AND GROUND:

oAll 1115-P are constructed of carbon impregnated fiberglass housings which dissipate static charge

oMetal components are electrically grounded through a series of internal ground wires. Grounding can be confirmed

using a standard multimeter

Note: If continuity is not found across any of these points, consult the parts manual to check that all ground wires are in

place. For further assistance, contact DIAMATIC.

Check for continuity

between the batter and

handle bar, dustpan

lever, and starter box if

applicable.

Also check for continuity

between the battery and

inlet, all four casters and

frame hardware if

applicable.

The Choice of Professionals                                                                                   

                                                                                                          

www.diamatic.usa P a g e | 6 info@diamatic.usa

4. Engine Emissions and CO Safety

The information provided in the following overview has been condensed to provide the reader with a summary of the material

presented.

Potential Effects of CO Exposure

•

Work place/industry guidelines for CO exposure limits vary substantially from region to region (OSHA)

Permissible Exposure Limit (PEL) for CO is 50 ppm, as an 8-hour time weighted average.

•

Definition of CO effects - The toxic effects of carbon monoxide in the blood are the result of tissue hypoxia (lack of

oxygen). The severity depends on the state of activity of the individual and his tissue oxygen needs.

Methods to Reduce the Risks of CO Poisoning

•

Air Exchange and CO Diffusion - CO does not mix with air on its own. Air currents can “stir” the CO and dilute the

concentration values by mixing it with the available air. When using equipment over a large area in a short time “stirring”

occurs as you walk.

•

Application Considerations (Burnishing versus Stripping) - When activity is concentrated to a smaller area as in a

stripping application, air “stirring” must be forced using fans to reduce the risk of high concentrations of CO.

•

Air Quality Monitoring –Deployment of a monitor/detector is essential for the safe operation of any equipment that

has the potential to produce CO.

•

Room Size and Time Estimations - The concentration and volume of CO production, the size of the area and the

amount of air exchange are factors involved with determining safe time limits for operation in a specific room size.

•

Maintenance of Equipment - LPG engines are dependent on engine tune up, and air filter replacement. CO concentration

(production) skyrockets when the air to fuel ratio becomes fuel rich. Follow the recommended Maintenance Schedule for

the engine.

•

Safety Equipment Available. - Automated fuel to air ratio monitoring and regulation providing an optimum combustion,

three-way type catalytic converter to scrub CO, Hydro Carbons (HC), and Nitrous Oxide (NOx) from the engine exhaust

providing the lowest possible emissions, high cubic feet per minute (CFM) fans (forced air mixing), and digital combustion

analyzers for tail pipe emissions monitoring.

The Choice of Professionals                                                                                   

                                                                                                          

www.diamatic.usa P a g e | 7 info@diamatic.usa

Potential Effects of CO Exposure

·

Work place/industry guidelines for CO exposure limits

·

Definitionof COeffects

Work place/industry guidelines for CO exposure limits

Limits for permissible exposure to CO vary substantially from region to region. City, State, and Industry requirements

should be consulted prior to use of any equipment.

The current Occupational Safety and Health Administration (OSHA) Permissible Exposure Limit (PEL) for CO is 50 ppm, as an

8-hour time weighted average (TWA). This is computed by making measurements at intervals over 8 hours, then adding the

sums of the concentrations and the intervals, and dividing by 8 hours. For example:

Time

Interval

PPM

8:00-9:00

1 HR

100

9:00-10:00

1 HR

25

10:00-11:00

1 HR

25

11:00-12:00

1 HR

50

12:00-1:00

1 HR

50

400ppm/8HR=50ppm TWA

1:00-2:00

1 HR

50

2:00-3:00

1 HR

50

3:00-4:00

1 HR

50

Time intervals =

8 HR

ppm =

400

The current National Institute for Occupational Health and Safety (NIOSH), immediately dangerous to life and health

concentration (IDLH) recommended level for CO is 1,200 ppm. NIOSH defines the IDLH exposure level as the concentration

that could result in irreversible health effects or death, or prevent escape from the contaminated environment within 30 minutes.

Definition of CO Effects

The toxic effects of carbon monoxide in the blood are the result of tissue hypoxia (lack of oxygen). carbon monoxide combines

with hemoglobin to form carboxyhemoglobin. Since CO and oxygen react with the same group in the hemoglobin molecule,

carboxyhemoglobin is incapable of carrying Oxygen. The affinity ofhemoglobin for CO is200 to 240 times greater than for

oxygen. The extent of saturation of hemoglobin with CO depends on the concentration of the gas, the quantity of inspired air

and on the time of exposure. The severity depends on the state of activity of the individual and his tissue oxygen needs.

According to Harrison’s Principles of Internal Medicine 7th edition, no symptoms will develop at a concentration of 0.01% CO

(100ppm) in inspired air, since this will not raise blood saturation above 10 %. Exposure to 0.05% (500ppm) for 1 hour during

light activity will produce a blood concentration of 20% carboxyhemoglobin and result in a mild or throbbing headache. Greater

activity or longer exposure causes a blood saturation of 30 to 50 %. At this point head ache, irritability, confusion, dizziness,

visual disturbance, nausea, vomiting, and fainting can be experienced. Exposure for one hour to concentrations of 0.1%

(1000ppm) in inspired air the blood will contain 50 to 80% carboxyhemoglobin which results in coma, convulsions, respiratory

failure and death. On inhalation of high concentrations of CO, saturation of the blood proceeds so rapidly that unconsciousness

may occur suddenly without warning.

The Choice of Professionals                                                                                   

                                                                                                          

www.diamatic.usa P a g e | 8 info@diamatic.usa

Methods to Reduce the Risks of CO Poisoning

•AirExchangeandCODiffusion

•Application Considerations (Burnishing versus Stripping)

•Air QualityMonitoring

•RoomSizeandTimeEstimations

•Maintenance ofEquipment

•SafetyEquipmentAvailable

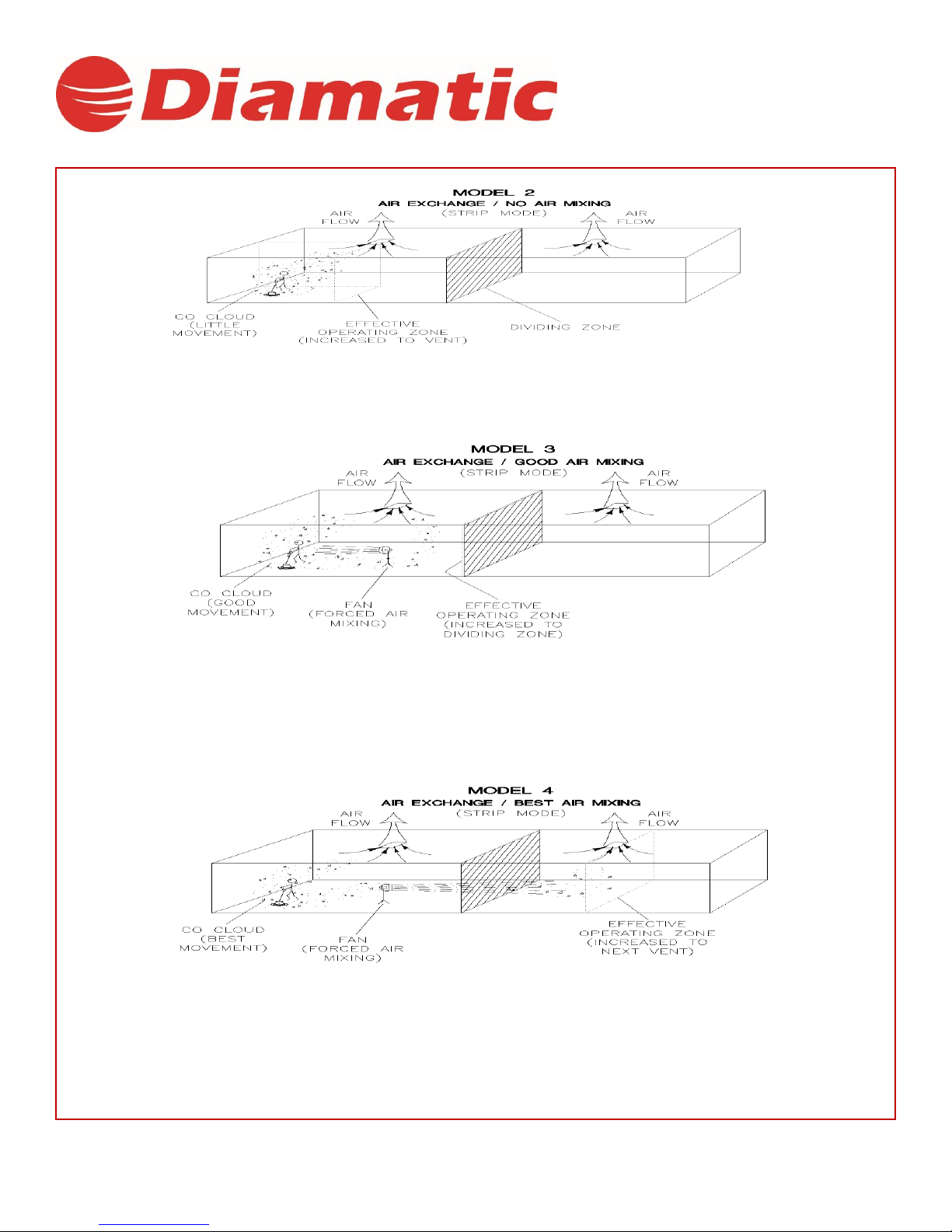

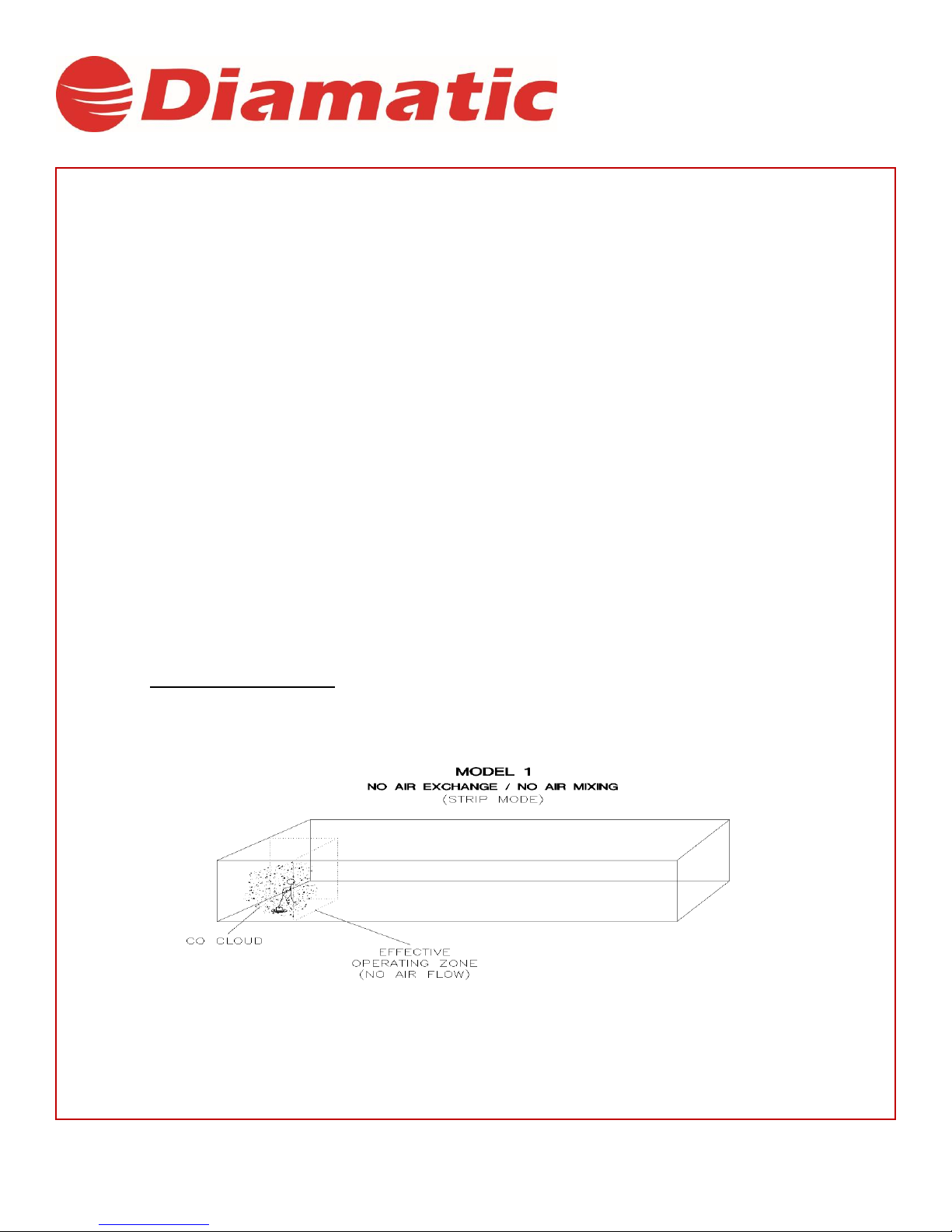

Air Exchange and CO Diffusion

The most reliable method to prevent CO Poisoning is to ensure all the CO produced is vented outside. With wood stoves or gas

heaters this is performed with ductwork that carries the exhaust and CO outside. Non-stationary combustion type equipment

must be used in such a way that CO is not allowed to rise to a harmful or dangerous level.

CO does not readily dissipate or mix with air on its own. Air currents can “stir” the CO and dilute the concentration or ppm

values by mixing it with the available air. When using equipment over a large area in a short time “stirring” occurs as you walk,

or to say it another way, your Effective Operating Zone is large. When activity is concentrated to a smaller area as in a stripping

application, the Effective Operating Zone is small, and “stirring” must be forced using fans to increase the Effective Operating

Zone and reduce high concentrations of CO.

Air exchange rates (air exchange is defined as the exhausting of internal air to the external atmosphere), the size of the

Effective Operating Zone, amount of CO produced, level of human activity, and the duration of exposure are all factors in the

determination of the production of carboxyhemoglobin and the amount of CO blood saturation.

Application considerations (Burnishing versus Stripping)

When using equipment over a large area in a short time, as in most burnishing applications, your Effective Operating Zone is

large. When activity is concentrated to a smaller area as in stripping applications, the Effective Operating Zone is small and

stirring or CO mixing MUST be forced using fans to increase the Effective Operating Zone and reduce high concentrations of

CO.

Caution: air mixing may not be sufficient to reduce CO to a safe level. The Effective

Operating Zone can be defined as the area covered in a given time.

Stripping is quite a different type of operation than burnishing, and carries with it substantially more hazards, as stripping is a low

movement operation compared to burnishing (less floor space for the same time). As shown in Model 1, the CO concentrations

rise much quicker as the “Effective Operating Zone” is a very small area compared to the total building size.

The Choice of Professionals                                                                                   

                                                                                                          

www.diamatic.usa P a g e | 9 info@diamatic.usa

Notice the CO concentration and the Effective Operating Zone with air exchange. The CO cloud is still concentrated in a small

area. Note the “Dividing Zone” shown above, this is the line where airflow changes direction. In Model 2, air changes are cut in

½ as little or no CO crosses the Dividing Zone to be exhausted.

Notice the CO concentration and the Effective Operating Zone (Expanded to the Dividing zone) with air ex- change and forced

air mixing. The CO cloud is still concentrated on one side of the Dividing zone. Note the “Dividing Zone” shown above, thisisthe

line where airflow changes direction. InModel 3, air changes are cut in ½ as little or no CO crosses the Dividing Zone to be

exhausted.

Notice the CO concentration and the Effective Operating Zone (Expanded through the Dividing zone to the second vent) with air

exchange and forced air mixing through the dividing Zone. The CO cloud is diluted with the available air in the

building. Note the “Dividing Zone” shown above, this is the line where airflow changes direction. In Model 4, air changes are

full as forced air mixing has moved and mixed the CO between all air zones.

The Choice of Professionals                                                                                   

                                                                                                          

www.diamatic.usa P a g e | 10 [email protected]

Air Quality Monitoring

Warning: Deployment of a monitor/detector is essential for the safe operation of any equipment that has the potential to

produce CO. CO sensors/detectors became available on the mass market around 1978. At present several brands sell in the

fifty-dollar range. The main differences between the technologies involved are battery or electric and Semiconductor or

Biomimetic types. Detectors for carbon monoxide (CO) are manufactured and marketed for use in either the home or

occupational industrial settings. The detectors for home use are devices that will sound an alarm before CO concentrations in

the home become hazardous. There is an Underwriters Laboratories, Inc., performance standard (UL 2034) for residential CO

detectors. Detectors currently available on the market are battery-powered, plug- in, or hard-wired. Some models incorporate a

visual display of the parts per million (ppm) concentration of CO present in the home. For more information on CO detectors for

home use, call the Consumer Product Safety Commission Hotline at 1-800-638-2772.

CO detectors for use in residential settings are not designed for use in typical workplace settings. Monitoring requirements in an

occupational setting are different from monitoring requirements in the home. In the workplace, it is frequently necessary to

monitor a worker’s exposure to carbon monoxide over an entire work shift and determine the time-weighted average (TWA)

concentration of the exposure. It may also be necessary to have carbon monoxide monitors with alarm capabilities in the

workplace. The direct-reading instruments are frequently equipped with audio and/or visual alarms and may be used for area

and/or personal exposure monitoring. Some have microprocessors and memory for storing CO concentration readings taken

during the day. It is significant to note that some of the devices mentioned for workplace CO monitoring are not capable of

monitoring TWAs, and not all are equipped with alarms. The appropriate monitor must be chosen on an application-by-

application basis. For more information on the availability of workplace CO monitors or their application, call the National

Institute for Occupational Safety and Health at 1-800-35- NIOSH(1-800-356-4674).

Room Size and Time Estimations for Parts Per Million (PPM) CO

The fundamental factors in area CO levels involve: The

concentration and volume of CO production; The size of the

area;

The amount of *air exchange if any; The amount of

time CO is produced.

Multiplying length, width, and height will determine the volume or cubic feet in a room. So, an empty building 100ft by 100ft

with a 10ft ceiling would be 100,000 cubic ft. in size. Any material that is in the room and takes space would reduce the cubic

feet.

*Air exchange is defined as the exhausting of internal air to the external atmosphere.

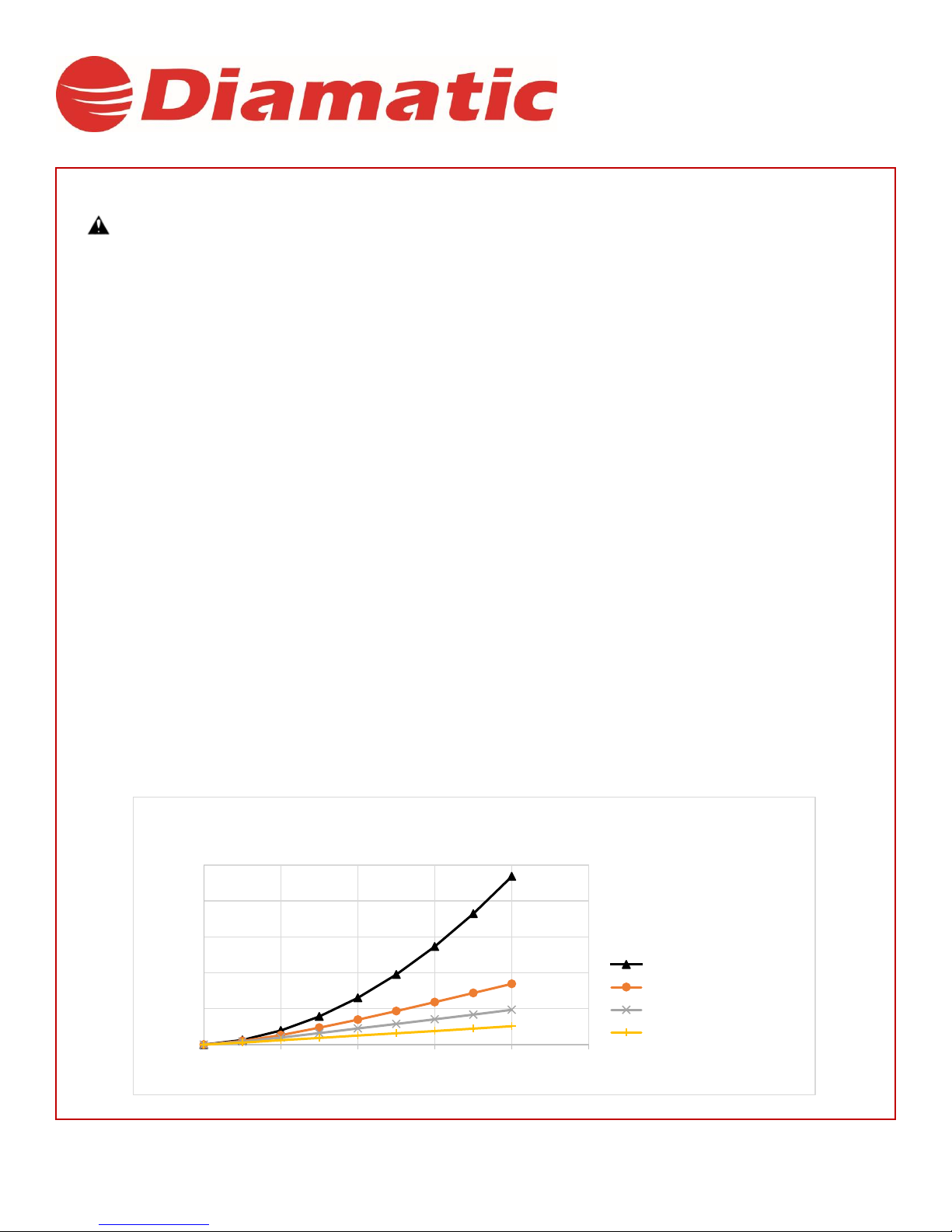

ThegraphbelowdepictstherelationshipsofairexchangetotimeandCOppmwithcubicfeetareaandpercentCO emissions

remainingconstant

0

200

400

600

800

1000

0 2 4 6 8 10

PPM

Time (Hours)

1.14 % CO Emission in 100,000 cubic feet with 656cc Engine and

complete air/CO mixing

0.0 change/hour

0.5 change/hour

1.0 change/hour

2.0 change/hour

Diamatic BDC 1115-P Bedienungsanleitung

Beliebte Industrieanlagen Handbücher anderer Marken
