Dickey-John PM300 Bedienungsanleitung

PM300 - 332 - 400

PLANTER MONITOR

Operator’s Manual

PM300, PM332, PM400 Planter Monitors

11001-1372-201702 Rev B

TABLE OF CONTENTS

Safety Notices ...................................................................................................... 1

Introduction .......................................................................................................... 3

System Overview ............................................................................................................... 3

Specifications..................................................................................................................... 5

Major Features ..................................................................................................... 7

Performance ...................................................................................................................... 7

Console/Display ................................................................................................................. 7

Compatibility ...................................................................................................................... 7

User Aid ............................................................................................................................. 7

Quick Start Guide................................................................................................. 9

Planter Configuration ......................................................................................................... 9

Number of Rows ............................................................................................................................... 9

Row Spacing ................................................................................................................................... 10

Ground Speed Configuration ........................................................................................... 11

Help Card......................................................................................................................... 12

Key Functions .................................................................................................... 15

On/Off Key ....................................................................................................................... 15

Alarm Cancel Key ............................................................................................................ 15

Enter Key ......................................................................................................................... 16

Escape Key...................................................................................................................... 16

Up and Down Arrow Keys................................................................................................ 16

Left and Right Arrow Keys ............................................................................................... 16

Operate Key..................................................................................................................... 16

Planter Setup Key............................................................................................................ 16

Ground Speed Setup Key ................................................................................................ 17

Limits Setup Key.............................................................................................................. 17

Display And Service Key ................................................................................................. 17

Accessory Setup Key....................................................................................................... 17

Seed Count Mode Key..................................................................................................... 17

Speed Area Mode Key..................................................................................................... 17

Editing Screen Fields Using Keys.................................................................................... 18

Highlighted Digit for Editing............................................................................................................. 18

Installation .......................................................................................................... 19

Standard Mounting Bracket ............................................................................................. 19

Optional Mounting 3D Adjustable Bracket ....................................................................... 20

Installing Console Harnesses .......................................................................................... 21

Installing Implement Harness and Sensors ..................................................................... 22

PM300, PM332, PM400 Planter Monitors

11001-1372-201702 Rev B

TABLE OF CONTENTS

Advanced Setup ................................................................................................ 23

Planter and Ground Speed............................................................................................... 23

Row Setup (Auto Assigned) ............................................................................................................ 23

Ground Speed Setup....................................................................................................................... 24

Manual Ground Speed Constant Entry............................................................................................ 25

Accessory Setup (Optional)............................................................................................. 26

Limits Setup (Population) (Optional)................................................................................ 28

Target Population ............................................................................................................................ 28

HI Population/Low Population ......................................................................................................... 29

Population Adjustment..................................................................................................................... 29

Population Response Rate.............................................................................................................. 29

Units of Measurement, Backlighting and Alarm Volume Control..................................... 30

Service Screen ................................................................................................................ 30

Security Screen ............................................................................................................... 31

Auxiliary Modes................................................................................................. 33

Speed Area Mode............................................................................................................ 33

Seed Count Mode............................................................................................................ 33

Monitoring Planting........................................................................................... 35

Operate Screen Setup..................................................................................................... 35

Customizing the Upper Parameter Window .................................................................... 35

Customizing the Lower Parameter Window .................................................................... 37

Available Planting Parameters ........................................................................................ 38

Average Population ......................................................................................................................... 38

Minimum/Average/Maximum Population ......................................................................................... 39

Population Row Scan ...................................................................................................................... 39

Average Spacing ............................................................................................................................. 39

Minimum/Average/Maximum Spacing ............................................................................................. 39

Spacing Row Scan .......................................................................................................................... 39

Seeds per Distance ......................................................................................................................... 39

Minimum/Average/Maximum Seeds per Distance........................................................................... 39

Seeds per Distance Row Scan........................................................................................................ 39

Field Area 1 ..................................................................................................................................... 40

Field Area 2 ..................................................................................................................................... 40

Total Area ........................................................................................................................................ 40

Speed .............................................................................................................................................. 40

Area per Hour .................................................................................................................................. 40

Fan .................................................................................................................................................. 40

Shaft ................................................................................................................................................ 40

Flow ................................................................................................................................................. 40

Alarms ................................................................................................................ 41

Hopper Level ................................................................................................................... 41

Row Failure ..................................................................................................................... 41

All Rows Failure............................................................................................................... 42

Hi/Low Population Warning ............................................................................................. 43

Fan Speed Low/Hi Limit Warning .................................................................................... 43

Shaft Speed Low/Hi Limit Warning.................................................................................. 44

Flow Low/Hi Limit Warning .............................................................................................. 44

Failed Ground Speed Sensor .......................................................................................... 45

Battery Hi/Low ................................................................................................................. 45

Self-Test Failure .............................................................................................................. 46

Hi Ground Speed Exceeded (Optional) ........................................................................... 46

PM300, PM332, PM400 Planter Monitors

11001-1372-201702 Rev B

iii

TABLE OF CONTENTS

Troubleshooting................................................................................................. 47

Monitor Will Not Power On .............................................................................................. 47

Row Failure or Hi/Low Alarm When Row is Planting Properly..........................................47

Hopper Alarm Does not Sound When Hopper is Empty...................................................48

Hopper Alarm Does Not Sound When Hopper is Full.......................................................48

System Voltage Alarm ......................................................................................................48

Accessory Alarm Sounds When Shaft, Fan or Flow is Working .......................................49

Ground Speed Alarm Sounds When Forward Movement ................................................49

Ground Speed High Alarm Sounds ..................................................................................49

Self-Test Alarm .................................................................................................................50

Connector Pin-Outs ......................................................................................................... 51

Connector Pin-Outs ......................................................................................................... 52

Warranty ..............................................................................................................57

PM300, PM332, PM400 Planter Monitors

11001-1372-201702 Rev B

TABLE OF CONTENTS

OPERATOR’S MANUAL

PM300, PM332, PM400 Planter Monitors

11001-1372-201702 Rev B

SAFETY NOTICES / 1

SAFETY NOTICES

Safety notices are one of the primary ways to call attention to potential

hazards.

This Safety Alert Symbol identifies important safety

messages in this manual. When you see this

symbol, carefully read the message that follows. Be

alert to the possibility of personal injury or death.

Use of the word WARNING indicates a potentially hazardous

situation which, if not avoided, could result in death or serious

injury.

Use of the word CAUTION with the Safety Alert Symbol indicates a

potentially hazardous situation which, if not avoided, may result in

minor or moderate injury.

Use of the word CAUTION without the safety alert symbol

indicates a potentially hazardous situation which, if not avoided,

may result in equipment damage.

OPERATOR’S MANUAL

PM300, PM332, PM400 Planter Monitors

11001-1372-201702 Rev B

2 / SAFETY NOTICES

OPERATOR’S MANUAL

PM300, PM332, PM400 Planter Monitors

11001-1372-201702 Rev B

INTRODUCTION / 3

INTRODUCTION

SYSTEM OVERVIEW

The DICKEY-john PM300, PM332, and PM400 Planter Monitors offer

features to monitor 16, 32, and 36 rows, respectively. The units monitor

seed or fertilizer rows, two hopper levels, and a frequency input (shaft, fan,

or flow). The monitors are compatible with DICKEY-john seed, flow, hopper

level, and gear sensors. The units store all configuration data in nonvolatile

memory, retaining information even when disconnected from power. Figure

1 provides an illustration of a generic console.

The PM300, PM332, and PM400 are designed to meet the custom needs of

individual users. The display may be configured to output a comprehensive

set of planter parameters. The user selects the type and number of

parameters to be monitored. Choices may be as simple as monitoring

population and field area or may be more complex. Similarly, blink or fail

mode information may be viewed as a bar graph, gauge, or symbol.

Information may be viewed in large format (for ease of viewing), or small

format (for entire planter view). Auto-scrolling and arrow key override are

used to maintain control of real-time information required by the user.

Figure 1

PM300, PM332, and PM400

PMXXX

ENTER

ESCAPE

ACCY

SETUP

DISPLAY

SERVICE

GROUND

SPEED

SETUP

LIMITS

SETUP

OPERATE

PLANTER

SETUP

SPEED

AREA

MODE

SEED

COUNT

MODE

OPERATOR’S MANUAL

PM300, PM332, PM400 Planter Monitors

11001-1372-201702 Rev B

4 / INTRODUCTION

Figure 2

User-Definable Display Examples

1 2 3 4 5 6 7 8 9

10 11 12 13 14 15 16 17 18

5.2

527.3

4.5 1

1 2 3 4 5 6 7 8 9

3.2

2.9

5.0

1 2 3 4 5 6 7 8 9

33.4

12.5

33.4

0.0

10 11 12 13 14 15 16 17 18

1 2 3 4 5 6

33.5

7 8 9 10 11 12

37.2

2 4 6 8

1 2 3 4 5 6

12.5

7 8 9 10 11 12

33.3

Graphic mode: average population,

speed, and field 1 area output with bar

graphs

Text mode: average spacing,spacing

scan and min/max/avg spacing output

with bar graphs

Min/max/avg population, population

row scan, avg speed spacing, and shaft

speed with gauges

Min/max/avg population and row scan

with blinking row symbols

Rows 2, 4, 6, 8 (above limit) alarm

screen

Row scan and average spacing with

blinking symbols and row 1 hi alarm

(alarm cancel returns user to operate

screen)

OPERATOR’S MANUAL

PM300, PM332, PM400 Planter Monitors

11001-1372-201702 Rev B

INTRODUCTION / 5

SPECIFICATIONS

Power 10–16 VDC, 5 A maximum

Operating temperature range -20°C to 70°C (-4°F to 158°F)

Storage temperature range -40°C to 85°C (-40°F to 185°F)

Size 18.4 cm W x 20.1 cm H x 4.3 cm D

(7.3" W x 7.9" H x 1.7" D)

Weight 4.4 lbs for 16-row PM300 system

4.8 lbs for 32-row PM332 system

6.4 lbs for 36-row PM400 system

*Weight includes console and attached

cables (battery power cable and signal

cable that extends to the drawbar).

Wire Harnesses The PM300, PM332, and PM400 include

integrated harnesses to supply the unit's

power (fused), ground speed input, and

sensor inputs (to drawbar). The connectors

are compatible with existing DICKEY-john

harnesses. DICKEY-john can supply

custom harnesses required for sensor

inputs.

Sensors Compatible with existing DICKEY-john

sensors

Standard mounting Rear attached horizontal or vertical

mounting bracket

Mounting bracket weighs 1.0 lb.

Optional mounting Three-axis adjustable mounting bracket

Contrast adjustment Automatic temperature compensation for

contrast

Backlight adjustment Three settings for full sun, daytime, or

nighttime use

CE certified

Dust and moisture resistant

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Dickey-John Controller Handbücher

Dickey-John

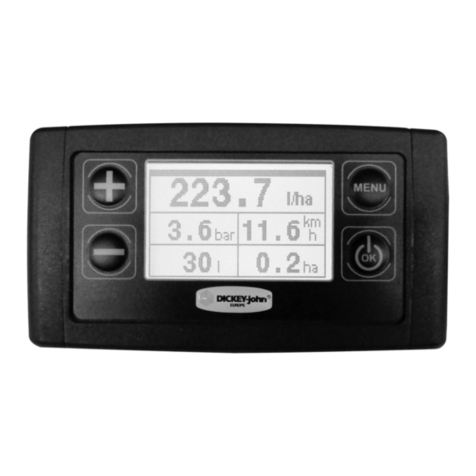

Dickey-John CSS 110 Bedienungsanleitung

Beliebte Controller Handbücher anderer Marken

Digiplex

Digiplex DGP-848 Betriebsanleitung

YASKAWA

YASKAWA SGM series Bedienungsanleitung

Sinope

Sinope Calypso RM3500ZB Bedienungsanleitung

Isimet

Isimet DLA Series Style 2 Installationshandbuch

LSIS

LSIS sv-ip5a Bedienungsanleitung

Rockwell Automation

Rockwell Automation 1769-L31 Bedienungsanleitung

Airflow

Airflow Uno hab Bedienungsanleitung

ABB

ABB ACS580-01 drives Bedienungsanleitung

Panasonic

Panasonic GM1 Series Bedienungsanleitung

Emerson

Emerson SW93 Bedienungsanleitung

AutoAqua

AutoAqua Smart ATO micro SATO-120P Bedienungsanleitung

Panasonic

Panasonic FP? Positioning Unit RTEX Bedienungsanleitung

Samson

Samson Type 5824 Service-Handbuch

Alpha IP

Alpha IP MIOB 21001 Bedienungsanleitung

Siemens

Siemens OpenAir GMA 1 Series Bedienungsanleitung

Surecom

Surecom SR-629 Bedienungsanleitung

Fishman

Fishman TriplePlay Bedienungsanleitung

Regulus

Regulus SRS1 T Bedienungsanleitung
