Dieter Knoll Collection DKBB2175SK Bedienungsanleitung
DKBB2175SK
User Manual
Fridge
Freezer
Benutzerin‐
formation
Kühl - Ge‐
frierschrank
CONTENTS
Safety information 2
Safety instructions 4
Installation 6
Control panel 8
Daily use 9
Hints and tips 10
Care and cleaning 13
Troubleshooting 14
Noises 18
Technical data 18
Information for test institutes 18
Subject to change without notice.
SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damage that are the result of
incorrect installation or usage. Always keep the instructions
in a safe and accessible location for future reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved.
•Children aged from 3 to 8 years are allowed to load and
unload the appliance provided that they have been
properly instructed.
•This appliance may be used by persons with very
extensive and complex disabilities provided that they have
been properly instructed.
•Children of less than 3 years of age should be kept away
from the appliance unless continuously supervised.
•Do not let children play with the appliance.
•Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
•Keep all packaging away from children and dispose of it
appropriately.
2
General Safety
•This appliance is intended to be used in household and
similar applications such as:
–Farm houses; staff kitchen areas in shops, offices and
other working environments;
–By clients in hotels, motels, bed and breakfast and other
residential type environments.
•To avoid contamination of food respect the following
instructions:
–do not open the door for long periods;
–clean regularly surfaces that can come in contact with
food and accessible drainage systems;
–store raw meat and fish in suitable containers in the
refrigerator, so that it is not in contact with or drip onto
other food.
•WARNING: Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
•WARNING: Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
•WARNING: Do not damage the refrigerant circuit.
•WARNING: Do not use electrical appliances inside the
food storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
•Do not use water spray and steam to clean the appliance.
•Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products, abrasive
cleaning pads, solvents or metal objects.
•When the appliance is empty for long period, switch it off,
defrost, clean, dry and leave the door open to prevent
mould from developing within the appliance.
•Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly
qualified persons in order to avoid a hazard.
3
SAFETY INSTRUCTIONS
Installation
WARNING! Only a qualified
person must install this
appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not use the appliance before
installing it in the built-in structure due
to safety manner.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Make sure the air can circulate around
the appliance.
• At first installation or after reversing the
door wait at least 4 hours before
connecting the appliance to the power
supply. This is to allow the oil to flow
back in the compressor.
• Before carrying out any operations on
the appliance (e.g. reversing the door),
remove the plug from the power socket.
• Do not install the appliance close to
radiators or cookers, ovens or hobs.
• Do not expose the appliance to the
rain.
• Do not install the appliance where there
is direct sunlight.
• Do not install this appliance in areas
that are too humid or too cold.
• When you move the appliance, lift it by
the front edge to avoid scratching the
floor.
Electrical connection
WARNING! Risk of fire and
electric shock.
WARNING! When positioning
the appliance, ensure the
supply cord is not trapped or
damaged.
WARNING! Do not use multi-
plug adapters and extension
cables.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Make sure not to cause damage to the
electrical components (e.g. mains plug,
mains cable, compressor). Contact the
Authorised Service Centre or an
electrician to change the electrical
components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
Use
WARNING! Risk of injury,
burns, electric shock or fire.
The appliance contains flammable
gas, isobutane (R600a), a natural gas with
a high level of environmental compatibility.
Be careful not to cause damage to the
refrigerant circuit containing isobutane.
• Do not change the specification of this
appliance.
• Do not put electrical appliances (e.g.
ice cream makers) in the appliance
unless they are stated applicable by the
manufacturer.
• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
4
• Do not let hot items to touch the plastic
parts of the appliance.
• Do not put soft drinks in the freezer
compartment. This will create pressure
on the drink container.
• Do not store flammable gas and liquid
in the appliance.
• Do not put flammable products or items
that are wet with flammable products
in, near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
• Do not remove or touch items from the
freezer compartment if your hands are
wet or damp.
• Do not freeze again food that has been
thawed.
• Follow the storage instructions on the
packaging of frozen food.
• Wrap the food in any food contact
material before putting it in the freezer
compartment.
Internal lighting
WARNING! Risk of electric
shock.
• Concerning the lamp(s) inside this
product and spare part lamps sold
separately: These lamps are intended
to withstand extreme physical
conditions in household appliances,
such as temperature, vibration,
humidity, or are intended to signal
information about the operational status
of the appliance. They are not intended
to be used in other applications and are
not suitable for household room
illumination.
Care and cleaning
WARNING! Risk of injury or
damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• This appliance contains hydrocarbons
in the cooling unit. Only a qualified
person must do the maintenance and
the recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the appliance.
Service
• To repair the appliance contact the
Authorised Service Centre. Use original
spare parts only.
• Please note that self-repair or non-
professional repair can have safety
consequences and might void the
guarantee.
• The following spare parts will be
available for 7 years after the model
has been discontinued: thermostats,
temperature sensors, printed circuit
boards, light sources, door handles,
door hinges, trays and baskets. Please
note that some of these spare parts are
only available to professional repairers,
and that not all spare parts are relevant
for all models.
• Door gaskets will be available for 10
years after the model has been
discontinued.
Disposal
WARNING! Risk of injury or
suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children
and pets to be closed inside of the
appliance.
• The refrigerant circuit and the insulation
materials of this appliance are ozone-
friendly.
• The insulation foam contains
flammable gas. Contact your municipal
authority for information on how to
discard the appliance correctly.
• Do not cause damage to the part of the
cooling unit that is near the heat
exchanger.
5
INSTALLATION
WARNING! Refer to Safety
chapters.
WARNING! Refer to
installation instruction
document to install your
appliance.
WARNING! Fix the appliance
in accordance with installation
instruction document to avoid a
risk of instability of the
appliance.

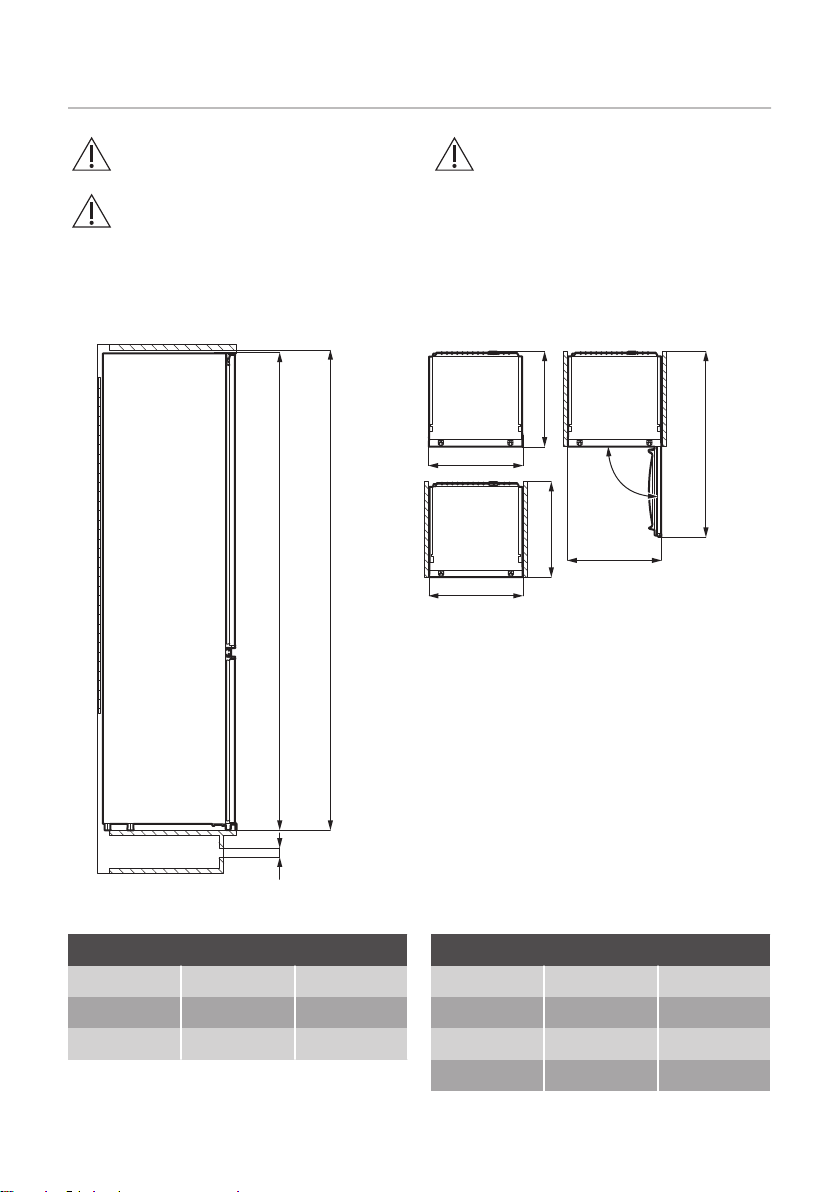

Dimensions
B
A
H1
W1
D1
W2
D2
W3
D3
90°
Overall dimensions ¹
H1 mm 1441
W1 mm 548
D1 mm 549
¹ the height, width and depth of the
appliance without the handle and feet
Space required in use ²
H2 (A+B) mm 1482
W2 mm 548
D2 mm 551
A mm 1446
6
Space required in use ²
B mm 36
² the height, width and depth of the
appliance including the handle, plus the
space necessary for free circulation of the
cooling air
Overall space required in use ³
H3 (A+B) mm 1482
W3 mm 548
D3 mm 1071
³ the height, width and depth of the
appliance including the handle, plus the
space necessary for free circulation of the
cooling air, plus the space necessary to
allow door opening to the minimum angle
permitting removal of all internal
equipment
Location
To ensure appliance's best functionality,
you should not install the appliance in the
nearby of the heat source (oven, stoves,
radiators, cookers or hobs) or in a place
with direct sunlight. Make sure that air can
circulate freely around the back of the
cabinet.
This appliance should be installed in a dry,
well ventilated indoor position.
This appliance is intended to be used at
ambient temperature ranging from 10°C to
38°C.
The correct operation of the
appliance can only be
guaranteed within the specified
temperature range.
If you have any doubts
regarding where to install the
appliance, please turn to the
vendor, to our customer service
or to the nearest Authorised
Service Centre.
It must be possible to
disconnect the appliance from
the mains power supply. The
plug must therefore be easily
accessible after installation.
Electrical connection
• Before plugging in, ensure that the
voltage and frequency shown on the
rating plate correspond to your
domestic power supply.
• The appliance must be earthed. The
power supply cable plug is provided
with a contact for this purpose. If the
domestic power supply socket is not
earthed, connect the appliance to a
separate earth in compliance with
current regulations, consulting a
qualified electrician.
• The manufacturer declines all
responsibility if the above safety
precautions are not observed.
• This appliance complies with the E.E.C.
Directives.

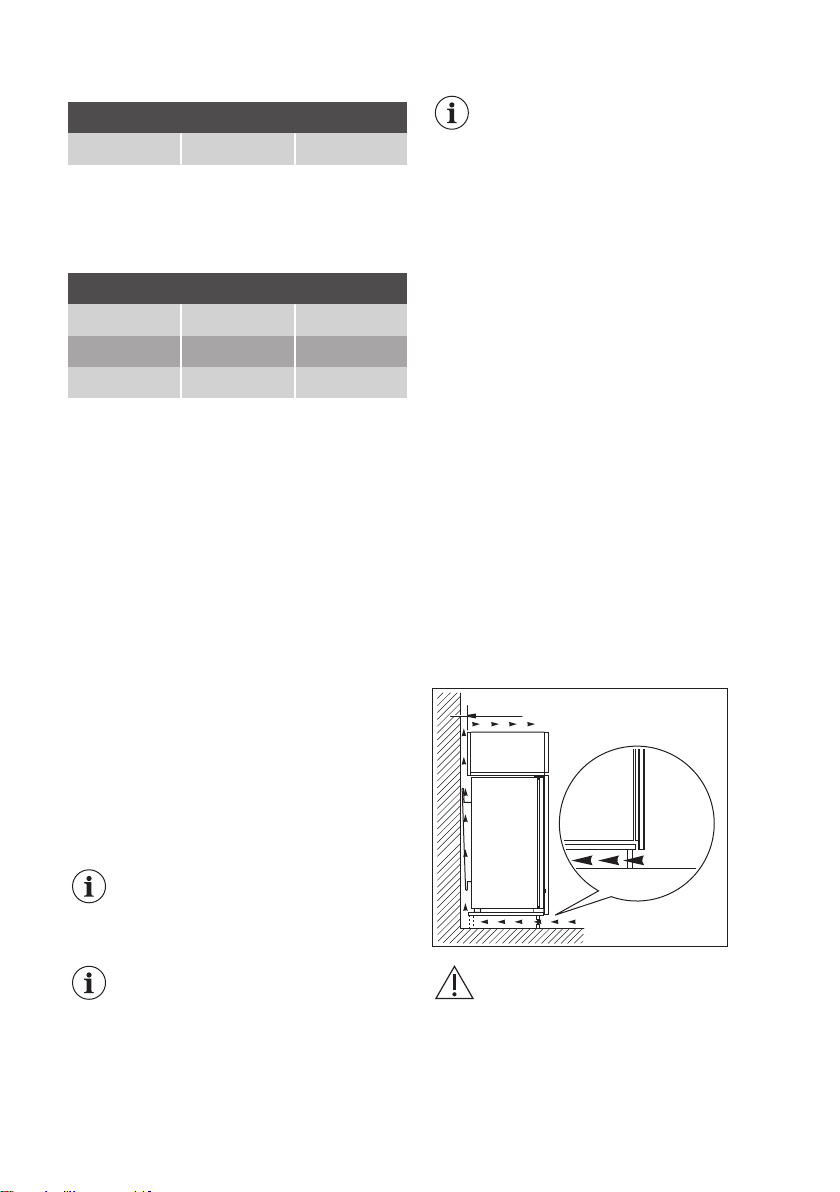

Ventilation requirements
The airflow behind the appliance must be
sufficient.
5 cm min.
200 cm2
min.
200 cm2
CAUTION! Refer to the
installation instructions for the
installation.
7
Door reversibility
Please refer to the separate document
with instructions on installation and door
reversal.
CAUTION! At every stage of
reversing the door protect the
floor from scratching with a
durable material.

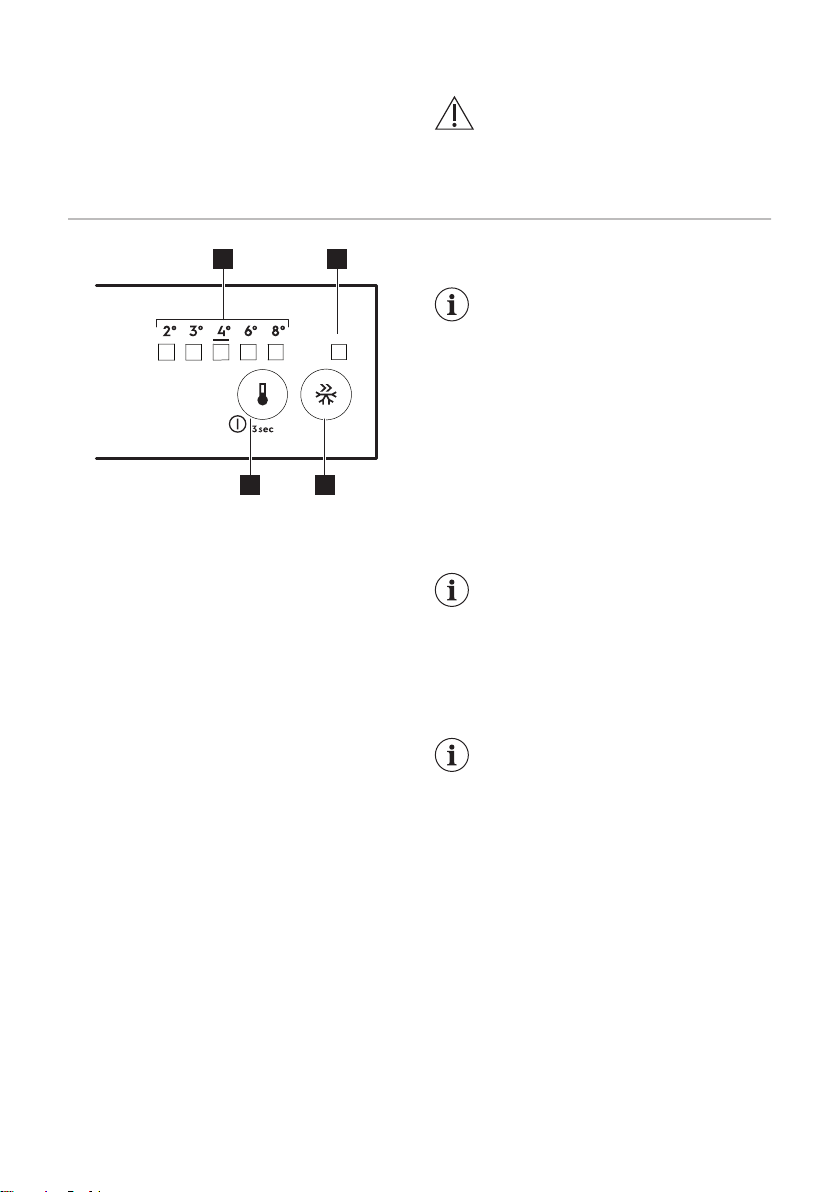

CONTROL PANEL
1 2
4 3
1 2
4 3
1. Temperature indicator LED
2. FastFreeze indicator
3. FastFreeze button
4. Temperature regulator
ON/OFF button
Switching on
1. Insert the plug into the wall socket.
2. Touch the temperature regulator
button if all LED indicators are off.
Switching off
Keep touching the temperature regulator
button for 3 seconds.
All indicators light off.
Temperature regulation
To operate the appliance, touch the
temperature regulator until the LED
corresponding to the required temperature
lights up. Selection is progressive, varying
from 2°C to 8°C. Recommended setting is
4°C.
1. Touch temperature regulator.
Current temperature indicator blinks. Any
time you touch the temperature regulator,
the setting moves by one position. The
corresponding LED blinks for a while.
2. Touch the temperature regulator until
the required temperature is selected.
The set temperature will be
reached within 24 hours. After
a power failure the set
temperature remains stored.
FastFreeze function
The FastFreeze function is used to
perform pre-freezing and fast freezing in
sequence in the freezer compartment.
This function accelerates the freezing of
fresh food and, at the same time, protects
food products already stored in the freezer
compartment from undesirable warming.
To freeze fresh food activate
the FastFreeze function at least
24 hours before placing the
food to complete pre-freezing.
To activate FastFreeze function press the
FastFreeze button. The FastFreeze
indicator switches on.
This function stops
automatically after 52 hours.
It is possible to deactivate the function at
any time by pressing FastFreeze button
again. The FastFreeze indicator switches
off.
Door open alarm
If the fridge door is left open for
approximately 5 minutes, the sound is on.
During the alarm the sound can be muted
by pressing any button. The sound
switches off automatically after around
one hour to avoid disturbing.
The alarm deactivates after closing the
door.
8

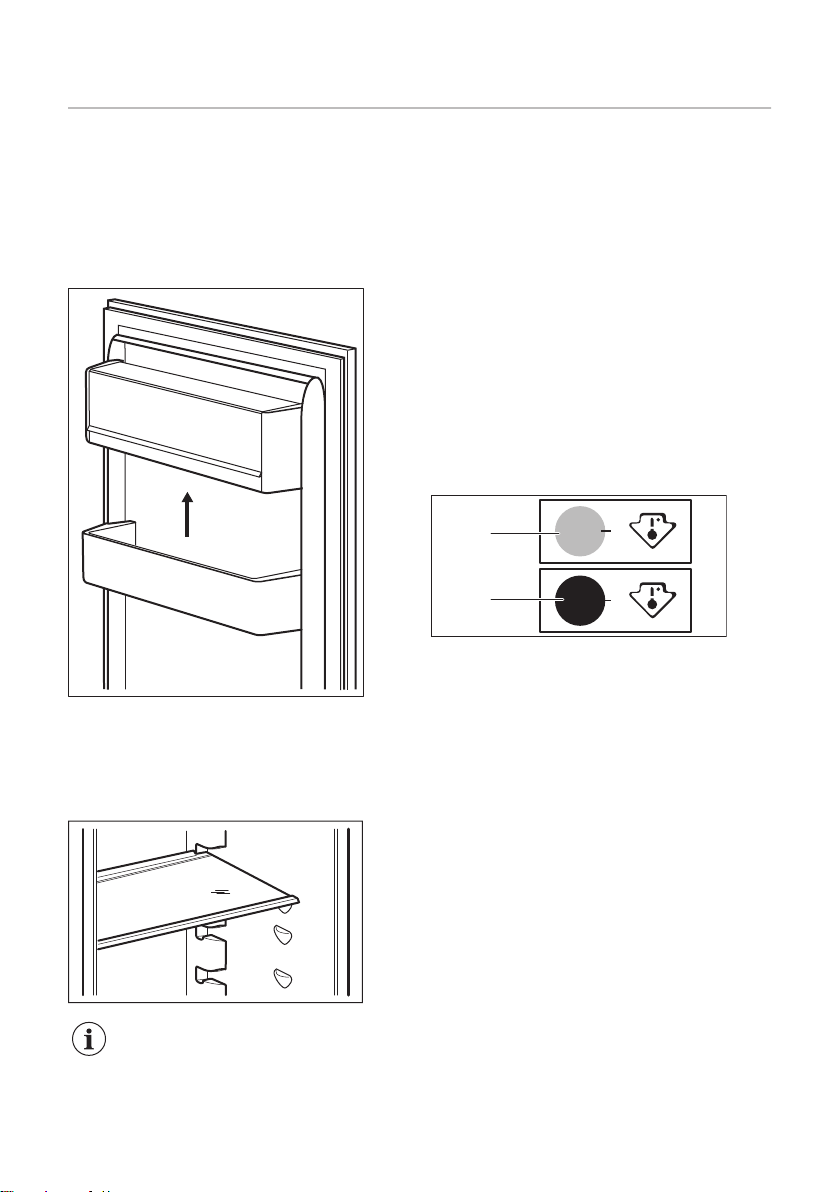

DAILY USE
Positioning the door shelves
To permit storage of food packages of
various sizes, the door shelves can be
placed at different heights.
1. Gradually pull the shelf up until it
comes free.
2. Reposition as required.
Movable shelves
The walls of the refrigerator are equipped
with a series of runners so that the
shelves can be positioned as desired.
Do not move the glass shelf
above the vegetable drawer to
ensure correct air circulation.
Vegetable drawers
There are special drawers in the bottom
part of the appliance suitable for storage
of fruits and vegetables.
Temperature indicator
For proper storage of food the refrigerator
is equipped with the temperature indicator.
The symbol on the side wall of the
appliance indicates the coldest area in the
refrigerator.
If OK is displayed (A), put fresh food into
area indicated by symbol, if not (B), wait at
least 12 hours and check if it is OK (A).
If it is still not OK (B), adjust the setting
control to a colder setting.
OK
OK
A
B
Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen and
deep-frozen food for a long time.
To freeze fresh food activate the
FastFreeze function at least 24 hours
before placing the food to be frozen in the
freezer compartment.
Store the fresh food evenly distributed in
the first compartment or drawer from the
top.
The maximum amount of food that can be
frozen without adding other fresh food
during 24 hours is specified on the rating
plate (a label located inside the
appliance).
When the freezing process is complete,
the appliance automatically returns to the
previous temperature setting (see
"FastFreeze Function").
9
In this condition, the
temperature inside the
refrigerator might change
slightly.
Storage of frozen food
When activating an appliance for the first
time or after a period out of use, before
putting the products in the compartment
let the appliance run at least 3 hours with
the FastFreeze function switched on.
The freezer drawers ensure that it is quick
and easy to find the food package you
want. If large quantities of food are to be
stored, remove all drawers and place the
food on shelves.
Keep the food no closer than 15 mm from
the door.
CAUTION! In the event of
accidental defrosting, for
example due to a power failure,
if the power has been off for
longer than the value shown on
rating plate under "rising time",
the defrosted food must be
consumed quickly or cooked
immediately then cooled and
then re-frozen.
Thawing
Deep-frozen or frozen food, prior to being
consumed, can be thawed in the
refrigerator or inside a plastic bag under
cold water.
This operation depends on the time
available and on the type of food. Small
pieces may even be cooked still frozen.
Ice-cube production
This appliance is equipped with one or
more trays for the production of ice-cubes.
Do not use metallic instruments
to remove the trays from the
freezer.
1. Fill these trays with water.
2. Put the ice trays in the freezer
compartment.
HINTS AND TIPS
Hints for energy saving
• Freezer: The internal configuration of
the appliance is the one that ensures
the most efficient use of energy.
• Fridge: Most efficient use of energy is
ensured in the configuration with the
drawers in the bottom part of the
appliance and shelves evenly
distributed. Position of the door bins
does not affect energy consumption.
• Do not open the door frequently or
leave it open longer than necessary.
• Freezer: The colder the temperature
setting, the higher the energy
consumption.
• Fridge: Do not set too high temperature
to save energy unless it is required by
the characteristics of the food.
• If the ambient temperature is high and
the temperature control is set to low
temperature and the appliance is fully
loaded, the compressor may run
continuously, causing frost or ice
formation on the evaporator. In this
case, set the temperature control
toward higher temperature to allow
automatic defrosting and to save
energy this way.
• Ensure a good ventilation. Do not cover
the ventilation grilles or holes.
10
Inhaltsverzeichnis
Sprachen:
Andere Dieter Knoll Collection Gefrierschrank Handbücher
