The DigiVerb is a powerful studio quality reverb housed in a familiar
stompbox design. Seven high quality reverbs are easily accessed with the
twist of a knob.You can adjust decay, change EQ, and balance the level
for your particular application. You can even use the DigiVerb in an
auxiliary send whenever you need that extra reverb in the mix.
1. Level Knob
Controls the output level of the reverb effect. Turn this knob clockwise
to increase the output level, and counter-clockwise to decrease the
output level. When the Level knob is set to its maximum position, the
dry signal is completely removed so the DigiVerb can run in an effects
loop of a mixer.
2. EQ Knob
Controls the amount of high frequency boost or cut in the reverb signal.
Turn this knob clockwise to boost high frequencies, and counter-
clockwise to reduce high frequencies.

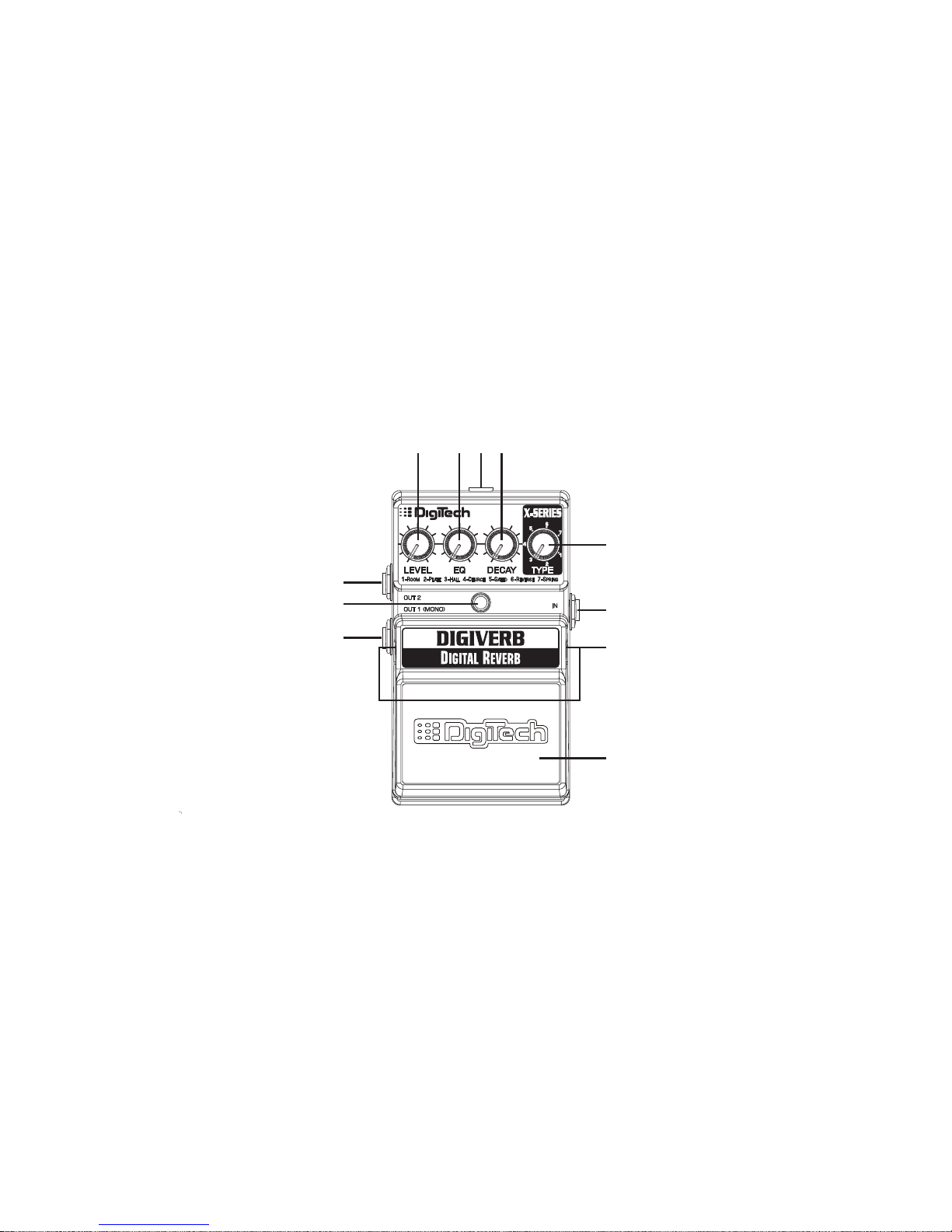

1
5
2 3 4
6
9
10
11
7
8
3.AC Adapter Jack
Connect a DigiTech PS200R power supply to this jack. Use the proper
supply for your area’s Mains line voltage.
4. Decay Knob
Controls the amount of reverb decay time. Turn the knob clockwise to
increase the decay time and counter-clockwise to decrease the decay
time.
5.Type Knob
Selects one of seven different studio quality reverb types including
Room, Plate, Hall, Church, Gated, Reverse, and Spring.
6. Input Jack
Connect your instrument to this jack. Connecting a guitar cable to this
jack supplies battery power even though the Indicator LED may not be
lit. To prolong battery life, disconnect all cables from the pedal when not
in use.
7. Pedal Release Pins
These two pins are spring-loaded hinges that hold the pedal in place.
Push these pins in to release the pedal from the pedal chassis exposing
the battery compartment. (See battery replacement diagram.)
8. Pedal
Press the pedal to turn the effect on and off.
9. Out 1(Mono) Jack
Connect this output to a single guitar amplifier when only one amp is
being used.
10. Indicator LED
This LED lights when the effect is turned on. If the LED becomes dim
or does not light when the cables are connected, the battery needs to
be replaced.
11. Out 2 Jack
Connect this output to a second amplifier for stereo reverb. Stereo is
the best way to get the most effective reverb experience from the
DigiVerb pedal.
Connections
The DigiVerb has a single input and a pair of outputs. Out 1 is used if
the DigiVerb is being connected to only one amplifier. Out 2 is used for
stereo operation. Connect Out 1 to amplifier 1 or the input of a mixer
channel and Out 2 to amplifier 2 or the input of another mixer channel.
The Digiverb can also be connected to the effects send/return of a
mixer. Connect the mixer’s effect send to the In (6) of the DigiVerb.
Connect Out 1 (9) and Out 2 (11) of the DigiVerb to the return(s) of
the mixer. Since the DigiVerb is an effect pedal, a line level signal from a
mixer can distort its input. Adjust the mixer’s effect send control to
reduce any distortion.
CIT™ Cabinet Modeling
The DigiVerb also has built-in CIT™ cabinet modeling. This is a useful
tool when running a distortion pedal into the DigiVerb and then running
direct into a mixer or recorder. CIT cabinet modeling creates a guitar-
through-an-amplifier sound without having to use a guitar amp.
To Enable CIT™ Cabinet Modeling:
Press the pedal down and apply power by connecting a guitar cable to
the DigiVerb input or connecting the PS200R power supply to the AC
adapter jack. CIT™ cabinet modeling has to be enabled each time you
apply power to the DigiVerb.
Battery Replacement
1. Using the tip of a 1/4” guitar cable, push one of the release pins in on
either side of the pedal, and remove the pedal from the pedal chassis.
2. Remove the battery from the battery compartment and disconnect
the battery cable.
3. Connect a new battery to the battery cable and put it back in the
battery compartment. Make sure the battery cable does not interfere
with the spring or pedal switch arm.
4. Place one hole of the pedal over its corresponding pin.
5. Push the opposite pin in and lower the other side of the pedal into
place over the depressed pin. Release the pin. When the pedal is
properly fastened, both release pins are flush with the outer side of
the pedal.
