1Verify your Kit Contents

2Record your MAC Address

Digi, Digi International, iDigi, iDigi Device Cloud, and the Digi and iDigi logos are trademarks or registered trademarks of Digi International, Inc., in the United States and other countries worldwide. All other trademarks are property of their respective owners.

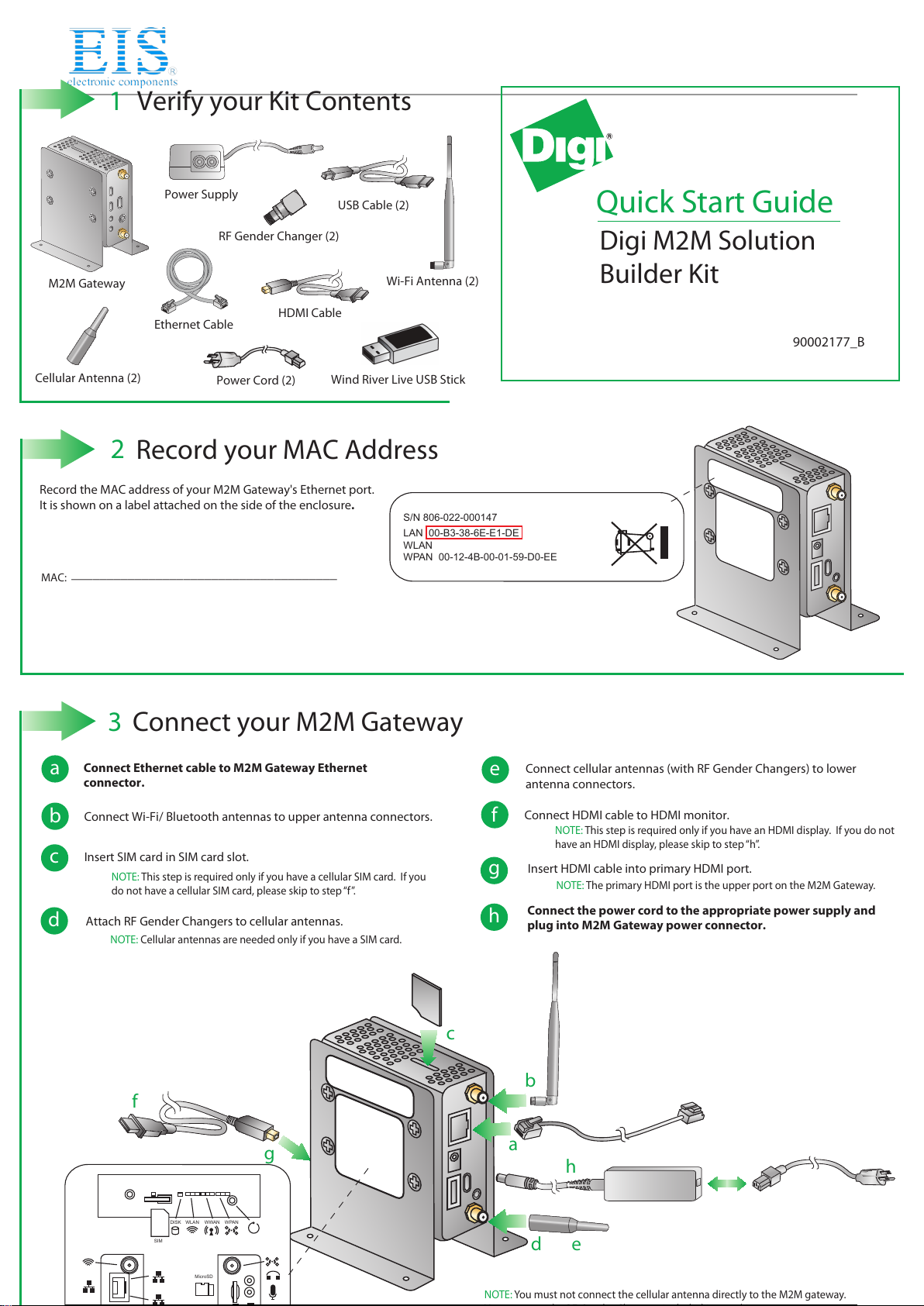

Quick Start Guide

Digi M2M Solution

Builder Kit

Connect your M2M Gateway

Connect Wi-Fi/ Bluetooth antennas to upper antenna connectors.

Connect Ethernet cable to M2M Gateway Ethernet

connector.

cInsert SIM card in SIM card slot.

dAttach RF Gender Changers to cellular antennas.

NOTE: This step is required only if you have a cellular SIM card. If you

do not have a cellular SIM card, please skip to step “f”.

Connect HDMI cable to HDMI monitor.

NOTE: This step is required only if you have an HDMI display. If you do not

have an HDMI display, please skip to step“h”.

Connect cellular antennas (with RF Gender Changers) to lower

antenna connectors.

Connect the power cord to the appropriate power supply and

plug into M2M Gateway power connector.

Wi-Fi Antenna (2)

Record the MAC address of your M2M Gateway's Ethernet port.

It is shown on a label attached on the side of the enclosure.

MAC: ______________________________________

M2M Gateway

Cellular Antenna (2)

Power Supply USB Cable (2)

NOTE: Cellular antennas are needed only if you have a SIM card.

Power Cord (2)

d e

SIM

DISK WLAN WWAN WPAN

MicroSD

DeBug

12V, 2A

Continue on to next page...

NOTE: The primary HDMI port is the upper port on the M2M Gateway.

Ethernet Cable

Wind River Live USB Stick

RF Gender Changer (2)

HDMI Cable

NOTE: You must not connect the cellular antenna directly to the M2M gateway.

You must use the RF Gender Changers included in your kit.

Insert HDMI cable into primary HDMI port.

S/N 806-022-000147

LAN 00-B3-38-6E-E1-DE

WLAN

WPAN 00-12-4B-00-01-59-D0-EE

90002177_B

2 / 3

Distributor of Digi International: Excellent Integrated System Limited

Datasheet of DG-M2M-SB-KIT - KIT M2M SOLUTION BUILDER

Add your M2M Gateway to iDigi

aIf you do not have an account on the US iDigi Device Cloud, navigate to http://my.idigi.com

and click the “Are you a new user?” link to create a free account.

aLog in to your iDigi Device Cloud account, and navigate to the Devices page by selecting the iDigi Manager Pro tab. Click the Add Devices button

within the toolbar displayed.

bYour M2M Gateway needs to be manually added to your iDigi device inventory. Click the Add Manually button to begin adding your device manually.

cEnter your recorded MAC Address (from section 2).

Once the MAC address has been entered, click the Add button. Your M2M Gateway will appear within the window. Click OK to nish adding your device.

eWithin the Devices page toolbar, click the Refresh button.Your M2M Gateway’s status will appear as ‘Connected’ (as indicated by the green icon).

Congratulations! You are now successfully connected to the iDigi Device Cloud!

Browse to www.digi.com/quickstartm2m to explore the full capabilities of your Digi M2M Solution Builder Kit!

What’sNext?

4Log in to the iDigi Device Cloud

NOTE:

When creating your iDigi Device Cloud account, you must choose the US Device Cloud regardless of your location.

NOTE:

It may initially take up to 60 seconds for the M2M Gateway to connect. If your M2M Gateway does not appear after refreshing 60 seconds after power up,

please contact the technical support experts at www.digi.com/support/ or by telephone at 877-912-3444 (US only).
