Digi XStream-PKG-E Bedienungsanleitung

Requirements for Range Test

1 PKG-E (Ethernet) RF Modem

1 PKG-R (RS-232) RF Modem

1 Windows PC loaded with the following software:

X-CTU

Com Port Redirector

Accessories (Loopback adapter, CAT5 cable, 2 RPSMA antennas, 2 power supplies)

Quick Start Guide

XStream-PKG-E™Ethernet RF Modem

Introduction

Com Port Communications

Range Test

Optional Configurations

www.digi.com

Introduction

This Quick Start Guide provides OEMs and integrators with an introduction to some of

the RF modem's most important features. This guide provides step-by-step

instruction on how to setup a wireless link and test the modem's ability to transport

data over varying ranges and conditions.

Software Installation #1: X-CTU

Go to the X-CTU Software page at www.digi.com/xctu and launch the X-CTU

version 5.1.0.0 installer. This version is required for the XStream Ethernet

modem. Follow the prompts on the installation screens.

The X-CTU software interface is divided into the four following tabs:

•PC Settings - Setup PC com ports to interface with the RF modem

•Range Test - Test RF modem's range under varying conditions

•Terminal - Read/Set RF modem parameters and monitor data communications

•Modem Configuration - Read/Set RF modem parameters

Software Installation #2: Device Installer and Com Port Redirector

Go to the Knowledge Base page at www.digi.com/support/kbase. In the 'Keyword'

box type '2033' and press 'Search'. Click the link to the Knowledge Base article for

detailed instructions on how to install the Device Installer and Com Port Redirector.

Create a long range wireless link in minutes!

Range Test

Once the Ethernet RF Modem has been setup for com port communications, a

wireless link between devices can be created for the transportation of data.

Hardware Setup

Using the components listed on page one of this quick start guide, assemble the

hardware needed for the range test.

1. Connect a PKG-E (Ethernet) RF Modem and a PC to active Ethernet ports of the

same local network using standard CAT5 cables [Figure 1].

2. Attach serial loopback adapter to the DB-9 serial connector of the PKG-R

(RS-232) RF Modem. The adapter configures the PKG-R RF Modem to function

as a repeater by looping serial data back into the modem for retransmission.

3. Configure the PKG-R RF Modem for RS-232 operation

using the built-in DIP Switch. Dip Switch 1 should be ON (up)

and the remaining switches should be OFF (down).

4. Attach RPSMA antennas to both RF Modems.

5. Power both RF Modems with power supplies (included w/ accessory packages).

123456

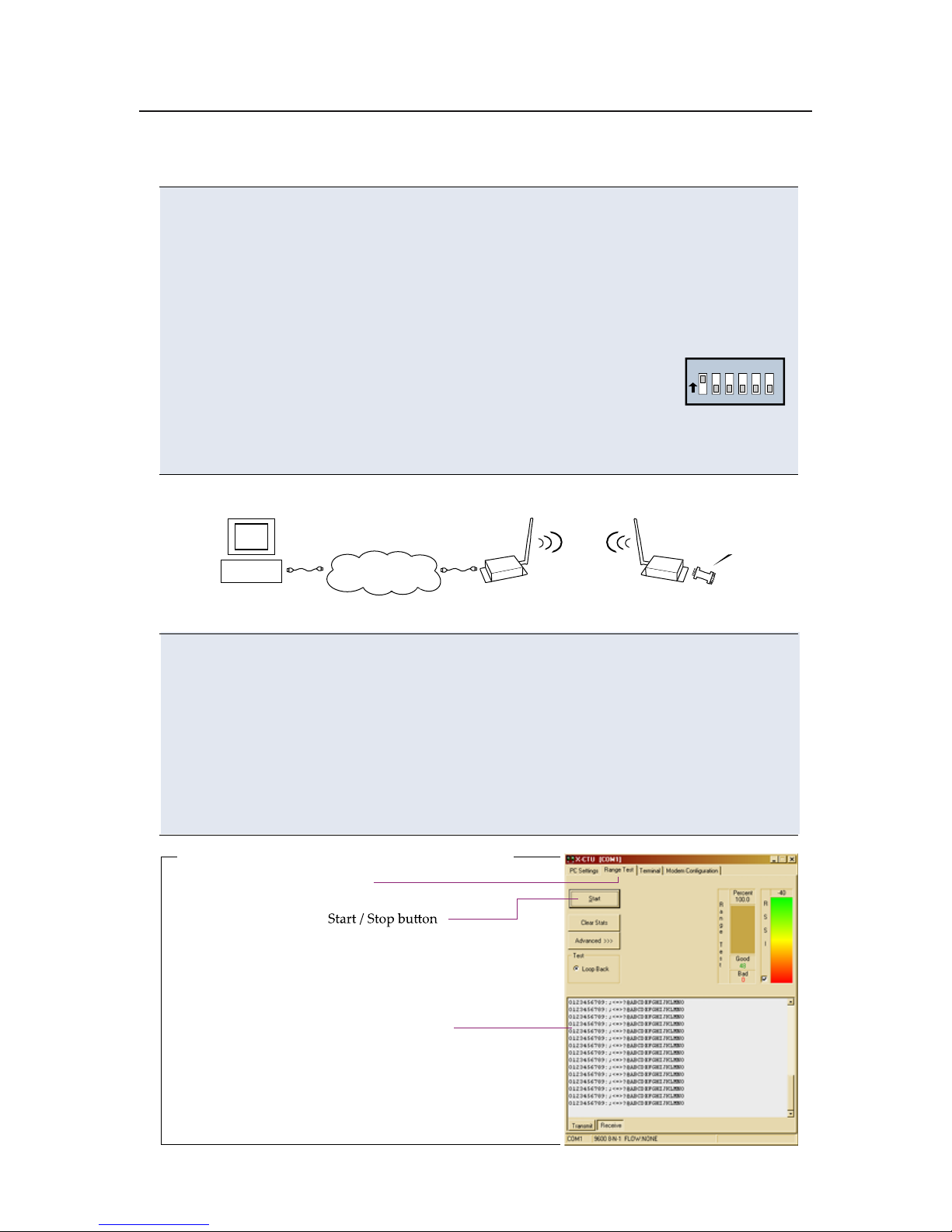

Figure 1. Hardware Setup for Range Test

Run Range Test

1. Highlight the appropriate PC com port

2. Select the “Range Test” tab [Figure 2].

3. Select the 'Advanced' button and change the Data receive timeout to '2000'

msec.

5. Move the remote PKG-R (RS-232) away from the PKG-E (Ethernet)

and observe packet information to determine the range of the wireless link.

Range Test tab

Packet Information

Local Ethernet

(TCP/IP) Network

PC PKG-E (Ethernet) PKG-R (RS-232)

(w/ loopback adapter)

Select the PC com port baud rate from the ‘Baud’ dropdown list that matches

the throughout data rate of the RF modems.

4. Select the ‘Start’ button to begin range test.

Figure 2. Range Test tab of the X-CTU Software

Optional Configurations

Out-of-box, the XStream-PKG-E Ethernet RF Modems comes configured to provide

immediate wireless links between devices. The default configuration of the modem

supports a wide range of RF communications.

If the modem must support additional functions, modem parameters can be

customized using standard AT and binary commands. Digi recommends using

the X-CTU Software when configuring the PKG-E Ethernet RF Modem. Alternatively,

a program such as “PuTTY” can be used, although modem IP addresses must already

be known in order to establish communications.

5889-567)108(:enohP

Restore RF Modem Defaults

If the RF Modem is not responding or cannot enter into "AT Command Mode",

restore RF Modem parameters to their original factory settings.

Restore RF Modem Default Parameters (Local Network Method):

After following the steps outlined in the Configuration Setup section [previous

page], the RF modem is ready to be programmed. The following steps utilize the

“Modem Configuration” tab of the X-CTU Software to restore default parameters.

1. Highlight the Com Port from the ‘Select Com Port’ list that is mapped to the

Ethernet Modem.

2. Select the “Modem Configuration” tab.

3. Select the ‘Read’ button. (Currently stored parameter values are displayed.)

4. Select the ‘Restore’ button. (Original default parameter values are restored and

written to the RF modem’s non-volatile memory.)

5. Select the ‘Baud Rate’ Command (Listed under the ‘Serial Interfacing’ folder).

6. Change the BD parameter to ‘7 – 115200’. This maintains communication

between the on-board RF module and Ethernet port.

7. Select the ‘Write’ button.

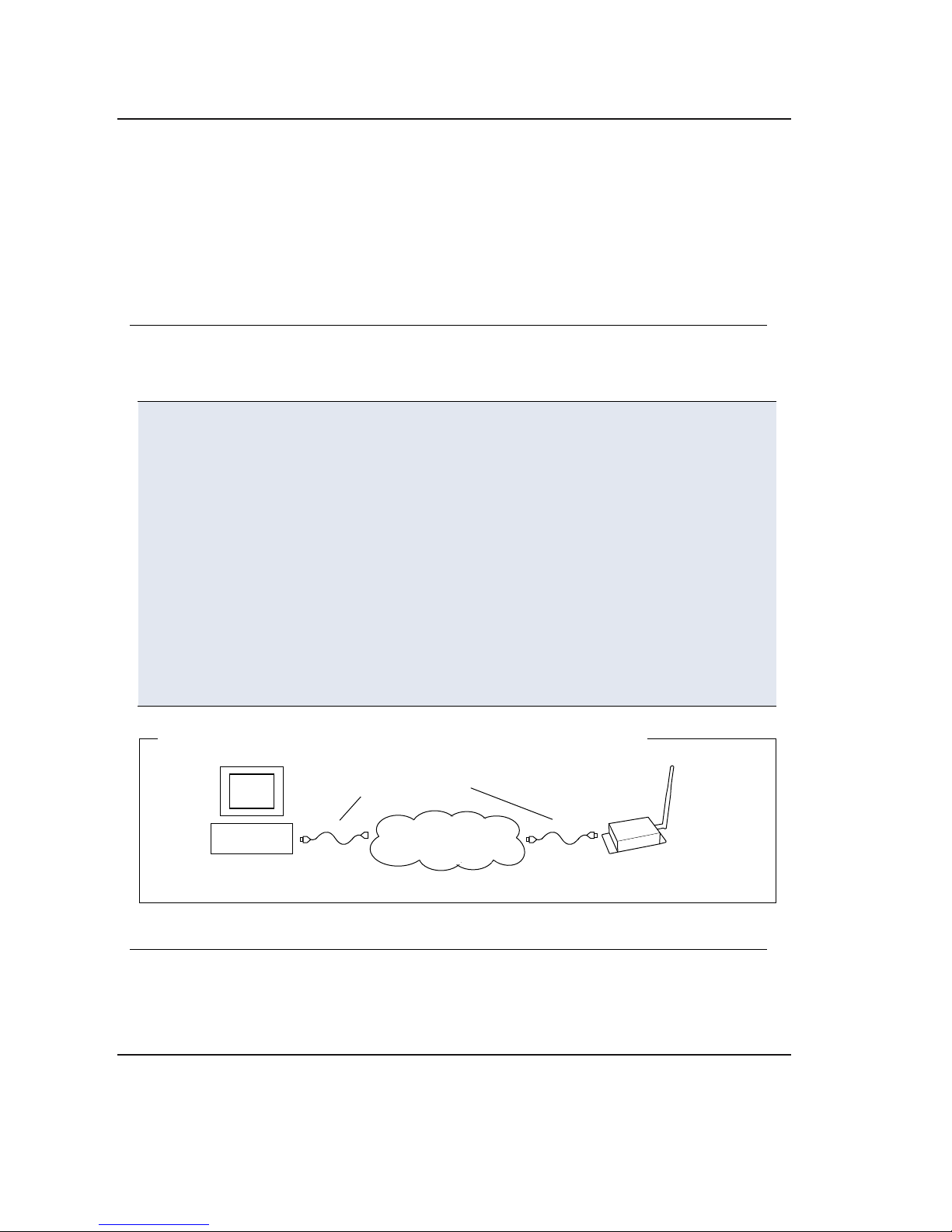

Figure 3. Setup for RF Modem Conﬁguration (Local Network Method)

Straight-through

CAT5 cables

Local Ethernet

(TCP/IP) Network

PC PKG-E (Ethernet)

Ethernet RF Modem Configuration

The X-CTU Software features “Terminal” and “Modem Configuration” tabs that provide

easy-to-use interfaces for configuring RF Modems. Refer to the product manual for

information regarding configuration methods.

Contact Digi International

Live Chat: www.digi.com

e-mail: [email protected]
