Digi DC-150 Bedienungsanleitung

OPERATION MANUAL

Model : DC-150

Edition

Month Year

3rd August 1996

TERAOKA SEIKO CO., LTD.

13-12 Kugahara 5-chome, Ohta-ku

Tokyo 146 Japan

TEL: +81-3-3752-2131

FAX: +81-3-3752-2801

All manuals and user guides at all-guides.com

all-guides.com

1. SET UP

All manuals and user guides at all-guides.com

1.2 OVERALL VIEW------------------------------------------------5

1.2a Name Of Each Parts-------------------------------------------------------------5

1.2b Display & Keys--------------------------------------------------------------------6

1.3 LABEL FORMAT AND LABEL SET UP ---------------10

1.3a Specification of Labels and Receipt --------------------------------------- 10

1.3b Standard Print Formats ------------------------------------------------------- 10

1.3c How to set paper--------------------------------------------------------------- 11

1.4 OPERATION FLOW CHART-----------------------------12

All manuals and user guides at all-guides.com

1.1 Specifications

1 MODEL VARIATION

Model

Built-in scale I/F for External

Scale Optional I/F for

peripherals

#1 #2 FB

DC-151S DC-151S-64KB 500g,1kg, 2.5kg, 5kg NO NO

DC-151S-518KB 10kg, 25kg, 50kg

DC-153SI DC-153SI-64KB (1lb, 2.5lb, 5lb, 10lb {{{YES

DC-153SI-518KB 25lb, 50lb 100lb)

DC-152D DC-152D-64KB 500g/2.5kg,500g/5kg

NO NO

DC-152D-518KB 1kg/5kg, 1kg/10kg

DC-153DI DC-153DI-63KB (1lb/5lb, 1lb/10lb, {X {YES

DC-153DI-518KB 2.5lb/10lb,2.5lb/25lb)

DC-152CFX DC-152CI-64KB no scale {{{YES

DC-152CI-518KB

2 SCALE SPECIFICATIONS

* WEIGHING DEVICE : LOAD CELL

* DISPLAY DEVICE : Fluorescent Display

* INTERNAL RESOLUTION : 1/500,000

* DISPLAY RESOLUTION : 1/10,000 or 1/5,000 or 1/2,500

3 MEMORY SPECIFICATIONS

* 64kb (STANDARD) for 385 ITEM MEMORY.

* 512kb (Expand Version) for 3,080 ITEM MEMORY.

All manuals and user guides at all-guides.com

4 INTERFACE

*INTERFACES FOR PERIPHERALS

INTERFACE PURPOSE REMARKS

RS-232C-1(8PIN) MODEM, FL-1 STANDARD

TTL SERIAL I/F (8PIN) or RS-232C-2 (8PIN) BAR-CODE SCANNER

TTL OUTPUT (8PIN) or RS-422 (8PIN) SET POINT OUTPUT OPTION

KEY BOARD I/F IBM-AT COMPATIBLE

KEYBOARD

* EXTERNAL SCALE INTERFACES

INTERFACE

RS-232C FOR FORCE BALANCE

EXTERNAL SCALE INTERFACE (SCALE 1)

EXTERNAL SCALE INTERFACE (SCALE 2)

5 DISPLAY SPECIFICATION

* 20 DIGITS ( 5 X 7 DOTS) Fluorescent Display

* WEIGHT : 6 DIGITS

* UNIT WEIGHT : 5 DIGITS

* QUANTITY : 6 DIGITS

6 PRINTER

* THERMAL PRINT

* 0.135 mm x 0.135 mm (Square Dot)

* 448 Dots / Line

7 ELECTRICAL REQUIREMENT

* OPERATION VOLTAGE : 100, 117, 220, 230, 240 Vac

* OPERATING FREQUENCY : 50 or 60Hz

* POWER CONSUMPTION : 15Wz

8 ENVIRONMENT

* OPERATING TEMPERATURE : 0 ~ 40C ( -4F ~ 104F)

* OPERATING HUMIDITY : 15% TO 85%RH

9 DIMENSION

* OVERALL WIDTH x HEIGHT x DEPTH : 410(W) x 498 (D) x 158 (H) mm

16.14(W) x 16.06 (D) x 6.2 (H) inches

* TOTAL WEIGHT : 11.2kg (124.lb.)

All manuals and user guides at all-guides.com

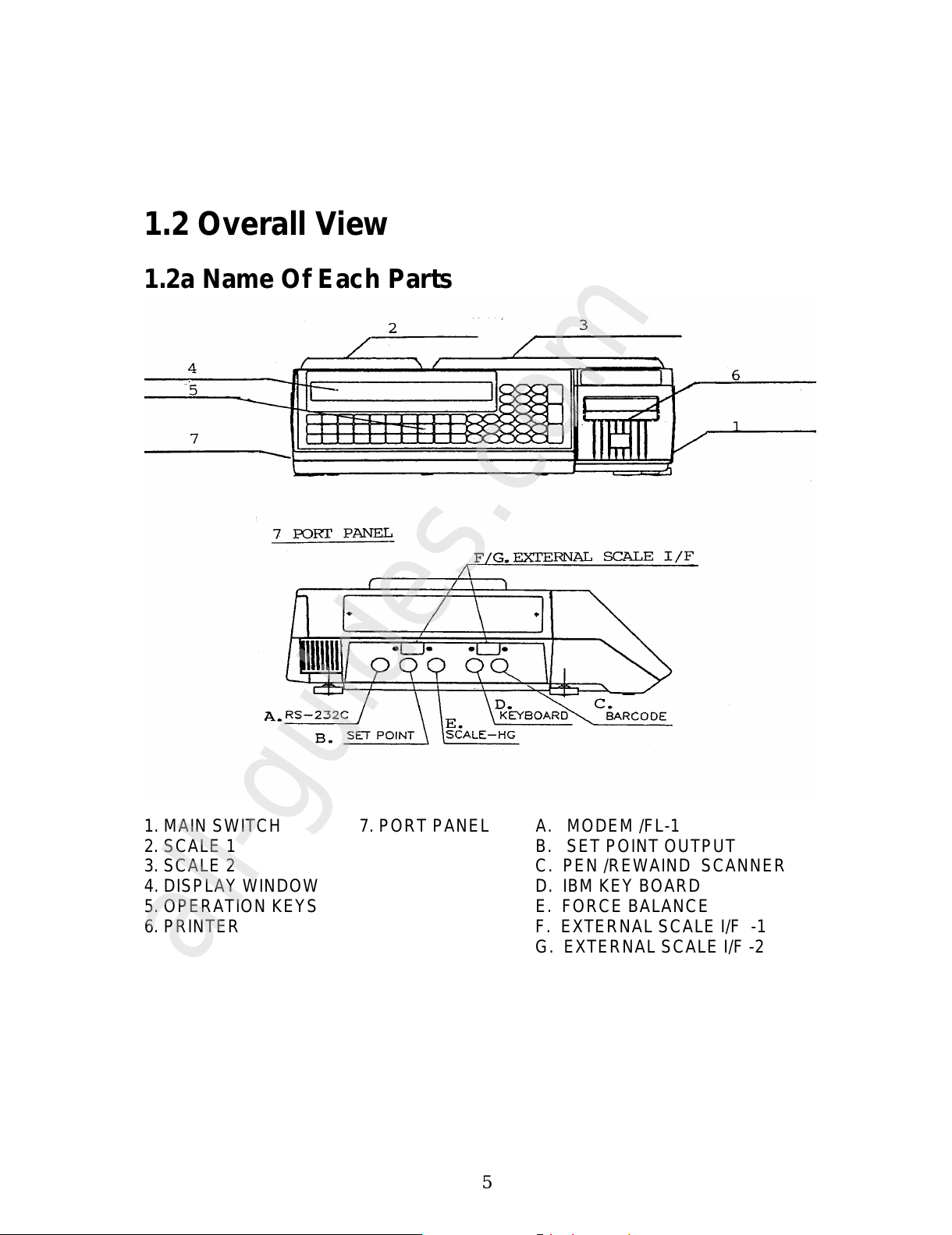

1.2 Overall View

1.2a Name Of Each Parts

1. MAIN SWITCH 7. PORT PANEL A. MODEM /FL-1

2. SCALE 1 B. SET POINT OUTPUT

3. SCALE 2 C. PEN /REWAIND SCANNER

4. DISPLAY WINDOW D. IBM KEY BOARD

5. OPERATION KEYS E. FORCE BALANCE

6. PRINTER F. EXTERNAL SCALE I/F -1

G. EXTERNAL SCALE I/F -2

All manuals and user guides at all-guides.com

all-guides.com

1.2b Display & Keys

INDICATORS

INDICATORS MEANINGS

ZERO Weight is zero

STABLE Weight is stable

NET Presence of a tare weight

kg Scale weighing in kg base. (available in lb. version only)

SCALE 1~3 Scale is in use

INSUFF Sample size is too small to calculate

RECOMP. Unit weight may be recalculated by pressing PIECES key.

MEMORY An accumulated total is in memory

IN Quantities being added to inventory and movement data

OUT Quantities being removed to inventory and movement data

JOB NODULE 1~8 JOB instruction is in the process of Auto job operation

(9~16) (9~16 will flash on and off)

All manuals and user guides at all-guides.com

FUNCTION OF KEYS

0 ~ 9 NUMERIC KEYS

Key numerical values into the system.

•

I N/OUT DECIMAL POINT

Enter decimal point when entering data

Toggle between receiving, shipping, Non-add operation together with

[SHIT DOWN] key in operation mode.

CLEAR CLEAR

Clear keyed-in data from display.

Delete the data in memory file.

ÆFEED

Feed paper.

MODE MODE

Toggle between modes.

Exit modes without saving data.

AUTO

MANUAL AUTO / MANUAL

Toggle between Auto Job Operation and Manual Operation in Operation mode.

Back to the precious screen in programming data.

LOT

NO. LOT NUMBER

Enter the key-in data to LOT No. in OPR mode.

RE-

ZERO RE-ZERO

Eliminate weight from the weight dispaly with no tare and causes it to show a true

zero.

TARE

←

TARE

Enter a tare value into the system.

Toggle the data files to program or access

Move the triangle cursor to Right.

All manuals and user guides at all-guides.com

UNIT

WEIGHT

→

UNIT WEIGHT

Enter weight per 1000 count of pieces.

Toggle the data files to program or access.

Move the triangle cursor to Left.

SCALE SCALE

Toggle between the scales, if the system is with pural scales.

+PLUS

Weight data addition and print out.

In Maintenance mode, advantage to the next choice, when the triangle cursour is

blinking.

_MINUS

Weight data subtraction and print out.

In Maintenance mode, moves back to the previous choice, when the triangle

cursour is blinking.

PIECES PIECES

Sample entry in counting mode to accumulate UNIT WEIGHT.

CODE

RETRY

CODE

Call ITEM data from memory file.

Reprint the same label without saving inventory total in OPR. mode.

Print TEST LABEL (TOTAL LABEL) in programming FREE FORMAT.



ENTER

Print total accumulation in OPR. mode.

Enter set up choices and advantages to next choice. Then, at the end of

choices,store the data into memory files.

A ~ Z

+, −, /

ALPHABET / PLUS / PLUS / MINUS / SLASH

Key alphabetical data into the system.

Assign the data to ITEM FILES together with [SHIFT DOWN] key.

NOTE * [Y] key is used for executing the deletion in the deletion screen.

* [N] key is used for escaping the deletion screen.

* [M] key is used for test printing (gross label) in free format setting.

All manuals and user guides at all-guides.com

SPACE

lb/kg

SPACE

Enter SPACE in alphabetical data entry.

Toggle the display between pound (lb) and kirogram (kg). This function is available

in LB version.

Print TEST LABEL (ITEM LABEL) in programming FREE FORMAT

SHIFT

DOWN

SHIFT DOWN

Change the key functions to the lower line of Alphabet keys.

SHIFT

SHIFT UP

Change the key functions to the special charactors in the upper line of Alphabet

keys.
