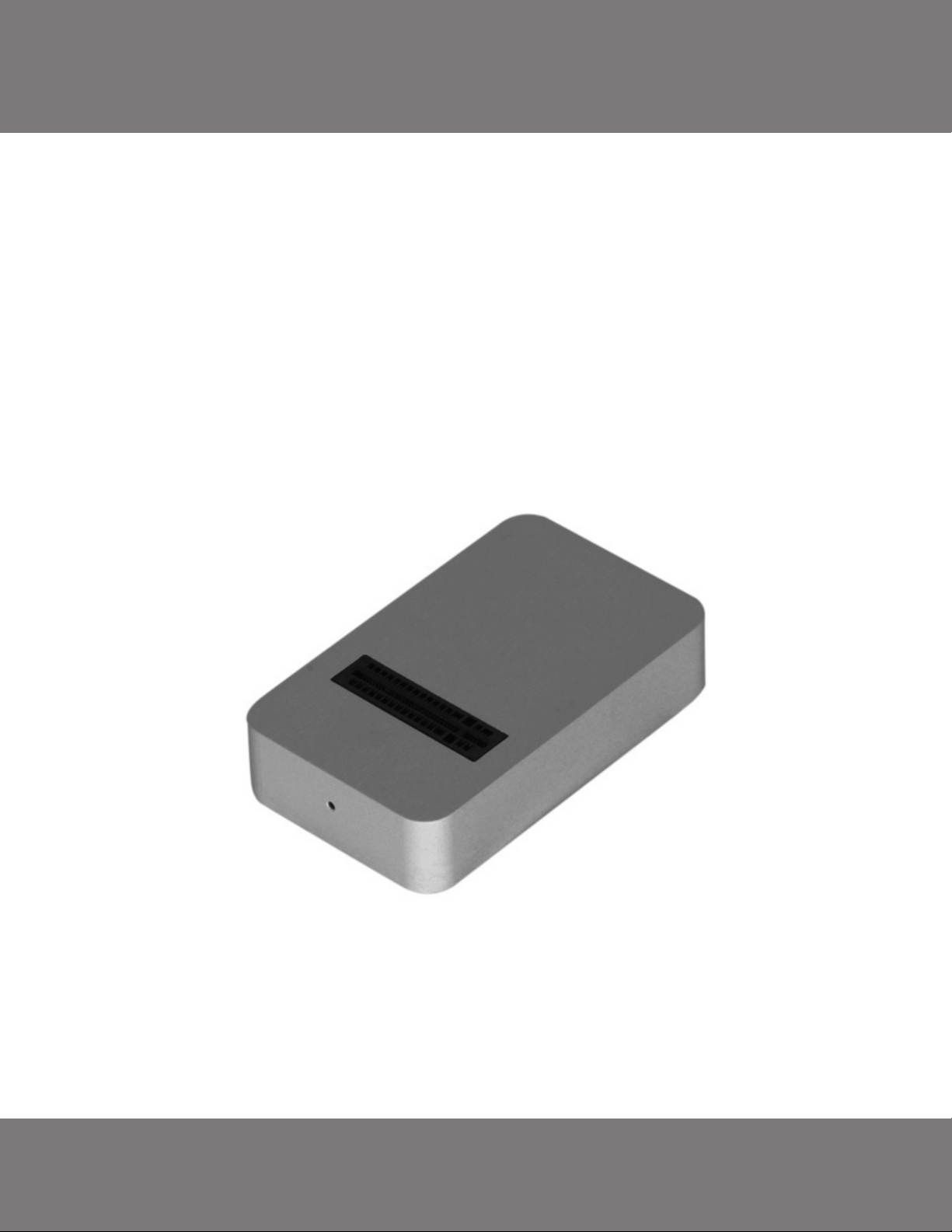

Digifast DGMD01S Bedienungsanleitung

1
Version 1.1
English
M.2 NVMe SSD
Docking Base
User Manual

2
Safety Precaution
Before using this product, please carefully read through the following pre-
cautionary notice and follow its guidelines. Improper use may cause harm
to the user and its surrounding environment.
WARNING
• Do not place this device in an area where there is risk of water getting
onto the device. Electric shock or re may occur and cause serious harm.
• Carefully examine if connection cord is damaged or broken. If the connect-
ing point is broken, then it could potentially result in electric shock or re
hazard.
• If there is smoke, abnormal noise, or oensive odor, stop using the device
immediately. Continued use may cause re, electric shock, or device rup-
ture.
• Do not place liquid containers near this device, as spilling liquid onto the
device can cause serious damage. Electric shock may occur if liquid is
accidentally spilled onto the device. If liquid is accidentally spilled on the
device, then unplug immediately and contact product support.
• Do not use this product on an uneven or unstable surface, as this product
could fall and cause damage or injury.
• Please do not attempt to disassemble or modify this product by yourself.
If a repair is needed, please contact product support.
If the user ignores or mishandles the safety notice, then there is risk of serious injury. The
guideline indicates clearly of what to be aware.

3
Safety Precaution
WARNING
• Be sure to turn o the power and unplug the connection cord before mov-
ing this product. Failure to do so may result in damaging the joint of this
device, or possibly getting the cord caught causing the product to fall or
injuring the user.
• When disconnecting the cord, please grab the root of the plug to pull out.
Forcefully pulling the cable part may cause damage to the cable or con-
nector.
• Do not attempt to pull out the connection cord with wet hands, as it will
cause electric shock and result in injury.
• Do not install this product in an environment where it is exposed to high
temperature. Direct sunlight or high temperature may cause product to
overheat and cause re or malfunction.
• Do not install this product in high-humid or dusty environments, as it could
potentially cause a re hazard.
• Please regularly check on this product to see if there is any abnormal be-
havior. If abnormal behavior occurs, then contact the support center.

4
Before Use
• Please carefully read through the safety guidelines to handle the product cor-
rectly and safely.
• Double check the device is functioning properly before use.
• Avoid heat and humidity when using this device. Make sure it is in a dry and
clean environment.
• It is normal for this product to generate heat while operating.
• Be mindful with static electricity when touching this device. Static electricity
may cause malfunction or failure.
• When transporting the product, please use cushiony material to prevent dam-
age.
• Prolonged exposure to chemical material may cause damage to the product
or a discoloration of the paint.
• If this product has not been used for an extended period, then the functional-
ity may be aected.
• If there is dirt on the body of the device, then please use a soft cloth to gently
wipe away the dirt. (Please do not use benzine as it will damage the paint)
• It is recommended to keep the original product package, as if the device
needs repair, then it is ideal to ship it with the original product packaging.

5
Table of Contents
• S a f e t y P r e c a u t i o n ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P . 2
• B e f o r e U s e ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P . 4
• T a b l e o f C o n t e n t s ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P . 5
• Product Specication, content, supported SSD ・・・・・・・ P.6
• Compatible and Incompatible M.2 SSD ・・・・・・・・・・・・・・・・・・・・・ P.7
• A t t a c h h e a t s i n k t o S S D ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P . 8
• C o n n e c t S S D ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P . 1 0
• H o w t o C o n n e c t a P C ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P . 1 2
• T r o u b l e s h o o t ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P . 1 3
• S u p p o r t e d I n f o r m a t i o n ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P . 1 4

6
Product Specication ・ Content ・
Supported SSD
■ Product Specication
• Product Model:DGMD01S
• USB Spec:USB3.1 Gen2
• Interface: Type-C
• Support OS (Windows): Windows 7/8/10
• Support OS(Mac): MacOS 10.10.5 or later
• Dimension: 50mm x 30mm x 11mm
• Weight: Around 40g (Exclude accessories)
■ Package Content
• DGMD01S
• SSD Heat sink
• SSD heat dissipation silicon pad
• Two Silicone rings
• USB Type-C to Type-A Cable
• Manual URL and Warranty Card
■ Support SSD
• NVMe M.2 SSD Type 22110/2280/2260/2242/2230
※ Does not support SATA(NGFF) M.2SSD
※ Does not support AHCI M.2 SSD
※ Does not support mSATA SSD
※ Windows 7/8 operate at USB 3.0 transfer speed.
※ If user connects to a MAC or a device that is not Gen2 Compatible, then the transfer speed
will be USB 3.1 Gen1 or USB 3.0.
※ Please use the latest OS if possible.
※ It can be connected to USB 3.0 or 2.0 interface; however, the transfer speed will decrease.

7
Compatible and Incompatible M.2 SSD
■ Compatibility of M.2 SSD
This product is designed for NVMe M.2 SSD, thus it does not support SATA
and AHCI M.2 (NGFF) SSD. Please refer to the diagram below to check if
your SSD can be installed. In the case of AHCI M.2 SSD, it may be dicult
to distinguish at a quick glance, as they both look extremely similar. User is
advised to double check to make sure it is NVMe M.2 SSD instead of AHCI
M.2 SSD.
※ Please make sure to check your SSD before installation. If user installs
the wrong SSD, it will not work and also runs the risk of damaging the
SSD itself.
NVMe M.2 SSD
One Notch in the terminal part to distinguish
itself as (M-Key) The label has “PCIe” or
“NVMe” notation
SATA M.2 SSD
・ Two Notches indicate (B&M-Key)
・ Label has「SATA 6Gbps」notation.
AHCI M.2 SSD
・ One notch indicates (M-Key)
・ The label has “AHCI” notation.

8
Attach Heat Sink to the SSD
■ Attach the heat dissipation silicon pad to the SSD
Remove the lm from the heat dissipation silicon pad and attach it to the
SSD.
This article explains how to attach the heat sink to the SSD. Although it is
possible to use without attaching the heat sink, it is recommended to at-
tach and use the heat sink because the SSD becomes hot during use.
About the mounting surface of the heat sink:
In the case of double-sided mounting, it is recommended to mount the
heat sink on the side where the controller IC is mounted. In the case of
single-sided mounting, it is better to attach the heat sink to the base
side where the chip is not mounted. Heat dissipation eciency increases
(according to our tests).

9
■ Install the heat sink
■ Attach the silicon ring
Remove the lm of heat dissipation silicon pad and attach the heat sink.
Finally, attach the silicon ring to secure the heat sink and the SSD.
Attach Heat Sink to the SSD

10
■ Plug SSD into the connector
Insert the SSD into the connector of this product. Pay close attention to the
orientation of the connector of the SSD.
This page explains how to attach SSD to this product.
Connect the SSD
This product does not support M.2 SSD plug and play. Therefore,
even if this product and a PC are connected via USB, it will not be
recognized even if you insert an M.2 SSD. Be sure to remove the USB
cable from this product when inserting or removing the M.2 SSD.
