Digikeijs DR100 Bedienungsanleitung
1
www.digikeijs.com
DR100/DR110 28cm led strip (yellow/white/warm white)
DR100/DR110 28cm led
strip (yellow/white/warm
white) Manual
V1.0B
01-07-2021
© Copyright 2005 - 2021 Digikeijs, The Netherlands. All rights reser-
ved. Informaon, images or any part of this document may not be
copied without Digikeijs' prior wrien consent.
2
www.digikeijs.com
DR100/DR110 28cm led strip (yellow/white/warm white)
Contents Page
Contents 2
Packaging contents/Warranty condions 2
Product descripon/Funcons and features 3
Shortening the LED strip /Dividable lengths 4
Adjusng brightness/An-blink soluon 5
Connecon example 6
Addional product numbers 7
WARRANTY All our products have a 24-month manufacturer's warranty.
However, please read this manual carefully. Any damage to the product caused
by failure to follow these instrucons will invalidate the warranty. We are also
not liable for any other damage caused by not following the instrucons as sta-
ted in this manual. Installaon of this LED strip is at your own risk. Digikeijs is
not liable for damage caused to the wagon or other object. Digikeijs is also not
liable for the lapsing of the guarantee of your wagon or other object.
Content DR100W/Y and warm-white
1 Led strip 28cm
2 Capacitors
2 Contacts
20 Sing gures
Content DR110W/Y and warm-white
1 Led strip 28cm
3
www.digikeijs.com
DR100/DR110 28cm led strip (yellow/white/warm white)
Product descripon
General
This LED strip with yellow, white or warm-white LEDs can be used to illuminate wagons,
plaorm lighng or buildings.

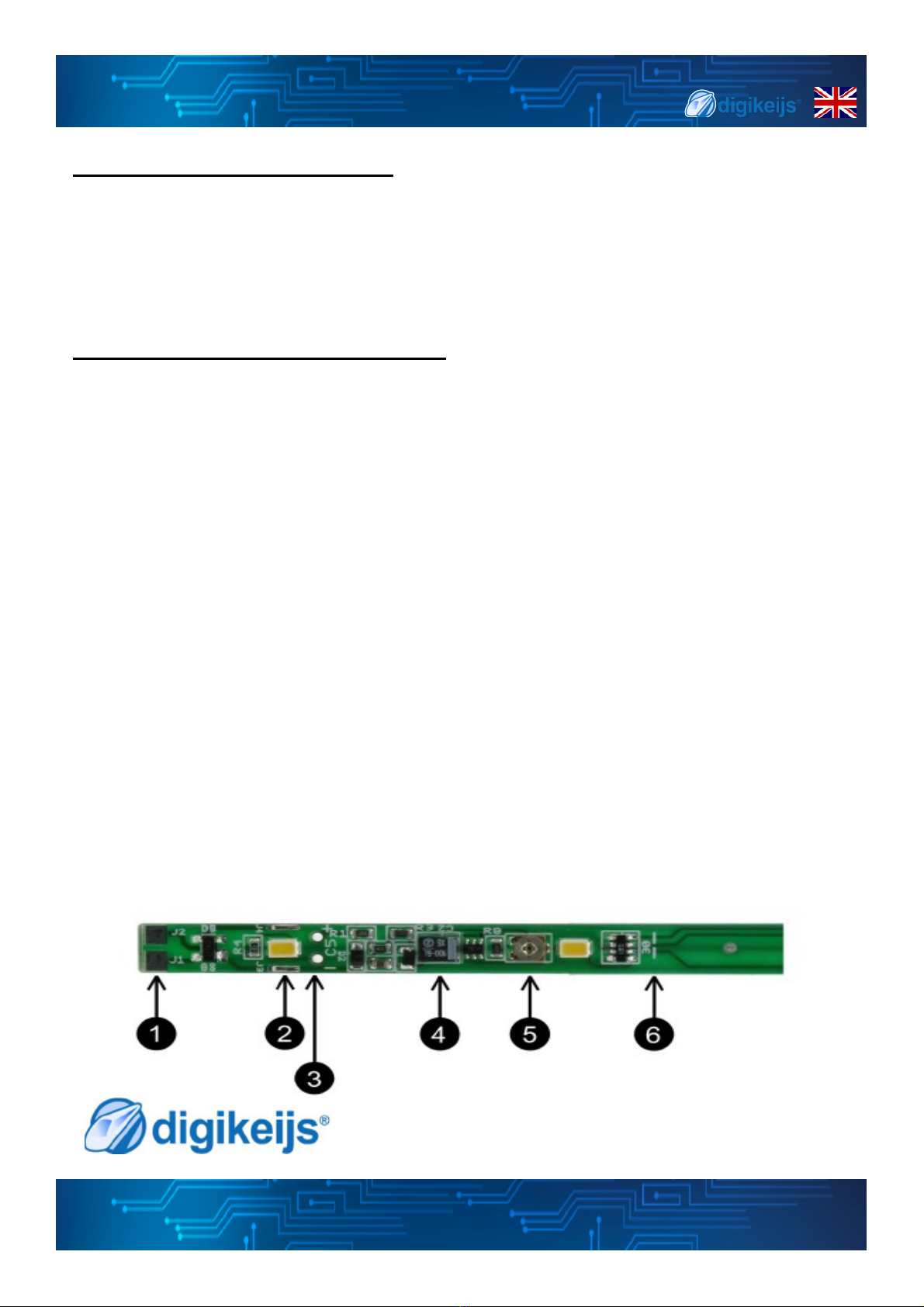

Funcons and features
The LED strip features a special circuit that always provides the LEDs with a constant vol-
tage and also limits the maximum current consumpon to 40mA.
Features at a glance:
- 10 Leds (yellow, white or warm-white).
- Size LxWxH: 280mm x 6mm x 3.3mm
- Maximum current consumpon of 40mA ( 20mA per segment )
- Voltage consumpon 5V to 30V
- Track connecon (1)
- Connecon for external lighng (2)
- Extra an ash capacitor connecon (3)
- An-ashing capacitor (4)
- Adjustable light intensity (5)
- Divisible in dierent lengths up to a minimum length of 2 LEDs (+/- 4cm). (6)
4
www.digikeijs.com
DR100/DR110 28cm led strip (yellow/white/warm white)

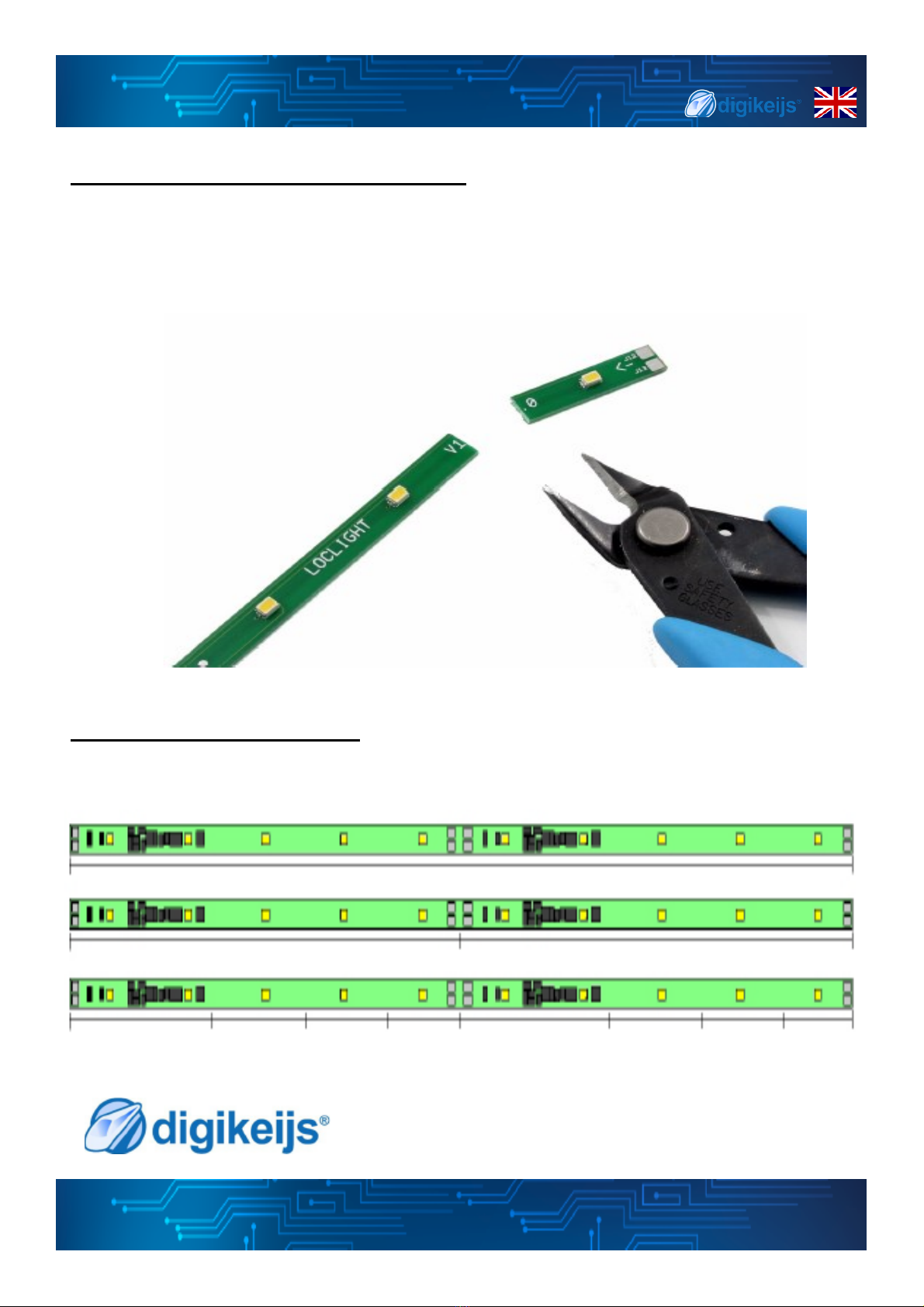

Shortening the LED strip
You can bring the LED strip to the right length yourself depending on the size of your car-
riage. This can be done with a pair of cuers, for example. The LED strip can be shorte-
ned per LED.
Dividable lengths
Below is an illustraon of all dividable opons.
0CM 5CM 8CM 11CM 14CM 19CM 22CM 25CM
5
www.digikeijs.com
DR100/DR110 28cm led strip (yellow/white/warm white)
Adjusng brightness
All colour versions of the DR110 have an adjustable brightness by means of a miniature
potenometer (5). This can be turned with a small screwdriver to adjust the brightness.
Do it yourself an blink soluon
Why?
It is possible to t an extra capacitor per voltage group yourself. An extra capacitor provi-
des a larger current buer and prevents the LED strip from ashing if the track contact is
poor.
PLEASE NOTE: Your warranty will be voided by carrying out this an-blinking soluon.
Requirements
Electrolyc capacitor with a minimum capacity of 220uF and a minimum voltage of 16
Volt. (2 capacitors are required for the complete strip).
Arcle number: DR60023 to DR60026 (dierent numbers per package) see also overview
on page 7.
6
www.digikeijs.com
DR100/DR110 28cm led strip (yellow/white/warm white)
Connecon example
The LED strips are equipped with the correct connecon opons for the capacitors. The
illustraon below shows how to mount the capacitors. NOTE: Polarity is very important.
So pay aenon to plus and minus of the capacitor.
+
-
7
www.digikeijs.com
DR100/DR110 28cm led strip (yellow/white/warm white)
Addional product numbers
DR60005 Contacts H0 10 pieces
DR60010 Contacts N 10 pieces
DR60023 Capacitor 220uF /16V 20 pieces
DR60024 Capacitor 470uF/16V 10 pieces
DR60025 Capacitor 1000uF/16V 10 Pieces
DR60026 Capacitor 2200uF/16V 5 Pieces
DR60105-N Mixed Figures standing/sing 1000 Pieces
DR60105-H0 Mixed gures standing/sing 1000 pieces
DR60110-N Standing gures 100 pieces
DR60110-H0 Standing gures 100 pieces
DR60120-N Sing gures N scale 100 pieces
DR60120-H0 Sing gures H0 scale 100 pieces
