CoolRunner-II™ StarterBoardReferenceManual
RevisedApril8,2016
ThismanualappliestotheCoolRunner-II rev.F
DOC#: 502-146
Copyright Digilent, Inc. All rights reserved.
Other product and company names mentioned may be trademarks of their respective owners.
Page 1of 4
Overview
The CoolRunner-II Starter Board is a complete USB-powered circuit development platform for Xilinx's CoolRunner-
II CPLD. The board includes highly-efficient power supplies, a programmable oscillator, several I/O devices, and a
USB2 port for board power and CPLD programming. The board also includes five expansion connectors that make
64 CPLD signals available to external circuits.
A large collection of board-support IP, reference designs, and add-on peripheral module boards (Pmods) is
available at www.digilentinc.com.
The CoolRunner-II Starter Board.
A 256-macrocell CoolRunner-II CPLD in a TQ-
144 package
An on-board USB2 port for board power, JTAG
programming, and data transfers
An 8MHz fixed-frequency oscillator and a
socket for a crystal oscillator
Expansion connectors for 64 I/O signals (32 on
the Pmod ports and 32 on the parallel
connector)
a one-wire DS28E01Q EEPROM
Features include:
CoolRunner-II™ Starter Board Reference Manual
Copyright Digilent, Inc. All rights reserved.
Other product and company names mentioned may be trademarks of their respective owners.
Page 2of 4

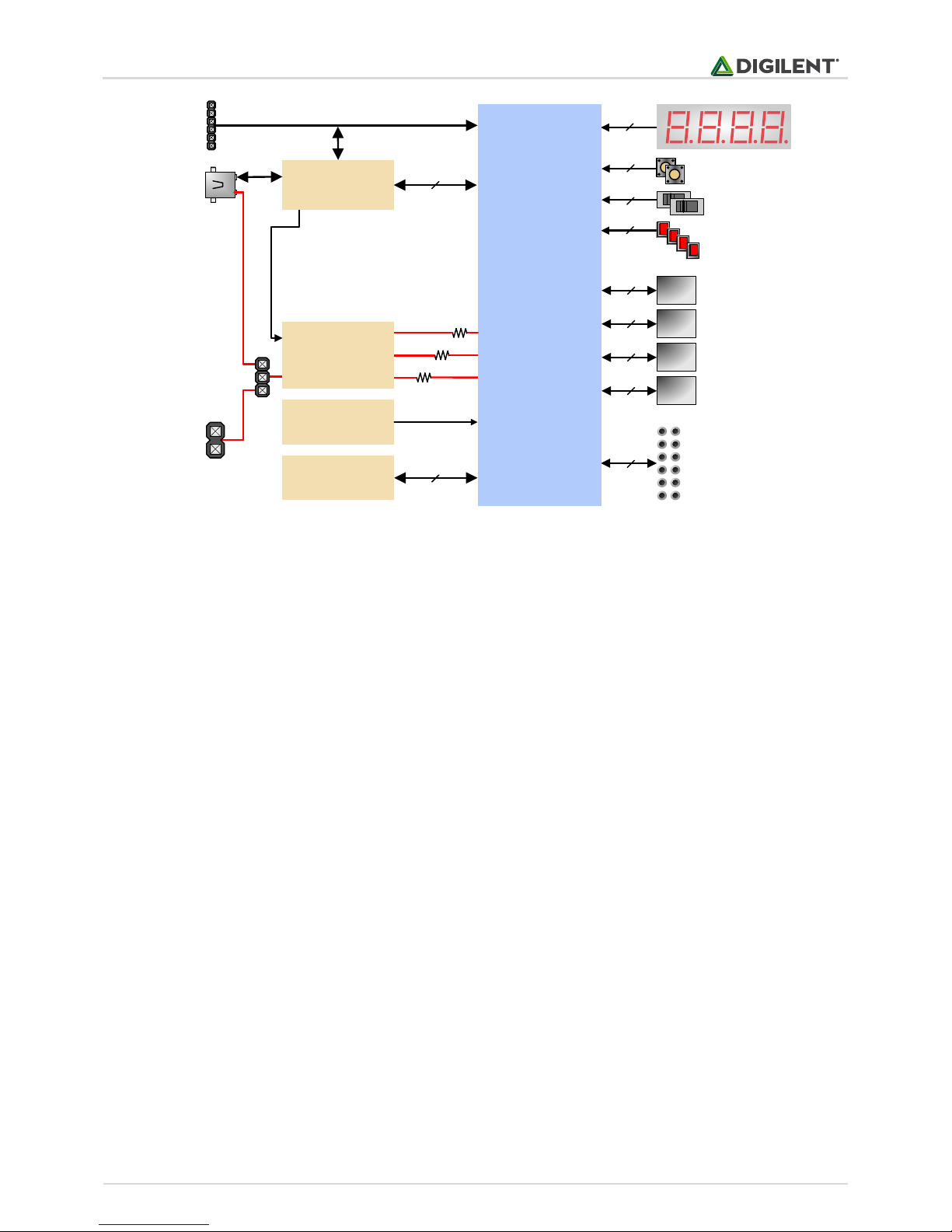

JA
Pmod
Connectors
8
32 Expansion
Hole Pattern
Discera
Oscillator
SPI ROM
JTAG
Atmel USB
Controller
XC2C256
TQ144
External
Power
Connector
Maxim
Regulators
USB 14
JTAG
Header
Vio1 (3.3V)
Vio1 (3.3V)
Vcore (1.8V)
JP2
User I/O:
Seven-Segment
LED Display,
Pushbuttons,
Slide Switches,
and LEDs
2
2
4
12
JB
JC
JD
4
8
8
8
Parallel
User I/O
JP3
En
1 Configuration
The CoolRunner-II board's CPLD must be configured (or programmed) by the user before it can perform any
functions. Files can be created from schematics or HDL source files using the free ISE WebPack software from
Xilinx. Configuration files can be transferred to the CoolRunner-II board using a USB cable and Xilinx's iMPACT
software or using an external programming cable (not included). Once configured, the CPLD retains its state
indefinitely. When the CoolRunner-II board is powered on, the most recently loaded CPLD configuration is
available immediately. A new configuration can be loaded at any time, and as soon as a new configuration is
loaded, it defines the CPLD's behavior.
2 PowerSupplies
The CoolRunner-II board can be powered from its integral USB port or from an external supply attached at
connector JP3. Jumper JP2 selects whether the board uses USB power or external power. External power, from any
source, is routed through a Maxim LT3028 regulator to produce the two voltage supplies (3.3V I/O and 1.8V core)
required by the CPLD. Whenever board power is applied, the power-on LED glows.
To use an external power source, set jumper JP2 to BAT and apply power to the JP3 pins (see the board's silkscreen
for orientation). Any 4.5V to 9V power supply can be used (for example, a transistor battery or a series
arrangement of AA cells).
The CoolRunner-II board uses a four-layer PCB, with the inner layers dedicated to VCC and GND. The Maxim
regulators, together with good power supply routing and ample bypass capacitors on all IC pins, results in a low-
noise power supply.
CoolRunner-II™ Starter Board Reference Manual
Copyright Digilent, Inc. All rights reserved.
Other product and company names mentioned may be trademarks of their respective owners.
Page 3of 4
3 Clocks
The CoolRunner-II board includes a fixed-frequency oscillator that
produces an 8MHz clock signal. This primary oscillator output,
labeled PCLK in the schematic, is connected to the GCLK2 pin of the
CPLD (at P38) so that it can be routed to the internal clock divider. An
unloaded socket for a standard half-size DIP oscillator is also
provided at location IC3.
4 UserI/O
The CoolRunner-II board provides two pushbuttons and two slide switches for inputs, and four red LEDs and a four-
digit LED display for outputs.
The active-low pushbuttons and slide switches include series resistance for short-circuit protection. The LEDs are
active low, and the seven-segment display uses decoupled-transistor active-high common anode signals and
active-low cathodes.
Three additional LEDs indicate USB power good (LD4), board power good (LD5), and USB link status (LD6).
CoolRunner-II
38
Fixed Freq
Oscillator
DSC1033
Oscillator
Socket 32
CoolRunner-II™ Starter Board Reference Manual
Copyright Digilent, Inc. All rights reserved.
Other product and company names mentioned may be trademarks of their respective owners.
Page 4of 4
5 ExpansionConnectors
The CoolRunner-II board provides four 12-pin peripheral module ports. Each port provides two VDD and GND
connections and eight unique CPLD signals. Each port can accommodate a single 12-pin Pmod or two 6-pin Pmods.
Digilent makes several 6-pin Pmods that can attach to these ports, including speaker boards, H-bridge boards,
sensor boards, etc. See www.digilentinc.com for more information.
The CoolRunner-II board also provides a 40-pin expansion connector that includes three power-supply signals and
37 individual I/O signals.
6 DemonstrationDesign
The design pre-programmed onto the CPLD contains several functions that can be seen when the appropriate
peripheral modules are inserted into the relevant ports.
In this sample design, the switch Pmod goes in port J8, the PS/2 Pmod goes in port J7, and the seven-segment
display Pmod goes in ports J5 and J6. Of course, the design can be changed to use different ports.
The CPLD implements both a counter as well as a PS/2 keyboard decoder. The display switches between the two
based on the value of SW4. SW1, 2, and 3 are not used in the design. BTN0 is the system reset for the design.
When SW4 has the PS/2 decoder selected, the output on the display is the scan code for that letter. Here are some
scan codes, the rest can be found on the Internet.
Keyboard Key
Scan Code
Keyboard Key
Scan Code
F1
05
F5
03
F2
06
F6
0B
F3
04
F7
83
F4
0C
F8
0A
7 DesignRecommendations
The regulator provides Vccio of 3.3V, so set the Default I/O Standard appropriately.
Unused I/O should be set to Ground to minimize power.
Input Termination should be set to Keeper to minimize power consumption on any potentially floating
input pins.
