Digilin Focus 48 Bedienungsanleitung
Focus 48 –LED Lighting Profile
Installation Guide
Document Rev: 1.0 - 4 February 2022
Product specifications are subject to change without notice
digilin.com.au ©2022 Digilin Technologies
+617 3899 1267 Page 1 of 3
Notes
•Install in a dry sheltered position
•Profile is not sealed. Do not install where water or high humidity may be present
without further protection.
•Installation should only be performed by a qualified professional
•Install in accordance with all appropriate wiring standards
•DALI is not SELV and needs to be wired accordingly
•Never connect a LED fitting to a driver that is powered. Doing so may result in damage
to the LED.
•Always make sure the output voltage range and output current of the LED driver match
the requirements of the LED fitting. Failure to do so may result in damage both the
driver and fitting.
•The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
•Do not install under mechanical stress.
•Allow for expansion due to changes in temperature.
•Please be aware that while the system has a very long operational life, faults may still occur, and provision needs to be made for maintenance.
•Always turn off power before working on fitting.
•Specifications
U n i t s
Dimensions
48 x 32.5
mm
Length
Custom
Weight
1400
g/m
Wiring Diagram
Focus 48 - LED Lighting Profile
Installation Guide
digilin.com.au
+617 3899 1267 Page 2 of 3

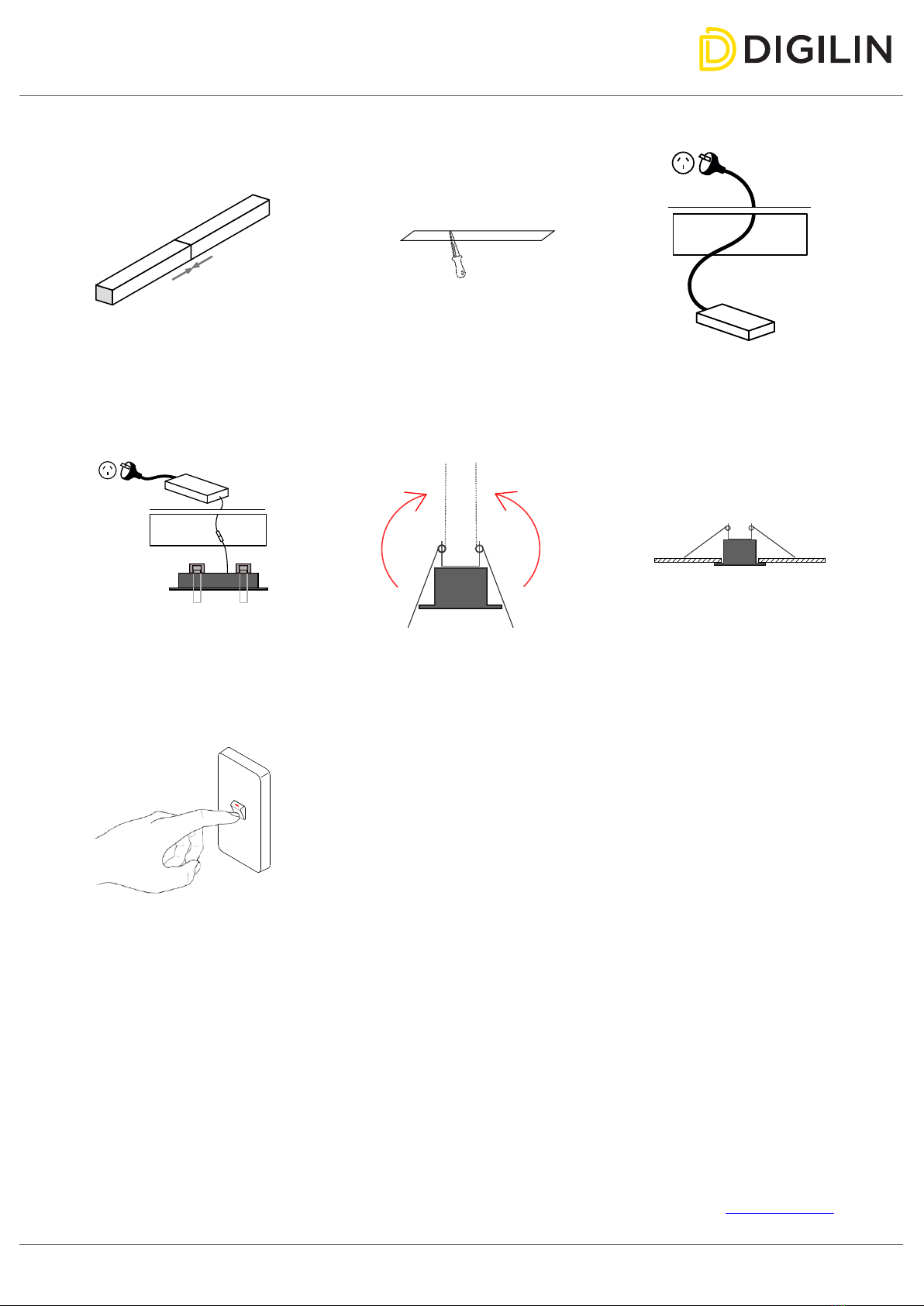

Installation
1. If necessary, assemble full length before
install. For interconnections follow the
“Extrusion interconnects” guide before
moving to next step.
2. Cut a hole in the ceiling to the cut-out size
3. With mains circuit off, connect driver to
mains.
4. Connect lead from driver to luminaire and
place driver in ceiling. Power can now be
turned on to test the fitting if desired.
5. Squeeze the support springs above the
fitting and insert fitting into cut-out.
6. Gently release the springs and allow them to
pull the fitting into place. If nessecary
gently push the unit upwards to assist..
7. Power on fitting.
Note: Drivers should not be covered. Drivers rely on convection air flow for cooling and covering them may cause them to enter thermal regulation.
For any technical information relating to the connection of these luminaires to dimming systems, refer to LED products at www.digilin.com.au
Focus 48 - LED Lighting Profile
Installation Guide
digilin.com.au
+617 3899 1267 Page 3 of 3
Extrusion interconnects
1. Remove all covers
2. Remove gear trays
3. Loosen keyways
4. Align extrusions together
5. Slide internal keys ways across 50/50 into each
extrusion.
6. Re-tighten Keyways.
7. Re-install gear tray, making cable
interconnects, as necessary.
8. Re-install cover
Note: Drivers should not be covered. Drivers rely on convection air flow for cooling and covering them may cause them to enter thermal regulation.
For any technical information relating to the connection of these luminaires to dimming systems, refer to LED products at www.digilin.com.au
