Digital Projection Highlite Cine 260 Bedienungsanleitung

Rev A December 2010

Highlite Cine 260

GETTING STARTED

Getting to know the projector

Notes

For complete and detailed

information about how to use

and control the projector, see

the User Manual.

111-370A

Remote

reception

angle

Remote

control

40°

Lens

Front Infra-red

window

(remote control)

Air inlet

Adjustable

feet

Rear Infra-red window

(remote control)

Power

connection

Air outlet

Input

connections

Projector

control

panel

Air inlet

Page 2 Rev A December 2010

Getting Started Digital Projection Highlite Cine 260

Switching the projector on

Connect the power cable between the mains supply and the projector. Switch on

at the switch next to the power connector.

Wait until the self-test has completed and the standby indicator on the projector

control panel shows amber. The lamp will be off and the projector will be in

STANDBY mode.

Press POWER ON on the remote control or POWER on the projector

control panel to switch the projector ON. The power indicator on the control

panel will ash blue for approximately 30 seconds, whilst the lamp comes up to

full brightness. When the projector is ready for use, the power indicator will show

a steady blue.

•

Notes

For more information about

positioning the screen and

projector, see Positioning

the screen and projector, in

section 2. of the User Manual:

Installation.

For more detailed information

about:

- using the control keys on the

remote control or the projector

control panel,

- using the menus,

see section 4. of the User

Manual: Controlling the

projector.

If the red ISSUE indicator is

illuminated continuously or

ashing, see Error Codes in

section 6 of the User Manual:

Appendix, for more information

Do not mix an old battery with

a new one or different types of

batteries.

If you will not use the remote

control for a long time, remove

the batteries to avoid damage

from battery leakage.

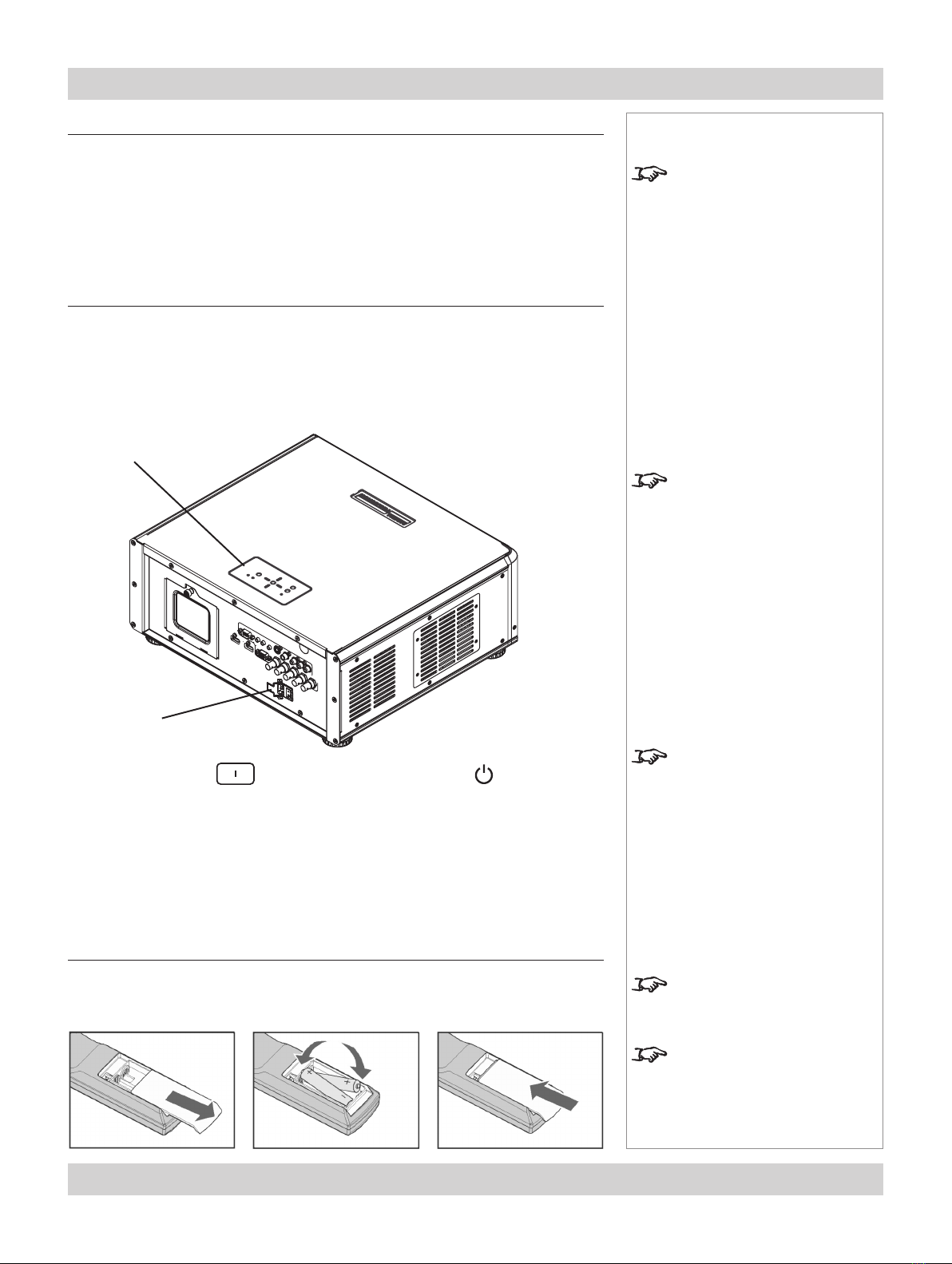

Inserting batteries into the remote control

Open the battery compartment and insert two AA size batteries, making sure

they are inserted the correct way round, as shown below.

•

Positioning the screen and projector

Install the screen, ensuring that it is in the best position for viewing by your

audience.

Mount the projector, ensuring that it is at a suitable distance from the screen for

the image to ll the screen, and that it is perpendicular to the sceen.

•

Power

connection

Projector

control

panel

Rev A December 2010 Page 3

Digital Projection Highlite Cine 260 Getting Started

Selecting an input signal or test pattern

Input

Connect an video source to the projector. The signal should be automatically

detected by the projector, and should be displayed within a two or three

seconds.

If more than one signal is connected to the projector, then select which signal

is to be displayed, using the to buttons on the remote control, or

by pressing the SOURCE button on the projector control panel until the correct

signal is displayed.

Test pattern

If you have no video source connected to the projector, then you can display a test

pattern as follows:

Press on the remote control, until the desired test pattern is displayed.

•

Notes

For more information about

connecting input signals, see

Signal Inputs, in section 2. of

the User Manual: Installation.

For more detailed information

about input connections, see

Input signals in section 6. of

the User Manual: Controlling

the projector.

For more information about lens

shift, see Shifting the image in

section 2. of the User Manual:

Installation.

Adjusting the lens

Press the key repeatedly to cycle through the Lens adjustments, in the

following order:

Focus, Zoom, Shift...

Use the use the , , and keys to adjust the lens.

Example - Lens Shift control:

•

Page 4 Rev A December 2010

Getting Started Digital Projection Highlite Cine 260

Adjusting the projected image

Aspect ratio

Press on the remote control until the image is displayed in the corect aspect

ratio.

Image quality settings

Press any of the following keys on the remote control, followed by and , to

adjust these image quality settings:

Brightness

Contrast

Sharpness

•

Notes

For more detailed information

about:

- using all the control keys

on the remote control or the

projector control panel,

- using the menus,

see section 4. of the User

Manual: Controlling the

projector.

For the picture setting

adjustments shown here:

- after 5 seconds, if no

adjustment has been made,

the indicator will go out and

the adjustment key must be

pressed again.

- to end the adjustment before

5 seconds has elapsed, press

a different adjustment key, or

press the key again.

Always allow the lamp to cool

for 5 minutes before:

- disconnecting the power

- moving the projector

- changing the lamp

- cleaning the fans and lter

Switching the projector off

Press POWER OFF on the remote control or POWER on the

projector control panel, then press the button a second time to conrm your

intention to switch off.

The lamp will switch off, and the power indicator on the control panel will ash

blue for approximately 30 seconds until the lamp has cooled down.

Wait until the power indicator has switched off and the standby indicator on the

projector control panel shows amber. The projector will now be in STANDBY

mode.

Switch off the power switch next to the power connection, then disconnect the

power cable from the projector.

•
