Digital Projection Morpheus 7000hdi Bedienungsanleitung

106-744A DLP 3-CHIP HD2 DC3 DUAL 300W PROJ 0.64:1 ﬁxed

106-745A DLP 3-CHIP HD2 DC3 DUAL 300W PROJ 0.96:1 ﬁxed

106-746A DLP 3-CHIP HD2 DC3 DUAL 300W PROJ 1.2-1.44:1

106-747A DLP 3-CHIP HD2 DC3 DUAL 300W PROJ 1.44-1.8:1

106-748A DLP 3-CHIP HD2 DC3 DUAL 300W PROJ 1.8-2.4:1

106-749A DLP 3-CHIP HD2 DC3 DUAL 300W PROJ 2.4-3.6:1

106-750A DLP 3-CHIP HD2 DC3 DUAL 300W PROJ 3.6-5.6:1

107-023A

USER MANUAL

Morpheus 7000HDi

High Brightness Digital Video Projector

Declaration of Conformity

Directives covered by this Declaration

89/336/EEC Electromagnetic Compatibility Directive, amended by 92/31/EEC & 93/68/EEC.

73/23/EEC Low Voltage Equipment Directive, amended by 93/68/EEC.

Products covered by this Directive

Large Screen Projector type Morpheus 7000HDi

Basis on which Conformity is being declared

The products identiﬁed above comply with the protection requirements of the above EU

directives, and the manufacturer has applied the following standards:-

EN55022:1998 - Limits and Methods of Measurements of Radio Disturbance Characteristics of

Information Technology Equipment.

EN 55024:1998 - Limits and Methods of Immunity Characteristics of

Information Technology Equipment.

EN 61000-3-2:2000 - Harmonic Current Emissions.

EN 61000-3-3:1995 - Immunity to Voltage Fluctuations and Flicker.

EN 60950-1:2002 - Information technology equipment. Safety. General requirements

The technical documentation required to demonstrate that the products meet the requirements

of the Low Voltage directive has been compiled by the signatory below and is available for

inspection by the relevant enforcement authorities. The CE mark was ﬁrst applied in Oct 2006.

Signed:

Date: 18th Oct 2006

Authority: D J Quinn, Director

Attention!

The attention of the speciﬁer, purchaser, installer, or user is drawn to special measures and limitations

to use which must be observed when these products are taken into service to maintain compliance

with the above directives. Details of these special measures are available on request, and are also

contained in the product manuals.

CE Declaration of Conformity

INDEX

Declaration of Conformity 2

INDEX 3

1. CAUTION 4

2. MAINTENANCE 5

Air Filter Replacement 5

3. INTRODUCTION 6

4. CONNECTION 6

Input / Output Connection 6

5. LED and NETWORK 7

LED Indication 7

Network LAN Features 7

6. POWER SEQUENCING 7

Applying power 7

Powering Up 7

Powering Down 7

Quick Power Down 8

7. STATUS LED's 8

Status LED's 8

8. INFRARED REMOTE CONTROL 9

Functions 9

9. SPECIFICATIONS 10

Speciﬁcations 10

10. DIMENSIONS 11

1. CAUTION

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

The lightning ﬂash with an arrowhead symbol is to warn user that the parts inside

this product may cause risk of electrical shock to persons.

The exclamation point within a triangle is to tell user that important operating or servicing

instructions in the literature accompanying the product.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

FCC Warning

Note: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio

or television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is con-

nected.

Consult the dealer or an experienced radio/TV technician for help.

In order to meet the FCC requirements , please use the grounded power cord provided and

shielded ferrite core video adapter. All modiﬁcations conducted by the user without consent of local

authorities shall void the operation of this product.

•

Canada

This Class B digital apparatus complies with Canadian ICES-003.Cet appareil numérique de la classe

B est conforme à la norme NMB-003 du Canada.

Read before operating equipment.

Read, keep, follow these instructions.

Unplug the product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol

cleaners. Clean only with soft dry cloth.

To ensure the highest optical performance and resolution, the projection lenses are specially

treated with an anti-reﬂective coating, therefore, avoid touching the lens. To remove dust on the

lens, use a soft dry cloth. Do not use a damp cloth, detergent solution, or thinner.

Do not near the water or place this product in a high humidity place.

Never spill liquid of any kind on the product. Should any liquid or solid object fall into the cabinet,

unplug the set and have it checked by qualiﬁed service personnel before resuming operations.

Do not place ﬂammable or combustible materials near the projector.

Do not near any heat sources, such as radiators, heat registers, stoves, ampliﬁers or other heat

product.

Do not place this equipment on an unstable cart, stand, or table. The product may fall, causing

serious damage to or personal injury.

Allow at least 30 cm of space between the exhaust ventilative hole and the nearest wall or obstruc-

tion.

Use only the power cord supplied with your projector. While appearing to be similar, other power

cords have not been safety tested at the factory and may not be used to power the projector.

Do not attempt to modify the power cord or its connectors.

Do not attempt to service this product yourself, as opening or removing covers may expose you

to dangerous voltage potentials and risk of electric shock! Refer all servicing to qualiﬁed service

personnel.

Unplug this product from the wall outlet and refer servicing

to qualiﬁed service personnel under the following situta-

tions:

When the power cord or plug is damaged or frayed.

When the product has been exposed to rain, water or liquid has been spilled into the equipment.

When the product has been dropped or the cabinet has been damaged.

If the product does not operate normally when the operating instructions are followed. Adjust only

those controls that are covered by the operating instructions since improper adjustment of the

other controls may result in damage and will often require extensive work by a qualiﬁed technician

to restore the prduct to normal operation.

•

Unpacking

Save the original shipping carton and packing material. When you need to ship the product. The

original packing carton can provide the maximum protection.

Ambient Lighting - for best quality pictures

In order to obtain the best quality for the projected image, it is essential that the ambient light which is

allowed to fall on the screen be kept to an absolute minimum.

When installing the projector and screen, care must be taken to avoid exposure to ambient light

directly on the screen. Avoid adverse illumination on the screen from direct sunlight or ﬂuorescent

lighting ﬁxtures.

The use of controlled ambinet lighting, such as incandescent spot light or a dimmer, is recommended

for room illumination. Where possible, care should also be taken to ensure that the ﬂoors and walls of

the room in which the projector is to be installed are non-reﬂecting, dark surfaces. Brighter surfaces

will tend to reﬂect and diffuse the ambient light and hence reduce the contrast of the projected image

on the screen.

1. CAUTION

12. MAINTENANCE 2

The air ﬁlters is to prevent dust from entering the projector and to keep good air circulation.

NOTE:

Be sure to contact the dealer each 100 hours about the replacement of the air ﬁlter.

If the air ﬁlter is heavily covered by dust, it can cause overheat and ﬁre or other damage. The air ﬁlter is a consum-

able part. Please contact your dealer for details about c hange the air ﬁlter.

Filter replacement

Be sure to turn off and unplug the projector before you change the ﬁlter

Remove the screws

Take out the ﬁlter cover

Take the ﬁlter out.

4. Install new ﬁlter. Replace the ﬁlter cover and screws.

This Projector is a three-chip DLP projector with a native resolution of 1280x720 pixels (16:9 aspect

ratio). The projector accepts 720p video through a DVI-D connector on the rear panel.

3. INTRODUCTION

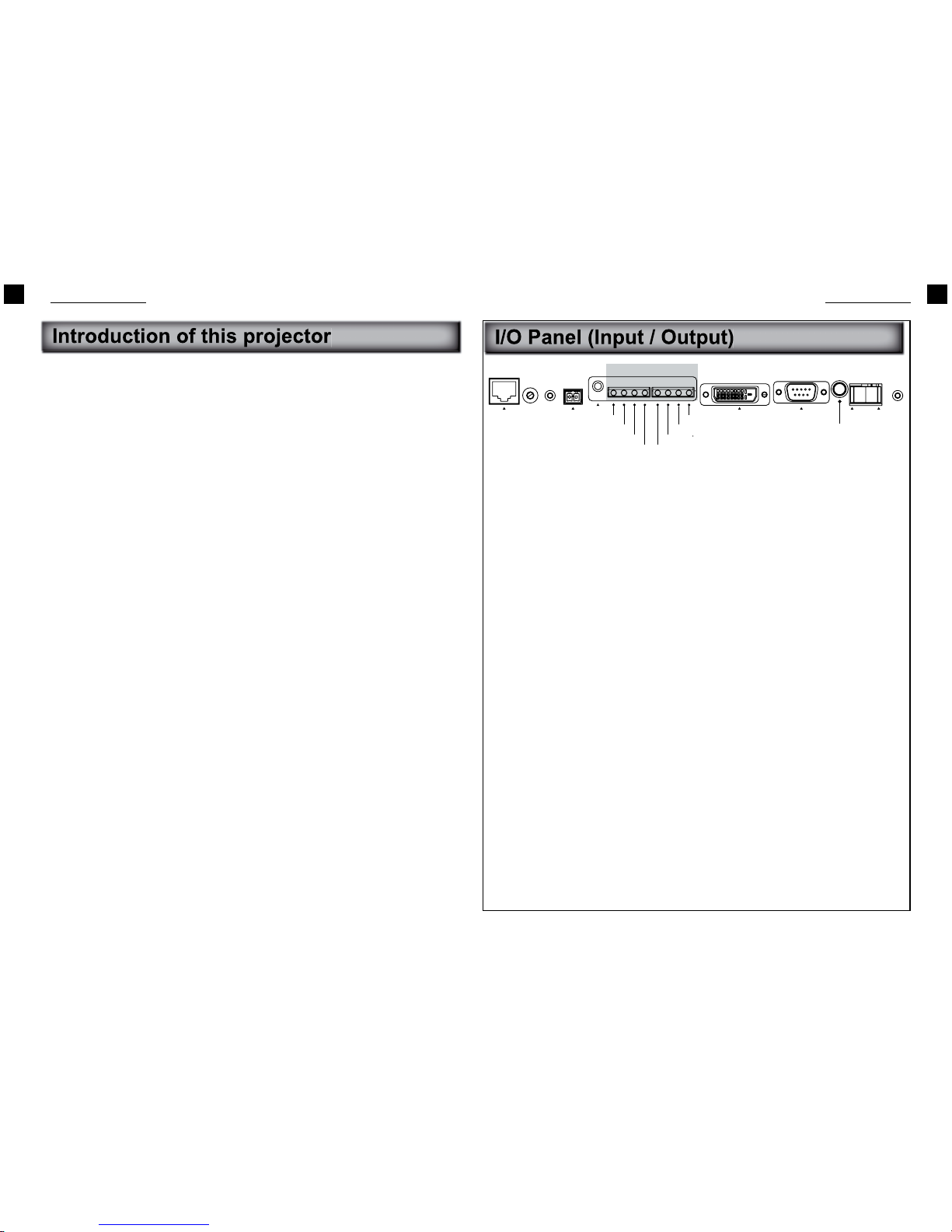

Connectors

DVI-D

Digital Video Input. Accepts 720p Video Input. Input will be displayed native to the source. To

display the full image size the source must be 1280x720 resolution.

RS-232 (SERIAL)

Serial Communications. Allows control of the projector from a computer or external control device.

For further information contact your dealer.

External INTERLOCK

Film projector lockout connector. For some installations the installer may have enabled this feature

which requires this connection to be made at all times. If a connection is made do not remove it,

doing so may prevent the projector from turning ON. For further information contact the installer.

RJ-45

Allows communications with a PC or Server.

10/100M Ethenet Media Access controller.

Switches

SHUTTER / SOFT POWER

Soft power ON/OFF and Shutter control.

POWER ON / OFF

Located just above the power connector - System Power ON / OFF.

•

SOFT

POWER SHUTTER

POWER STATUS

DVI-D

SHUTTER OPEN

READY

BALLAST TEMP

FORMATTERVALID SIGNAL

LAMP

FAN

LAMP DOOR

RS-232 (SERIAL)

RJ-45 EXTERNAL

INTERLOCK

STATUS LEDs

4.CONNECTION 4

6. POWER SEQUENCING 6

Applying power

When the power is ﬁrst applied, the projector comes up in STANDBY mode. It may be left in this state

indeﬁnitely. Both controllers and the RS-232 circuitry are powered so that the unit can respond to serial

commands, the IR Remote Control or the rear panel switch. The ballasts, fans and formatters are not

energized.

Note: The IR Remote POWER button is always active but the other buttons may be disabled. If the unit

is powered up using the IR Remote, all IR commands will be enabled. If the unit is powered up using the

rear panel switch or via the serial port, only the IR POWER button is disable. IR Remote buttons may be

enabled or disabled with the IR+ and IR- serial commands.

When the projector is in STANDBY, the Power STATUS LED to the left of the switch will glow RED.

and the READY LED will be ON. (If there were any problems encountered, other LEDs may be

ﬂashing.)

Switching ON

Pressing the SOFT POWER switch momentarily (1/2 second or more) will power up the unit, turning on

the lamp and initializing the formatters. The Power STATUS LED will glow GREEN. The projector will

come up in CURTAIN projection mode (picture off) and with the shutter closed. The STATUS LEDs will

display the progress of the power-up sequence. When all of the LEDs except for the SHUTTER LED are

lit, then the shutter may be opened.

When the projector is POWERED UP, a momentary depression of the SHUTTER switch (1/2 second or

more) will open the SHUTTER and put the formatters in NORMAL PROJECTION MODE (picture on).

Subsequent depressions will toggle between NORMAL MODE/SHUTTER OPEN and CURTAIN MODE/

SHUTTER CLOSED.

Powering down

Pressing the SOFT POWER switch will cause the SHUTTER to close and the formatters to go to

CURTAIN MODE and also initiates a 5 MINUTE POWER DOWN cycle. During this time the lamp, fans

and formatters remain active. The Power STATUS LED will glow YELLOW. The STATUS LEDs should

all be ON except for SHUTTER. During this 5 minute cycle if no other action is taken, the projector will

enter STANDBY mode which take a further 60 seconds. During which time the lamp is turned off and the

fans are left running.

During the 60 SECOND POWER OFF sequence the READY LED will be OFF. While the READY LED

is OFF the lamp may not be turned on. The READY LED will go back ON after 90 seconds indicating

that the lamp may be re-struck. A command to re-strike via any of the three methods - serial, IR or

switch – may be issued at any time but the re-strike will not occur until the 90-second lamp cool-down

has expired.

LEDs

POWER STATUS

RED: Standby

GREEN: Power On or Power-up sequence

YELLOW: 5 minute

power-down , ELSE power-off sequence.

STATUS LED Operation

STATUS LED When on continuously When Flashing (or OFF)

SHUTTER OPEN Shutter OPEN Shutter CLOSED

CURTAIN mode

READY 90 Second lamp cool-down timer expired

READY for power-up or Re-strike

[READY OFF] 90 second lamp

Cool-down cycle in progress

BALLAST TEMP Ballast Temperature OK Ballast temperature high - Shutdown

FORMATTER Formatters Initialized and Operating Formatter failure (usually a communication

failure ) - Shutdown

VIDEO SIGNAL Video Signal Detected No Video

LAMP Lamp Struck and Operating Lamp Extinguished

FAN Fans OK Fan Failure - Shutdown

LAMP DOOR Lamp Door Interlock OK

Lamp Thermal Switch Closed

Lamp Door Open or

Lamp Thermal Switch Open-Shutdown

Features

Network connection through RJ45 connector

Allows connection of the Projector directly to the ethernet network through a RJ45 connector without

using RS232 ports on the computer and without loading any individual Projector management

software on the network server.

Network Projector management

Allows remote management of the Projector from any workstation through Internet or Intranet.

•

5.LED's and NETWORK

7. STATUS LED's

Power Status LED

Power LED Action

RED Projector in Standby

GREEN Projector in power up cycle or projector running

YELLOW Projector in power down cycle

Status LED's

Status LED Steady - ON Flashing or Off

LAMP DOOR Lamp door closed Lamp door open

FANS Fans OK Fan failure

LAMP Lamp struck OK “ON” Not struck / Lamp off

VIDEO SIGNAL Valid Video Signal detected No video or Invalid signal detected

FORMATTER Formatters Initialised and Operating Formatter failure - may ﬂash during

video signal change

BALLAST TEMP Ballast temperature OK Ballast temperature too high

>105˚C

READY Projector running/ready for power on Cool down cycle in progress

SHUTTER Shutter open Shutter closed

Quick Power down

If the projector is in the 5 MINUTE POWER DOWN sequence, pressing the SOFT POWER switch again

(1/2 second or more) will initiate the 60 SECOND POWER OFF sequence.

To cancel 5 MINUTE POWER DOWN press the SHUTTER switch. OR If the IR remote is enabled - press

the OPEN button on the remote control which will open the SHUTTER and cancel the 5 MINUTE POWER

DOWN. The STATUS LED will turn GREEN.

White LevelBlack Level

Power

Orient

Zoom+

Zoom-

Open

PatternMode

Focus Far

Focus Near

8. INFRARED REMOTE CONTROL

FUNCTIONS

Power Power on or Power off the projector

White Level

Changes the Gain or Contrast of the picture. Which affects

the white parts of the image

Black Level

Changes the brightness of the picture. Which affects the dark

part of the image.

Lens shift

▲▼►◄ Adjust the image position up, down, right and left.

Mode

Cycles through the Projection modes. has Normal, Pattern

and Curtain stytles.

Pattern

Cycles through test patterns when in PATTERN mode.

RED, GREEN, BLUE, WHITE, GREYSCALE, CROSS-

HATCH

Orient

Cycles though the Projection orientations. Normal, Front,

Rear, Ceiling)

256 GRAYS

Focus Far , Focus Near

Adjust the image focus

Open, Close

See " Shutter Control " parts for detail information.

Zoom + Bigger the image.

Zoom - Smaller the image.

No function

Lens shift

Feature / Attribute Description

Optics

Contrast 1800 to 1 nominal

Uniformity >85%

Resolution 3 chip DLP 720p (1280 x 720) 48Hz, 50Hz, 60Hz

Lamp 2 x 300W lamp

total lamp hour tracking

light blocking shutter - used in lamp warmup/shutdown transitions

Projection Lens Optional Lens

Throw Ratio = 0.64 : 1

Throw Ratio = 0.96 : 1

Throw Ratio = 1.2 - 1.44 : 1

Throw Ratio = 1.44 - 1.8 : 1

Throw Ratio = 1.8 - 2.4 : 1

Throw Ratio = 2.4 - 3.6 : 1

Throw Ratio = 3.6 - 5.6 : 1

Projection Lens Image Offsets Vertical total 160%

Horizontal +/- 20%

Prism/DMD Optics ﬁltered air for dusty environment

Electrical

I/O - Video Input DVI-D with HDCP

720p native only

I/O - Control and Status 9-Pin, 2-Way RS232 9600 Baud (8,N,1)

RJ-45 Ethernet

8 green LED status array - see use model tab

I/O - Power Input IEC-320-C14receptacle

Rocker Switch Left position - strikes the lamp, initializes electronics

Right position - opens or closes shutter

Indicators Red/yellow/green LED Main Power

Projector Control Hard wired remote via RS-232, IR Remote

Zoom/Focus/Offsets DC motor control via IR Remote

Projection Modes Front/ Rear/ Ceiling/Desk

Video Modes 720p,48Hz, 50Hz, 60Hz, Native (no scaling)

Power ~ 100 - 240V, 50/60Hz, MAX 8A

Remote control via IR remote from front or back

9. SPECIFICATIONS

Status

Status Monitoring LED Array

Green/Off Control Board Power

Fans

Valid Signal Input

Lamp ON

Shutter Open

DMD Formatter ON

Ballast Temperture OK

System Ready

Feature / Attribute Description

Environmental

Operating Temperature 10 deg. C to 35 deg. C ambient

Humidity 20 - 80% non-condensing

Storage -20°C to 60°C, 90% RH

Lamp Life 1500hrs @100% Light Ouput

Operating Height 0 ~ 2000M

Service

Lamp 90 days from date of shipment

Parts (non-lamp) 1 year

Standard Accessories

Power Cord India / Euro / USA 220VAC

IR Remote

User guide

Inhaltsverzeichnis

Andere Digital Projection Projektor Handbücher

Digital Projection

Digital Projection Titan 1080p-500 Betriebsanleitung

Digital Projection

Digital Projection E-Vision 6000 Series Bedienungsanleitung

Digital Projection

Digital Projection TITAN SX+ 500 Bedienungsanleitung

Digital Projection

Digital Projection E-Vision 8000 Series Bedienungsanleitung

Digital Projection

Digital Projection HIGHlite 660 3D Series Bedienungsanleitung

Digital Projection

Digital Projection LIGHTNING 30-1080p Bedienungsanleitung

Digital Projection

Digital Projection INSIGHT 4K Dual LED Series Bedienungsanleitung

Digital Projection

Digital Projection Titan Super Quad Bedienungsanleitung

Digital Projection

Digital Projection E-Vision Laser 13000 WU Series Datenblatt

Digital Projection

Digital Projection POWER 2v Bedienungsanleitung

Digital Projection

Digital Projection TITAN sx+-330-3D L or P Bedienungsanleitung

Digital Projection

Digital Projection E-Vision Laser 15000 Series Datenblatt

Digital Projection

Digital Projection M-Vision 930 3D Series Bedienungsanleitung

Digital Projection

Digital Projection LIGHTNING 35HD Bedienungsanleitung

Digital Projection

Digital Projection HIGHlite Laser 3D Series Bedienungsanleitung

Digital Projection

Digital Projection E-Vision Laser 15000 Series Bedienungsanleitung

Digital Projection

Digital Projection dVision 30 Bedienungsanleitung

Digital Projection

Digital Projection HIGHlite 660 Series Bedienungsanleitung

Digital Projection

Digital Projection HIGHlite 660 Series Bedienungsanleitung

Digital Projection

Digital Projection TITAN HD-600 Bedienungsanleitung

Digital Projection

Digital Projection HIGHlite Cine 260 HB Bedienungsanleitung

Digital Projection

Digital Projection TITAN WUXGADual3 D Bedienungsanleitung

Digital Projection

Digital Projection INSIGHT 4K Dual LED Series Betriebsanleitung

Digital Projection

Digital Projection E-VISION 4500 series Bedienungsanleitung

Beliebte Projektor Handbücher anderer Marken

iEmmet

iEmmet MP-312 Bedienungsanleitung

Epson

Epson VS400 Bedienungsanleitung

Sony

Sony VPL-HS10 Marketing Specifications & Features Bedienungsanleitung

Sony

Sony VPL-HW65ES Service-Handbuch

Toshiba

Toshiba TLP-791U Bedienungsanleitung

Philips

Philips LC1341 Referenzhandbuch

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Bedienungsanleitung

NEC

NEC NP600S EDU Bedienungsanleitung

BenQ

BenQ SH753P Bedienungsanleitung

Eiki

Eiki EK-623U series Bedienungsanleitung

Epson

Epson PowerLite Pro Cinema 6020UB Bedienungsanleitung

Epson

Epson PowerLite Home Cinema 705HD Bedienungsanleitung

Christie

Christie LHD700 Bedienungsanleitung

Navitar

Navitar FX Bedienungsanleitung

InFocus

InFocus LitePro 560 Bedienungsanleitung

Sony

Sony SRX-R815P Bedienungsanleitung

Vivitar

Vivitar DP1500 X Bedienungsanleitung

Acer

Acer C20 Series Bedienungsanleitung

Digital Projection morpheus 7000hdi Bedienungsanleitung

Beliebte Projektor Handbücher anderer Marken
