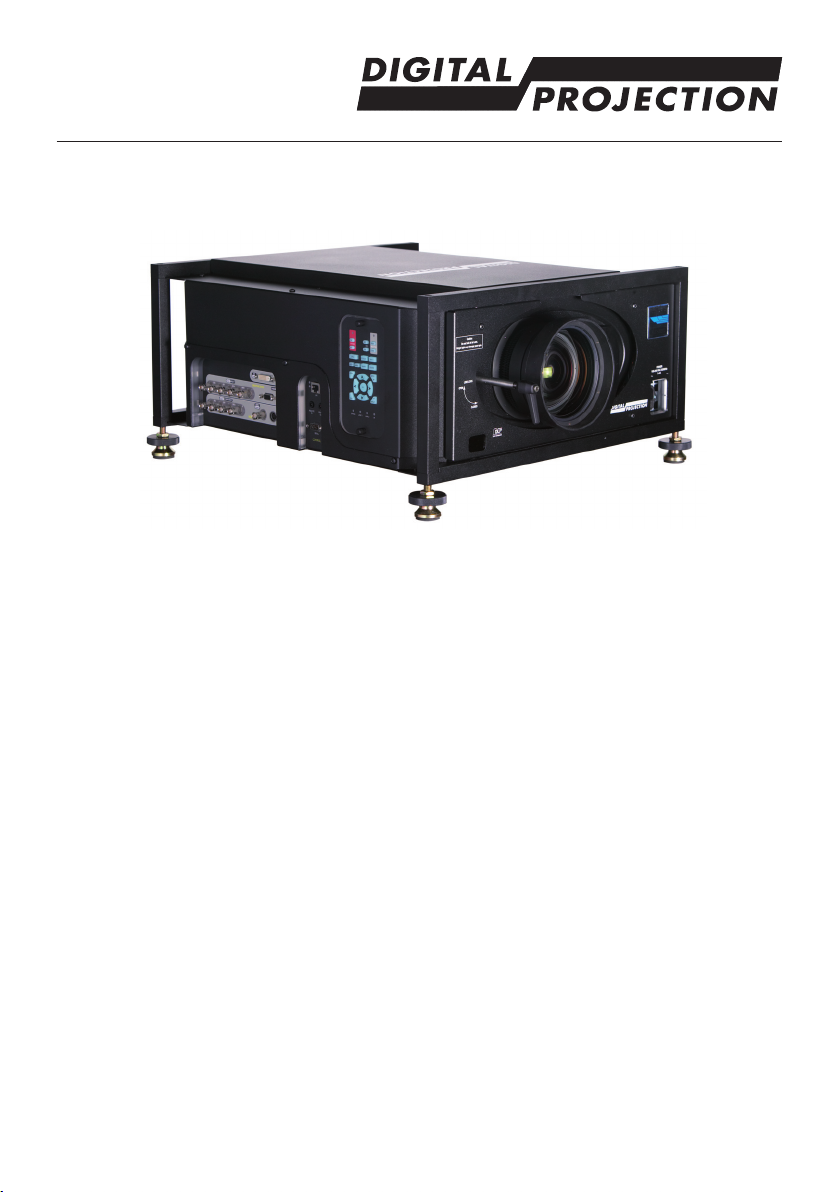

Digital Projection Titan 1080p-250 Betriebsanleitung

TITAN 1080p-500/250, sx+-500, HD-500/250, XG-500

105-924E

page 3 Super High Brightness Digital Video Projector

Important Information

seite 10 Super High Brightness Digitaler Videoprojektor

Wichtige Informationen

page 17 Vidéo projecteur numérique à forte luminosité

Informations importantes

página 24 Vídeo-proyector digital de alta luminosidad

Información importante

pagina 31 Proiettore video digitale ad alta luminosità

Informazioni importanti

sid. 38 Digital videoprojektor Super High Brightness

Viktig information

Digital Projection TITAN 1080p-500/250, sx+-500, HD-500/250, XG-500

Digital Projection

Digital Projection Limited,

Greenside Way, Middleton, Manchester M24 1XX, UK.

Registered in England No. 2207264, Registered Ofﬁce: as above

Tel +44 (0) 161 947 3300

Fax +44 (0) 161 684 7674

Email [email protected], [email protected]

Web Site www.digitalprojection.co.uk

Digital Projection Inc.

55 Chastain Road, Suite 115, Kennesaw, GA 30144. USA

Tel (USA) 770 420 1350

Fax (USA) 770 420 1360

Email [email protected]

Web Site www.digitalprojection.com

Digital Projection TITAN 1080p-500/250, sx+-500, HD-500/250, XG-500

Rev E March 2008 Page 3

This information booklet contains the following extracts from the User Manual:

Contents

Symbols used in the User Manual ....................................................................................2

Declaration of Conformity .................................................................................................3

General precautions...........................................................................................................4

Installation precautions .....................................................................................................5

Operation and conﬁguration precautions........................................................................6

Compliance with international standards ........................................................................6

Noise ...............................................................................................................................................6

RF Interference...............................................................................................................................6

Speciﬁcations .....................................................................................................................7

Part numbers..................................................................................................................................7

Optical.............................................................................................................................................7

Electrical .........................................................................................................................................8

Physical...........................................................................................................................................8

Full information about operating, connecting and setting up the projector can be found in the

User Manual, located on the CD.

Symbols used in the User Manual

ELECTRICAL WARNING: this symbol indicates that there is a danger of electrical shock

unless the instructions are closely followed.

WARNING: this symbol indicates that there is a danger of physical injury to yourself

and/or damage to the equipment unless the instructions are closely followed.

NOTE: this symbol indicates that there is some important information that you should read.

English

Digital Projection TITAN 1080p-500/250, sx+-500, HD-500/250, XG-500

Page 4 Rev E March 2008

Declaration of Conformity

Directives covered by this Declaration

2004/108/EC Electromagnetic Compatibility Directive.

2006/95/EC Low Voltage Equipment Directive.

Products covered by this Declaration

Large screen video projector type The CE mark was ﬁrst applied in:

TITAN sx+-500 June 2006

TITAN HD 500 July 2006

TITAN HD 250 July 2006

TITAN XG 500 July 2006

TITAN 1080p 500 June 2007

TITAN 1080p 250 June 2007

Basis on which Conformity is being declared

The products identiﬁed above comply with the protection requirements of the above EU directives, and

the manufacturer has applied the following standards.

EN 55022:1998 - Limits and Methods of Measurement of Radio Disturbance Characteristics of

Information Technology Equipment.

EN 55024:1998 - Limits and Methods of Measurement of Immunity Characteristics of Information

Technology Equipment.

EN 55103:1997 - Product family Standard for Audio, Video, Audio-Visual and Entertainment

Lighting Control apparatus for Professional Use.

EN 60950-1:2001- Speciﬁcation for Safety of Information Technology Equipment, including

Electrical Business equipment.

The technical documentation required to demonstrate that the products meet the requirements of the

Low Voltage directive has been compiled by the signatory below and is available for inspection by the

relevant enforcement authorities.

Signed:

Authority: D.J. Quinn, Product Development Director

Date: 25 June 2007

Attention!

The attention of the speciﬁer, purchaser, installer, or user is drawn to special measures and limitations

to use which must be observed when these products are taken into service to maintain compliance

with the above directives. Details of these special measures are available on request, and are also

contained in the product manuals.

English

Digital Projection TITAN 1080p-500/250, sx+-500, HD-500/250, XG-500

Rev E March 2008 Page 5

General precautions

Do not open the cabinet. There are no user serviceable parts inside.

Use only the power cable provided.

Ensure that the power outlet includes a Ground connection, as this equipment MUST be

earthed.

Take care to prevent small objects such as paper or wire from falling into the projector.

If this does happen, switch off immediately, and have the objects removed by

authorised service personnel.

Do not expose the projector to rain or moisture, and do not place any liquids on top of

the projector.

Unplug before cleaning, and use a damp, not wet, cloth.

Do not touch the power plug with wet hands.

Do not touch the power plug during a thunder storm.

Handle the power cable carefully and avoid sharp bends. Do not use a damaged power

cable.

There are no user-serviceable parts inside the lamp module. The whole module should

be replaced.

Take care when removing the lamp module.

NEVER touch the lamp or reﬂector.

Take care not to touch the glass surface of the lamp module. If you do accidentally

touch the glass, it should be cleaned before use. (see section 5. Maintenance.)

Do not use the lamp for more than 1500 hours, as this may cause serious lamp failure,

damage the lamp module and cause extra cost on replacement.

HID lamps produce high intensity light. Do not look directly at the light coming from the

lamp housing, or the lens, or allow items such as magnifying lenses to be placed in the

light path. This could result in serious eye damage.

Do not touch the ventilation outlets, as they will become hot in use.

Do not cover or obstruct the ventilation outlets or inlets.

Do not cover the lens whilst the projector is switched on. This could cause a ﬁre

Always allow the projector to cool for 5 minutes before disconnecting the power,

moving the projector or changing the lamp.

Never use strong detergents or solvents such as alcohol or thinners to clean the

projector and lens.

English

Digital Projection TITAN 1080p-500/250, sx+-500, HD-500/250, XG-500

Page 6 Rev E March 2008

Installation precautions

Connect the LAN cable only to a computer LAN connection. Other similar connectors

may have a dangerously high voltage source.

The projector must be installed only by suitably qualiﬁed personnel, in accordance with

local building codes.

The projector should be installed as close to the power outlet as possible.

The power connection should be easily accessible, so that it can be disconnected in an

emergency.

Ensure that there is at least 30cm (12in) of space between the ventilation outlets and

any wall, and 10cm (4in) on all other sides.

Do not install the projector close to anything that might be affected by its operational

heat, for instance, polystyrene ceiling tiles, curtains etc.

The projector weighs approximately 27 kg (50 lbs). Use safe handling techniques when

lifting the projector.

When stacking projectors, the stack MUST be vertical, to ensure that the stresses are

distributed to all frame couplings.

Before installation, make sure that the surface, ceiling or rigging that is to support the

projector is capable of supporting the combined weight of the projector and lens (see

speciﬁcation for exact weights).

Separate backup safety chains or wires should always be used for each projector.

Do not place heavy objects on top of the projector chassis. Only the chassis corners

and the rigging frame are capable of withstanding the weight of another projector.

Do not stack more than 3 projectors.

Do not drop or jarr the projector.

1080p, sx+500: The lens release lever should always be set to the locked position to

prevent the lens from falling out.

Place the projector in a dry area away from sources of dust, moisture, steam, smoke,

sunlight or heat.

Do not tilt the projector more than ±12° from side to side when in use, as this may

cause serious lamp failure, damage the lamp

module and cause extra cost on replacement.

The projector my be tilted forwards and

backwards as necessary.

±12°

360°

English

Digital Projection TITAN 1080p-500/250, sx+-500, HD-500/250, XG-500

Rev E March 2008 Page 7

Operation and conﬁguration precautions

Do not make changes to the networking conﬁguration unless you understand what you

are doing, or have taken advice from your Network Manager. If you make a mistake, it is

possible that you will lose contact with the projector. Always double-check your

settings before pressing the APPLY button. Always keep a written note of the original

settings, and any changes you have made.

Software update should NOT be carried out except by, or with the supervision of, Digital

Projection Service personnel.

Compliance with international standards

Noise

GSGV Acoustic Noise Information Ordinance

The sound pressure level is less than 70 dB (A) according to ISO 3744 or ISO 7779.

RF Interference

FCC

The Federal Communications Commission does not allow any modiﬁcations or changes to the unit

EXCEPT those speciﬁed by Digital Projection in this manual. Failure to comply with this government

regulation could void your right to operate this equipment.

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant with Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area may cause harmful interference, in which case the

user will be responsible for correcting any interference.

This equipment contains an FCC approved RF transmitter module with FCC ID: R68WIPORT.

European Waste Electrical and Electronic Equipment (WEEE) Directive

Digital Projection Ltd is fully committed to minimising Waste Electrical and Electronic Equipment. Our

products are designed with reuse, recycling and recovery of all components in mind. To this

end, at end of life, your projector may be returned to Digital Projection Ltd or its agent so that

the environmental impact can be minimised.

English

Digital Projection TITAN 1080p-500/250, sx+-500, HD-500/250, XG-500

Page 8 Rev E March 2008

Speciﬁcations

Part numbers

Projector 1080p 500: 106-241, with SDI: 108-642,

1080p 250: 106-242, with SDI: 108-641, sx+ 500: 105-925,

HD 500: 105-948, HD-250: 106-240, XG 500: 106-239

Power cable 10A, Europe 102-163 United Kingdom 102-180

Power cable 13A, North America 102-165 Rigging frame 104-923

Remote control 105-023 4x AAA batteries 105-922

Remote cable 5m 102-162

User manual on CD 105-923 Important Information 105-924

Lamp module 001-742 Air ﬁlter 102-064

Lenses sx+ 500

0.73 : 1 ﬁxed lens 105-607

1.2 : 1 ﬁxed lens (3 - 15m) 105-608

1.2 : 1 ﬁxed lens (1.2 - 2.0m) 105-609

1.5 - 2.02 : 1 zoom lens 105-610

2.02 - 2.77 : 1 zoom lens 105-611

2.77 - 4.51 : 1 zoom lens 105-612

4.51 - 7.53 : 1 zoom lens 105-613

Lenses 1080p 500/250 High Brightness High Contrast

0.67 : 1 ﬁxed lens 105-607 107-195

1.12 : 1 ﬁxed lens (3 - 15m) 105-608 105-608

1.12 : 1 zoom lens (1.2 - 2m) 105-609 105-609

1.39 - 1.87 : 1 zoom lens 105-610 107-196

1.87 - 2.56 : 1 zoom lens 105-611 107-197

2.56 - 4.16 : 1 zoom lens 105-612 107-198

4.16 - 6.96 : 1 zoom lens 105-613 107-199

Lenses HD 500/250 High Brightness High Contrast

0.63 : 1 ﬁxed lens 001-734 102-373

0.96 : 1 ﬁxed lens 001-735 102-835

1.2 - 1.44 : 1 zoom lens 001-736 102-374

1.44 - 1.8 : 1 zoom lens 001-737 102-375

1.8 - 2.4 : 1 zoom lens 001-738 102-376

2.4 - 3.6 : 1 zoom lens 001-739 102-377

3.6 - 5.6 : 1 zoom lens 001-740 102-378

Lenses XG 500

0.8 : 1 ﬁxed lens 001-734

1.2 : 1 ﬁxed lens 001-735

1.5 - 1.8 : 1 zoom lens 001-736

1.8 - 2.25 : 1 zoom lens 001-737

2.25 - 3.0 : 1 zoom lens 001-738

3.0 - 4.5 : 1 zoom lens 001-739

4.5 - 7.0 : 1 zoom lens 001-740

Optical

Digital Light Processor 1080p 500/250: 3 x 0.95” Texas Instruments DMD™,

resolution 1920 x 1080 pixels

sx+ 500: 3 x 0.94” Texas Instruments DMD™,

resolution 1400 x 1050 pixels

HD 500/250: 3 x 0.8” Texas Instruments DMD™,

resolution 1280 x 720 pixels

XG 500: 3 x 0.7” Texas Instruments DMD™,

resolution 1024 x 768 pixels

English

Digital Projection TITAN 1080p-500/250, sx+-500, HD-500/250, XG-500

Rev E March 2008 Page 9

Contrast Ratio 1080p 500: >2000:1 250: >5000:1 full ﬁeld (±10%)

sx+ 500: >1600:1 full ﬁeld (±10%)

HD 500: >1200:1 full ﬁeld (±10%) (High Brightness lens)

HD 250: >4000:1 full ﬁeld (±10%) (High Contrast lens)

XG 500: >1200:1 full ﬁeld (±10%)

Pixel ﬁll factor 1080p: 87%, sx+, HD, XG: 90%

Lamp power 500: 2 x 250W, 250: 1 x 250W

Lamp life (typical) 500: 1500 hours in dual lamp mode , 3000 in single lamp

mode

250: 1500 in single lamp mode

Brightness 1080p 500: 6000 ANSI lumens (±10%) in dual lamp mode

1080p 250: 2000 ANSI lumens (±10%)

sx+ 500: 5500 ANSI lumens (±10%) in dual lamp mode

HD 500: 4500 ANSI lumens dual lamp (High Brightness lens)

HD 250: 1600 ANSI lumens (±10%) (High Contrast lens)

XG 500: 4500 ANSI lumens (±10%) in dual lamp mode

Colour temperature Native: 7500°K (±1000°K),

White balance adjustment: 3000°K - 10000°K

Electrical

Inputs RGB1, RGB2, DVI, Composite Video, S-Video, Component.

sx+ 500 and 1080p only: and SDI

Pixel clock up to 165MHz

Control inputs 1 x LAN

1 x wiﬁLAN (FCC ID: R68WIPORT)

1 x RS232 serial: 19200 baud, 8 bits, 1 stop bit, no parity

1 x remote control

Mains voltage 100-230 VAC ±10%, 48-62Hz (single phase)

Power consumption 500: 750 W, 250: 500W

International Regulations Meets FCC Class A requirements

Meets EMC Directives (EN 55022, EN 55024, EN 55103)

Meets Low Voltage Directive (EN60950)

Indicators Input, Power, Shutter, Error, IR, Lamp 1, Lamp 2 (500 only)

Physical

Operating Temperature 0 to 40°C

Storage Temperature -10 to 50°C

Thermal Dissipation 500: 2600 BTU/hr, 250: 1733 BTU/hr

Operating Humidity 20% to 80% non-condensing

Weight approximately 27 kg (60 lbs)

FCC WIFI ID, R68WIPORT

English

Digital Projection TITAN 1080p-500/250, sx+-500, HD-500/250, XG-500

Page 10 Rev E March 2008

Dieses Informationsheft enthält die folgenden Auszüge aus dem Benutzerhandbuch:

Inhalt

Symbol in diesem Leitfaden..............................................................................................9

Konformitätserklärung.....................................................................................................10

Allgemeine Vorsichtsmaßnahmen ..................................................................................11

Vorsichtsmaßnahmen bei der Installation .....................................................................12

Vorsichtsmaßnahmen bei Betrieb und Konﬁguration ..................................................13

Übereinstimmung mit internationalen Standards .........................................................13

Lärm ..............................................................................................................................................13

Funkstörung .................................................................................................................................13

Technische Daten .............................................................................................................14

Teilenummern...............................................................................................................................14

Optisch..........................................................................................................................................14

Elektrisch......................................................................................................................................15

Physisch .......................................................................................................................................15

Vollständige Informationen über den Betrieb, den Anschluss und die Einstellungen des

Projektors ﬁnden Sie im Benutzerhandbuch auf der CD.

Symbol in diesem Leitfaden

ELEKTRISCHE WARNUNG: Dieses Symbol weist darauf hin, dass Stromschlaggefahr

besteht, wenn die Anweisungen nicht strikt befolgt werden.

WARNUNG: Dieses Symbol weist darauf hin, dass die Gefahr von Körper- und

Sachschäden besteht, wenn die Anweisungen nicht strikt befolgt werden.

HINWEIS: Dieses Symbol weist auf wichtige Informationen hin, die Sie lesen sollten.

Deutsche

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Digital Projection Projektor Handbücher

Digital Projection

Digital Projection E-Vision 6900 Series Bedienungsanleitung

Digital Projection

Digital Projection E-Vision Betriebsanleitung

Digital Projection

Digital Projection iVision50-series Bedienungsanleitung

Digital Projection

Digital Projection TITAN sx+-500 Bedienungsanleitung

Digital Projection

Digital Projection M-Vision 1080p-260 series Bedienungsanleitung

Digital Projection

Digital Projection INSIGHT 4K Dual LED Series Betriebsanleitung

Digital Projection

Digital Projection INSIGHT 4K Dual LED Series Bedienungsanleitung

Digital Projection

Digital Projection E-Vision Laser 13000 WU Series Datenblatt

Digital Projection

Digital Projection Titan Super Quad Bedienungsanleitung

Digital Projection

Digital Projection HIGHlite 4100gv Bedienungsanleitung

Digital Projection

Digital Projection TITAN sx+ Pro Series 3 Bedienungsanleitung

Digital Projection

Digital Projection E-Vision 7500 WUXGA Bedienungsanleitung

Digital Projection

Digital Projection HIGlite 8000 Series Bedienungsanleitung

Digital Projection

Digital Projection E-Vision Laser 5000 XGA Bedienungsanleitung

Digital Projection

Digital Projection M-Vision Cine 320 Series Bedienungsanleitung

Digital Projection

Digital Projection Titan 1080p-500 Betriebsanleitung

Digital Projection

Digital Projection SHOWlite 3000sx Bedienungsanleitung

Digital Projection

Digital Projection dVision 1080p Bedienungsanleitung

Digital Projection

Digital Projection 35HD-T Bedienungsanleitung

Digital Projection

Digital Projection M-Vision Cine 320 3D series Bedienungsanleitung

Digital Projection

Digital Projection 35HD-T Bedienungsanleitung

Digital Projection

Digital Projection INSIGHT 4K Dual LED Series Betriebsanleitung

Digital Projection

Digital Projection E-Vision 7500 Series Bedienungsanleitung

Digital Projection

Digital Projection 8K Series Bedienungsanleitung

Beliebte Projektor Handbücher anderer Marken

iEmmet

iEmmet MP-312 Bedienungsanleitung

Epson

Epson VS400 Bedienungsanleitung

Sony

Sony VPL-HS10 Marketing Specifications & Features Bedienungsanleitung

Sony

Sony VPL-HW65ES Service-Handbuch

Toshiba

Toshiba TLP-791U Bedienungsanleitung

Philips

Philips LC1341 Referenzhandbuch

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Bedienungsanleitung

NEC

NEC NP600S EDU Bedienungsanleitung

BenQ

BenQ SH753P Bedienungsanleitung

Eiki

Eiki EK-623U series Bedienungsanleitung

Epson

Epson PowerLite Pro Cinema 6020UB Bedienungsanleitung

Epson

Epson PowerLite Home Cinema 705HD Bedienungsanleitung

Christie

Christie LHD700 Bedienungsanleitung

Navitar

Navitar FX Bedienungsanleitung

InFocus

InFocus LitePro 560 Bedienungsanleitung

Sony

Sony SRX-R815P Bedienungsanleitung

Vivitar

Vivitar DP1500 X Bedienungsanleitung

Acer

Acer C20 Series Bedienungsanleitung
