Digital Watchdog DWC-EXTIR100 Bedienungsanleitung

Quick Start Guide

100ft IR Illuminator for MEGApix®PANO™and STAR-LIGHT™

HD over Coax™Panoramic Bullet Camera

DWC-EXTIR100

WHAT’S IN THE BOX

QSG Manual 1 Set Screw 1 Set

NOTE To check if your camera supports the new Infra Red Extrernal Illuminator, check to see if it has an additional cables lebeled EX-LED in

the bullet’s cables.

NOTE Download All Your Support Materials and Tools in One Place

1. Go to: http://www.digital-watchdog.com/support-download/

2. Search your product by entering the part number in the ‘Search by Product’ search bar. Results for applicable part numbers will

populate automatically based on the part number you enter.

3. Click ‘Search’. All supported materials, including manuals, Quick Start Guides (QSG), software and rmware will appear in the results.

Attention: This document is intended to serve as a quick reference for initial set-up.

It is recommended that the user read the entire instruction manual for complete and proper installation and usage.

Tel: +1 (866) 446-3595 / (813) 888-9555 digital-watchdog.com

Technical Support Hours: 9:00AM – 8:00PM EST, Monday thru Friday

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

EX-LED

Quick Start Guide

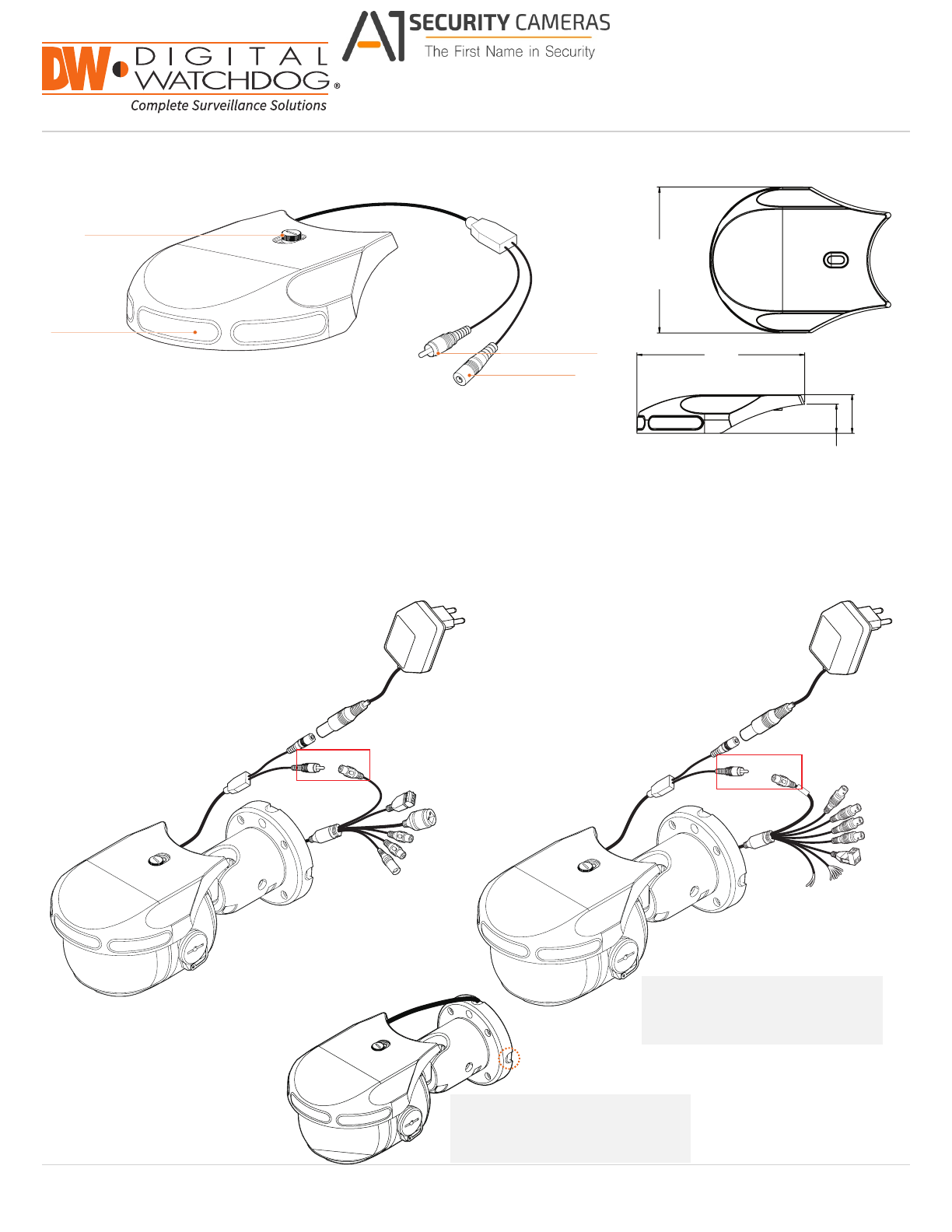

PARTS & DIMENSIONS

Screw

5.06”

(128.6mm)

IR LEDs

EX-LED Cable

6.28”

(159.6mm)

DC12V / AC24V Cable

1.45”

(37mm)

INSTALLING THE MOUNTING ACCESSORY

1.09”

(27.9mm)

1. Connect the EXT-LED cable from the illuminator to the camera’s cable labeled “EX-LED”

2. Connect the power cable to an adequate power supply.

• Power requirements: DC12V/AC24V Dual Voltage

• Power consumption: DC12V : Max 11.0W, AC24V : Max 11.0W

INSTALLATION ON AN IP CAMERA INSTALLATION ON AN ANALOG CAMERA

12VDC / 24V AC 12VDC / 24V AC

Power Power

DC12V DC12V

EX-LED LED EX-LED

LED

NOTE: Please check your

hardware to see if it supports the IR

illuminator connection.

NOTE: The illuminator’s cables can

be placed in any of the four holes in

the camera’s mounting bracket.

Rev Date: 07/17 Specications and pricing are subject to change without notice.
