Digitek G-Line Pro Bedienungsanleitung

1/14

www.digitek-moto.com

Rev05/KM/271113/DigProInst

G-Line ‘Pro’ Alarm

System

Installation Instructions

Thank you for purchasing the new Digitek G-Line ‘Pro’ Thatcham approved CAT 1 alarm system; this security system has

been designed specifically for motorcycles. An additional Digitek G-Link garage/shed wireless ‘PIR’ can also be added to

this system to protect your garage/shed contents providing the motorcycle is within 20meters of the PIR. When the PIR

detects movement it will trigger the Digitek G-Line Pro motorcycle alarm. For further information on the Digitek G-Link

garage/shed wireless PIR please visit us at

‘www.digitek-mot.com’

Please read the following installation instructions carefully to familiarise yourself fully with the alarm system features

and operating procedures, should you have any questions then please contact us at

‘techincal@digitek-moto.com’.

Thatcham Homologation Number; TQA 382

CONTENTS

1.0 –Alarm Positioning

1.1 - Alarm Positioning For Maximum Sensitivity

1.2 - Alarm Unit Sealing

1.3 - Electronic Touch Key Receptacle Positioning

1.4 - Contact switch Positioning

1.5 - Electrical Connections

1.6 - Engine Immobilisation (electronic Ignition)

1.7 - Alarm Connector Wiring Diagram

1.8 –Engine Immobilisation (electronic Ignition) - Wiring Diagram

1.9 - Learning New Devices

2.0 - Programmable Features

2.1 - Replacing Remote Control Batteries

2.2 - Technical Specifications

2/14

www.digitek-moto.com

Rev05/KM/271113/DigProInst

G-Line ‘Pro’ Alarm

System

1.0 –Alarm Positioning

OK!

NO!

Securing the alarm control unit:

Secure/ Dry location, for example under the

motorcycle seat or behind a fixed panel.

It is important to give the rubber sheath a ‘goose-

neck’ bending as shown in the picture opposite and

secure with a tie wrap to help prevent water

ingress.

Pay attention not to muffle the siren speaker.

Secure away from moving mechanical parts.

Keep away from devices that could reach high

temperatures when the vehicle is in use.

Secure into position with the supplied zip-tie.

Attention: Great care should be taken when routing the alarm

power supply wires. Avoid trapping the wires and keep away

from moving parts.

Do not install the alarm unit in this position as water ingress

over time may seep through the rubber sheath and

permanently damage the electronic circuit making the alarm

system unreliable.

Warrant will be void!

ATTENTION; Do not jet wash the alarm ECU. The alarm

warranty will not cover damages to the alarm system due to

water ingress caused by improper installation OR jet

washing!

3/14

www.digitek-moto.com

Rev05/KM/271113/DigProInst

G-Line ‘Pro’ Alarm

System

1.1 - Alarm Positioning For Maximum Sensitivity

To ensure correct operation of the built-in motion sensor install the alarm as illustrated below.

OK OK OK OK

45°

MAX

45°

MAX

Figure 1:

Figure 2:

horizontal

positioning.

maximum

applicable inclination.

Figure 3: Motion sensor operation with the siren facing up or down. The sensor will detect any movement of the

motorcycle in any direction (recommended).

4/14

www.digitek-moto.com

Rev05/KM/271113/DigProInst

G-Line ‘Pro’ Alarm

System

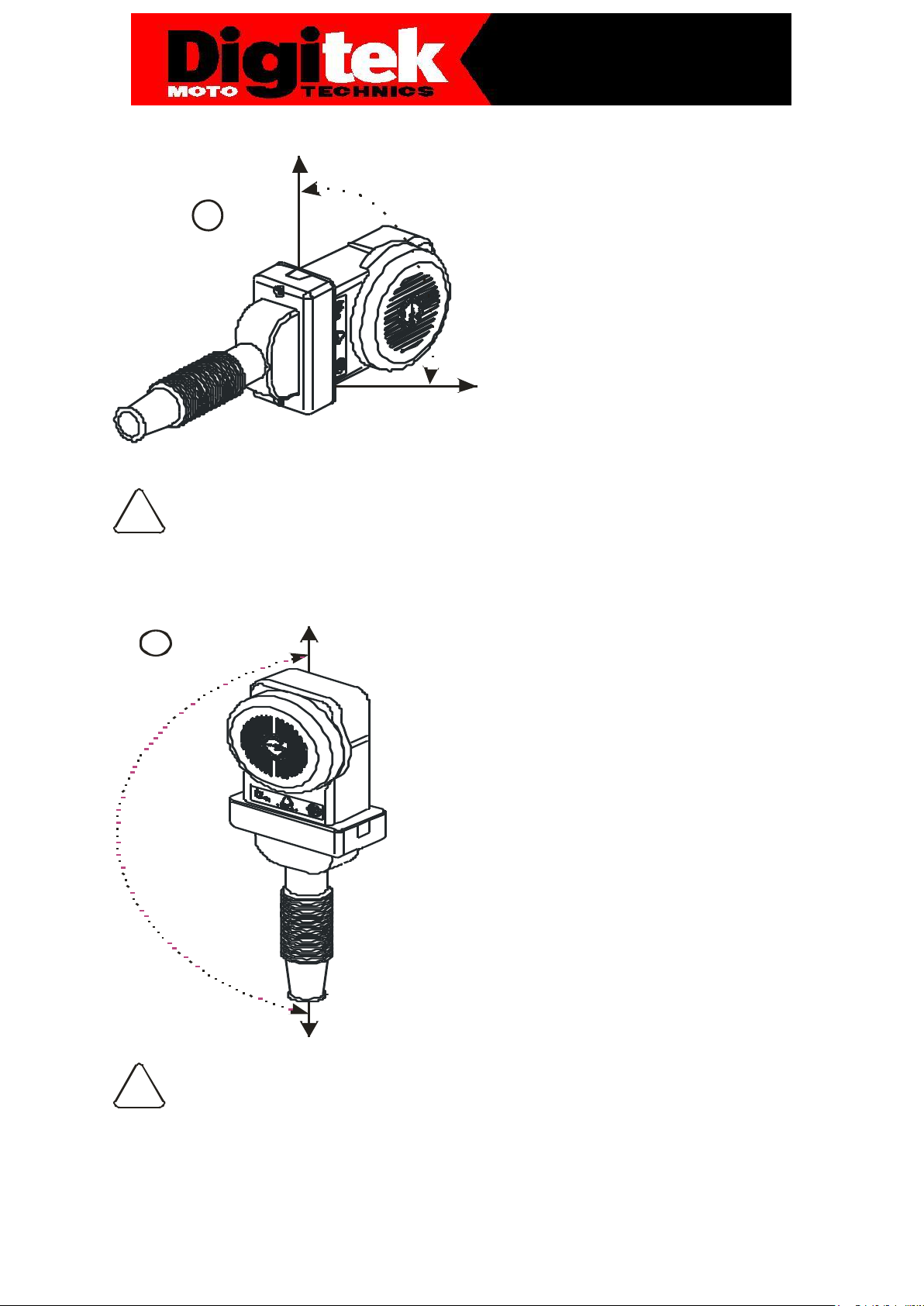

Figure 4: Motion sensor operation with the siren facing sideways

ATTENTION: Only suitable for vehicles with a side stand, the alarm can be fitted on either

the right or left side of the motorcycle as long as the siren is turned toward the right side of the

vehicle (opposite to the side stand).

Figure 5: Motion sensor operation with the alarm fitted vertically.

ATTENTION: Only for motorcycles with a centre stand. To prevent water from entering the

alarm unit via the rubber sheath the alarm must position with the rubber sheath at the bottom (as

shown in figure 5 above).

5/14

www.digitek-moto.com

Rev05/KM/271113/DigProInst

G-Line ‘Pro’ Alarm

System

1.2 –Alarm Unit Sealing

To seal the alarm, position the rubber cap over the external edge of the alarm housing. Pull the

plastic rectangular flange over the rubber cap and secure with the supplied screws. Do not over

tighten.

Alarm unit sealed

6/14

www.digitek-moto.com

Rev05/KM/271113/DigProInst

G-Line ‘Pro’ Alarm

System

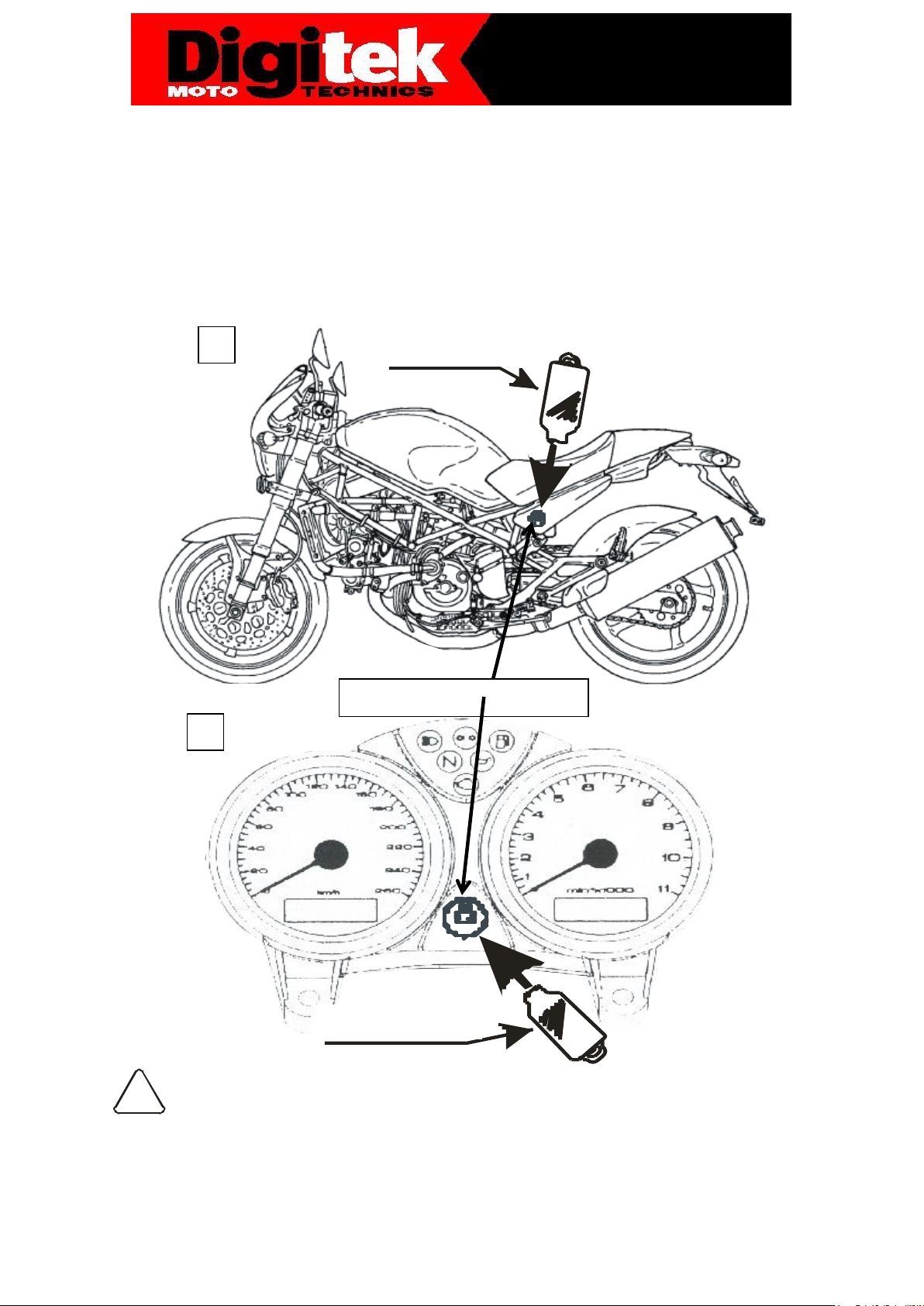

1.3 –Electronic Touch Key Receptacle Positioning

The electronic touch key is a simplified remote control with no batteries. In emergency situations (remote control

failure) it can be used to arm/disarm the alarm by simply touching it to its receptacle. The receptacle incorporates a LED

warning light that serves as both a system status indicator and a visual theft deterrent and must be installed where it

can be seen and accessed by the end user.

For example: ‘A’–side panel or ‘B’- Instrument cluster.

Electronic key

ATTENTION: Before drilling with a 13mm drill bit check behind the trim that you have plenty

of room for the receptacle and to be sure that the LED will not be obscured for example by the

handlebars when the vehicle is parked.

Electronic Touch Key Receptacle

Electronic Touch Key

7/14

www.digitek-moto.com

Rev05/KM/271113/DigProInst

G-Line ‘Pro’ Alarm

System

1.4 - Contact Switch Positioning

The supplied contact reed switch must be fitted to protect the seat or top-case. It must be installed in such a way as to

detect the opening of the seat/top-case without being accessible from the outside. The trigger threshold must be

carefully set to avoid false alarms. The switch has a self-adhesive backing to assist in mounting, clean and de-grease the

area thoroughly prior to fitting. Fit the magnet on the removable panel/seat adjacent to the switch using the fitting

methods described above. When correctly set; the LED should go out before the panel is removed by 25mm. The

position of the switch/magnet should be adjusted accordingly. If more than one area is to be protected, extra magnets

and switches are available through Digitek Moto-Technic, this is a chargeable extra.

ATTENTION: The ENGINE immobilizer 40 second count down is interrupted until the seat/top case is closed!

1.5 –Electrical Connections

Alarm Wire Colour

Alarm Plug Pin

Connection

Black wire marked ‘M’

Connect to motorcycle battery negative terminal (Ground)

Black wire marked ‘R’

Connect to motorcycle battery positive 12v via supplied 10amp fuse

Orange

Connect to motorcycle left turn indicator

Orange

Connect to motorcycle right turn indicator

Black wire marked ‘G’

Connect to motorcycle ignition under key (+15)

Green/Brown

Connect to seat/Top-case contact switch

White/Violet

Learning New Device –See section 2.1

Green

Electronic Key data line

1.6 - Engine Immobilisation (see diagram 1.9)

Alarm Wire Colour

Alarm Plug Pin

Connection –see wiring diagram section 1.9

Black wire marked ‘B1’

Connect to motorcycle starter switch (see diagram 1.9)

Black wire marked ‘H1’

Connect to motorcycle starter wire (See section 1.9)

Black wire marked ‘HB’

Not used –cut and insulate.

Black wire marked ‘B’

Connect to positive under key wire being cut; i.e. fuel/ign (See diag 1.9)

Black wire marked ‘H’

Connect to other side of positive under key wire being cut , See diag 1.9

8/14

www.digitek-moto.com

Rev05/KM/271113/DigProInst

G-Line ‘Pro’ Alarm

System

Alarm Plug Pin

Alarm wire Colour / ID

Function

Black –‘B1’

Engine Immobilisation

Brown

Earth for Electronic Touch Key Receptacle

Black –‘M’

Power supply earth

White/Violet

Learning New Device –See Section 2.1

Green/Brown

Contact Switch Input

Empty

Black –‘G’

Ignition Key 12v (+15)

Black

Neg out for LED only

Black –‘H1’

Engine Immobilisation

Green

Electronic Key data line

Black –‘H’

Engine Immobilisation (N/C)

Black –‘B’

Engine Immobilisation (COM)

Black –‘HB’

Engine Immobilisation (N/A)

Orange

Turn Indicator

Black –‘R’

Power supply 12v via 10amp fuse / LED 12v Red

Orange

Turn Indicator

Black

Antenna

1.7 –Alarm Connector Wiring Diagram

Ignition key

Vehicle

battery

Black marked “HB”

Black marked “H1”

Black marked “B”

Black marked “B1”

Black marked “H”

Normallyopen contact

Normallyclose contact

Common contact

Normallyclose contact

Orange

10A Red

Battery

12 Volt

Brown

Yellow

Green/Brown

Ground

Engine immobilizer

Pink

Green/Black

(Max 10 mA)

15A

R ceptacle

with built-in

LED

Electronic

key

lack signed “B1”

Brown

3 Black signed “M”

7 Yellow/Black

8 Black signed “G”

10 Black signed “H1”

11 Green

2 Black signed “H”

3 Black signed “B”

4 Black signed “HB”

17 Black signed “R”

1 B

White/Violet

Green/Brown

Pink

Black

1 Orange

1 Red

15 Orange

1 Black

:Earth for electronickey

:Power supplyearth

: input

:Positive

: gnition key

:Negative outputfor

: Electronickeyinput

:Engine immobilizer (N.C.)

: (Com.)

: (N.A.)

: indicator light

: Antenna

Engine immobilisation

output

Negative outputin alarm

I positiveLED

Engine immobilisation

Engine immobilizer

Turn

Positive outputfor LED

Turn indicator light

Positive power supply

Panicsiren

Contactswitch

WIRING CONNECTOR

Connections

for turn

indicator light

Installation

should be

mandatory

S/eat topcase

switch

Optional fuse ( )recommended

161718 89 12

610

711

5 1

Alarm connecter plug from wire entry side.

9/14

www.digitek-moto.com

Rev05/KM/271113/DigProInst

G-Line ‘Pro’ Alarm

System

Ignition key

Vehicle

battery

Black marked “HB”

Black marked “H1”

Black marked “B”

Black marked “B1”

Black marked “H”

Normallyopen contact

Normallyclose contact

Common contact

Normallyclose contact

Orange

10A Red

Battery

12 Volt

Brown

Yellow

Green/Brown

Ground

Engine immobilizer

Pink

Green/Black

(Max 10 mA)

15A

R ceptacle

with built-in

LED

Electronic

key

lack signed “B1”

Brown

3 Black signed “M”

7 Yellow/Black

8 Black signed “G”

10 Black signed “H1”

11 Green

2 Black signed “H”

3 Black signed “B”

4 Black signed “HB”

17 Black signed “R”

1 B

White/Violet

Green/Brown

Pink

Black

1 Orange

1 Red

15 Orange

1 Black

:Earth for electronickey

:Power supplyearth

: input

:Positive

: gnition key

:Negative outputfor

: Electronickeyinput

:Engine immobilizer (N.C.)

: (Com.)

: (N.A.)

: indicator light

: Antenna

Engine immobilisation

output

Negative outputin alarm

I positiveLED

Engine immobilisation

Engine immobilizer

Turn

Positive outputfor LED

Turn indicator light

Positive power supply

Panicsiren

Contactswitch

WIRING CONNECTOR

Connections

for turn

indicator light

Installation

should be

mandatory

S/eat topcase

switch

Optional fuse ( )recommended

161718 89 12

610

711

5 1

Black wire marked ‘G’

Black wire marked ‘M’

Black wire marked ‘R’

12v Battery

ATTENTION: the supplied 10amp fuse must be fitted.

Attention; the supplied reed

switch must be fitted to comply

with Thatcham approval.

2 x Orange: Indicators.

7.5amp

Immobiliser: Black wire

marked ‘H1’ (N/C)

Immobiliser: Black wire

marked ‘B1’ (Com)

Immobiliser: Black wire

marked ‘HB’(N/O)

Immobiliser: Black wire

marked ‘B’(Com)

Immobiliser: Black wire

marked ‘H’(N/C)

Green/Brown

Ground

Antenna.

Electronic Touch Key

receptacle & LED

10/14

www.digitek-moto.com

Rev05/KM/271113/DigProInst

G-Line ‘Pro’ Alarm

System

1.8 - Engine Immobilisation (electronic Ignition) - Wiring Diagram

ATTENTION:

Max relay capacity is 8amp.

The ENGINE immobilizer 40 second count down

is interrupted until the seat/top case is closed!

Black alarm wire

marked ‘H1’ to

Black alarm wire marked

‘B1’to starter switch.

Black alarm wire marked

‘B’to positive under key

wire that is being cut.

Black alarm wire marked ‘H’

to other side of wire being

cut (i.e; fuel or Ign).

Note; Black alarm wire

marked ‘HB’is NOT

USED. Cut & insulate.

+15

Inhaltsverzeichnis

Beliebte Sicherheitssystem Handbücher anderer Marken

Inner Range

Inner Range Concept 2000 Bedienungsanleitung

Climax

Climax Mobile Lite R32 Montageanleitung

CADDX

CADDX NX-6 Bedienungsanleitung

FBII

FBII XL-31 Series Bedienungsanleitung

Johnson Controls

Johnson Controls PENN Connected PC10 Bedienungsanleitung

Aeotec

Aeotec Siren Gen5 Bedienungsanleitung

Blaupunkt

Blaupunkt SA 2700 Bedienungsanleitung

IDEAL

IDEAL Accenta Betriebsanleitung

AJAX

AJAX DoubleButton Bedienungsanleitung

Swann

Swann SW-P-MC2 Bedienungsanleitung

Ecolink

Ecolink Siren+Chime Bedienungsanleitung

Digital Monitoring Products

Digital Monitoring Products XR150 Bedienungsanleitung

EDM

EDM Solution 6+6 Wireless-AE Bedienungsanleitung

Highway Safety Group

Highway Safety Group EA401 Bedienungsanleitung

Siren

Siren LED GSM Bedienungsanleitung

Detection Systems

Detection Systems 7090i Montageanleitung

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Bedienungsanleitung

Siemens

Siemens FDM273 Bedienungsanleitung
