Digitron Easy Lock DMI13PG/B/A Bedienungsanleitung

READ THE INSTRUCTIONS CAREFULLY

BEFORE USE AND KEEP THEM FOR

FUTURE REFERENCE

READ THE INSTRUCTIONS CAREFULLY

BEFORE USE AND KEEP THEM FOR

FUTURE REFERENCE

PAGE 8

PAGE 4

PAGE 2

MAINTENANCEMAINTENANCE

USER’S GUIDEUSER’S GUIDE

INSTALLATION GUIDEINSTALLATION GUIDE

Easy Lock

EasyEasy LockLock

RFIDRFID

MIFARE

ENT

STATUS

ENT

STATUS

Mod. DMI13PG/B/A

Mod. DMI18PG/B/A

PROXIMITY LOCK RFID MIFARE 13,56 KHZ

Bolt Lenght - 13 mm

Bolt Lenght - 18 mm

Lean the TAG ( Card or Wristband ) to the centre of the sensor.

The LED will shortly flash 1 time every 2 seconds to indicate that the lock is

closed

Lean the PASSEPARTOUT Card to the centre of the sensor

Lean the TAG ( Card or Wristband ) used to close to the centre of the sensor.

When the lock is open the LED stays OFF.

CLOSING

SHARED USE :

The lock closes with any compatible TAG ( Card or Wristband ) and it will open

only with the same TAG used to close

OPENING

OPENING WITH PASSEPARTOUT CARD

PAG. 2

Led

Sensore

ENT

STATUS

USER’S GUIDEUSER’S GUIDE

OKOK

By inserting the timer, the lock will open after an established time everytime it is closed.

To set the timer please follow the instruction below :

TIMER SETTING

For disconnecting the Timer proceed as above and use the TIMER card with value “0”.

With the lock “open” lean the special TIMER with the value of the hours that you wish

to program to the center of the sensor and remove the card when the LED turns “ON”.

When the lock is closed the LED will shortly flash 2 time every 2 seconds to indicate that

the lock is closed with the Timer “ON”.

PERSONAL USE

It is possible program the lock so that it works with a specific personal TAG

( Card or Wristband ).

With the lock “open” lean the special READ FIXED card to the center of the sensor and

remove the card only when the the LED turns “ON”.

Within 5 seconds ( before the LED turns “OFF” ) lean the personal compatible TAG

( Card or Wristband ) and remove the card only when the LED stays “ON” after has issued

short flashes.

After this procedure the lock will work only with the personal TAG ( Card or Wristband )

programmed.

Note : with the personal use mode when the lock is closed the led does not flashes

To return in the mode Shared Use :

With the lock “open” lean the special FIXED ERASED card to the centre of the sensor and

remove the card when the LED turns “ON”.

After this procedure the lock closes with any compatible TAG ( Card or Wristband ) and

it will open only with the same TAG used to close

PAG. 3

READ CAREFULLYREAD CAREFULLY

When the batteries have not enough power to close the lock the led red turn ON and stays ON until the complete

discharge of the batteries. ( approximately 10 days )

Replace them only with ALKALINE batteries ( AAA ) observing the right polarities.

Do not use rechargable batteries

BATTERIES ( see page 5 )

OBSTACLE ( see page 6 )

PASSEPARTOUT CARD

CLEANING

Clean the lock exclusively with a dump cloth.

Avoid soap, solvents, alcohol etc.

AVOID TO MAKE ENTER THE WATER IN THE LOCK

If the water gets inside the lock in addition to discharge the batteries can permanently damage the lock

If the discharged batteries remain in the lock they could release some acid substances which damage the contacts

When you noted that the led is ON replace as soon as possible the batteries.

To avoid confusion is advisable to program the same PASSEPARTOUT card for all the locks installed.

In this case remove the obstacle or verify that the door is well-aligned and adjust, if it necessary, the hinges of the door

or the stop-bolt

FEW INSTRUCTIONS AND SOME SUGGESTIONS TO KEEP EFFICIENT THE LOCKSFEW INSTRUCTIONS AND SOME SUGGESTIONS TO KEEP EFFICIENT THE LOCKS

If during the closing ( or the opening ) the led flashes quickly and continuously without stays “ON”

this means that the bolt has met an obstacle and it unable to close ( or open ).

When you have the need to change the passepartout card verify that the new passepartout card

works correctly after the changing

2299

4433

5577

PAGE 4

ATTENTION

PLEASE NOTE THAT THE NON-OBSERVANCE OF THE RULES IN THIS GUIDE FOR A CORRECT

MAINTENANCE WILL AUTOMATICALLY VOID EVERY KIND OF WARRANTY OF THE PRODUCT.

PAG. 5

REPLACING THE BATTERIESREPLACING THE BATTERIES

THE LOCK DOES NOT WORK AND THE RED LED

IS “ON”

THE LOCK IS COMPLETELY INACTIVE

ALKALINE BATTERIES

( 1,5 V - AAA )

BATTERIES DISCHARGEDBATTERIES DISCHARGED

USE ONLY ALKALINE BATTERIES

DO NOT USE RECHARGEABLE BATTERIES

IT IS RECOMMENDED TO REPLACE THE BATTERIES WITHIN 2 YEARS FROM THEIR INSTALLATION

ONON

ENT

STATUS

PAGE 6

OBSTACLEOBSTACLE

IF THE LOCK CLOSES BUT THE BOLT FORCES HORIZONTALLY AGAINST THE STOP-BOLT

( SEE FIGURE 2 ) THE CONSUMPTION OF BATTERIES DRASTICALLY INCREASES.

TO PREVENT SUCH DISAVANTAGES IT IS ADVISABLE TO KEEP A SECURITY AREA BETWEEN

THE BOLT AND THE STOP-BOLT SO THAT THE FUNCTIONING IS PERFECT EVEN WHEN

IT HAPPENS A FOULTY ALIGNEMENT OF THE DOOR.

IF DURING THE CLOSING PHASE THE BOLT HITS AGAINST THE STOP-BOLT AND IT DOES NOT

CLOSE ( SEE FIGURE 3 AND 4 ) AFTER 3 SECONDS THE BOLT COME BACK IN THE

POSITION “OPEN”..

THE REPETITION OF THE PROBLEM COULD DAMAGE THE INTERNAL MECHANISM..

3 mm

(Min.)

PAY ATTENTION

PAG. 7

Remove the protection glass and the label as shown in the picture.

ENT

STATUS

OFF

USO OF EXTERNAL POWER SUPPLY ( PFAESEL02 )USO OF EXTERNAL POWER SUPPLY ( PFAESEL02 )

EMERGENCY OPEN

With the external power supply commutator

on “ ON “ position connect the two metal point

in the proper holes paying attention to the

polarity.

For opening the lock keep the

connected metal points, and lean to the

centre of the sensor the PASSEPARTOUT

card.

1.1

2.1

Fig.

9 mm

N. 5 fori

KEYBOARD

DOOR

CABLES

PAG. 8

Make on the door n.5 holes of

9 mm diameter.

To determine the horizontal positions

of the holes refer to the picture 8.1 and

8.2 and make sure that the bolt of the

lock correctly acts while closing and

opening

Insert the keyboard on the door by

slipping the connector through the

central hole.

INSTALLATION GUIDEINSTALLATION GUIDE

3.1

Fig.

Click

PAG. 9

4.1

Fig.

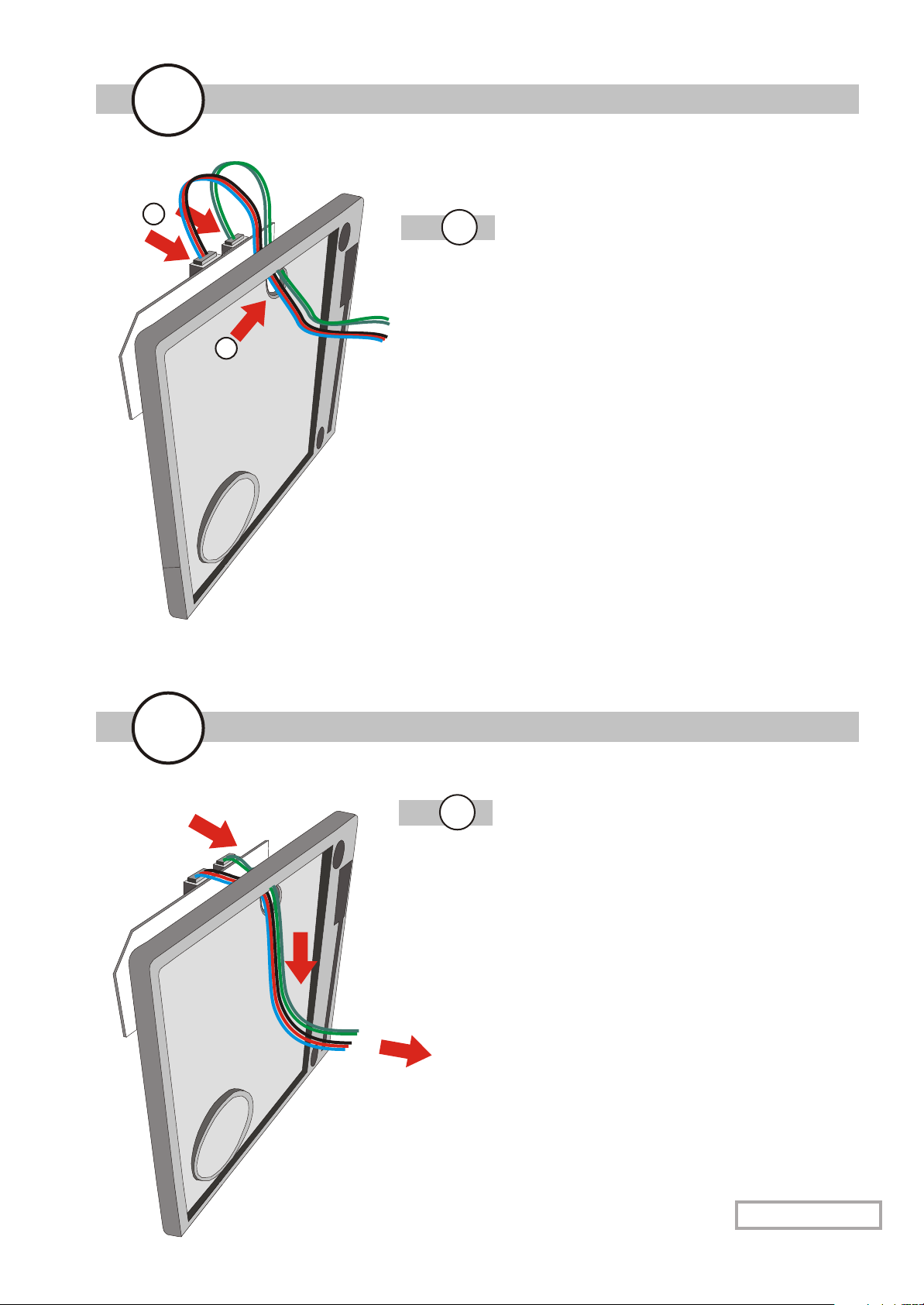

After having removed the cover of

the lock slip the cables through the

proper hole placed on the backm of

the lock and insert its in the connectors

as shown in the picture.

Bend the cables as shown in the

picture in such a way to set the

wires between the lock and the

door.

( L )

( max )

5.1

Fig.

PAG. 10

KEYBOARD

DOOR

LOCK

3 mm (min)

6 mm (max)

5.2

Fig.

Fix the lock and the keyboard to

the door with n.4 screws for plastic

materials, cylindric head, 4 mm

diameter, 20 mm lenght

The lenght of the screws ( L ) may

change according to the thickness of

the door and the further spacer* used.

In any case please make sure, that

once fixed, the screws is between 3

and 6 mm from the frontal of the

keyboard.

After having fixed the lock to the door,

insert the alkaline batteries (AAA) and

close it with the cover by the

two proper screws.

* for the use of the spacer please see the paragraph n.6
