Dimplex CXD2000VE Bedienungsanleitung

08/54004/0 ISSUE: 1

Ceramic Radiant Heater

Models: CXD2000VE / CXD2000HE

INSTRUCTION MANUAL

Installation and Operating

This product is supplied and operated with a Bluetooth Remote Control handset

IMPORTANT

THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR

FUTURE REFERENCE. Note also the information presented on the appliance

IMPORTANT SAFETY ADVICE

Because the Dimplex Ceramic Radiant Heater contains no moving parts little

maintenance is required. Before undertaking any maintenance work on the heater

due attention must be paid to the following:

• The installation of these appliances must always be carried out by a competent

electrician and be in accordance with the current wiring regulations and

revelant building regulations.

• The radiated heat from the heater is considerable and must be taken into

account when locating the heater. Ensure that the heater is not used in close

proximity to the skin or eyes.

• Always isolate the heater from the supply before undertaking any maintenance

work on the appliance.

• This heater is designed to be horizontally wall mounted only, it must not be

ceiling mounted.

• Always ensure a safe mounting height, at or above a minimum height of 1.8

metres from ground level, so that the heater can not be touched when in

operation.

• The heater must be wall mounted level ± 5º to the horizontal.

• Do not locate the heater immediately above or below a ﬁxed socket outlet or

connection box.

• The heater must be installed in a location that is free from vibration.

• The CXD range of heaters are not rated as ﬂame-proof and must not be used

when ﬂammable dusts, gasses, or vapours, etc. are likely to be present in the

atmosphere. If in doubt, advice should be sought from the Health and Safety

Executive inspectors or local ﬁre ocers.

WARNING

1. This appliance must be earthed.

2. Means for disconnection from the electrical supply must be incorporated in

the ﬁxed wiring in accordance with the wiring regulations.

3. Do not use this heater in the immediate surroundings of a bath, a shower or a

swimming pool.

4. This appliance can be used by children aged from 8 years and above and

persons with reduced physical, sensory or mental capabilities or lack of

experience or knowledge if they have been given supervision or instruction

concerning the use of the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without supervision.

5. Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/o the

appliance provided that it has been placed or installed in its intended normal

operating position and they have been given supervision or instruction concerning

the use of the appliance in a safe way and understand the hazards involved.

Children aged from 3 years and less than 8 years shall not plug in, regulate and

clean the appliance or perform user maintenance.

6. The supply circuit to the heater must incorporate a double pole isolating switch

having a constant separation of at least 3mm in all poles.

CAUTION

• Some parts of this product can become very hot and cause burns. Particular

attention has to be given where children and vulnerable people are present.

• Always disconnect the heater from the electricity supply and leave to cool for a

minimum of 30 minutes before attempting to work on or near it.

• Always ensure a safe means of access using an access tower or properly supported

ladder.

• Do not cover the heater.

• Do not position any combustible or heat sensitive materials too close to the heater.

• Do not use heater if the elements are broken - as injury may occur.

• Allow adequate time (minimum of 30 mins.) for the elements and body casing to

cool before attempting to work on the heater.

• Wiring between the heater and the spur outlet or isolation switch must be in a heat

resisting cable (e.g. polychloroprene).

Provide sucient slack to the cable to allow for angular adjustment of the body.

• The supply cord should be regularly examined for signs of damage and the

appliance is not to be used if the cord is damaged.

•

WARNING: KEEP BATTERIES OUT OF REACH OF CHILDREN

• Swallowing may lead to serious injury in as little as 2 hours or death, due to

chemical burns and potential perforation of the oesophagus.

• If you suspect your child has swallowed or inserted a battery go straight to a

hospital emergency room.

• Examine devices and make sure the battery compartment is correctly secured,

i.e. that the battery cover is ﬁtted securely. Do not use if the compartment is not

secure.

• Dispose of used batteries immediately and safely. Flat batteries can still be

dangerous.

Cable Installation (see Fig 1 & 2)

Remove the two screws which hold the plastic terminal cover box (A) in place,

lift o the terminal cover box and set aside with the two screws for future use.

Remove the two screws securing the cable saddle clamp (B) and also set them

safely aside for future use.

Set the end of the power supply cable into position on the clamp (C) and strip

a suitable length of cable sheath o the end of the power supply cable so that

Live, Neutral and Earth wires are a suitable length to ﬁt between the clamp (C)

and the screw ﬁxing locations in the termial block provided (D) as shown.

Strip the ends of the Live, Neutral and Earth wires and ﬁt each end under the

protector plates of the terminal block. Ensure the terminal screws are tight and

the wires are clamped securely by the terminal screws.

Place the end of the power supply cable sheath onto the the clamp (C). Reﬁt

and tighten the cable saddle clamp (B) securely on top using the two screws

previously removed.

Reﬁt the terminal cover box (A) to the base moulding using the two screws

previously removed.

Ensure the power supply cable when ﬁtted does not make contact with the body

of the heater.

Commissioning

•

Checks on the electrical installation should include earth continuity and insulation

tests and must be undertaken by a competent person.

• Ensure that all the electrical connections at the lamps and the terminal blocks

have been made correctly, that they are tight and that there is no loose or frayed

wire.

•

Replace and secure the terminal cover box and replace and secure the front panel.

• Check that the mounting bracket is securely ﬁxed in the vertical position such

that the lamps remain in a horizontal plane at all angles of heater displacement.

• Roughly align the heater(s) and tighten the adjusters.

• Switch on the heater(s) and check that the lamp(s) are all operating. If time or

temperature controls are ﬁtted check these for correct and safe operation by

reference to the supplier’s instructions.

•

Make any adjustments that are necessary to give an even spread of heat over the

required area. This may be done simply by perception of the heating eect or

by using the distribution of visible light either at night or by darkening the room.

Hand over

Hand over these instructions and make sure the user is familiar with all aspects

of operation and safety including the need for regular cleaning and an annual

inspection. In the event of the premises being unoccupied then leave heater(s)

switched o and isolated from the electrical supply. Leave instructions adjacent to

the electricity meter.

Fig. 1

Fig. 2

TRIM POWER SUPPLY CABLE SHEATH SO

THAT LIVE, NEUTRAL AND EARTH WIRES ARE

AT A SUITABLE LENGTH. TIGHTEN CABLE

SADDLE CLAMP ONTO END OF POWER

SUPPLY CABLE SHEATH

REMOVE SCREWS

DO NOT

REMOVE

THIS

SCREW

TERMINAL

COVER BOX

MUST SLIDE

OUT FIRST

THEN UP

Element Replacement (see Fig. 3)

Fig. 3

WARNING: Before undertaking this task ensure the heater is disconnected from the

electric supply and left to cool for a minimum of 30 minutes.

1. The heater should be taken o the wall.

2. Remove the 8 screws which hold the metal terminal cover box (A) on the back of

the heater.

3. This will allow access to the elements. Remove the retaining clips and spring clips

4. Disconnect the elements from their terminal blocks (B).

5. Remove the screws which hold the rear panel (D).

6. Remove the splash brackets (E) on the elements.

7. Bend the bars on the guard as indicated in Fig. 6 to remove it.

8. The old element should drop out through the front of the heater, reverse the process

when replacing with the new element.

Maintenance

Since the Dimplex Ceramic Radiant Heater contains no moving parts little maintenance

is required beyond cleaning and lamp replacement. It is however, essential that the

heater is not operated with accumulation of dust or dirt on the lamp(s) or reﬂector(s)

as this can cause a build up of heat and eventual damage. For this reason the heater

must be inspected regularly depending upon conditions and at least at yearly intervals.

Before undertaking any maintenance work on the heater due attention must be

paid to the following:

1. Always disconnect the heater from the electricity supply before attempting to

work on or near it.

2. Always ensure a safe means of access using an access tower or properly supported

ladder.

3. Allow at least 30 minutes for the lamps and body casing to cool before attempting

to work on the heater.

Model Identiﬁer(s): CXD2000VE CXD2000HE

Nominal heat output Pnom 2.0 kW 2.0 kW

No. of Elements 2 2

Height (mm) 380 255

Width (mm) 442 735

Depth (mm) 121 248

Minimum heat

output (indicative) Pmin 1.0kW 1.0kW

Maximum continuous heat output Pmax,c 2.0kW 2.0kW

Auxiliary electricity Consumption

At nominal heat output elmax 0.00 0.00

At minimum heat output elmin 0.00 0.00

In standby mode elSB <0.0005 <0.0005

Type of heat output/ room temperature control

Electronic room temperature control plus week timer Yes

With open window detection Yes

With adaptive start control No

This product complies with Lot20 of the Energy Eciency Directive (2015/1188).

Energy Related Product Directive

Technical Details

All Models

Controls

Digitally controlled, Electronic Thermostat

Timer modes:

7 Day Programmable User Timer

Continuous heat modes:

Frost Protect, Runback, Comfort O

Controller UI

O-board control only.

Controller Functions

• Open window detection

• Advance time period

• Heat Selection (High/Low)

• Bluetooth for control

Construction Durable epoxy-polyester powder coated steel casing with chrome plated

grille. FR Nylon control enclosure.

Finish / Colour

Powder coated steel, ﬁnished in Matte Black

Element Ceramic no glow radiant elements

Installation Supplied with wall mounting bracket

Safety No cut-out on-board. Protection via RCD

IP Rating IPX4

Battery Backup

None. However all programmed timer proﬁles will be retained during

short term power losses. In order to ensure their correct operation, it is

necessary to restore the time and date settings, this happens automatically

once paired with the remote.

Supply

~230-240 V, 50Hz Class I, with earth wire

Approvals CE

Warranty 2 years

Country of Origin British Isles

Manufacturer Glen Dimplex Heating & Ventilation (GDC Group Ltd.)

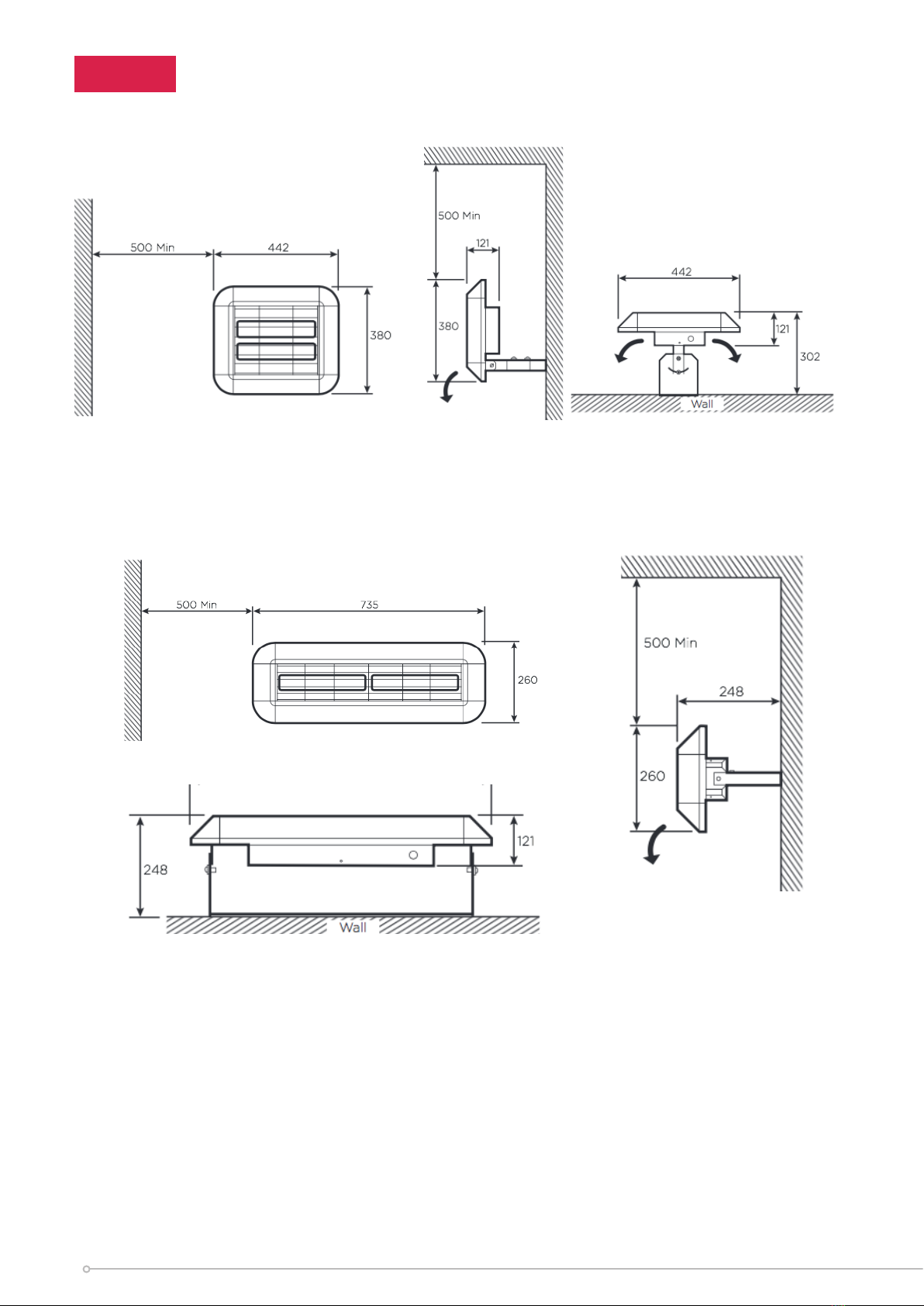

Front View Side View Plan View

Front View

Side View

Plan View

Fig. 4

CXD2000VE

CXD2000HE

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Dimplex Heizung Handbücher

Dimplex

Dimplex DuoHeat Duo300N Bedienungsanleitung

Dimplex

Dimplex Quantam Bedienungsanleitung

Dimplex

Dimplex RCH5031CXW Bedienungsanleitung

Dimplex

Dimplex OFRB7 Bedienungsanleitung

Dimplex

Dimplex DX 421 Bedienungsanleitung

Dimplex

Dimplex LPC Series Bedienungsanleitung

Dimplex

Dimplex DTD Series Bedienungsanleitung

Dimplex

Dimplex LPC Series Bedienungsanleitung

Dimplex

Dimplex DHCERA15M Bedienungsanleitung

Dimplex

Dimplex CVP1 Bedienungsanleitung

Dimplex

Dimplex QM070 QM100 QM125 QM150 Bedienungsanleitung

Dimplex

Dimplex EF12 Series Bedienungsanleitung

Dimplex

Dimplex SmartRad SRX80 Technisches Handbuch

Dimplex

Dimplex DTD2R05 Bedienungsanleitung

Dimplex

Dimplex DXFF20TSN Bedienungsanleitung

Dimplex

Dimplex H 260E Bedienungsanleitung

Dimplex

Dimplex FX 20VL Bedienungsanleitung

Dimplex

Dimplex 7150B11 Bedienungsanleitung

Dimplex

Dimplex 5011139037800 Bedienungsanleitung

Dimplex

Dimplex DXUF20TN Bedienungsanleitung

Dimplex

Dimplex WW 101 E Bedienungsanleitung

Dimplex

Dimplex LC Series Bedienungsanleitung

Dimplex

Dimplex RSH Series Bedienungsanleitung

Dimplex

Dimplex Free-E Bedienungsanleitung

Beliebte Heizung Handbücher anderer Marken

oventrop

oventrop Regucor Series Bedienungsanleitung

Blaze King

Blaze King CLARITY CL2118.IPI.1 Bedienungsanleitung

ELMEKO

ELMEKO ML 150 Bedienungsanleitung

BN Thermic

BN Thermic 830T Bedienungsanleitung

KING

KING K Series Leitfaden

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Kurzanleitung

Well Straler

Well Straler RC-16B Bedienungsanleitung

EUROM

EUROM 333299 Bedienungsanleitung

Heylo

Heylo K 170 Bedienungsanleitung

Eterna

Eterna TR70W Bedienungsanleitung

Clarke

Clarke GRH15 Bedienungsanleitung

IRSAP

IRSAP The Radiator Company Ovali Bedienungsanleitung

Empire Heating Systems

Empire Heating Systems WCC65 Bedienungsanleitung

Wetekom

Wetekom 92 86 43 Bedienungsanleitung

Desa

Desa SPC170-F Bedienungsanleitung

Watlow

Watlow Watrod Electric Tubular Heaters Bedienungsanleitung

Haverland

Haverland ECO-DRY GPS Series Stücklistenhandbuch

Stelpro

Stelpro ASILVC2060 Series Bedienungsanleitung
