Dimplex DIR Series Bedienungsanleitung

MODEL NAME DIR15A10GR DIR18A10GR DIR22A10GR

Voltage

Rated power

(Watts)

220018001500

Installation

Mounting height

Wall-mounted

Ceiling-mounted

Wall-mounted

Ceiling-mounted Wall-mounted

Minimum 2.4 M (7.9 ft.) 2.4 M (7.9 ft.)2.4 M (7.9 ft.)

Electric protection

class III

YesYesYesOutdoor Rated

Unit dimensions

LxWxH (mm / in)

(without bracket)

902 x 170 x 128

35-1/2 x 6-3/4 x 5

902 x 170 x 128

35-1/2 x 6-3/4 x 5

902 x 170 x 128

35-1/2 x 6-3/4 x 5

240V 60Hz240V 60Hz120V 60Hz

DIR30A10GR

3000

Wall-mounted

2.4 M (7.9 ft.)

Yes

1286 x 170 x 128

50-5/8 x 6-3/4 x 5

240V 60Hz

Heater Installation

HOW TO OPERATE THE HEATER:

What's included with your Dimplex DIR Series Heater

• IR Heater

• Operating and Installation Instructions

• One small box containing 2 sets of brackets and mounting hardware

• One remote controller

Figure 1

7HFKQLFDO6SHFL¿FDWLRQ

Terminal box

Brackets for wall or ceiling mounting

Remote control

Schott Nextrema®:

glass panel

Low Med High

on Standby

Timer

1hr 2hr

Power/On

dimplex.com

Heater Installation

Before installation, read this

manual carefully and keep for

future reference.

The heater must be installed in

accordance with the manufacturer’s

installation instructions.

1. This equipment shall be installed

RQO\E\TXDOL¿HGSHUVRQQHOZKR

are familiar with the construction

and operation of the apparatus

and hazard involved.

WARNING: The heater is

¿WWHGZLWKDQHOHFWULFDOFRQQHFWLRQ

box and should be connected as

D¿[HGLQVWDOODWLRQE\DOLFHQVHG

electrical professional. Wiring

procedures and connections should

be in accordance with the National

Electric Code (NEC) and local

codes.

RISK OF FIRE/

EXPLOSION

This heater should not be

used in potentially explosive

atmospheres. Do not use in

areas where gasoline, paint

RUÀDPPDEOHOLTXLGVDUHXVHG

or stored.

Installation minimum

FOHDUDQFHVVSHFL¿HGRQWKH

heater nameplate and in the

owner's manual must be

followed.

2. Within USA, electrical installation

shall be made in accordance with

the National Electrical Code.

3. Within Canada, electrical

installation shall be made

according to the provisions of

section 62 of the Canadian

electrical code part 1.

4. Wiring procedures and

connections shall be in

accordance with the national and

local codes having jurisdiction.

CAUTION: Disconnect electric

power supply before working on

circuit wiring to prevent electric

shock.

CAUTION: When installing

outdoors we recommend the

heater is positioned where it will be

protected from exposure to extreme

weather such as snow and ice.

CAUTION: This heater must be

grounded.

CAUTION: Electrical connection

must have ground fault protection

(GFCI or GFI).

CAUTION: A circuit breaker is

required for proper installation, do

not load beyond 80% capacity.

CAUTION: High temperature,

ULVNRI¿UHNHHSHOHFWULFDOFRUGV

drapery, furnishings, and other

Heater Installation

combustibles at least 0.9 m (3 ft)

from the front of the heater and

away from the side and rear.

5. The heater is designed for

outdoor and indoor use and

should not be used for any

other purpose. Any other use

not recommended by the

PDQXIDFWXUHUPD\FDXVH¿UH

electric shock, or injury to

persons.

6. Before commencing installation

make sure the electrical supply

voltage is the same as that

shown on the rating plate of the

heater.

7. The heater must be mounted at

least 2.4 m (8 ft) above ground

level. For other clearance please

refer to the diagram included in

these instructions.

7RUHGXFHWKHULVNRI¿UHGRQRW

store or use gasoline or other

ÀDPPDEOHYDSRUVDQGOLTXLGVLQ

the vicinity of the heater

9. The heater is not intended for

use in bathrooms, laundry areas

or similar indoor areas. Never

locate heater where it may fall

into a bathtub, pool, spa, or other

water container.

10. Do not install the heater directly

near a bathtub, shower or

swimming pool. Any switches

or controls must not be within

reach of a person in the

bathtub, shower or swimming

pool.

11. Ensure that the heater had been

VHFXUHO\IDVWHQHGLQLWV¿QDO

mounting position.

12. The heater can be only installed

horizontally.

13. DO NOT install the heater

vertically. Failure to do this

may cause the heating element

within the tube to sag and

cause premature burnout.

14. There are no user-serviceable

parts inside the heater. Any

servicing other than regular

cleaning of the heater should

be performed by an authorized

service professional.

WARNING: The heater must

not be used if the glass panels

are damaged.

!NOTE: This heater comes with

a pair of stainless steel adjustable

angle mounting brackets.

The adjustable angle enables

the heater to be installed on

horizontal and inclined surfaces.

dimplex.com

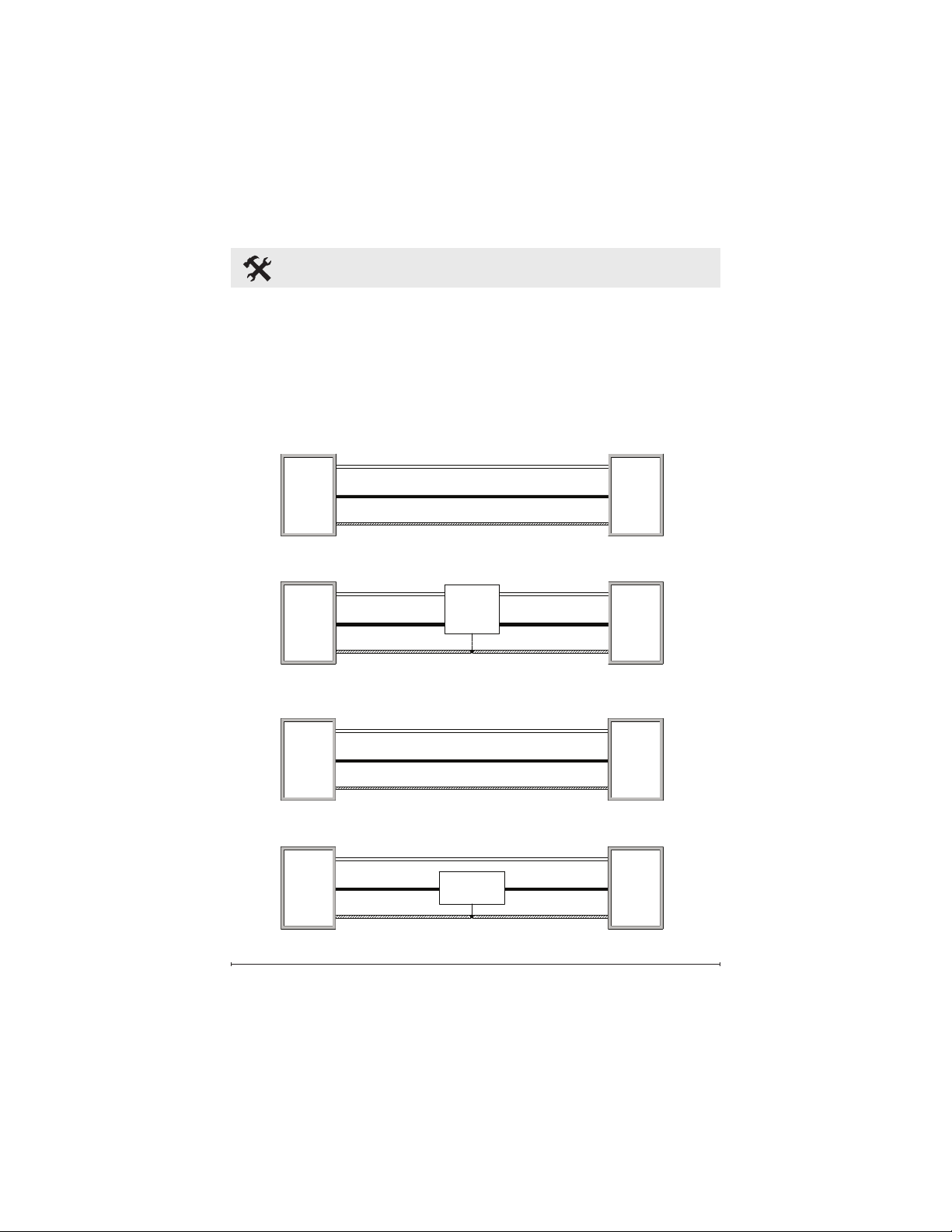

Wiring Instructions

WIRING INSTRUCTIONS:

DIR15A10GR is to be wired to a 120V circuit while DIR18A10GR,

DIR22A10GR and DIR30A10GR are to be wired to a 240V circuit. These

heaters must be wired to the this circuit in such a way that the heater can

be turned off directly at the circuit breaker in the event of an emergency.

Sample wiring diagrams have been included below for quick reference.

Wall

Switch

Heater

Junction

Box

Heater

Junction

Box

240 V

Power

Supply

Breaker

Panel

240 V

Power

Supply

Breaker

Panel

240 V 15A

L1L1

Indoor

Double Pole

240 V Switch

Use switch rated for

outdoor

applications,

if applicable

Use GFCI breaker

for outdoor

installations

Wall

Switch

Heater

Junction

Box

Heater

Junction

Box

120 V

Power

Supply

Breaker

Panel

120 V

Power

Supply

Breaker

Panel

120 V 15A

Indoor

Single Pole

120 V Switch

N (White)

L (Black)

L1 L1

L (Black)

N (White)

Use switch rated for

outdoor

applications,

if applicable

Use GFCI breaker

for outdoor

installations

Use GFCI breaker

for outdoor

installations

Site Selection

WARNING:

The heater must

never be installed in the upwards or

inwards facing position, the heating

surface must always be positioned

to direct the heat in a downwards or

outwards direction.

WARNING:

DO NOT install the

heater vertically. Failure to follow

these instructions can cause the

heating element within the tube to

sag and cause premature burnout.

Clearances

To ensure that all minimum

clearances are achieved please refer

to the diagrams on page 11.

SITE SELECTION:

Ceiling mounted (DIR15A10GR, DIR18A10GR).

WARNING: DIR22A10GR and DIR30A10GR CANNOT

be ceiling-mounted.

Inclined ceiling-mount

Horizontal ceiling-mount

Angled horizontal ceiling-mount

Correct Installation Incorrect Installation

WALL

CEILING CEILING

WALL

CEILING

dimplex.com

Site Selection

600mm

(23.6")

Min.

600mm

(23.6")

Min.

600mm (23.6") Min.

165mm

(6.5")

Min.

910mm (35.4") Min. to surfaces (ie. table tops, etc.)

2100mm (82.7") Min. from oor

3000mm (118.1") Max. from oor (recommended)

Fans, lights and

sprinkler ﬁttings

MUST NOT

be below heater

IR heater, same minimum

clearance requirements

for both ends of heater

installation

WALL

CEILING

WALL

CEILING

Fans, lights and

sprinkler ﬁttings

MUST NOT

be below heater

600mm

(23.6")

Min.

150mm

(5.9")

Min.

1500mm

(59.1")

Min.

600mm (23.6") Min.

910mm (35.4") Min. to surfaces (ie. table tops, etc.)

2100mm (82.7") Min. from oor

3000mm (118.1") Max. from oor (recommended)

WALL

CEILING

WALL

CEILING

IR heater, same minimum

clearance requirements

for both ends of heater

installation

WALL

CEILING

Correct Installation

Fans, lights and

sprinkler ﬁttings

MUST NOT

be below heater

240mm (9.4")

Min.

1500mm (59.1")

Min.

105mm

(4.1") Min.

600mm (23.6") Min.

910mm (35.4") Min. to surfaces (ie. table tops, etc.)

Canada 2400mm (94.5")Min. from oor

US 1800mm (70.9") Min. from oor

WALL

CEILING

WALL

CEILING

IR heater, same minimum

clearance requirements

for both ends of heater

installation

Minimum clearances when mounting the heater parallel with a ceiling.

Minimum clearances when mounting the heater at an angle to the ceiling.

Wall-mounted

installation

(DIR15A10GR,

DIR18A10GR,

DIR22A10GR,

DIR30A10GR)

Minimum clearances when mounting the heater on A VERTICAL WALL.

Installation

WARNING:

Mounting of the infrared heater and its connection to the

HOHFWULFPDLQVVKRXOGEHFDUULHGRXWRQO\E\TXDOL¿HGSURIHVVLRQDOVDFFRUGLQJ

to the Electrical Installation Regulations and Power System Safety Standards

and comply with all national and local electrical codes.

1. Open the package and carefully remove the heater.

2. Remove the packing paper sheet from the end of heater.

3. Take out one pair of mounting brackets. These adjustable brackets allow

direct ceiling or wall mount, and come with preset angle options of parallel,

30°, 45° and height 165 mm (6.5 in).

Model

Number

“B”

MINIMUM DISTANCE

DIR15A10GR 500 mm ±50 mm (19.7" ± 2.0")

DIR18A10GR 500 mm ±50 mm (19.7" ± 2.0")

DIR22A10GR 500 mm ±50 mm (19.7" ± 2.0")

DIR30A10GR 650 mm ±50 mm (25.6" ± 2.0")

4. Use the above diagrams as a

guideline for proper installation.

Select the heater location on

the ceiling or wall by locating

the stud or structural beams to

ensure secure fastening of the

heater. Ensure that all minimum

clearances are achieved.

5. Install two brackets on the

ceiling or wall with the following

minimum recommended bracket

distance “B”. Ensure brackets are

level and not slanted diagonally.

117mm (4.6")

165mm

(6.5")

100mm (3.9")

11mm

(0.4")

7mm (0.3")

20mm

(0.8")

dimplex.com

Installation

WALL CEILING

6. Set the adjustable angle mounting brackets to the desired angle and

fasten brackets with an adjustable wrench.

For ceiling-mounted installation, the available mounting angles are

restricted to 0° and 30° only.

For wall-mounted installation, the available mounting angles are restricted

to 30° and 45° only.

For the DIR 2200W / 3000W, ceiling mounted installation is prohibited.

+DQJWKHKHDWHURQWKHEUDFNHWVDQG¿UPO\WLJKWHQEROWVRQWKHEUDFNHWWR

compress the two plates together as shown in Figure A.

!NOTE:

Depending on material

and design of ceiling structural

elements, the heater must be

secured with the correct fasteners.

The weight of the heaters

DIR15A10GR, DIR18A10GR,

DIR22A10GR

is up to 5.3 KG

(11.7 lbs.). The weight of the heater

DIR30A10GR

is 6.8 KG

(15.0 lbs.). The installation

structure and hardware

must be able to hold

5 times the weight of the heater.

Electrical Installation

WARNING:

This Heater MUST

be permanently installed and hard

wired by an authorized / licensed

electrical professional. Do not

perform maintenance or carry out

installation or assembly procedure

while electrical power is switched on.

CAUTION:

A circuit breaker is

required for proper installation. Do

not load beyond 80% capacity. The

type of circuit breaker must be C

curve type.

1. DIR15A10GR (1500W) is

designed for connection to the

120V~ 60Hz electric mains

equipped with a grounding wire.

2. DIR18A10GR (1800W),

DIR22A10GR (2200W) and

DIR30A10GR (30000W) heater

is designed for connection to

the 240V~ 60Hz electric mains

equipped with a grounding wire.

3. The heater must not be located

immediately below an electrical

connection. Power point should

not be located at the back of the

heater. The power point needs to

be located outside the physical

footprint of the heater to minimize

heat build-up behind the heater.

4. If the heater is to be mounted on

an incline (e.g. Vaulted ceiling),

ensure the electrical connection

point is below the heater.

dimplex.com

Electrical Installation

WIRING INSTRUCTIONS

1. Check product label for correct

voltage and wattage. Make sure

power source conforms to the

heaters requirements.

2. The junction box on the top of

the heater has a gasket side

access cover. The junction box

inlet is drilled and threaded for a

standard 19 mm (1/2") weather

WLJKWFRQGXLW¿WWLQJV7KHLQVWDOOLQJ

electrician will need to provide the

DSSURSULDWHULJLGPHWDOOLFÀH[LEOH

or liquid tight conduit, conduit

¿WWLQJVIRULQVWDOODWLRQORFDWLRQ

3. For outdoor installation all

connections must be made

in accordance with local

electrical code regulations for

outdoor wiring. Only use wiring

components approved for outdoor

use with minimum NEMA Type 4x

or equivalent.

4. Remove the screws holding the

junction box cover. Make the

electrical connections using wire

nuts (not supplied). The green

wire connects to the ground. The

black wire connects to the black

wire (neutral) from your house.

The white wire connects to the

white wire (live) from your house;

5. Assemble the junction box cover

& gasket. Ensure that the junction

box cover gasket (supplied with

unit) is installed to maintain

rain water ingress protection

rating of the heater. Failure to

install correctly will void the

manufacturer’s warranty.

Andere Handbücher für DIR Series

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Dimplex Heizung Handbücher

Dimplex

Dimplex CKHA Series Konfigurationshandbuch

Dimplex

Dimplex FrostWatcher FW600 Bedienungsanleitung

Dimplex

Dimplex EvoRad2BTA Bedienungsanleitung

Dimplex

Dimplex DX-233 Series Bedienungsanleitung

Dimplex

Dimplex DXLAT75w Bedienungsanleitung

Dimplex

Dimplex DHCHT20M Bedienungsanleitung

Dimplex

Dimplex OFC1000 Bedienungsanleitung

Dimplex

Dimplex BS 120 Bedienungsanleitung

Dimplex

Dimplex DXUC2B Bedienungsanleitung

Dimplex

Dimplex EUL-B Series Bedienungsanleitung

Dimplex

Dimplex CASSADO CSO20 Bedienungsanleitung

Dimplex

Dimplex BK 1202 S Bedienungsanleitung

Dimplex

Dimplex AC3CE Bedienungsanleitung

Dimplex

Dimplex DHCB20 Bedienungsanleitung

Dimplex

Dimplex CFH60 Bedienungsanleitung

Dimplex

Dimplex H 260/4 Bedienungsanleitung

Dimplex

Dimplex LC Series Bedienungsanleitung

Dimplex

Dimplex ARC10E Bedienungsanleitung

Dimplex

Dimplex PCH2000TCW-TK Bedienungsanleitung

Dimplex

Dimplex LC Series Bedienungsanleitung

Dimplex

Dimplex DEE 1113 Bedienungsanleitung

Dimplex

Dimplex DHCER20HC Bedienungsanleitung

Dimplex

Dimplex FFIH15A31 Series Bedienungsanleitung

Dimplex

Dimplex IRC 400 A Bedienungsanleitung

Beliebte Heizung Handbücher anderer Marken

oventrop

oventrop Regucor Series Bedienungsanleitung

Blaze King

Blaze King CLARITY CL2118.IPI.1 Bedienungsanleitung

ELMEKO

ELMEKO ML 150 Bedienungsanleitung

BN Thermic

BN Thermic 830T Bedienungsanleitung

KING

KING K Series Leitfaden

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Kurzanleitung

Well Straler

Well Straler RC-16B Bedienungsanleitung

EUROM

EUROM 333299 Bedienungsanleitung

Heylo

Heylo K 170 Bedienungsanleitung

Eterna

Eterna TR70W Bedienungsanleitung

Clarke

Clarke GRH15 Bedienungsanleitung

IRSAP

IRSAP The Radiator Company Ovali Bedienungsanleitung

Empire Heating Systems

Empire Heating Systems WCC65 Bedienungsanleitung

Wetekom

Wetekom 92 86 43 Bedienungsanleitung

Desa

Desa SPC170-F Bedienungsanleitung

Watlow

Watlow Watrod Electric Tubular Heaters Bedienungsanleitung

Haverland

Haverland ECO-DRY GPS Series Stücklistenhandbuch

Stelpro

Stelpro ASILVC2060 Series Bedienungsanleitung
