Dimplex QXD1500E Bedienungsanleitung

08/54003/0 ISSUE: 1

Quartzray Infrared Heater

Models: QXD1500E / QXD3000E / QXD4500E

INSTRUCTION MANUAL

Installation and Operating

This product is supplied and operated with a Bluetooth Remote Control handset

IMPORTANT

THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR

FUTURE REFERENCE. Note also the information presented on the appliance

IMPORTANT SAFETY ADVICE

• Because the Dimplex Quartz Radiant Heater contains no moving parts little

maintenance is required. Before undertaking any maintenance work on the

heater due attention must be paid to the following:

• The installation of these appliances must always be carried out by a

competent electrician and be in accordance with the current wiring

regulations and relevant Building Regulations.

• The radiated heat from the heater is considerable and must be taken into

account when locating the heater. Ensure that the heater is not used in close

proximity to the skin or eyes.

• Always isolate the heater from the supply before undertaking any

maintenance work on the appliance.

• This heater is designed to be horizontally wall mounted only, it must not be

ceiling mounted.

• Always ensure a safe mounting height, at or above a minimum height of 1.8

metres from ground level, so that the heater can not be touched when in

operation.

• The heater must be wall mounted level ± 5º to the horizontal.

• Do not locate the heater immediately above or below a ﬁxed socket outlet or

connection box.

• This heater must not be located immediately above or below a ﬁxed socket

outlet or connection box.

• The heater must be installed in a location that is free from vibration.

• The QXD range of heaters are designed for internal use only. They are not

rated as ﬂame-proof and must not be used when ﬂammable dusts, gases, or

vapours, etc. are likely to be present in the atmosphere. If in doubt, advice

should be sought from the Health and Safety Executive inspectors or local ﬁre

ocers.

• Quartz lamps are extremely fragile and must be handled with extreme care

at all times. Avoid touching the surface of the quartz sleeve with bare ﬁngers.

If the sleeve is accidentally touched remove the ﬁnger print with a soft cloth

moistened with methylated spirits.

• The life expectancy of the halogen lamps in normal operating conditions is

over 3000 hours.

WARNING

1. This appliance must be earthed.

2. Means for disconnection from the electrical supply must be incorporated in

the ﬁxed wiring in accordance with the wiring regulations.

3. Do not use this heater in the immediate surroundings of a bath, a shower or a

swimming pool.

4. This appliance can be used by children aged from 8 years and above and

persons with reduced physical, sensory or mental capabilities or lack of

experience or knowledge if they have been given supervision or instruction

concerning the use of the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without supervision.

5. Children of less than 3 years should be kept away unless continuously

supervised.Children aged from 3 years and less than 8 years shall only switch

on/o the appliance provided that it has been placed or installed in its

intended normal operating position and they have been given supervision or

instruction concerning the use of the appliance in a safe way and understand

the hazards involved. Children aged from 3 years and less than 8 years shall

not plug in, regulate and clean the appliance or perform user maintenance.

6. The supply circuit to the heater must incorporate a double pole isolating

switch having a constant separation of at least 3mm in all poles.

CAUTION

• Some parts of this product can become very hot and cause burns. Particular

attention has to be given where children and vulnerable people are present.

• Always disconnect the heater from the electricity supply and leave to cool for a

minimum of 30 minutes before attempting to work on or near it.

• Always ensure a safe means of access using an access tower or properly

supported ladder.

• Do not cover the heater.

• Do not position any combustible or heat sensitive materials too close to the

heater.

• Do not use heater if the elements are broken - as injury may occur.

• Allow adequate time (minimum of 30 mins.) for the elements and body casing

to cool before attempting to work on the heater.

• Wiring between the heater and the spur outlet or isolation switch must be in a

heat resisting cable (e.g. polychloroprene).

Provide sucient slack to the cable to allow for angular adjustment of the body.

WARNING: KEEP BATTERIES OUT OF REACH OF CHILDREN

• Swallowing may lead to serious injury in as little as 2 hours or death, due to

chemical burns and potential perforation of the oesophagus.

• If you suspect your child has swallowed or inserted a battery go straight to a

hospital emergency room.

• Examine devices and make sure the battery compartment is correctly

secured, i.e. that the battery cover is ﬁtted securely. Do not use if the

compartment is not secure.

• Dispose of used batteries immediately and safely. Flat batteries can still be

dangerous.

Cable Installation (see Fig 1 & 2)

Remove the two screws which hold the plastic terminal cover box (A) in place, lift o

the terminal cover box and set aside with the two screws for future use.

Remove the two screws securing the cable saddle clamp (B) and also set them safely

aside for future use.

Set the end of the power supply cable into position on the clamp (C) and strip a suitable

length of cable sheath o the end of the power supply cable so that Live, Neutral and

Earth wires are a suitable length to ﬁt between the clamp (C) and the screw ﬁxing

locations in the termial block provided (D) as shown.

Strip the ends of the Live, Neutral and Earth wires and ﬁt each end under the protector

plates of the terminal block. Ensure the terminal screws are tight and the wires are

clamped securely by the terminal screws.

Place the end of the power supply cable sheath onto the the clamp (C). Reﬁt and tighten

the cable saddle clamp (B) securely on top using the two screws previously removed.

Reﬁt the terminal cover box (A) to the base moulding using the two screws previously

removed.

Ensure the power supply cable when ﬁtted does not make contact with the body of

the heater.

Commissioning

•

Checks on the electrical installation should include earth continuity and insulation tests

and must be undertaken by a competent person.

• Ensure that all the electrical connections at the lamps and the terminal rails have been

made correctly, that they are tight and that there is no loose or frayed wire.

• Replace and secure the terminal cover box and replace and secure the front panel.

• Check that the mounting bracket is securely ﬁxed in the vertical position such that the

lamps remain in a horizontal plane at all angles of heater displacement.

• Roughly align the heater(s) and tighten the adjusters.

•

Switch on the heater(s) and check that the lamp(s) are all operating. If time or temperature

controls are ﬁtted check these for correct and safe operation by reference to the

supplier’s instructions.

•

Make any adjustments that are necessary to give an even spread of heat over the

required area. This may be done simply by perception of the heating eect or by using

the distribution of visible light either at night or by darkening the room.

Hand over

Hand over these instructions and make sure the user is familiar with all aspects of operation

and safety including the need for regular cleaning and an annual inspection. In the event

of the premises being unoccupied then leave heater(s) switched o and isolated from

the electrical supply. Leave instructions adjacent to the electricity meter.

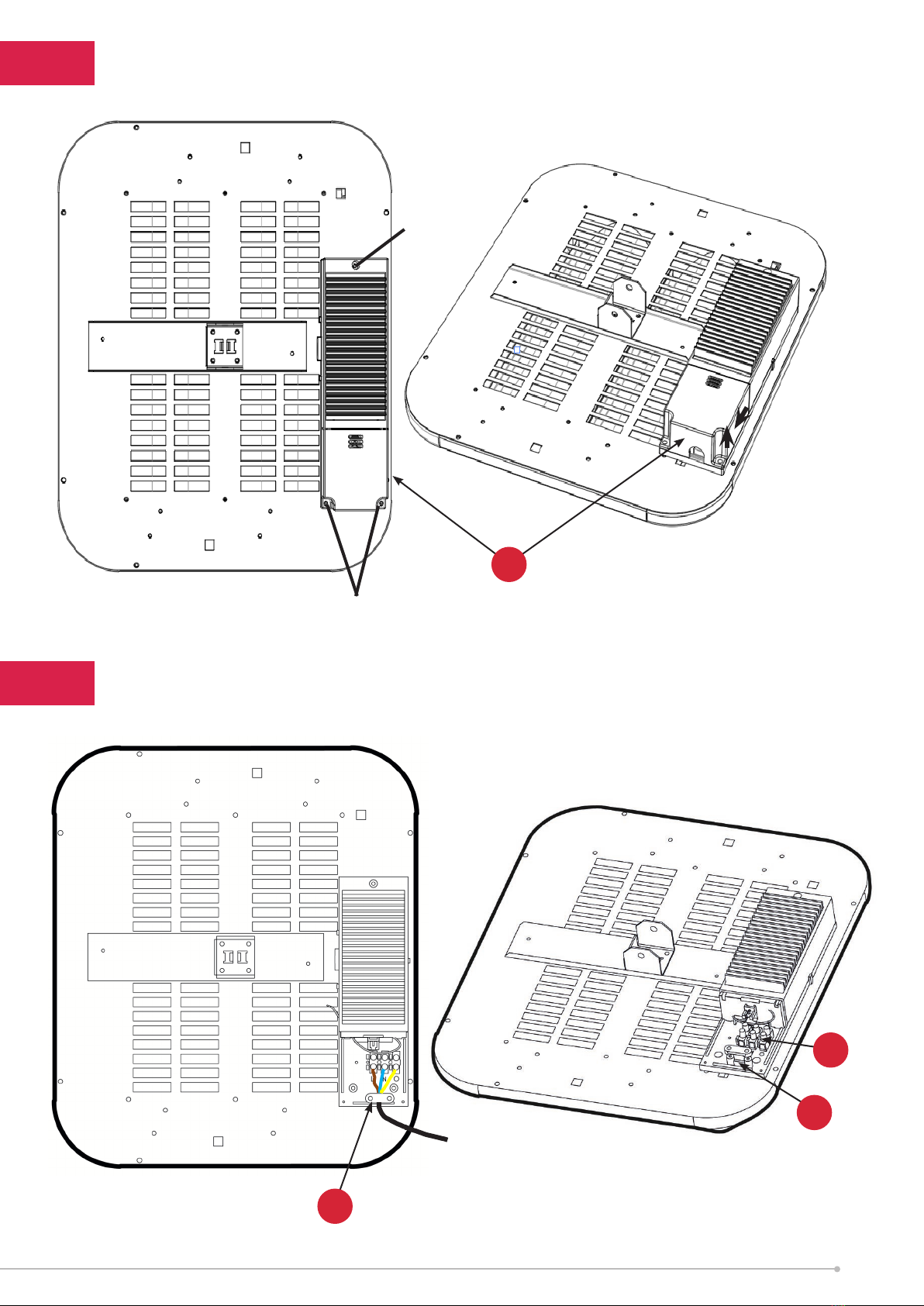

Fig. 1

DO NOT

REMOVE

THIS

SCREW

REMOVE SCREWS

TERMINAL

COVER BOX

MUST SLIDE

OUT FIRST

THEN UP

Fig. 2

TRIM POWER SUPPLY CABLE SHEATH SO

THAT LIVE, NEUTRAL AND EARTH WIRES ARE

AT A SUITABLE LENGTH. TIGHTEN CABLE

SADDLE CLAMP ONTO END OF POWER

SUPPLY CABLE SHEATH

Maintenance

Since the Dimplex Quartz Heater contains no moving parts little maintenance is required

beyond cleaning and lamp replacement. It is however, essential that the heater is not

operated with accumulation of dust or dirt on the lamp(s) or reﬂector(s) as this can

cause a build up of heat and eventual damage. For this reason the heater must be

inspected regularly depending upon conditions and at least at yearly intervals.

Before undertaking any maintenance work on the heater due attention must be paid

to the following:

1. Always disconnect the heater from the electricity supply before attempting to work

on or near it.

Lamp Replacement

WARNING: Before undertaking this task ensure the heater is disconnected from the

electricity supply and left to cool for a minimum of 30minutes.

1. Detach heater from its mounting position.

2. Unscrew the rear panel by loosening the corner ﬁxing screws, and then lift rear panel

clear.

3. Disconnect the wires to the old lamp by removing the lock nuts retaining the terminal

ends adjacent to the lamp clips. Do not slacken the screws as this could disturb the

internal wiring.

4. Remove the lamp by gently releasing the ends from the spring clips. Keep the lamp

secure and do not twist the ends or apply undue force. IMPORTANT - Release and

retain the high temperature cable ties from the element wires. (These must not be

substituted).

5. Before removing the new lamp(s) from its protective packing it is important to be

aware that quartz lamps are fragile and must be handled with care at all times. Avoid

touching the surface of the quartz sleeve with bare ﬁngers. If the sleeve is accidentally

touched remove the ﬁnger print with a soft cloth moistened with methylated spirit.

6. Hold the lamp ﬁrmly but gently at each end and oer up to the spring mounting

clips. The wire leads should face towards the front of the heater. Push the lamp fully

into the clips taking care to keep it square. Do not twist the ends or apply undue

force. If either end of the lamp will not easily engage in the spring clips remove the

lamp and gently ease the spring.

7. The wire from each end of the lamp must be connected to the threaded connector

ON THE SAME CLIP AS THE LAMP END. With the outside not loosened, insert the

spade between the two outside nuts and tighten ﬁrmly.

8. When the lamp has been ﬁtted check that the electrical connections have been

correctly made. Re-use the same cable tie to tether the element wires in place. Re-

ﬁt the raer panel, checking that wires are not trapped.

2. Always ensure a safe means of access using an access tower or properly supported

ladder.

3. Some types of quartz lamps run with an internal pressure in excess of atmospheric

pressure and while construction is very strong there is a slight risk of shattering. If

it is necessary to examine a bare lamp whilst in operation then a protective screen

must be used.

4. Allow at least 30 minutes for the lamps and body casing to cool before attempting

to work on the heater.

Model Identiﬁer(s): QXD1500E QXD3000E QXD4500E

Nominal heat output Pnom 1.5 kW 3.0 kW 4.5 kW

No. of Elements 1 2 3

Height (mm) 256 380 506

Width (mm) 440 440 440

Depth (mm) 70 70 70

Minimum heat

output (indicative) Pmin N.A. 1.5kW 1.5kW

Maximum continuous heat output Pmax,c 1.5kW 3.0kW 4.5kW

Auxiliary electricity Consumption

At nominal heat output elmax 0.00 0.00 0.00

At minimum heat output elmin 0.00 0.00 0.00

In standby mode elSB <0.0005 <0.0005 <0.0005

Type of heat output/ room temperature control

Electronic room temperature control plus week timer Yes

With open window detection Yes

With adaptive start control No

This product complies with Lot20 of the Energy Eciency Directive (2015/1188).

Energy Related Product Directive

Technical Details

All Models

Controls

Digitally controlled, Electronic Thermostat

Timer modes:

7 Day Programmable User Timer

Continuous heat modes:

Frost Protect, Runback, Comfort O

Controller UI

O-board control only.

Controller Functions

• Open window detection

• Advance time period

• Heat Selection (High/Low) for 3/4.5kW models only

• Bluetooth for control

Construction Durable epoxy-polyester powder coated steel casing with chrome plated

grille. FR Nylon control enclosure.

Finish / Colour

Powder coated steel, ﬁnished in Matte Black

Element Ruby halogen element

Installation Supplied with wall mounting bracket

Safety No cut-out on-board. Protection via RCD

IP Rating No Rating

Battery Backup

None. However all programmed timer proﬁles will be retained during

short term power losses. In order to ensure their correct operation, it is

necessary to restore the time and date settings, this happens automatically

once paired with the remote.

Supply

~230-240 V, 50Hz Class I, with earth wire

Approvals CE, BEAB

Warranty 2 years

Country of Origin British Isles

Manufacturer Glen Dimplex Heating & Ventilation (GDC Group Ltd.)

General Information

The Dimplex QXDE range is available in 1, 2 and 3 lamp models with outputs of 1.5kW,

3.0kW and 4.5kW respectively. The three lamp models are supplied as dual voltage

units and are suitable for use on 230-240V and 415V 3N supplies.

Model No. No. of Lamps Rating

(kW)

Voltage

(V)

Weight

(kg)

QXD1500E 1 1.5 230-240 3.7

QXD3000E 2 3.0 230-240 4.3

QXD4500E 3 4.5 230-240 5.8

Material and Finished

Body Casing – Low carbon steel, powder coated.

Reﬂectors – 1080 (SIA) 99.8% Alum. Electrochemically brightened specular ﬁnish.

Control Housing - Flame retardant black Nylon moulding.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Dimplex Heizung Handbücher

Dimplex

Dimplex PLX300/TI Bedienungsanleitung

Dimplex

Dimplex DGP1000-B Bedienungsanleitung

Dimplex

Dimplex CXD2000H-NA Series Bedienungsanleitung

Dimplex

Dimplex CAB10A Bedienungsanleitung

Dimplex

Dimplex LC Series Bedienungsanleitung

Dimplex

Dimplex EF12 Series Bedienungsanleitung

Dimplex

Dimplex PLX 2000TI Bedienungsanleitung

Dimplex

Dimplex DHCER24E Bedienungsanleitung

Dimplex

Dimplex R23SH Series Bedienungsanleitung

Dimplex

Dimplex DHCERA15M Bedienungsanleitung

Dimplex

Dimplex THORNE & DERRICK AC6 Bedienungsanleitung

Dimplex

Dimplex RFI-D Series Bedienungsanleitung

Dimplex

Dimplex OFC12 Bedienungsanleitung

Dimplex

Dimplex H 260E Bedienungsanleitung

Dimplex

Dimplex DX 421 Bedienungsanleitung

Dimplex

Dimplex LCM Series Bedienungsanleitung

Dimplex

Dimplex LPC Series Bedienungsanleitung

Dimplex

Dimplex Free-E Bedienungsanleitung

Dimplex

Dimplex CXLS12N Bedienungsanleitung

Dimplex

Dimplex Unidare UPX Series Bedienungsanleitung

Dimplex

Dimplex WFE 3TNB Bedienungsanleitung

Dimplex

Dimplex RCH5031CXW Bedienungsanleitung

Dimplex

Dimplex DEP Series Bedienungsanleitung

Dimplex

Dimplex BLF7451 Bedienungsanleitung

Beliebte Heizung Handbücher anderer Marken

oventrop

oventrop Regucor Series Bedienungsanleitung

Blaze King

Blaze King CLARITY CL2118.IPI.1 Bedienungsanleitung

ELMEKO

ELMEKO ML 150 Bedienungsanleitung

BN Thermic

BN Thermic 830T Bedienungsanleitung

KING

KING K Series Leitfaden

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Kurzanleitung

Well Straler

Well Straler RC-16B Bedienungsanleitung

EUROM

EUROM 333299 Bedienungsanleitung

Heylo

Heylo K 170 Bedienungsanleitung

Eterna

Eterna TR70W Bedienungsanleitung

Clarke

Clarke GRH15 Bedienungsanleitung

IRSAP

IRSAP The Radiator Company Ovali Bedienungsanleitung

Empire Heating Systems

Empire Heating Systems WCC65 Bedienungsanleitung

Wetekom

Wetekom 92 86 43 Bedienungsanleitung

Desa

Desa SPC170-F Bedienungsanleitung

Watlow

Watlow Watrod Electric Tubular Heaters Bedienungsanleitung

Haverland

Haverland ECO-DRY GPS Series Stücklistenhandbuch

Stelpro

Stelpro ASILVC2060 Series Bedienungsanleitung
