DIODE LED CHROMAPATH BUNDLE REFLECTOR Bedienungsanleitung

1 OF 3 IG061518-2.0

INSTALLATION GUIDE

CHROMAPATH®BUNDLE: REFLECTOR

CHROMAPATH®BUNDLE: REFLECTOR INSTALLATION GUIDE

ALUMINUM CHANNEL

SAFETY & WARNINGS COMPATIBILITY LIST

The following products are compatible with this CHROMAPATH®

Bundle Channel and Cover. Components not listed here are not

compatible.

DRY LOCATION

AVENUE 24™

BLAZE™

DAZZLE®RGB

FLUID VIEW®

TAPE LIGHT

ULTRA BLAZE™

VALENT®

VALENT®HD

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

1. Install in accordance with national and local electrical

code regulations.

2. This product is intended to be installed and serviced by

a qualied, licensed electrician.

3. Do not modify or disassemble this product beyond

instructions or the warranty will be void.

4. Do not use if there is any damage to the xture or wiring.

Inspect periodically.

5. Do not install near areas with exposure to salt water or

chlorinated water.

6. Do not install in direct sunlight or damage to the LED

phosphor will occur.

7. Do not attempt to x this product in the eld.

8. Failure to follow safety warnings, and installation

instructions will void the warranty for this product.

2 OF 3 IG061518-2.0

CHROMAPATH®BUNDLE: REFLECTOR INSTALLATION GUIDE

CHROMAPATH®BUNDLE: REFLECTOR

ALUMINUM CHANNEL

INSTALLATION GUIDE

TOOLS FOR INSTALL INSTALLATION

DETERMINE TAPE LIGHT & CHANNEL

LENGTH.

TEST CONNECTION.

Prior to assembling xture, connect tape light to Class

2 LED driver and turn on power. Ensure connection is

secure and system is working properly. Turn off power

again before mounting. See tape light installation guide

for information on powering xture.

−

1/4 in.

(6mm)

1/4 in.

(6mm)

Ex. 3 ft. 1 1/2 in. CHROMAPATH Fixture

DETERMINE CHROMAPATH FIXTURE LENGTH

Reector end caps add additional 1/4 in. length to each

side of CHROMAPATH channel.

Total Length = 2x End Caps + CHROMAPATH Channel

1. Pencil

2. Ruler

3. Scissors

4. Band Saw or Rotary Saw

5. Metal File

6. Screwdriver / Electric Drill

−®

−

Ex. 3 ft. Tape Light + Connector

DETERMINE CHROMAPATH CHANNEL CUT LENGTH

The simplest approach is to add 1 in. to CHROMAPATH

Channel and Cover, which will provide space to t end

cap harness. The total channel length is now 3 ft. 1 in.

−®

−

Ex. 3 ft. 1in. CHROMAPATH Channel

1.3

1.2

DETERMINE TAPE LIGHT LENGTH

Cut to desired length (cut at scissors icon) and attach

appropriate connectors, which will slightly extend total

length. For this example the total length is 3 ft.

1.1

3 OF 3 IG061518-2.0

CHROMAPATH®BUNDLE: REFLECTOR INSTALLATION GUIDE

CHROMAPATH®BUNDLE: REFLECTOR

ALUMINUM CHANNEL

INSTALLATION GUIDE

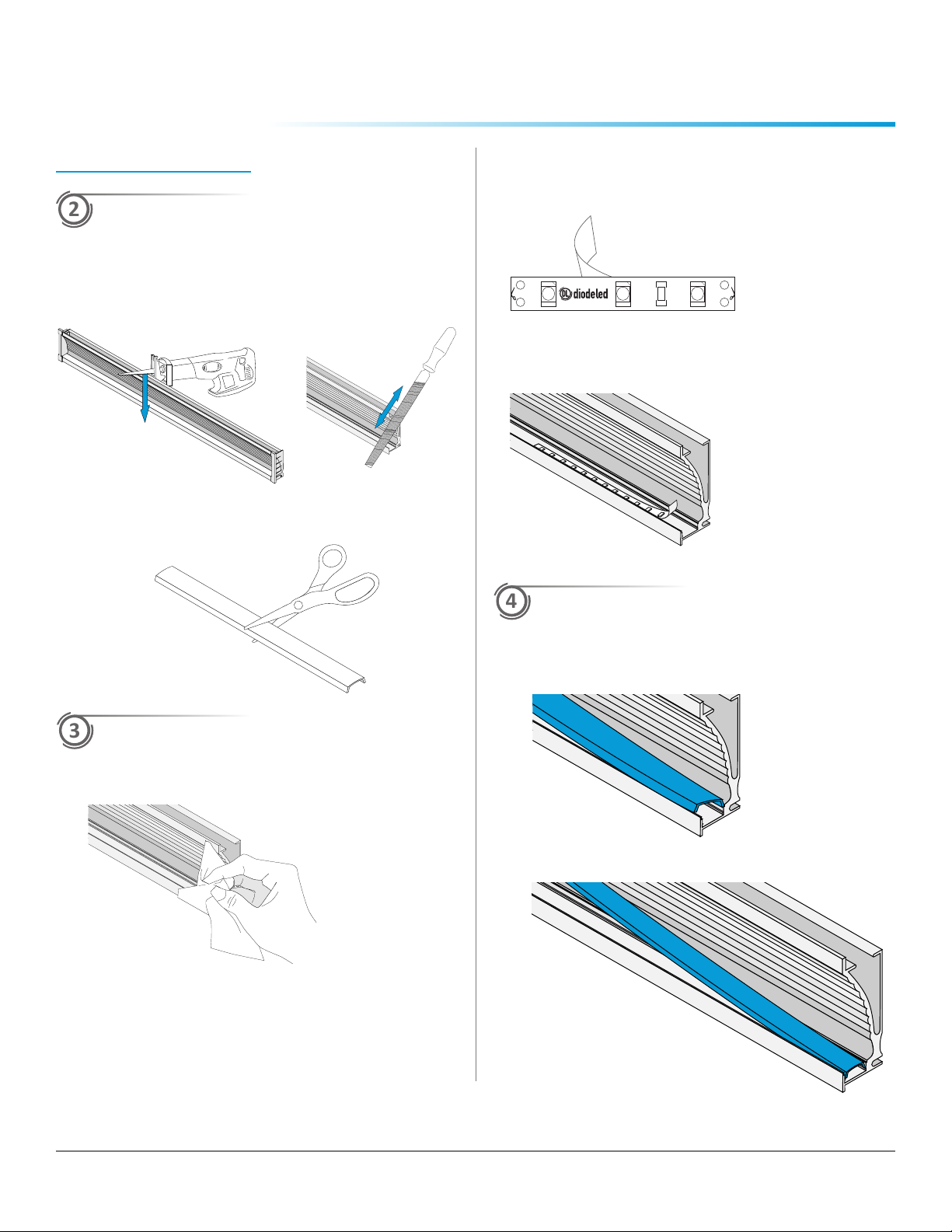

ASSEMBLE CHROMAPATH FIXTURE

−

Peel off 3M™adhesive backing from Tape Light.

Press Tape Light gently but rmly against channel, taking

care not to press directly on LEDs.

CUT CHANNEL & COVER.

ALUMINUM CHANNELS

Channels can be cut to size with a bandsaw, rotary saw,

or handsaw tted with an appropriate blade to cut metal

objects. Once cut, nish edges with metal le.

CHANNEL COVERS

Covers can be cut to size with heavy duty scissors or a

saw.

INSERT COVER

Run an alcohol wipe along the inside of the channel to

remove any dust or debris.

INSTALLATION (CONT.)

CLEAN CHANNEL AND ADHERE TAPE LIGHT

4.1

3.3

3.2

3.1

Fasten cover by rmly pressing one edge into channel,

then the other.

4.2 Continue pressing in lens along channel until fully seated.

4 OF 3

®Toll Free: 877.817.6028 | Fax: 415.592.1596 | www.DiodeLED.com | info@DiodeLED.com

IG061518-2.0

CHROMAPATH®BUNDLE: REFLECTOR INSTALLATION GUIDE

CHROMAPATH®BUNDLE: REFLECTOR

ALUMINUM CHANNEL

INSTALLATION GUIDE

Attach end caps. Adhere with adhesive or glue if desired.

MOUNT CHROMAPATH FIXTURE

INSTALLATION (CONT.)

Open end cap Closed end cap

To bridge between two channels, lay channels

end-to-end, then place cover over gap to keep ends

ush.

4.3

4.4

Apply adhesive to top and bottom of channel behind

anges.

CUT AREA FOR CHANNEL MOUNTING

Unless channel length has been modied, cut 48.5” x

2.5” rectangle from surface.

48.5”

2.5”

Note: When cutting into surface for mounting, leave space

for wiring to connect LED’s to power source. Always observe

local and national electrical code during installation.

Insert channel into mounting space. Allow adhesive to

dry.

6.1

6.2
