7 CIRCULAR SAW BC185J

SAFETY AND OPERATING MANUAL

7 CIRCULAR SAW BC185J

GUARANTEE

This product carries a Screwﬁx Direct Ltd guarantee of 12 months. If your

product develops a fault within this period, you should,in the ﬁrst instance contact

Screwﬁx Direct Ltd on Freephone 0500 41 41 41. If the fault occurs within the ﬁrst 12

months, you may return the goods for a full refund or we will repair or replace the goods

if you prefer. When repair is not practical or identical goods are not available, alternative

goods of similar speciﬁcation and quality will usually be provided but, failing this, you

will be offered a partial or full refund depending on the time period since purchase.

This guarantee speciﬁcally excludes losses caused due to:

- Fair wear and tear

- Misuse or abuse

- Lack of routine maintenance

- Failure of consumable items (such as batteries)

- Accidental damage

- Cosmetic damage

- Failure to follow manufacturer’s guidelines

- Loss of use of the goods

- Repairs attempted by anyone, unless authorised by Screwﬁx Direct Ltd.

This guarantee does not affect your statutory rights. This guarantee is only valid in the UK.

For further technical advice, spare parts or repair service (outside of guarantee) please

contact the customer helpline number on 0845 607 6380.

Congratulations on your purchase of a power tool from Screwﬁx

Direct Ltd. We want you to continue getting the best performance from it

so this handbook includes information on safety, handling and care. Please

retain this handbook in case you need to refer to any of the information in

the future.

Your power tool comes with a 12-month guarantee,so should it

develop a fault within this period contact Screwﬁx Direct Ltd on Freephone

0500 41 41 41.

SAFETY INSTRUCTIONS

WARNING! Read all instructions.Failure to follow all instructions listed

below may result in electric shock, ﬁre and/or serious injury.

SAVE THESE INSTRUCTIONS

1. Work area.

a. Keep work area clean and well lit. Cluttered and dark areas invite

accidents.

b. Do not operate power tools in explosive atmospheres, such as in the

presence of ﬂammable liquids, gases or dust. Power tools create sparks

which may ignite the dust or fumes.

c. Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

2. Electrical safety.

a. Power tool plugs must match the outlet. Never modify the plug in

any way. Do not use any adapter plugs with earthed (grounded) power

tools. Unmodiﬁed plugs and matching outlets will reduce risk of electric shock.

b. Avoid body contact with earthed or grounded surfaces such as pipes,

radiators, ranges and refrigerators. There is an increased risk of electric

shock if your body is earthed or grounded.

c. Do not expose power tools to rain or wet conditions. Water entering a

power tool will increase the risk of electric shock.

d. Do not abuse the cord. Never use the cord for carrying, pulling or

unplugging the power tool. Keep cord away from heat,oil,sharp edges or

moving parts. Damaged or entangled cords increase the risk of electric shock.

e. When operating a power tool outdoors, use an extension cord suitable

for outdoor use. Use of a cord suitable for outdoor use reduces the risk of

electric shock.

f. Use a Residual Circuit Breaker on all 230V Power tools. This can help

minimise the risk of an electrical shock if an earth fault or short circuits occurs.

g. If using a power cable extension ensure that the cable is fully unwound

and that its length is less than 30m. Lengths over 30 m will effect the tools

performance as a result of voltage drop.

3. Personal safety.

a. Stay alert, watch what you are doing and use common sense when

operating a power tool. Do not use a power tool while you are tired

or under the inﬂuence of drugs, alcohol or medication. A moment of

inattention while operating power tools may result in serious personal injury.

b. Use safety equipment. Always wear eye protection. Safety equipment

such as dust mask, non-skid safety shoes, hard hat, or hearing protection used

for appropriate conditions will reduce personal injuries.

c. Avoid accidental starting. Ensure the switch is in the off-position

before plugging in. Carrying power tools with your ﬁnger on the switch or

plugging in power tools that have the switch on invites accidents.

d. Remove any adjusting key or wrench before turning the power tool

7 CIRCULAR SAW BC185J

on. A wrench or a key left attached to a rotating part of the power tool may result

in personal injury.

e. Do not overreach. Keep proper footing and balance at all times. This

enables better control of the power tool in unexpected situations.

f. Dress properly. Do not wear loose clothing or jewellery. Keep your

hair, clothing and gloves away from moving parts. Loose clothes, jewellery

or long hair can be caught in moving parts.

g. If devices are provided for the connection of dust extraction and

collection facilities, ensure these are connected and properly used. Use

of these devices can reduce dust-related hazards.

4. Power tool use and care.

a. Do not force the power tool. Use the correct power tool for your

application. The correct power tool will do the job better and safer at the rate for

which it was designed.

b. Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must

be repaired.

c. Disconnect the plug from the power source before making any

adjustments, changing accessories, or storing power tools. Such

preventive safety measures reduce the risk of starting the power tool accidentally.

d. Store idle power tools out of the reach of children and do not allow

persons unfamiliar with the power tool or these instructions to operate

the power tool. Power tools are dangerous in the hands of untrained users.

e. Maintain power tools. Check for misalignment or binding of moving

parts, breakage of parts and any other condition that may affect the

power tools operation. If damaged, have the power tool repaired before

use. Poorly maintained power tools cause many accidents.

f. Keep cutting tools sharp and clean. Properly maintained cutting tools with

sharp cutting edges are less likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits etc., in accordance with

these instructions and in the manner intended for the particular type of

power tool, taking into account the working conditions and the work to

be performed. Use of the power tool for operations different from intended could

result in a hazardous situation.

5. Service.

a. Have your power tool serviced by a qualiﬁed repair person using only

identical replacement parts. This will ensure that the safety of the power tool

is maintained.

HEALTH ADVICE

WARNING! When drilling, sanding, sawing or grinding, dust particles will be

produced. In some instances, depending on the materials you are working with,

this dust can be particularly harmful to you (e.g. lead from old gloss paint).

You are advised to consider the risks associated with the materials you are working

with and to reduce the risk of exposure. You should:

- Work in a well-ventilated area.

- Work with approved safety equipment, such as those dust masks that are specially

designed to ﬁlter microscopic particles.

ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR CIRCULAR

SAW

1.If the supply cord is damaged have it replaced by a qualiﬁed person.

2.Do not use blades which are deformed or cracked.

3.Do not use saw blades made of high speed steel.

4.Do not use blades which do not comply with the characteristics speciﬁed in these

instructions.

5.Do not stop the blade by lateral pressure on the disc.

6.Ensure that movable guards operate freely without jamming.

7.Do not lock the guard in the open position.

8.Ensure that any-retraction mechanism of the guard system operates correctly.

9.Characteristics of saw blades. Take carful note of blade thickness & diameter and

ensure it is suitable for the circular saw.

10.Do not use saw blades, the body of which is thicker, or the set of which is smaller

than the thickness of the riving knife.

11.Ensure that the riving knife is adjusted so that the distance between the riving knife

and the toothed rim of the saw blade is not more than 5mm. The toothed rim does not

extend more than 5mm beyond the lower end of the riving knife. The riving knife should

always be used except when plunging in the middle of the work piece.

12.For circular saws for woodworking it is advised that if used in conﬁned areas dust

protection or separate dust collection system should be used.

13. Always use the appropriate safety equipment that is required for the product. e.g.

Goggles / Safety Spectacles, Ear defenders (essential with tools with a noise rating of

over 85 dbA), Gloves and face masks. In all cases ensure that the safety equipment is

in good condition.

Double insulation:

The tool is double insulated. This means that all the external metal parts are electrically

insulated from the mains power supply. This is done by placing insulation barriers

between the electrical and mechanical components making it unnecessary for the tool

to be earthed.

Important note:

Ensure your mains supply voltage is the same as your tool rating plate voltage. Remove

the mains plug from socket before carrying out any adjustment or servicing.

SYMBOLS

Read the manual Warning Wear gloves

Wear dust mask,eye & ear protection

7 CIRCULAR SAW BC185J

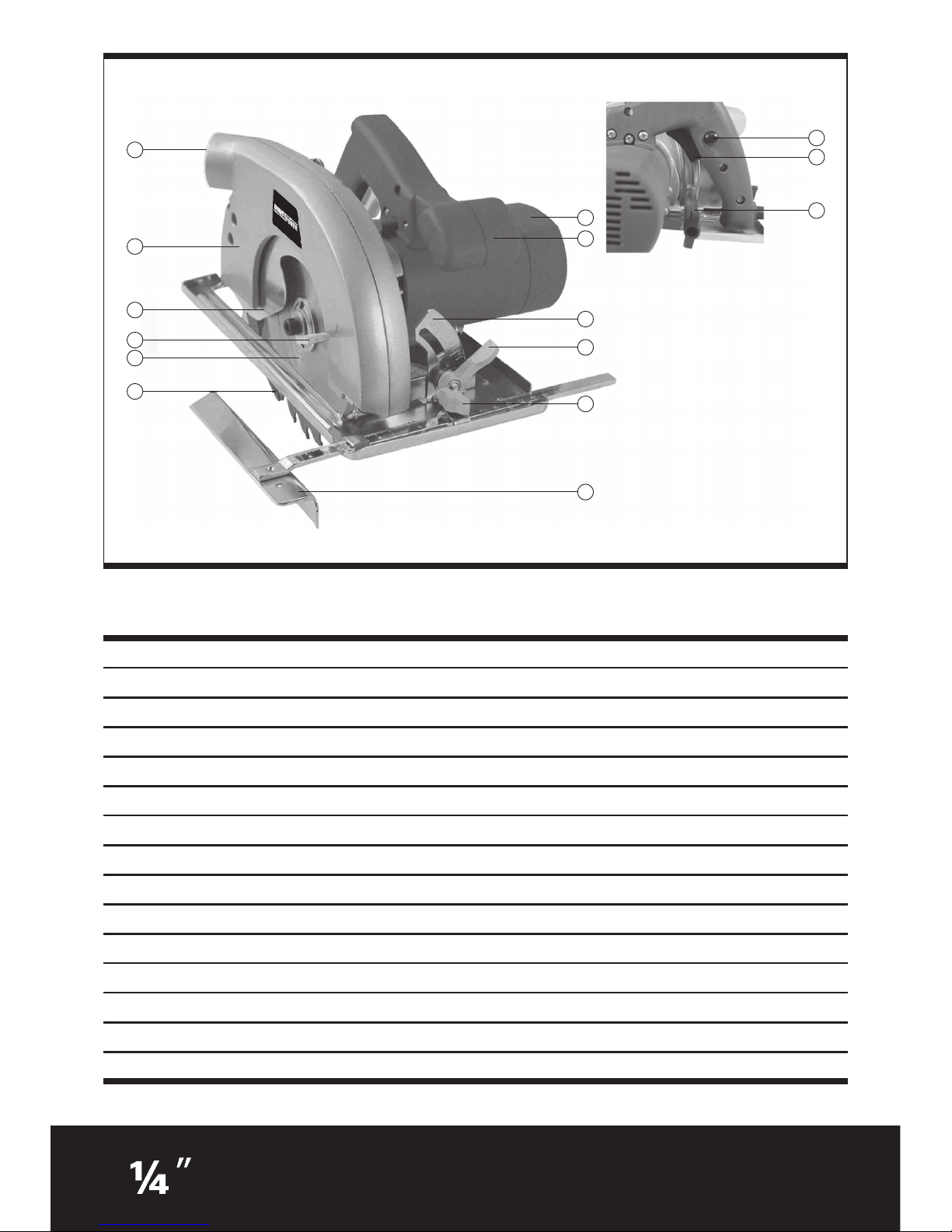

1. SAFETY BUTTON

2. TRIGGER SWITCH

3. CUTTING DEPTH LOCK KNOB

4. MOTOR HOUSING

5. FRONT HANDLE

6. MITRE CUTTING ADJUSTMENT GUIDE

7. MITRE CUTTING LOCK KNOB

8. PARALLEL FENCE SECURING SCREW

9. PARALLEL FENCE

10. RIVING KNIFE

11. BLADE

12. MOVABLE GUARD HANDLE

13. MOVABLE GUARD

14. ALUMINIUM GUARD

15. DUST OUTLET































ACCESSORIES

Parallel guide: 1pc

Spanner: 1pc

Allen key: 1pc

NOISE AND VIBRATION DATA

Sound pressure level: 96dB (A)

Sound power level: 107dB (A)

Vibration level: 1.7m/s2

TECHNICAL DATA

Voltage: 230V~50Hz

Input power: 1200W

No load speed: 5,000min-1

Max. cutting depths: 64mm

Mitre limit: 45

Blade size: Ø185mmx2.8mmxØ16mm bore

Double insulation:

Weight: 4.5 Kg

7 CIRCULAR SAW BC185J

OPERATING INSTRUCTIONS

1. ADJUSTMENTS

With this saw there are two things you can adjust:

the blade cutting depth and the mitre cutting

angle.

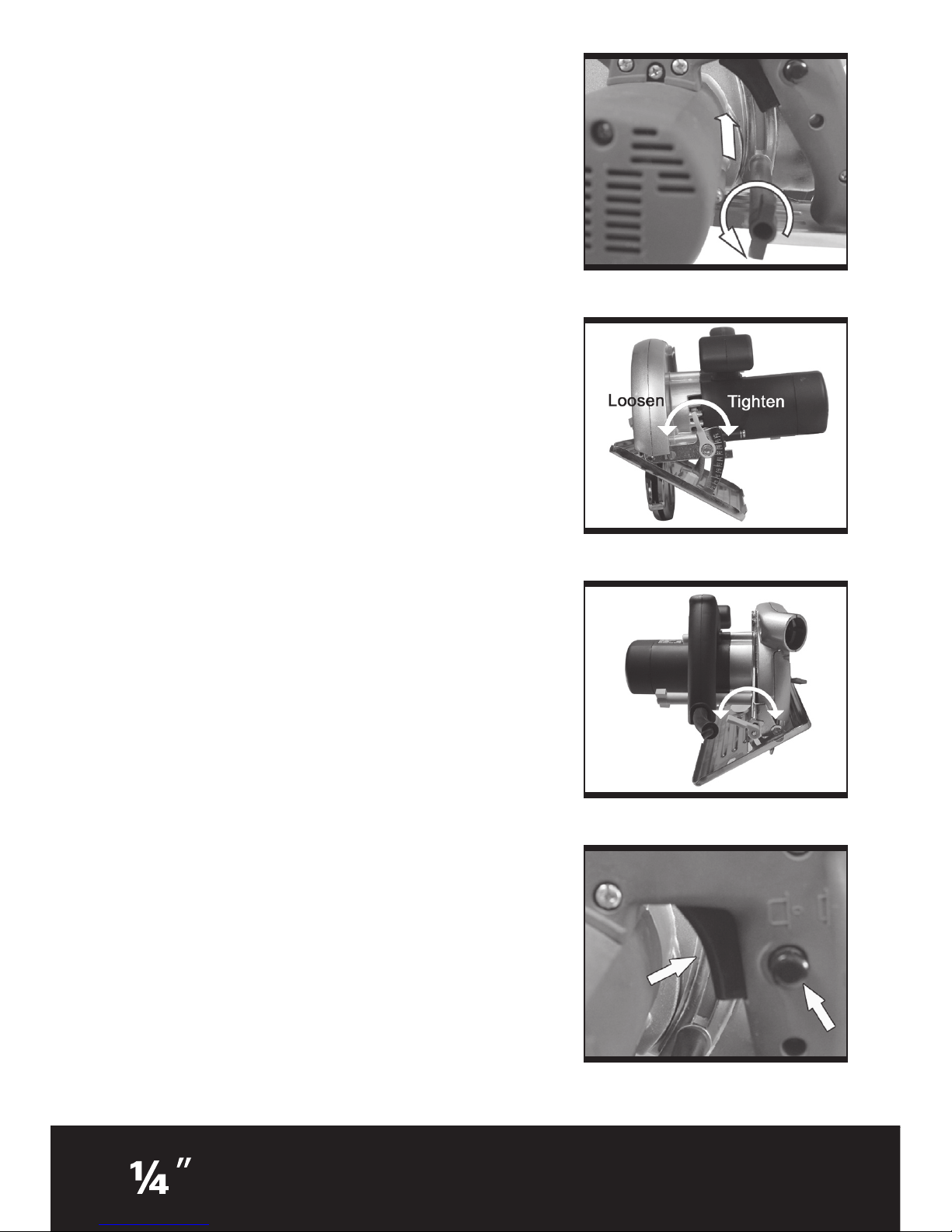

2. CUTTING DEPTH ADJUSTMENT (See ﬁg2)

1.To adjust the blade cutting depth, face the saw

away from you.

2.Loosen the cutting depth adjustment screw

which is located at the back of the saw guard.

3.Hold the baseplate ﬂat against the edge of the

workpiece and lift the main body until the blade is

at the required depth.

4.Firmly tighten the cutting depth adjustment

screw.

3. MITRE CUTTING (See ﬁg3a,ﬁg 3b)

1.Loosen the mitre cutting adjustment knob which

can be found at the front and back of the metal

base plate.

2.Twist the main body until the required angle is

reached. Use the mitre adjustment guide to help

set the required angle.

3.Tighten the screw to secure the baseplate.

4. USING THE CIRCULAR SAW

SWITCHING ON (See ﬁg4)

1.Connect the plug to the mains power supply.

2.Make sure your circular saw switch is locked off

to prevent accidental starting.

To start the unit, press and hold the safety button,

then press the trigger switch.

SWITCHING OFF

To switch off the unit, release the trigger switch.

The blade may continue to rotate after the trigger

switch has been released. Wait until the unit has

come to a complete stop before setting down.

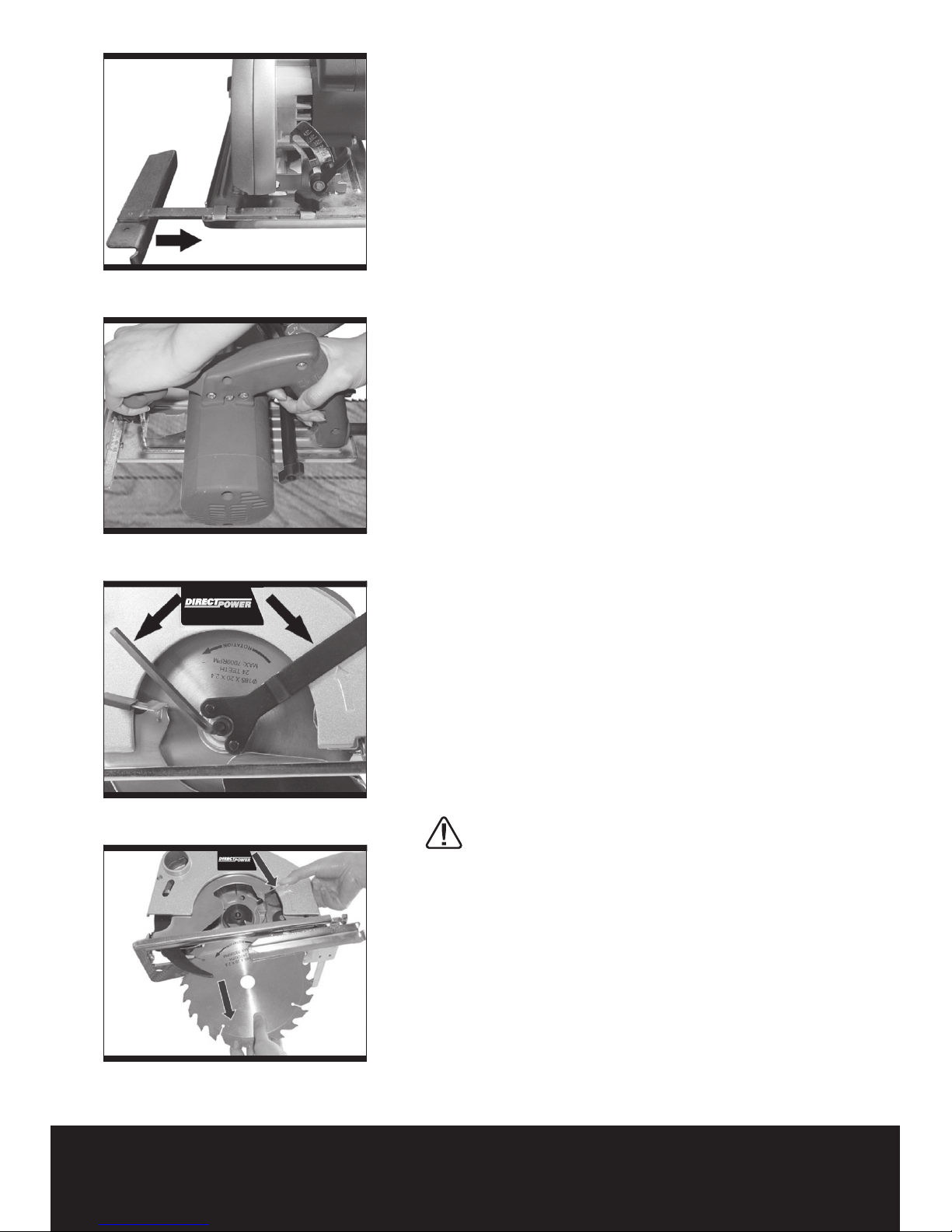

5. USING THE PARALLEL FENCE (See ﬁg5)

A parallel fence allows you to make parallel cuts

in sheets of wood, which are consistently the

same width.

1.Slide the parallel fence into position.

2.Adjust the fence to the required width, and

secure by tightening the parallel fence securing

screw.

When you now use the saw, ensure that the edge Fig 4

Fig 3a

Fig 2

Fig 3b

Loosen Loosen

of the parallel fence is resting against the edge of

the wood to give a perfect parallel cut.

6. OPERATION (See ﬁ g6)

Adjust the mitre angle and cutting depth to the

required level and place front of the base plate

on the workpiece (do not allow the blade to touch

the workpiece at this time).

Start the saw, when the saw is at maximum speed

slowly push forward. Hold the saw securely with

both hands.

7. FITTING A NEW BLADE (See ﬁ g7, 8 & 9)

NOTE: Remove the mains plug from socket

before carrying out any adjustment or servicing.

1.Using the spanner and allen key provided, undo

the blade securing bolt and washer. (See ﬁ g7)

2.Remove the outer ﬂ ange. (See ﬁ g9)

3.Pull the blade guard handle round as far as it will

go and hold it there. Remove the old blade (See

ﬁ g8). There is no need to remove the inner ﬂ ange.

If the inner ﬂ ange is inadvertently removed this

will need to be re-ﬁ tted before ﬁ tting new blade.

Fit inner ﬂ ange with smaller diameter section

facing inwards to saw body. (See ﬁ g8 for blade

component ﬁ tting order.)

4.Slide a 185mm cutting blade through the hole

in the bottom of the metal baseplate and place

on the central hub on top of the inner ﬂ ange, you

may need to wiggle the blade a little to achieve

this.

5.Place the outer ﬂ ange back on the centre of the

blade and place the washer on top of the outer

ﬂ ange.

6.Screw the blade securing bolt back on using the

spanner and Allen key provided.

7.Release the blade guard.

Note: Only use the correct diameter blade

(185mm)with a 16mm bore,rated speed

of blade should be higher than rated speed of

machine.

8. RIVING KNIFE ADJUSTMENT (See ﬁ g10)

1.The riving knife prevents the blade from being

jammed by the workpiece. It must always be

adjusted when the blade is changed or the correct

setting has been changed.

2.Loosen the hex head screws on the riving knife

with the allen key(not supplied).

3.Adjust the riving knife position according to

Fig 6

Fig 7

Fig 8

Fig 5

Inhaltsverzeichnis

Andere Direct power Gesehen Handbücher

Direct power

Direct power BM210J Installationshandbuch

Beliebte Gesehen Handbücher anderer Marken

RIDGID

RIDGID BS1400 Bedienungsanleitung

ATIKA

ATIKA BWS 400-2 Bedienungsanleitung

RGC

RGC FS20 Bedienungsanleitung

Makita

Makita M2300 Bedienungsanleitung

IMET Spa

IMET Spa BASIC 300 PLUS SHI Bedienungsanleitung

IMET Spa

IMET Spa SIRIO 370 AF-E Bedienungsanleitung

Optimum

Optimum OPTisaw CS 275 Bedienungsanleitung

Makita

Makita BPB180 Bedienungsanleitung

Stihl

Stihl MS 462 C-M Bedienungsanleitung

AEG

AEG TS 250 K Bedienungsanleitung

Meec tools

Meec tools 004665 Bedienungsanleitung

Makita

Makita LS1018L Bedienungsanleitung

Ryobi

Ryobi RCS1400 Bedienungsanleitung

DeWalt

DeWalt DCS391 Bedienungsanleitung

Sealey

Sealey SA72 Bedienungsanleitung

skilsaw

skilsaw SPT88 Montageanleitung

Urrea

Urrea SI810 Abmessungen und Installationsanleitung

EINHELL

EINHELL BKG 210/1 Bedienungsanleitung
