GROUP CYCLING CONSOLE

INSTRUCTION MANUAL

WARRANTY

This is to certify that the Group Cycling Monitor is

warranted by to be free of all defects in materials and

workmanship. This warranty does not apply to any defect

caused by negligence, misuse, accident, alteration,

improper maintenance, or an “act of God.” The Group

Cycling Monitor carries a one-year warranty on the

monitor warranted.

3260 _ver.A(1)

When calling, please be prepared to provide the

customer service representative with the following

information: Your name, the serial number of the

inoperable monitor, and the date(s) of purchase. If

warranty replacement parts are shipped, you may be

required to return the defective part. We reserve the right

to make changes and improvements in our products

without incurring any obligation to similar products

previously purchased. In order to maintain your product

warranty and to ensure the safe and efficient operation of

your monitor, only authorized replacement parts can be

used.

PLEASE NOTE:

1. The Group Cycling Monitor system are designed as

sealed units and not meant to be opened other than for

the sole purpose of installing batteries. Any opened

units will void the warranty.

2. To clean the Group Cycling Monitor use a clean damp

cloth. Use of any caustic cleaning solutions will void the

warranty.

3. The group Cycling Monitor system is NOT waterproof,

only water resistant. Any excessive exposure to

water will void the warranty.

and transmitter. Batteries are not

TABLE OF CONTENTS

Warranty___________________________________1

Safety instructions ___________________________4

Installation _________________________________5

Console ___________________________6

Transmitter _________________________6

Display Window _____________________________8

Quick Start Program ________________________9

Console operation___________________________10

Troubleshooting ____________________________15

FCC Compliance ___________________________16

CONSOLE SPECIFICATION

CADENCE BAR GRAPH: 0~200rpm/10rpm per Bar

RPM : 0 ~ 240 RPM

SPEED : 0 ~ 96 KM/H (0 ~ 60 mph)

PULSE : 30 ~ 240 BPM

Time : Count down range 1~99 Minutes

Count up range 00:01~99:59

IMPORTANT SAFETY INSTRUCTIONS WARNING

BEFORE BEGINNING THIS OR ANY OTHER

EXERCISE PROGRAM, CONSULT A PHYSICIAN.

THE PHYSICIAN CAN HELP YOU BETTER

DETERMINE WHAT ACTIVITIES OR PROGRAMS ARE

MOST SUITED FOR YOU. IF AT ANY TIME DURING

THE WORKOUT YOU FEEL FAINT, OR CHEST PAINS,

OR SEVER SHORTNESS OF BREATH, STOP

EXERCISING IMMEDIATELY AND CONSULT A

PHYSICAN.

The Group Cycling Console carton consists of a

computer console, speed sensor transmitter.

The transmitter counts the number of times the

magnet, which is mounted on the crank assembly,

passes the sensor. The speed sensor transmitter

will then send a coded signal to the console

which contains the measured value (Speed and

Cadence ).

Both the computer console and the speed sensor

transmitter use AAA type batteries. Please install the

supplied AAA batteries in the computer console and

speed sensor transmitter before using.

Group Cycling Console Battery Installation:

1. Remove the battery cover from the back of the

computer.

2. Insert 2 AAA batteries into the battery compartment

and reinstall the battery cover.

3. When Battery working voltage is too low, The “Low

battery” indicator will show up on the console display

indicating it is time to change the batteries.

Speed Sensor Transmitter Battery Installation

1. Remove the battery cover from the transmitter.

2. Install 2 AAA batteries in the battery compartment and

reinstall the battery cover.

3. When new batteries are installed in the transmitter

or console you must perform the synchronizing

procedure below for the console to work properly

Synchronizing the transmitter to the console:

After installing the batteries, and before attaching the

console and transmitter to the bike, you must

synchronize the two so they can ‘talk’ to each other.

1. Press and hold the two keys on the front of the

console for about 3 seconds until the display

shows ID - -

2. Now press and hold the blue button on the

transmitter for 3 seconds and release. The console

display should show ID 0. NOTE: You must press

the blue button within 10 seconds after the console

is showing ID - - otherwise the console will show:

ID ER. If the console shows this error then restart

the procedure again.

3. It may be necessary to remove and re-install the

batteries in both the console and transmitter if you

continue to receive an error.

Installation of the group cycling monitor

Console Installation:

1. Install the mounting clamp (2) to the back of the

console (1) with the clamp mounting screw (3).

2. Install and slightly tighten the thumb screw (4) then

adjust the console angle for optimal visibility. Once the

console is adjusted, continue to tighten the screw until

it is securely attached to the handle bar.

Installing the speed transmitter:

Plug the speed sensor wire into the transmitter (6) and

then attach the transmitter (with Velcro pre-attached to

the back) to the Velcro half that is pre-installed to the

bike frame. The Velcro is mounted to the back side of the

chain cover, below the left crank.

1 – Console

2 – Mounting Clamp

3 – Clamp mounting screw

4 – Clamping thumb screw

5 – Velcro

6 – Speed transmitter

DISPLAY WINDOW

TIME

Time is measured in min:sec

There is a time of day clock and a workout timer clock.

The workout time will count up or count down during

pedaling. If pedaling stops, the time will stop counting

after 3sec.

RPM/CADENCE

Cadence is the measurement of how fast the cranks are

rotating in RPM. The approximate speed of the bike can

also be display in MPH or KPH.

In addition to the MPH/KPH, the RPM section of the

display also has a bar graph that allows the rider to

visually keep track of the approximate RPM.

DISTANCE

Distance is the measurement of the virtual distance

traveled on the bike. This distance is based on the user

riding a bike with tires that are the same size as the

group bike’s flywheel.

KCAL

Kcal is the approximation of calories burned during your

work out. The calories are an estimate only.

HEART RATE

This the approximation of heart rate detected from the

chest belt during your work out.

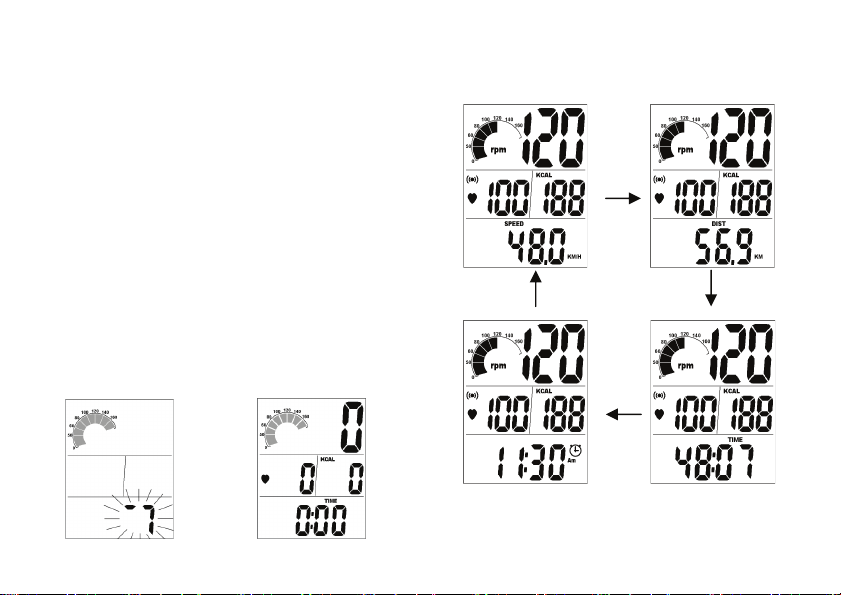

QUICK Start

When the console is in Power Saving Mode, hold down

any key to wake up the console and go to the start-up

screen, also called “QUICK Start” active state.

Power Saving Mode QUICK START Mode

MODE SELECT

Press the left hand key to select the SPEED, DIST, TIME

or CLOCK at the bottom of the display.

RESET/HEART RATE ALARM SELECT

1. Press the right hand key to activate the heart rate

alarm. If the alarm is on, the alarm icon will flash and a

beep will sound to indicate that your heart rate is either

above or below the selected target zone.

2. RESET: Press and hold the left hand key for 3

seconds. All the accumulated valuesfor AVG SPEED,

AVG PULSE, TIME, DIST, KCAL will return to zero.

TIME OF DAY

1. If you want to changethe time of day settings at any

time press the left hand key until time of day is displayed

then press the right hand key for 3 seconds. The display

will flash an indication of whether the clock is set for 12H

clock or 24H militarytime clock. Press the right hand key

to change.

2. Press the left hand key to switch to the hour setting,

use the right hand key to change hours.

3. Press the left hand key again to switch to minutes and

use the right hand key to changethe minutes.

4. When you are finished, wait a few seconds for the

display to return to the start-up screen.

Setting Workout Time

1. Press and hold the right hand key whenthe bottom

section of the display is showing SPEED; the Minutes

will now be flashing. Press the right hand key to

increase Minutes setting.

2. To clear the exercise Time press the left hand key until

the time is displayed then hold the right hand key for

three seconds.

HEART RATE TARGET ZONES

Press the left hand key until ‘SPEED’ is displayed then

hold the right hand key for 3 seconds. The TIME will be

flashing; press the left hand key to select the heart rate

target zone settings.

Press the right hand key to increase maximum heart rate

limit. After setting the maximum heart rate, press the left

hand key to adjust the minimum heart rate limit.

PERSONAL DATA SETTING

1. GENDER: Press the left hand key until SPEED is

displayed then, press the right hand key for 3 seconds.

The TIME will be flashing, press the left hand key until

the gender icon is blinking. Press the right hand key to

select the gender.

2. Press the left hand key to set the measuring value for

weight (Lb or Kg), press the right hand key to select.

3. BODYWEIGHT: Press the left hand key to set the

bodyweight, press the right hand key to increase the

weight. Press and hold the right hand key for rapid

advance.

TROUBLESHOOTING

No Display on Console

1. Hold down any key to bring the console to “Quick Start”

mode.

2. Ensure that the batteries are installed properly in the

console and transmitter. If they are, install fresh

batteries.

No Heart Rate signal displayed

1. Ensure that your chest strap is worn correctly and that

there is moisture under the electrodes.

2. Relocate the bike away from any equipment

that could potentially interrupt the radio frequency

signal, such as a DVD player or television, etc.

Cadence number jumps high or low

1. Separate bikes that may be set to the same console

code and are cross-talking, or re-synchronize the

transmitter and console (see page 5).

2. Relocate the bike to a different part of the room, away

from any RF interference areas.

Heart Rate signal gets interrupted or drops out

1. Ensure that there is a minimum distance of 36 inches

between bikes.

2. Verify that your chest strap is secure and that the

electrodes are making contact with your chest at all

times. 15

CAUTION

EXTERNAL INTERFERENCE MAY BE CAUSED BY

OTHER ELECTRONIC DEVICES, SUCH AS:

NEARBY TELEVISIONS, STEREO EQUIPMENT,

SPEAKERS, ELECTRICAL WIRE CABLING, ETC. IF

YOU EXPERIENCE DISTURBANCES IN THE

CONSOLE DISPLAY TRY MOVING YOUR BIKE(S)

AWAY FROM POTENTIAL RF INTERFERENCE

AREAS.

Notice of FCC Compliance

This equipment has been tested and foundto comply

with the limits for a Class C Low Power Communication

Device Transmitter, pursuant to Part 15 of the FCC rules.

Operation is subject tothe following conditions: (1) This

device may not cause harmful interference, and (2) this

device must accept any interference received, including

interference that may cause undesired operation.

There is no guarantee that interference will not occur in a

particular installation. If this equipment experiences

interference from a radio, television, or other RF signal,

the user is encouraged to try and correct the interference

by increasing the separation between the equipment and

the apparatus emitting the interfering RF signal.

Inhaltsverzeichnis

Beliebte Monitor Handbücher anderer Marken

Linear Acoustic

Linear Acoustic LQ-1000 Bedienungsanleitung

AOC

AOC I2579V Bedienungsanleitung

Gateway

Gateway FPD1520 Bedienungsanleitung

Furuno

Furuno Mu 120c Bedienungsanleitung

Asus

Asus VB171D - 17" LCD Monitor Bedienungsanleitung

Dell

Dell S2230MX Gebrauchsanweisung

Philips

Philips 107C64 Bedienungsanleitung

Dell

Dell S2409WFP Bedienungsanleitung

EverFocus

EverFocus EN-7517E Bedienungsanleitung

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Bedienungsanleitung

Dell

Dell Precision 7680 Bedienungsanleitung

LG 50PM1M - - 50" Plasma Panel Bedienungsanleitung

Bosch

Bosch DDU 9 Bedienungsanleitung

Acer

Acer A231HL Bedienungsanleitung

Philips

Philips 86BDL4152T Bedienungsanleitung

NEC

NEC AccuSync LCD5V Bedienungsanleitung

Emay

Emay SleepO2 Bedienungsanleitung

IBM

IBM 6360 Montageanleitung
