Displays2go DGFSTCH43 Bedienungsanleitung

Displays2go Rev. 01/04/18

User Manual

Model: DGFSTCH43

Description:

43” Indoor Floor Standing Digital Signage

Scan QR code to visit the product page:

Operating Instructions for Digital Signage

Note: Before using the product, please read the instructions carefully!

Do not attempt to disassemble this product. If the product does not work properly, please call

our Customer Service Department at 1-844-221-3393.

FCC ID: 2ASCBDGFSTCH43

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference

that may cause undesired operation.

Any changes/modifications to this equipment not approved by George Patton

Associates could void the user’s authority to operate the equipment.

Displays2go Rev. 01/04/18

Contents

Features ................................................................................................................................ 3

Safety Warnings and Precautions ........................................................................................... 3

Assembly and Connection...................................................................................................... 5

Packing List....................................................................................................................................5

Interfaces ......................................................................................................................................6

Steps for Assembly........................................................................................................................6

Steps for Assembly with Casters ...................................................................................................7

Remote Control ..................................................................................................................... 8

Description of Basic Operation ............................................................................................... 9

Power on/Standby ........................................................................................................................9

About Launch Desktop..................................................................................................................9

Description of Wallpaper Switch.................................................................................................10

File Manager ...............................................................................................................................10

Local Settings ..............................................................................................................................11

Status of Menu bar .....................................................................................................................12

Slide Show APP Introduction……………………………………………………………………………………………………12

How to Upload Media Files ……………………………………………………………………………………………………12

How to Delete Media Files………………………………………………………………………………………………………17

Factory Reset……………………………………………………………………………………………………………………………19

Screen Rotate………..…………………………………………………………………………………………………………………19

Choose System Language…..…….………………………………………………………………………………………………20

Technical Specifications……………………………………………………………………………………………………………21

Troubleshooting………………………………………………………………………………………………………………………23

Cleaning and Maintenance………………………………………………………………………………………………………25

Names and Contents of Toxic and Hazardous Substances or Elements in the Product………………26

Displays2go Rev. 01/04/18

Features

1. Embedded with Android 5.1 smart operating system and unique UI design, bringing you a more

convenient operation and better visual experience.

2. Support USB mouse and keyboard, realizing easy manipulation like a computer. Using a mouse for set

up is recommended.

3. Built-in Wi-Fi module, high capacity memory and high capacity cache, making it smoother to watch

1080P HD movies and play big games.

4. High-quality LCD screen as the display, no flicker, low radiation, greatly reducing eye fatigue, eye

protection, high brightness, high contrast, and wide viewing angle; ultra-fast response time greatly

reduces ghosting of fast moving images.

5. Progressive image processing and industry-leading motion compensation technology improve the

flickering and blurring in the edges of motion picture.

6. Dynamic contrast technology can significantly improve the clarity and contrast of various screens.

7. Multi-channel USB interfaces, supporting HD media streaming.

8. Ultra-thin narrow bezel design.

Safety Warnings and Precautions

Thank you for purchasing the high-performance multi-functional LED backlight Digital Signage from

Displays2go. We have considered the factors to ensure personal safety in product design and have tested

rigorously at the factory. However, improper installation and use may result in electric shock and fire.

In order to safely use, maximize performance of the unit and extend the life of the product, please read

and follow all instructions carefully before using the product.

Keep the instructions for future reference.

Symbol Legends:

Warning: May cause personal injury or death

The operation is prohibited

Caution: May cause damage or property loss

The operation must be executed

If any of the following occurs:

Power outage or instable voltage.

Abnormal sound or smell from the unit.

AC power cord is damaged.

Digital Interactive Table is damaged due to drop, knock or impact.

Any liquid or foreign matters fall into the enclosure.

Turn off the Digital Interactive Table immediately, pull out the plug from the power outlet, and

ask the authorized personnel for maintenance timely.

If coal gas or other flammable gas leaks, do not pull out the plug of the LCD Digital Signage or other

electrical appliances; instead, turn off the gas valve immediately, and open the doors and windows quickly.

Displays2go Rev. 01/04/18

⚫Do not use power supply other than AC 110V, 50Hz.

⚫Cut off the power supply before connecting or disconnecting any cables.

⚫Do not place the Digital Signage on any instable positions, or else it may be damaged or cause fire.

⚫Do not place the Digital Signage in the positions such as:

1.The environment subject to direct strong sunlight, moisture, extreme temperature or too

much dust;

2.The environment with flammable or explosive materials;

3.The environment with flammable or corrosive gases;

⚫Do not use damaged or inappropriate power outlets, and ensure that the plugs and outlets contact

properly.

⚫Do not let dust or metal deposits adhere to the plugs and outlets.

⚫Do not damage the power cords:

1.Do not modify the power cords;

2.Do not place heavy objects on the power cords;

3.Keep the power cords away from heat source;

4.Do not pull the cord to remove the plug.

⚫Do not connect too many plugs to one outlet in parallel, or else it may cause fire due to excessive

power consumption.

⚫Do not approach the Digital Signage with open flame (e.g. a lighted candle), or else it may cause

electric shock or fire.

⚫Do not put water filled container on the Digital Signage to avoid electric shock and fire due to water

drops or splashing.

⚫Do not put any sharp objects, metal or liquid into the vents or let them touch the signal terminals

to avoid short circuit, product damage, and electric shock.

⚫The openings in the enclosure are designed for ventilation and cooling, to ensure long time reliable

running of components inside the enclosure and prevent overheating. Do not block the openings

when place the unit.

Do not touch the plugs with wet fingers, or else it will cause electric shock.

Do not use the Digital Signage in stormy weather, especially when there is lightning; instead, please

disconnect the power and antenna plugs to avoid lightning strike.

Do not disassemble the Digital Signage without permission, or else it may cause electric shock or fire.

Please ask qualified technician for repair.

WARNING

Displays2go Rev. 01/04/18

⚫Do not let children climb onto the Digital Signage.

⚫Keep the small parts away from children to prevent them from swallowing.

⚫If the Digital Signage won’t be used for a long time, please turn it off and pull out the power plug.

⚫To adjust the position or angle of the Digital Signage, please disconnect all power cords and move

slowly to avoid falling.

⚫Do not scratch or knock the LCD with hard object, or twist and squeeze the LCD.

⚫Do not turn on the unit immediately when it is moved from a place with low temperature to high

temperature, or else it will cause condensation and malfunction.

⚫Before cleaning the Digital Signage, please pull out the power plug; wipe with soft cloth; do not use

industrial chemicals; prevent foreign matters from entering the machine. Improper cleaning (such

as cleaning solution, water) may damage the product, erase the printed information, and even cause

damage of the components if fluid flows in, resulting in machine failure.

⚫If the unit displays the same screen for a long time or the moving picture has fixed text or icon, it

will leave ghosting on the screen and won’t disappear when the unit is turned off; it is normal and

isn’t covered by the warranty.

⚫The power of the Digital Signage can be cut off by pulling out the plug.

⚫If the LCD screen ruptures and the liquid splashes on the skin, please rinse for 15 minutes with clean

water immediately, and consult your doctor.

⚫To carry the Digital Signage with hands, please grab the corners and hold the bottom; do not apply

pressure on the panel.

⚫Use the Digital Signage properly: Use in proper lighting conditions; insufficient lighting or long time

watching will impair your eyesight.

⚫When the plug or coupler is used as disconnection device, it should be easy to operate the device.

⚫Insert the plug into the outlet properly, or else it may cause sparks and fire.

⚫The technical specifications printed herein and on the packaging are subject to change without prior

notice. The Manual may be slightly different from actual operation, and the latter is applicable.

Assembly and Connection

Packing List

Name

1 Digital Signage

⚫

1 Power Cord

⚫

1 Remote Control

⚫

1 Cleaning Kit

⚫

1 Operation Manual

⚫

Two Keys

⚫

2 Touch Pens

⚫

Note:

Contact local dealer if you have questions about the operation, debugging and connection of the unit; if

the unit doesn’t work normally, please cut off the power immediately and consult the dealer. The unit is

class-A product, which may cause radio interference in living environment. In this case, please take feasible

measures, and use power plug as the disconnection device.

CAUTION

Displays2go Rev. 01/04/18

Interfaces

1. USB interface; 2. RJ45 interface(Ethernet); 3.HDMI input; 4.Power port; 5. On/Off button;

Note: Please pull out the power plug before installing or disassembling the unit!

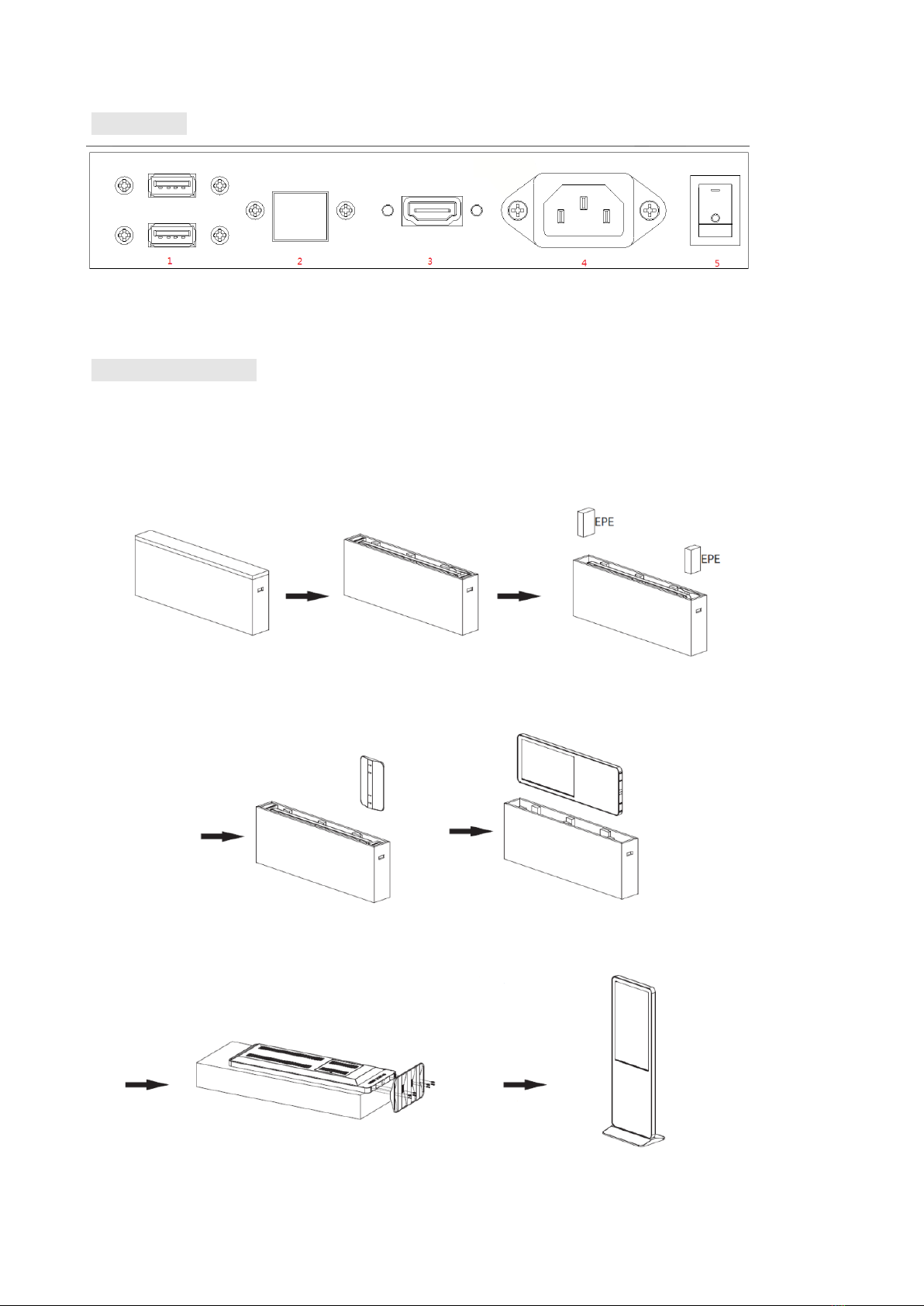

Steps for Assembly

1. Open the top cover as shown in Fig. 2;

2. Remove EPE on both sides of the box as shown in Fig. 3;

3. Take out the base from the package as shown in Fig. 4;

4. Carefully lift out the unit as shown in Fig. 5 and place it on the shipping box (avoid scratching) (Fig. 6);

5. Assemble the base and the unit with dedicated screws using hex socket wrench as shown in Fig. 6.

(Fig. 1) (Fig. 2) (Fig. 3)

(Fig. 4) (Fig. 5)

(Fig. 6) (Fig. 7)

Displays2go Rev. 01/04/18

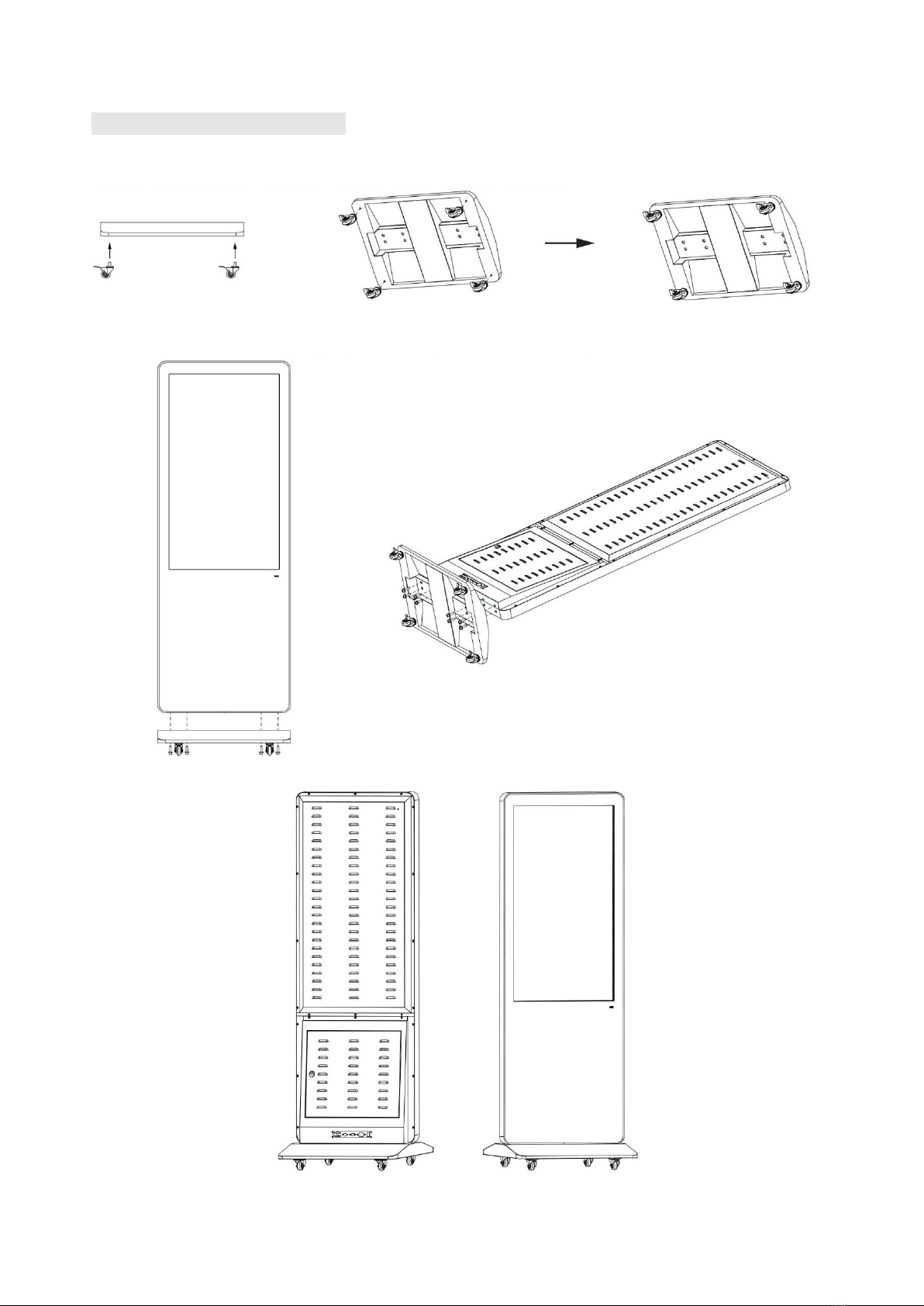

Steps for Assembly with Casters

1. To use this product as a mobile unit, install 4 casters to the metal base by threading them into the holes

on the bottom of the base. Tighten all casters with a 14mm wrench.

2. Connect the base and the digital poster with provided screws. Tighten all screws with an Allen wrench.

3. The assembly is finished:

Displays2go Rev. 01/04/18

Remote Control

Installing batteries for the remote control:

Remove the battery cover and insert two AAA batteries (1.5V). Ensure that the battery polarity matches the

“+”/“-” marks in the battery compartment of the remote control.

Precautions for using the remote control:

⚫Aim the remote control at the receiver window. Do not place any object between the remote control and the

receiver window to avoid interference with the normal operation.

⚫Keep the remote control away from violent vibration. In addition, do not set or place the remote control in

direct sunlight, or else the remote control may be deformed by heat.

⚫The remote control may be invalid when the receiver window of the unit is in direct sunlight or strong lighting;

in this case, please adjust the angle of the lighting or the unit or approach the receiver window to use it.

⚫The distance of remote control will be shortened if the battery voltage is insufficient; in this case, please

replace with new batteries; if the remote control won’t be used for a long time or the batteries are run out,

please take out the batteries to avoid corrosion due to battery leakage, which will damage the remote control.

⚫Do not use batteries of different types or mix new batteries with old ones. Always replace the batteries in

pairs.

⚫Do not put the batteries in fire, or charge or disassemble them, or charge, short circuit, disassemble, heat or

burn used batteries. Please dispose of waste batteries in accordance with local environmental regulations. Do

not expose the batteries in overheated environments such as sunlight and fire.

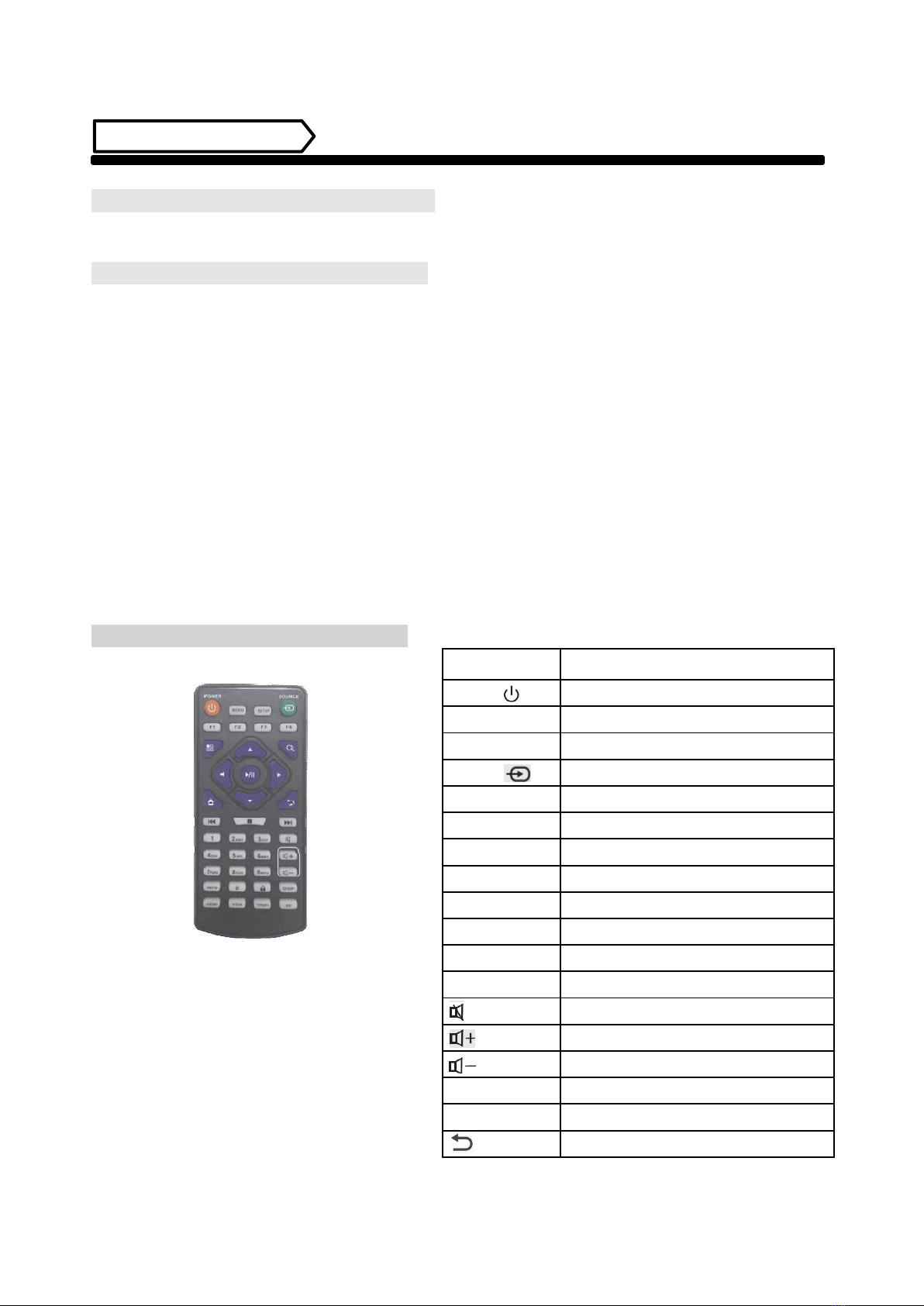

Description of remote control buttons:

Note: Press the SETUP button in the main interface to

call out the OSD menu. After exiting the playback

mode by pressing the STOP button, the playback will

start according to the schedule next time.

Remark: The real appearance of the remote

control may be different from the picture, please

refer to the actual product.

Button

Function

POWER ( )

Power switch

To show the main menu

SETUP

To set up OSD menu

SOURCE

To show the Source menu

/

Play programs; confirm selection

▲

To move the cursor up

▼

To move the cursor down

◄

To move the cursor left

►

To move the cursor right



Previous program



Next program



Stop playing and return to the main interface

Mute

Turn up the volume

Turn down the volume

HDMI

Select HDMI device as the source

VGA

Select VGA device as the source

Back

Displays2go Rev. 01/04/18

Description of Basic Operation

Power on/Standby

Insert the power plug into the outlet. If the Digital Signage has the switch button “I”, turn it on; if you press the

switch button “O”, the Digital Signage enters standby state.

In power on state, enter “System Assistant” and press the “ ” button on the remote control, and the Digital

Signage enters standby state.

About Launch Desktop

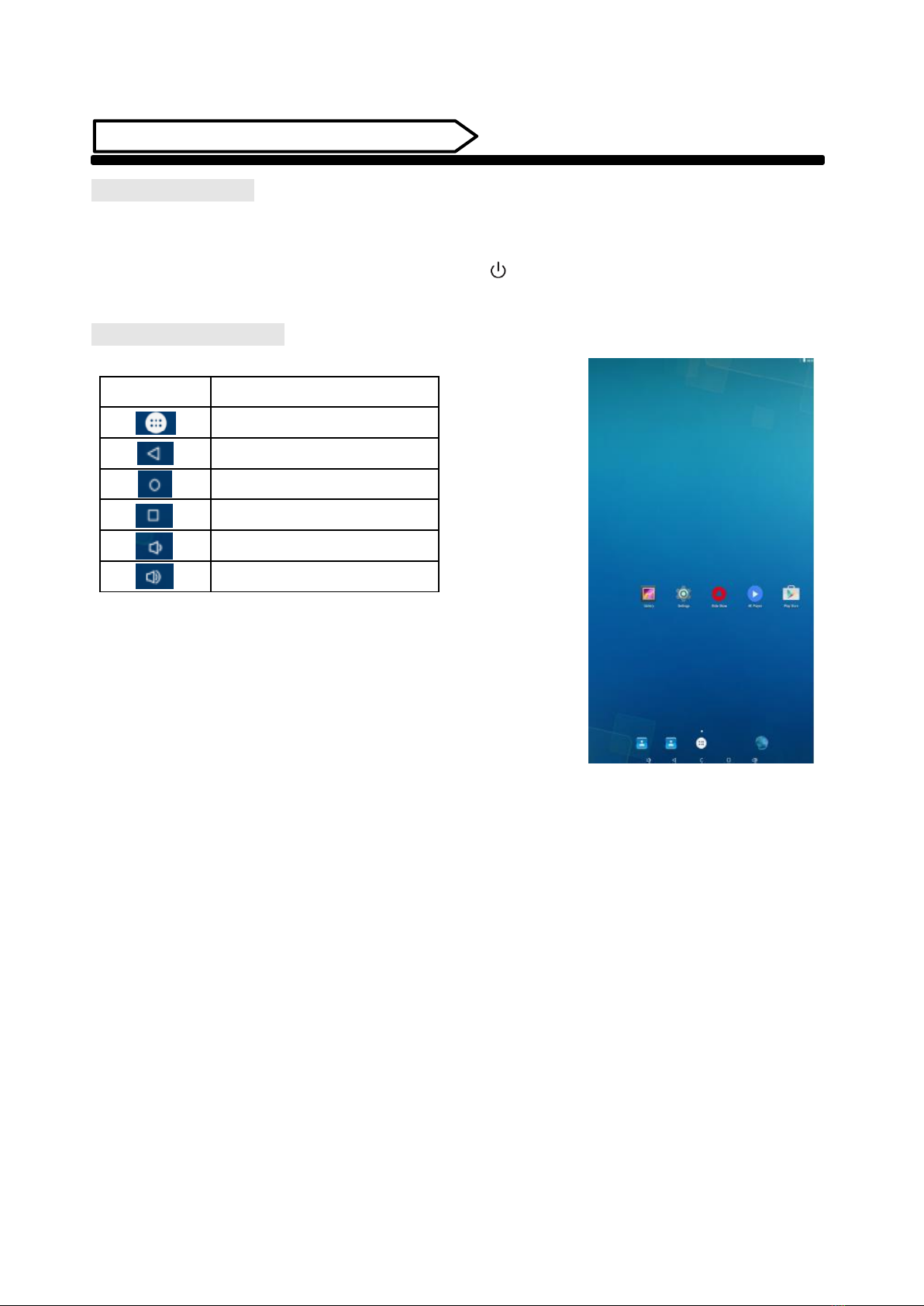

Description of Desktop Icons

Icon

Function

Main applications

Back

Home page

Background applications

Sound -

Sound +

Displays2go Rev. 01/04/18

Description of Wallpaper Switch

File Manager

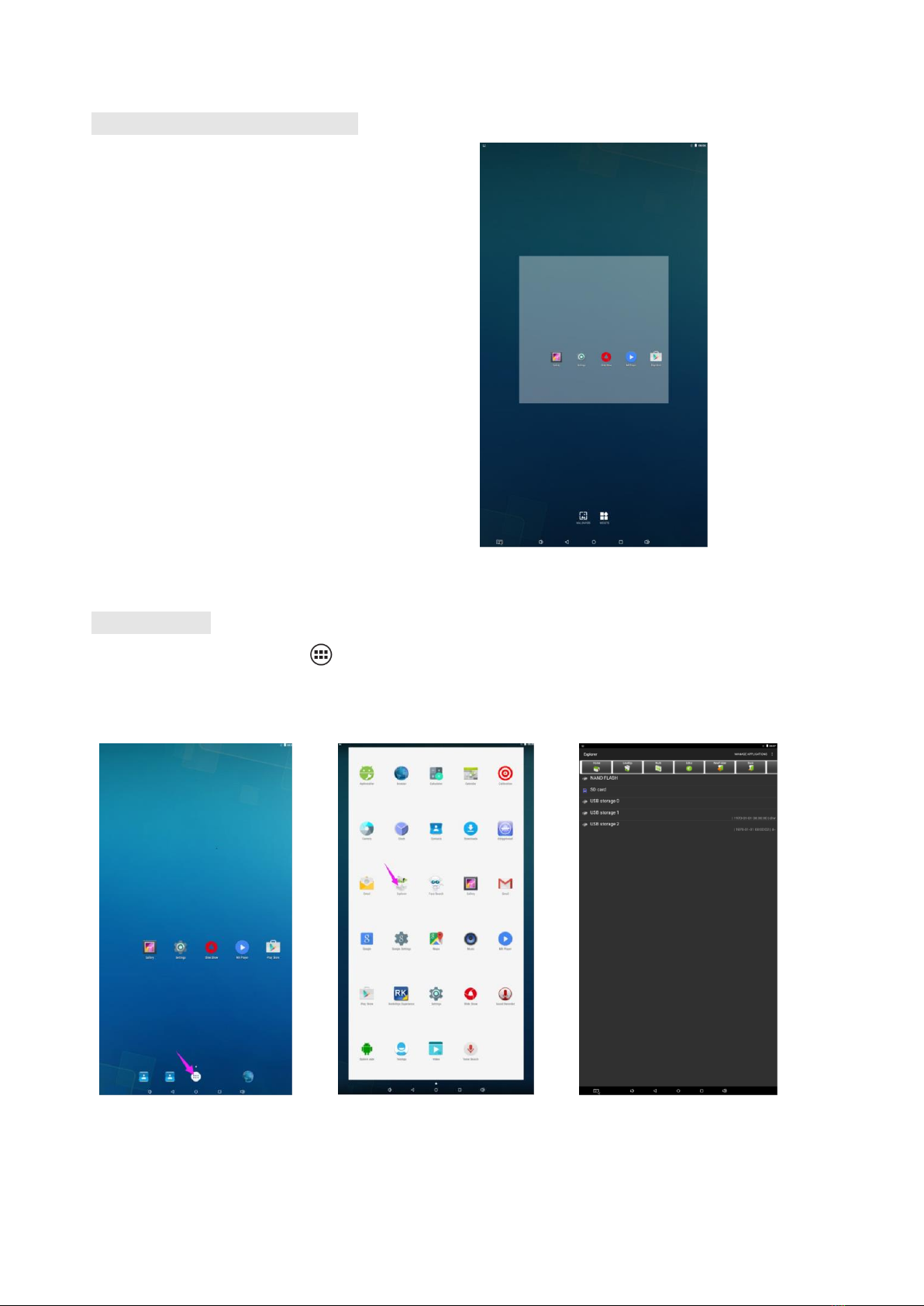

1. Click the Main Apps button “ ” in the Home page to enter the “APPS” menu interface (Fig. 2);

2. Click the “Explorer” icon in the “APPS” menu interface (Fig. 2) and enter “Explorer” menu (Fig. 3);

3. Click options in the “Explorer” menu to read the files from different devices.

Fig. 1 Fig. 2 Fig. 3

As shown on the right, tap and hold in the

blank space to enter wallpaper switch interface,

and select the wallpaper from different sources.

Inhaltsverzeichnis

Andere Displays2go Digitale Beschilderung Handbücher

Displays2go

Displays2go DF043TLBD Bedienungsanleitung

Displays2go

Displays2go CHRFLMAXCP Bedienungsanleitung

Displays2go

Displays2go SBXSTCH43 Bedienungsanleitung

Displays2go

Displays2go DW032TLB Bedienungsanleitung

Displays2go

Displays2go IPMEDWH129 Bedienungsanleitung

Displays2go

Displays2go DGODPSGN43 Bedienungsanleitung

Displays2go

Displays2go DGSNFSTCH55WH Bedienungsanleitung

Displays2go

Displays2go DG21FLR7 Bedienungsanleitung

Displays2go

Displays2go DGODWMNT55 Bedienungsanleitung

Displays2go

Displays2go DH32NLB Bedienungsanleitung

Displays2go

Displays2go DF065NLB Bedienungsanleitung

Displays2go

Displays2go DP021NLB Bedienungsanleitung

Displays2go

Displays2go DG21FLR5P Bedienungsanleitung

Displays2go

Displays2go DW055TLB2 Bedienungsanleitung

Displays2go

Displays2go DGSNFSTCH43 Bedienungsanleitung

Displays2go

Displays2go DGSNFSNT43 Bedienungsanleitung

Displays2go

Displays2go DGHBDWS55 Bedienungsanleitung

Displays2go

Displays2go DGFSKATCH32WH Bedienungsanleitung

Displays2go

Displays2go DGLCDPEDOK Bedienungsanleitung

Displays2go

Displays2go DGKTCH49BK Bedienungsanleitung

Displays2go

Displays2go DGODSSNT55 Bedienungsanleitung

Displays2go

Displays2go DGNTFSPS65 Bedienungsanleitung

Displays2go

Displays2go DGAFNT32S Bedienungsanleitung

Displays2go

Displays2go DGNTFSPS65S Bedienungsanleitung

Beliebte Digitale Beschilderung Handbücher anderer Marken

LG 72WS70MS-B Bedienungsanleitung

SMART-AVI

SMART-AVI SIGNAGEPRO Bedienungsanleitung

LG 65SM5D Bedienungsanleitung

LG 55EW5TK-A.AUS Bedienungsanleitung

KeyWest Technology

KeyWest Technology BREEZE Bedienungsanleitung

XtendLan

XtendLan XL-DSP-183C Bedienungsanleitung

LG 47VL10 Bedienungsanleitung

LG WP400 Kurzanleitung

Dynascan

Dynascan DS861LR4 Bedienungsanleitung

Classic Exhibits

Classic Exhibits SEGUE DESIGNS MOD-1363 Bedienungsanleitung

LG 22XE1J Bedienungsanleitung

protech

protech KT-7290 Bedienungsanleitung

WebDT

WebDT 515A Montageanleitung

Samsung

Samsung IWJ Series Bedienungsanleitung

LG 84TR3B Bedienungsanleitung

LG 55EJ5D Kurzanleitung

EVERI

EVERI Enrollment Kiosk Bedienungsanleitung

LG 75XS4G Bedienungsanleitung
