Displays2go MNTW803S Bedienungsanleitung

Item No.:MNTW803SItem No.:MNTW803S

TV Size Range: 14 24

Maximum Weight Capacity: 15kg/33lbs

Adjustable angle: 5 15

Integrated Cable management

"～ "

-～°°

This product was designed to be installed on wood stud walls and solid concrete walls.

Before installing make sure the supporting surface will support the combined load of the

equipment and hardware. Never exceed the Maximum Load Capacity. This product is

intended for indoor use only. Use of this product outdoors could lead to product failure or

personal injury.

CAUTION

INSTALLATION GUIDE

-8-

This product contains small items that could be a choking hazard if swallowed. Keep

these items away from young children

1.Make sure these instructions are read and completely understood before attempting

installation. If you are unsure of any part of this installation, contact a professional

installer for assistance.

2.The wall or mounting surface must be capable of supporting the combined weight of

the mount and the display; otherwise the structure must be reinforced

3.Safety gear and proper tools must be used. A minimum of two people are required

for this installation. Failure to use safety gear can result in property damage, serious

injury or death.

Warning

Thank you for choosing our productThank you for choosing our product

-7-

-2-

Wall Plate

TV Plate

Qty Description

M4x12mm bolt

M5x12mm bolt

M5 Washer

Long bolt

Concrete anchor

Hardware Kit:Hardware Kit:

A-B DE

F1Allen wrench

180°

-5 ~15°°

Cable management clip

Cable routing access points

Tension screw

Part 3-Adjusting display and using cord management

Route cords along articulating arms using cord management .

Articulating arms can be adjusted to position display into desired location.

Use allen wrench (F) to tighten and loosen the tension screw. Do not

overtighten and do not loosen to the point the screws come out.

clip

Part 3-Adjusting display and using cord management

Wrench(F)

Plastic cover

-6- -3-

A-B

Washer(C)

For M4 screwsand M5

Part 3-Attaching plastic covers to wall plate

Secure plastic covers over wall plate by pushing them toward each other

until they lock in place.

Part 3-Attaching plastic covers to wall plate

Part 1-Attaching TV Plate To Screen

Center TV plate vertically on back of screen. Select the small(A), medium

(B ) screws. Attach TV plate to screen using four selected screws and four

washers(C). Tighten screws firmly. Do not overtighten

Part 1-Attaching TV Plate To Screen

Stud finder

2 (50mm)”

3/16 (4.5mm)”

Wood stud

-4-

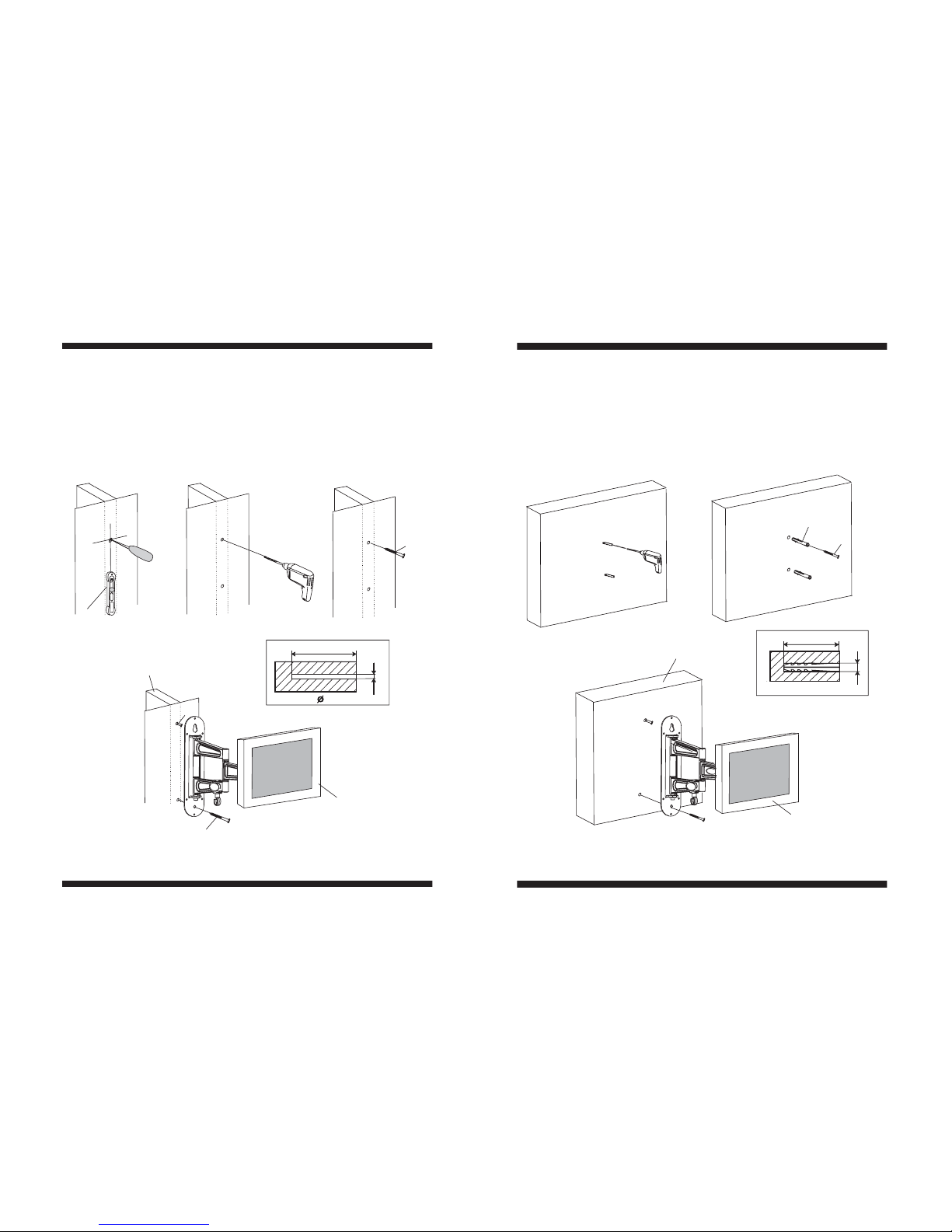

Part 2a-Wood Stud Mounting

Use wall plate as a template, make sure it is level, and mark mounting

holes along the center line of the wood stud. Drill two

two

3/16 (4.5mm) dia.

Holes 2 (50mm) deep. Put one screw (D) into the upper hole without

tightening, hang the TV bracket onto the screw, and then put the other

screw (D) into the lower hole. Tighten the screw firmly.Do not overtighten

”

Part 2a-Wood Stud Mounting

-5-

Part 2b-Concrete Wall Mounting

Level wall plate and use wall as a template to mark two holes. Drill two

3/8 (10mm) dia. holes 2 (50mm) deep. Insert two anchors(E) into holes and

put one screw (D) into the upper hole without tightening, hang the TV

bracketontothescrew,andthenputtheotherscrew(D)intothelowerhole.

Tighten the screw firmly.Do not overtighten.

””

Part 2b-Concrete Wall Mounting

Concrete Wall

2”(50mm)

Φ3/8”(10mm)
