Dive Rite Hurricane Bedienungsanleitung

1

Copyright 2009 Lamartek Inc. D/B/A Dive Rite

Dive Rite Hurricane Regulator

Service Manual

All manuals and user guides at all-guides.com

2

•This manual is only to be used as a guide for a trained/ certified

Dive Rite Regulator technician.

•Possession of this guide does not qualify any individual in the service of

Dive Rite Breathing Systems.

•Only qualified Dive Rite Dealers can Service Dive Rite Products.

•Improper servicing can lead to serious injury or death.

Warning

All manuals and user guides at all-guides.com

3

Table of contents

• Pages 4-17 Disassembling the Second stage

• Pages 18-29 Assembling the Second Stage

• Pages 33-46 Disassembling the First Stage

• Pages 48- 57 Assembling the First Stage

All manuals and user guides at all-guides.com

4

Note the location of plugs and

hoses.

Remove all low pressure hoses.

Remove high pressure hoses and

remaining port plugs.

All manuals and user guides at all-guides.com

5

1) Remove the LP hose using

17 mm and 14 mm wrenches

2) Remove the mouthpiece

All manuals and user guides at all-guides.com

6

3) Remove the locking ring, Washer, Cover and Diaphragm

All manuals and user guides at all-guides.com

7

4) Using a 17mm wrench loosen the

Locking Nut

5) Remove the Locking Nut, Spacing

Collar and “O” ring

All manuals and user guides at all-guides.com

8

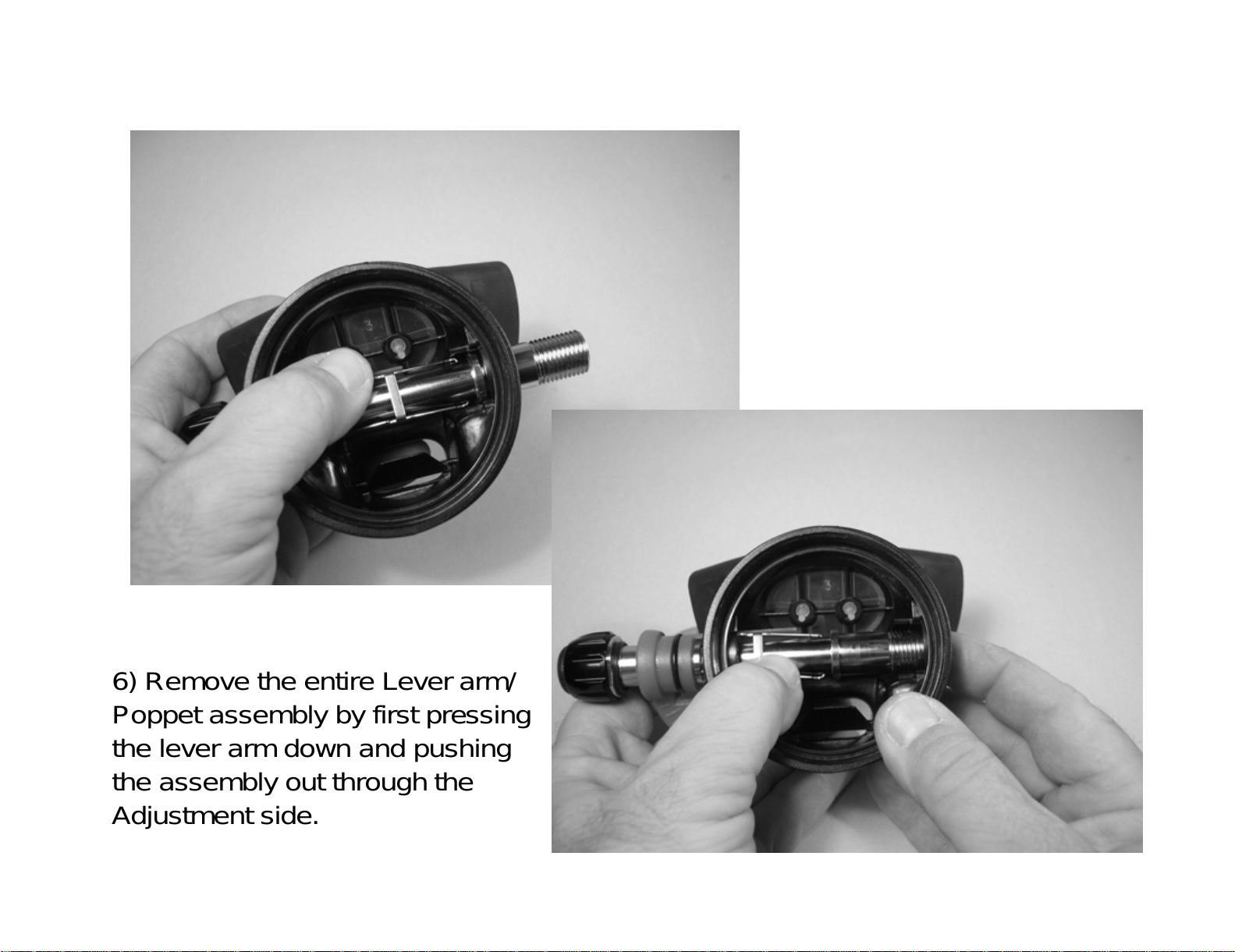

6) Remove the entire Lever arm/

Poppet assembly by first pressing

the lever arm down and pushing

the assembly out through the

Adjustment side.

All manuals and user guides at all-guides.com

9

Take note of the opening on the assembly in relation to the lever arm

All manuals and user guides at all-guides.com

10

8) Remove the end cap from the adjustment knob with a small screwdriver

9) Using a Phillips head screwdriver remove the locking screw

All manuals and user guides at all-guides.com
