DIVIN DV5 Series Bedienungsanleitung
User Manual
Dual-Zone Wine Fridge
DV-568DSD
www.divinwinefridges.com.au
Thank you very much for choosing DIVIN wine fridge
to store your precious collections! We hope you may enjoy using it.
Purchase Date:
Serial Number:
*The serial number is located on the data plate, which can be
found on the inner wall of the wine fridge. Please write down your
serial number in the blank.
*The purchase date is the date when the warranty begins.
General Instructions Before Usage
● This appliance is not intended for children, please pay attention to their safety.
● ● Check the conditions of the product and take photos as you are receiving it from the
delivery company. Inform them immediately when noticing any damages caused
during transportation.
● Install the appliance only on a sturdy, flat, and level surface and be cautious during the
installation at all times.
● Keep any packaging materials if needed for the future and keep them away from
children.
● Make sure your power supply sources have met all the electrical standards required by
laws. DO NOT use extension cords; use an exclusive and properly installed outlet
instead.
For safety and a better user experience, please read all instructions before using this product
and retain the user manual for future reference.
Further assistance from DIVIN
Website-Support: https://divinwinefridges.com.au/support/
E-mail: [email protected]
Tel: 0484 308 208
Business Hours: 7:30-16:00 (Mon.-Thu.) | 7:30-14:00 (Fri.)
To ensure the cooling system may function properly, after this wine fridge has been
laid down during transportation and delivered, allow it to rest unplugged in a standing
position (with the base situated on the floor) for at least 24 hours before turning on
for use.
1
2
2
3
5
6
7
8
12
13
15
16
Table of Contents
General Instructions Before Usage..........................................
Installation................................................................................
Important Safeguards & Warnings...........................................
DV-568DSD Smart control panel.............................................
Wine Shelves & Bottle Configurations.....................................
Temperature Adjustment..........................................................
Bottle Capacity.........................................................................
Troubleshooting Guide.............................................................
Cleaning and Maintenance......................................................
Warranty and Terms.................................................................
Important Safeguards & Warnings
3
● Read all of the instructions before using this appliance.
● Please make sure the environment is well-ventilated.
● This product is designed for commercial or general home use (indoor only) to store
a wide variety of wines. If the wine fridge is used for purposes other than wine
storage, we cannot provide any warranty.
● To avoid electric shock, please do not use the wine fridge or wire plug near water
puddle. Please use it in a dry and flat indoor environment (not including the
garage). Do not operate the product with wet hands.
● Your wine fridge was designed to operate in room temperature settings between
5°C-35°C). If the temperature is higher or lower than this range, the function of the
wine fridge will be affected and the temperature of the wine fridge may be unstable
or may not reach the desired temperature.
● Do not place the wine fridge or its components near any heated electrical
appliances (such as gas stoves, heaters, etc.), sources of ignition, and expose to
direct sunlight.
● We recommend cleaning the wine fridge before using it for better maintenance.
Please do not use flammable liquids to clean the wine fridge to avoid fire or
explosion caused by vapors.
● Extension cords are not recommended. Please use a separate outlet that complies
with safety regulations. Never unplug your wine fridge by pulling on the power cord.
Always grasp the plug firmly and pull straight out from the outlet.
● This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
●Please keep the interior and exterior of your wine fridge clean and tidy to avoid any
spillage of wine in the fridge.
● If you need to stop using this product for a long time, please open the wine fridge
door to ventilate and dry it after shutting down the machine (to avoid excessive
water vapor staying inside).
After that, you can lock the door to prevent children from being injured.
● Please ensure the front exhaust openings right under the product is well-ventilated
and no object is preventing proper air circulation.
4
● Before moving the wine fridge, please remove the wine stored in the
fridge first to reduce the weight for safety concerns during transportation.
● The warranty applies only to the wine fridge itself and does not cover the
items stored in it.
● If you wish to dispose of this product, please send it to an authorized
large electrical recycling facility.
The wine fridge is equipped with an auto defrost system. Please do not use other
methods to speed up the defrosting process.
●
5
Installation
*Reserve 3cm extra distance
only when the power outlet is
right behind the wine fridge.
*The reserved built-in space does
not include the projection of the
handles (4.7 cm).
*Power chord length:about
150 cm.
67cm
59.5cm
115°
84.5cm
71 cm
59.5 cm
172 cm
3 cm
A
B
73 cm
60.5 cm
173 cm
●Photos may appear slightly different from actual items in terms of color
due to different types of monitor display and settings.
Note:
Max.
Lower Level Temperature Zone
Temperature Adjustment - Up Arrow (5-20°C)
DV-568DSD Smart control panel
*Smart control panel is touch-sensitive, just touch the buttons to operate, no need to press hard.
Power Button
LED Side Light / °F / °C Switch
Upper-level Temperature Zone
Power ON: Press for 3 seconds and the wine fridge will start to operate
and ready for various settings.
The screen below the lower level temperature zone icon shows the current
temperature and the set temperature of the lower level of the wine fridge.
* The up arrow and down arrow keys to the right of the lower level
temperature zone image are used to set the lower level temperature.
Press once and the current setting temperature on the screen will flash,
each click can increase 1°C. Stop clicking when you reach the desired
temperature. The number will blink to indicate a successful temperature
setting, and the screen will show the current temperature of the wine fridge.
Click this button once when you want to check the set temperature again.
The number flashing on the screen indicates the set temperature.
LED side light: Touch lightly to turn light ON and OFF
The screen below the upper-level temperature zone icon shows the
current temperature and the set temperature of the upper level of the wine
fridge.
*The up arrow and down arrow keys to the left of the upper level
temperature zone icon are used to set the upper level temperature.
°F / °C switch: Press for 3 seconds to switch to °F and press for another
3 seconds to switch back to °C
Power OFF: Keep pressing for 3 seconds and the wine fridge will be
closed.
6
Temperature Adjustment - Down Arrow (5-20°C)
Temperature Alert
Temperature Adjustment
H H
L L
The wine fridge can be set to accommodate your wine collections and storage
requirements.
If your collections include age-worthy and ready-to-drink wines, we recommend the
upper zone of the fridge stores for ready-to-drink wine and the lower zone use for
wine maturation.
The temperature of ready-to-drink section can be set to one close to the ideal
temperature in that area. In general, the ideal serving temperature for red wine is
anywhere between 15-18°C, 10-12°C for pink and white wine, 6-8°C for sweet wine,
and 5-10°C for sparkling.
However, the actual optimal temperature depends on the characteristics of the wine
(body, vintage, whether it has been aged in oak barrels, etc.). Therefore, please refer
to the information and recommendations provided by wineries and wine merchants
for the ideal temperature of each wine. The best temperature for maturing wines is
around 12-14°C. Low temperatures are better for achieving ideal maturation at a
normal rate, while high temperatures will speed up the maturation process but do not
necessarily result in good maturation.
Press once and the current setting temperature on the screen will flash,
each click can reduce 1°C. Stop clicking when you reach the desired
temperature. The number will blink to indicate a successful temperature
setting, and the screen will show the current temperature of the wine fridge.
Click this button once when you want to check the set temperature again.
The number flashing on the screen indicates the set temperature.
Temperature memory function: In the event of a power outage, this
appliance can memorize your previous temperature setting and revert to it
after the power resumes. Do not need to reset it again.
“H H" will be displayed on the screen to alert users when the temperature
inside the wine fridge is over 23°C. Wwhen the temperature inside the wine
fridge is over 23°C, and will start flashing and beeping after the high
temperature lasts for an hour. When the temperature inside the fridge is
lower than 23°C, the alarm will turn off automatically, or press any button to
turn off the alarm. The compressor will stop working automatically when the
alarm goes off for over 30 minutes.
“L L"will be displayed on the screen to alert users when the temperature
inside the wine fridge is below 0°C, and will start flashing and beeping after
the low temperature lasts for 30 minutes. When the temperature inside the
fridge is greater than 1°C, the alarm will turn off automatically, or press any
button to turn off the alarm.
7

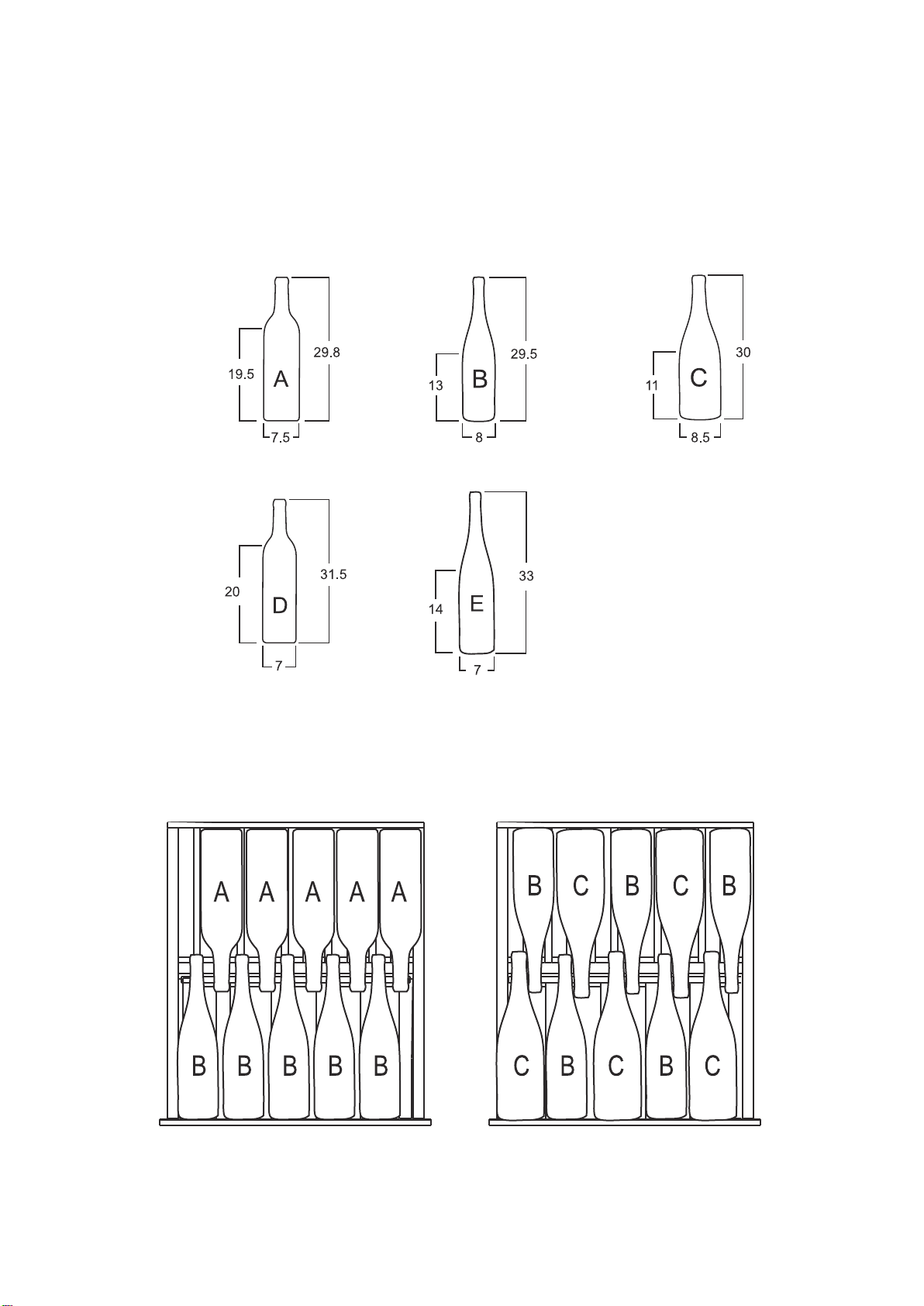

The following is our recommendation on proper wine storage,
which can also be used as a reference for other similar size bottles.
Wine Shelves & Bottle Configurations
Standard Bordeaux
750mL
Burgundy
750mL
Burgundy
750mL
Barolo, Brunello di Montalcino
750mL
Riesling
750mL Unit: cm
Detachable Beechwood Shelves
8
