WP-4 BUBBLE FOG MACHINE

Product Code: 120590

- 1 -

11BBEEFFOORREE YYOOUU BBEEGGIINN

11..11WWhhaatt IIss IInncclluuddeedd

•WP-4 Super Bubble Fogger × 1

• Power cord × 1

• Warranty card× 1

Optional accessory: Flightcase (Extra charge)

Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in

good condition.

If the box or the contents (the product and included accessories) appear damaged from shipping, or show signs of

mishandling, notify the carrier or dealer/seller immediately. In addition, keep the box and contents for inspection.

Critical installation, configuration, or operation information. Not following these instructions may

make the product not work, cause damage to the product, or cause harm to the operator.

Important installation or configuration information. Failure to comply with this information may

keep the product from working correctly.

Useful information.

The information and specifications contained in this User Manual are subject to change without notice. DJPOWER assumes

no responsibility or liability for any errors or omissions and reserves the right to revise or to create this manual at any time.

Please read the following Safety Notes carefully before working with the product. The notes include important safety

information about installation, usage, and maintenance.

- 2 -

11..55..11PPeerrssoonnaallSSaaffeettyy

•

Always connect the product to a grounded circuit to avoid the risk of electrocution.

•Make sure that children, unauthorized people and animals do not obtain access to the machine.

•The product is for indoor use! To prevent risk of fire or shock, do not expose the product to rain or moisture.

•CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid ballroom)

condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully

acclimate to the surrounding environment before connecting it to power.

•Do not mount the product on a flammable surface (linoleum, carpet, wood, paper, carton, plastic, etc.).

•Do not use in a confined space. Always install the product in a location with adequate ventilation, at least 20 in (50 cm)

from adjacent surfaces.

•Be sure that no ventilation slots on the product’s housing are blocked.

•when hanging, please use the safety cables to fix four safety loop on the top cover and two handles on side cover.

•Always make sure that the voltage of the outlet to which you are connecting the product is within the range stated on the

decal or rear panel of the product.。

• Make sure the power cord is not crimped or damaged.

• Do not connect the machine to the dimming controller or rheostat.

• Never disconnect the product from power cord by pulling or tugging on the cord.

• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product

from power via breaker or by unplugging it.

•Do not operate this product if you see damage to the housing or cables. Have the damaged parts replaced by an

authorized technician at once.

•Make sure there are no flammable materials close to this product while it is operating.

•Do not cover or plug the output nozzle during operation.

•Do not cover the ventilation slots when operating to avoid internal overheating.

•Wipe up spitted fluid immediately. Moisture – also fluid – can destroy the electric.

•Never carry the product by the power cord or any moving part. Always use the handles.

•Empty the storage bin before transporting the product.

- 3 -

• The maximum ambient temperature (Ta) is 104 °F (40 °C). Do not operate the product at higher temperatures.

•Drain the tank before transporting the product. Bubble fluid or the fog fluid tanks shall be used for the relevant fluid only.

• Always disconnect the product from the power source before cleaning.

•This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly

trained, certified technicians. Do not open the housing or attempt any repairs which can lead to damage or malfunction.

•In the event of a serious operating problem, stop using the product immediately.

• Use only DJPOWER Consumable. Bubble fluid PRO-PW and fog fluid PRO-C are recommended.

TOPCAT WP-4 is a newly launched professional bubble fog machine for big stages and event halls. The 4-nozzle design can

help produce huge amount of bubbles with fog filled inside. Innovative patented Jet-design ensures fog being trapped inside

bubbles, avoids too much fog dispersing in the air. The height and distance of the bubble fog can be adjusted through

changing the air outlet angle. Bubble fluid is well stored and sealed in the tank without going bad even after long time to

ensure high quality show.

• Innovative Jet design, create massive amount of fog filled bubbles;

•Well-designed heating system releases the fog evenly and purely, no fluid dropping off;

•Innovative Jet design, create massive amount of fog filled bubbles;

•Three fans with adjustable angles make the fog bubble fly higher, further;

• Built-in LCD control, 3-pin and 5-pin DMX control, easy to use;

• Big size fluid tanks, long running time on full output;

•Please use DJPOWER special bubble fluid PRO-PW and fog fluid PRO-C.

Note: The actual effect may be affected by the using environment.

Product Overview

rvr

- 4 -

- 5 -

33TTEECCHHNNIICCAALLSSPPEECCIIFFIICCAATTIIOONN

；

Current Limiter Type Breaker

Current Limiter Specifications 8 A, 250 V

Total Power Consumption 1,600 W

Heat Up Time Appr. 3.5 min

Bubble Fluid Tank Capacity 9 L

Fog Fluid Tank Capacity 5 L

Adjustable Output √

Max Fog Output Volume Appr. 6,000 cuft/min

Max Output Height Appr. 10 m

Max Output Distance Appr. 10 m

Fog Fluid Consumption (100% Output）Appr. 90.9 min/L

Bubble Fluid consumption (100% Output) Appr. 12.5 min/L

Consumable Type for Standard Output Test PRO-PW and PRO-C and PRO-J

Horizontal √

Inclined ×

Sidelong ×

Hang Upside Down ×

Rigging & Trussing √

On-device Manual Control LCD control board

Wireless Control ×

Wired Control ×

Control Protocol DMX512

DMX Channel Range 4

Consumable PRO-PW & PRO-C & PRO-J

Net Weight 40 kg

Gross Weight 45.5 kg

Machine Dimensions 532 × 470 × 557 mm

Packing Dimensions 730 × 590 × 640 mm

- 6 -

44SSEETTUUPP

The machine has two kinds of voltage power supply, it can work with an input voltage of AC 110 V-120 V, 50/60 Hz or AC 220

V-240 V, 50/60 Hz, depending on the specific model.

To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the

label affixed to the product’s back panel, or refer to the product’s specifications chart. The listed current rating indicates the

product’s average current draw under normal conditions.

(

)

(

)

The WP-4 Supper Bubble Fogger comes with a power input cord terminated with a Lockable power connector on one end.

The other end is

• CN plug (CN market, etc.)

• EU plug (EU market, etc.)

• US plug (US market, etc.)

If the power input cord that came with your product has no plug, or if you need the change the plug, use the table below to

wire the new plug:

• The unit is equipped with a resettable breaker. If the breaker trips, the unit will be disconnected from the power.

•Disconnect the machine from the power.

• Wait for about 15 minutes till the unit cools down.

(

)

(

)

Black Brown

White Blue

Green/Yellow Green/Yellow

- 7 -

• After that, manually press the button of the breaker to reset it.

•Reconnect the machine to the power outlet and continue to use it as recommended.

You can link the X-7M to a DMX controller using a 3-or 5-pin DMX connection. If using other DMX-compatible products with

this product, you can control each individually with a single DMX controller. Instructions for connecting and configuring this

product for DMX operation are in the User Manual.

Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes.

For safety reasons, make sure the unit is well mounted through bracket and with safety cable. Also make sure there is

adequate room for ventilation, configuration, and maintenance.

Do not mix bubble fluid and fog fluid.

Using the following general guidelines when mounting this product:

•Before deciding on a location for the product, make sure there is easy access to the product for maintenance and

programming purposes.

•Make sure that the structure or surface onto which you are mounting the product can support the product’s weight (see

the Technical Specifications).

•When mounting the product on the floor, make sure that the product and cables are away from people and vehicles.

- 8 -

55OOPPEERRAATTIIOONN

• After checking that all the parts are intact and complete, position the machine on flat.

• Withdraw the fluid tank from its compartment and remove its cap. Add bubble fluid and fog fluid to the specified tank.

•Verify that the plastic hoses attached to the cap are in place and in good condition without bending or warp.

•Always connect the product to a grounded circuit. Before power on, make sure it is connected with the rated voltage.

•Turn on the machine, and “ Warming up”shows on the display during the heating-up process. After approx. 3 minutes,

the display changes to “Ready to work” when the machine finishes heating.

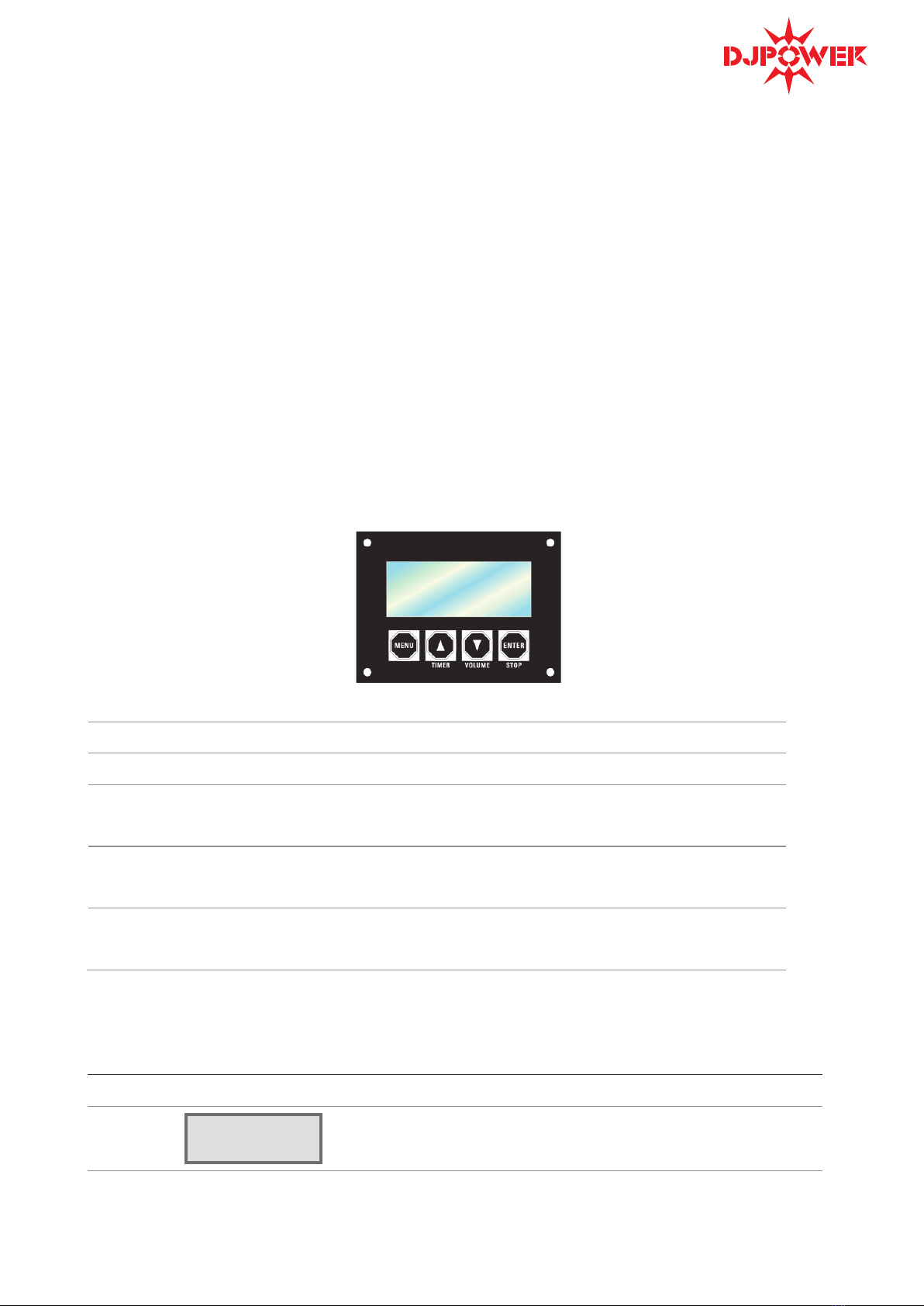

To access the control panel functions, use the four buttons located underneath the LCD display.

Switch menu pages to select a function

▲<TIMER> Increases the numeric value of current function

Trigger TMER output mode

▼

<VOLUME> Decreases the numeric value of current function

Trigger Manual output mode

<STOP> Save settings

STOP turns the fog output off

Warming Up

>>>>>>>>>>>

The unit is heating.

- 9 -

WP-4 Super Bubble Fogger works with a DMX controller.

• Connect the product to a suitable power outlet.

• Turn the product on.

• Connect a DMX cable from the DMX output of the DMX controller to the DMX input socket on the product.

Ready To Work

TOPCAT WP-4

After about 3 minutes heating, it will show this page.That

means the fog system finishes heating, and the unit is

ready to emit haze.

Setting

Pages

Interval Set

10S

Press ▲and ▼button to set interval under TIMER mode. 5-200s

Duration Set

10S

Press ▲and ▼button to set duration under TIMER mode. 5-200s

Bubble Output

Press ▲and ▼button to set bubble output. ON/OFF

Haze Output

100%

Press ▲and ▼button to set haze output. 1%-100%/OFF

Fan Speed

100%

Press ▲and ▼button to set fan speed. 1%-100%/OFF

DMX512 Address

Press ▲and ▼button to set DMX starting address. 1 - 512

Clean Mode

OFF

Press U

or D

to set cleaning mode

ON/OFF.

(When cleaning mode is ON, it will override all the other

functions. Default cleaning time is 1 minute without

turning of the mode manually.)

ON/OFF

Working

TOPCAT WP-4

This is the page shows when the unit is working.
