DLS PA6.20 Bedienungsanleitung

User manual

Content

Welcome

Warranty

General

Declaration of conformity

Included parts

Pre installation

Installation

Running-in time

DLS support

Wiring diagram

Specifications

Product markings

DECLARATION OF CONFORMITY

Welcome to DLS!

Thank you for buying a DLS Performance PA6.20. For us,

it’s all about the sound experience. We care deeply about

sound and construction quality. In order for your experience

to be as optimal as possible, it is important that you read

this manual, preferably before you start your installation.

Keep the manual in a safe and accessible place for future

reference.

Your speakers must be installed correctly in order to work

as intended. Make sure you have all necessary tools nearby

before starting and that you are completely confident in how

to process. If you feel the slightest uncertainty; feel free to

take the help of an experienced installer or a car audio

dealer.

General

Some sound systems may vary in size of the door speaker.

Make sure that your vehicle has the same size as this kit,

before you start the assembly

DLS plug and play speakers for vehicles are

manufactured in accordance with the EU directive

EEC 95/54 (72/245/ EEC) and are marked with

the approval number. They are also marked in

accordance with the WEEE-directive 2012/19/EC.

The products are also produced in accordance

with the EU RoHS directive 2015/863/EU.

Warranty

This component kit is covered by warranty, depending on

the conditions in the country where it is sold. If the speaker

is returned for service, please include the original dated

receipt with the product.

Winn Scandinavia AB

Elementvägen 15 - SE-702 27 Örebro - Sweden

Tel: +46 19 20 67 65 - E-mail: [email protected]

www.dls.se

DLS speakers are engineered by DLS Sweden,

a part of:

Designed & Sound tuned in Sweden.

PA2.60

DLS PERFORMANCE

Included products:

2pcs Woofer

2pcs Tweeter

2pcs Crossover (including 2 x 50cm cable)

Included in box:

2pcs Tweeter bottom adapters

2pcs Tweeter cable 100cm (for loose ends)

2pcs Adhesive foam

8pcs V-type clips

8pcs Screws

2pcs Grills

1pcs Manual

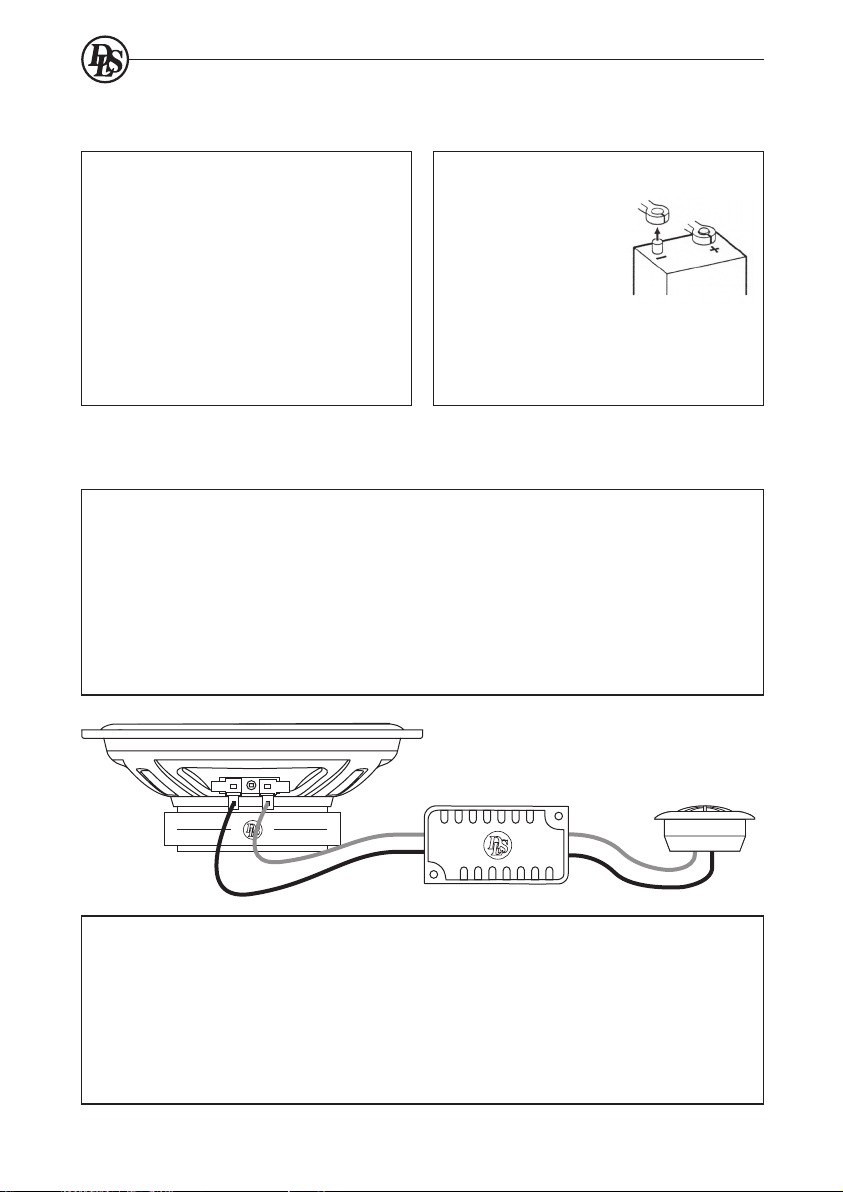

Mount the speakers in the door or in the dashboard of your car. They may fit in the factory pre-made

mounting holes, if not you might have to modify the fitting. If you want to improve the sound reinforcement

you can use a baffle of MDF-board or similar. An installation high up on the door side is to be prefered. For

door placements, there are normally speaker rings that have to be used to make the speaker fit to the door

panel.

In many vehicles there are factory made places for tweeters that you can use for installation. If this is not

possible, try to install the tweeter close to the bass/midrange driver. The tweeter can also be installed on the

dash-board, or recessed in the door with the accessories included with the tweeters. NOTE! It is important

to fasten the speakers properly in order to avoid bad sound or rattling. Connect the speakers and crossovers

as in the drawing below.

Installation

Pre installation

Disconnect Battery

Before you start the process

of replacing speakers,

disconnect and secure the

negative terminal from your

battery/power source. This

will prevent the risk of

damaging yourself or the

products.

Place the disconnected terminal in a secure and

isolated location away from any possible

connection belonging to the battery/power source

system.

Included parts

- +

Installation of tweeter

The tweeter can be mounted on the dashboard with the included angled housing, or recessed in a door side.

Surface mounting

Put the cable through the hole in the rear end of the angled housing. The tweeter is attached to it by putting

them together and turn clockwise.Attach the housing to the surface with the included double adhesive tape.

Recessed mounting

You need a hole with a diameter of 43 mm/1.7”. Use glue to attach the recessed housing to the A-pillar, or door

panel. The tweeter is attached to the housing by putting the tweeter into it and turning clockwise.

Door insulation

DLS recommends using insulation/sound deadening

in the car doors.It lowers the noise from the road/tires

and prevent rattles and other noises from plastic

details in the doors.

If you need help deciding what type of door insulation

you should use, ask your DLS distributor for info and

guidance.

Allow the component kit to play for at least 15-20 hours in order to perform at its

possibly best. This run-in can be made with tone sweep or with just music.

Start at a moderate volume and increase the volume step by step during the

running in period. After the 15-20 hour run in session the performance and

characteristics will be in the correct condition.

Running-in time

For technical assistance, ask your car audio dealer where the product was sold or the distributor in your

country.You can always contact the DLS Helpdesk in Sweden at e-mail: info@dls.se Information can also

be found on our WEB-site www.dls.se We follow a policy of continuous advancement in development. For

this reason, all or part of specifications & designs may be changed without prior notice.

DLS support

Wiring diagram

Woofer 6.5” /165 mm with polypropylene cone

Tweeter 0,8” / 20 mm silk dome tweeter

RMS Power 60W

MAX Power 120W

PEAK Power 180W

Impedance 4 Ohm

Sensitivity 89dB 1W/1M

Freq. range 65Hz-20kHz

Crossover 5kHz 12dB/Oct

DLS PA6.20 Tweeter

Technical Specifiaction

Size 0,8” /20 mm

RMS Power 40W

MAX Power 80W

PEAK Power 120W

Frame Reinforced ABS

Magnet Neodymium

Cone Natural silk dome

Impedance 4 ohm

Freq. range 3000Hz-20kHz

DLS PA6.20 Woofer

Technical Specifiaction

Size 6,5” /165 mm

RMS Power 60W

MAX Power 120W

PEAK Power 180W

Basket Steel

Magnet Ferrite

Cone Polypropylene

Impedance 4 ohm

Freq. range 65Hz-5kHz

Specifications

Art. no PA6.20

17mm

Ø43mm

Ø53mm

Ø80mm

Ø166mm

58mm

The crossed-out wheelie bin symbol means that the product, literature and pac-

kaging included must be taken to separate collection at the end of their working

life. Do not dispose of these products as unsorted municipal waste: take them

for recycling. For info on your nearest recycling point, check with your local

waste authority.

This product has been granted with the CE certification mark to show that the

product follows the health, safety, and environmental protection standards for

products sold within the European Economic Area (EEA).

DLS products complies with the relevant provisions of the RoHS

Directive for the European Union. In common with all Electrical

and Electronic Equipment (EEE) the product should not be

disposed of as household waste. Alternative arrangements may

apply in other jurisdictions.

aideMeliboMnaeporuEehtforentraplabolgasiSLD

Association, an organisation that focus on promoting the

custom made mobile media installations to consumers.

Product markings

We follow a policy of continuous advancement in development. For this reason all or part of

specifications & designs may be changed without prior notice. We reserve for possible typos,

factual or numeric errors that may have been printed on any products, package designs,

user manuals and/or other included accessories.
