DMX4ALL DMX-Relais 2 INRUSH Bedienungsanleitung
DMX-RELAIS 2 INRUSH
User manual
DMX-RELAIS 2 INRUSH 2
For your own safety, please read this user manual and warnings carefully
before installation.
Contents
Description.................................................................................................................. 3
Data sheet .................................................................................................................. 4
Max. DC load.............................................................................................................. 4
Connection ................................................................................................................. 5
LED-Display-Codes .................................................................................................... 5
DMX-FAIL Function .................................................................................................... 7
Select operating mode................................................................................................ 8
RDM ......................................................................................................................... 11
Factory Reset ........................................................................................................... 13
Dimensions............................................................................................................... 14
CE-Conformity .......................................................................................................... 16
Disposal.................................................................................................................... 16
Risk-Notes ................................................................................................................ 17
DMX-RELAIS 2 INRUSH 3
Description
The DMX-RELAIS 2 INRUSH is designed for several control tasks.
Two potential free switching outputs
2 potential free switching outputs (closer / NO) up to 8A switching capacity are
available.
Switching contact for direct and alternating voltage
The INRUSH version is suitable to direct voltage (DC) or alternating voltage (AC).
For voltages from 12V up to 24V
The DMX-Relais 2 INRUSH works with supply voltages from 12V up to 24V DC.
DMX FAIL-Function
An adjustable DMX FAIL function offers the option to hold the current state (HOLD)
or to adopt a predefined value if the DMX signal fails.
RDM support
The DMX-Relais 2 INRUSH allows the configuration via RDM or DMX.
Several operating modes
The DMX-Relais 2 INRUSH offers several operating modes which can be set via
jumper or RDM:
- Hysteresis 127/128
- Hysteresis 0/1
- Hysteresis 100/150
- Exclusive
- Monostable 1Second
- FogControl
Top hat rail mounting available
Suitable for the DMX-Relais 2 INRUSH the DIN rail housing 700 is available as
accessory.
DMX-RELAIS 2 INRUSH 4
Data sheet
Power supply: 12-24V DC
(150mA@12V / 100mA@24V)
Protocol: DMX512
RDM
DMX-Channels: 1 or 2 channels (depend on operation mode)
DMX-FAIL: HOLD / 0-100%
Operation modes: Hysteresis 127/128
Hysteresis 0/1
Hysteresis 100/150
Exclusive
Monostable 1Second
FogControl
Output: 2 potential free switching contacts NO
165A@20ms peak switch-on current
AC: each max. 8A / 250V~
DC: According to the max. DC load graph
Connection: Screw terminals
Dimensions: 64,2mm x 82mm
Max. DC load
The maximum current the switch contacts of the DMX RELAIS 2 INRUSH can switch
is shown in the following graph depending on the switching voltage:
(Source: Data sheet RTS3T012)
DMX-RELAIS 2 INRUSH 5
Connection
Switch contact
AC: each max. 8A / 250V~
DC: According to the max. DC load graph
(165A@20ms peak switch-on current)
DMX-RELAIS 2 INRUSH 6
LED-Display-Codes
The integrated LED is a multi-functional display.
During the normal operation the LED lights continuously. In this case the device is
working.
Furthermore, the LED shows the current status. In this case the LED lights up in
short pitches and then is missing for longer time.
The number of the flashing lights is equal to the status number:
Event-
number Error Description
1 No DMX There is no DMX-input signal
2 Addressingerror Please check the adjusted DMX-Address
3 DMX-Signal error An invalid DMX-input-signal is detected
Addressing
The starting address is adjustable via the DIP switches.
Thereby switch 1 has the valency 2
0
(=1), switch 2 valency 2
1
(=2) and so on, until
switch 9 has the valency 2
8
(=256).
The sum of the values of the switches set to ON corresponds to the start address.
Adresse
Schalter Adresse
Schalter
1
... ...
2
508
3
509
4
510
5
511
DMX-RELAIS 2 INRUSH 7
DMX-FAIL Function
The DMX-RELAIS 2 INRUSH has a DMX-FAIL Function which stores the last value
in the case of a DMX signal loss (HOLD) or left the relays unchanged with a
predefined value in its conditions.
The DMX-HOLD function can be activated via RDM or by switch 10.
Switch 10 ON DMX-HOLD active
Switch10 OFF DMX-HOLD not active
If HOLD is switched on (switch 10 = ON), the last received DMX values are remained
in case of a DMX signal failure.
If HOLD is switched off (switch 10 = OFF), the DMX values are replaced with a value
set by RDM in case of a DMX signal failure. In the delivery state this value is 0, so
that the relays switch off.
In case of a power failure the DMX values held with HOLD are discarded!
A value set by RDM is deleted when HOLD is selected. After switching off the
HOLD function, the default value 0 is used.
DMX-RELAIS 2 INRUSH 8
Select operating mode
Hysteresis 127/128
In this operating mode, both relays switch independently of each other each via one
DMX channel. The switching threshold (Hysteresis) is 127/128 which means that the
relay is switched off when the DMX value is 127 or less and that the relay is switched
on when the DMX value is 128 or greater.
DMX
Channel
DMX
Value Function
1
0-127 Output 1 OFF
128-255 Output 1 ON
2
0-127 Output 2 OFF
128-255 Output 2 ON
For this operation mode choose via RDM the Personality 1 or open all MODE jumper
1-5:
Hysteresis 0/1
In this operating mode, both relays switch independently of each other each via one
DMX channel. The switching threshold (Hysteresis) is 0/1 which means that the relay
is switched off when the DMX value is 0 and that the relay is switched on when the
DMX value is 1 or greater.
DMX
Channel
DMX
Value Function
1
0 Output 1 OFF
1-255 Output 1 ON
2
0 Output 2 OFF
1-255 Output 2 ON
For this operation mode choose via RDM the Personality 2 or close only MODE
jumper 5:
DMX-RELAIS 2 INRUSH 9
Hysteresis 100/150
In this operating mode, both relays switch independently of each other each via one
DMX channel. The Hysteresis is 100/150 which means that the relay is switched off
when the DMX value is 100 or less and that the relay is switched on when the DMX
value is 150 or greater.
DMX
Channel
DMX
Value Function
1
0-100 Output 1 OFF
101-149 Output 1 doesn’tchange
150-255 Output 1 ON
2
0-100 Output 2 OFF
101-149 Output 2 doesn’tchange
150-255 Output 2 ON
For this operation mode choose via RDM Personality 3.
Exclusive (Jalousie-Control)
In this operation mode both relays are turned on with one DMX channel as soon as
the DMX value is 128 or higher.
However, not both relays can be switched on at the same time.
DMX
Channel
DMX
Value Function
1
0-127 Output 1 OFF
128-255 Output 1 ON, ifoutput 2 OFF
2
0-127 Output 2 OFF
128-255 Output 2 ON, ifoutput 1 OFF
For this operation mode choose via RDM the Personality 4 or close only MODE
jumper 2:
DMX-RELAIS 2 INRUSH 10
Monostable 1Second (Impulse)
In this operating mode, both relays switch independently of each other each via one
DMX channel.As soon as the DMX value is 128 or higher the relay switches for 1
second. Then the DMX value must fall below 128 to trigger again a switching
impulse.
DMX
Channel
DMX
Value Funktion
1
0-127 Output 1 OFF
128-255 Output 1 1x 1-Second ON
2
0-127 Output 2 OFF
128-255 Output 2 1x 1- Second ON
For this operation mode choose via RDM the Personality 5 or close only MODE
jumper 4:

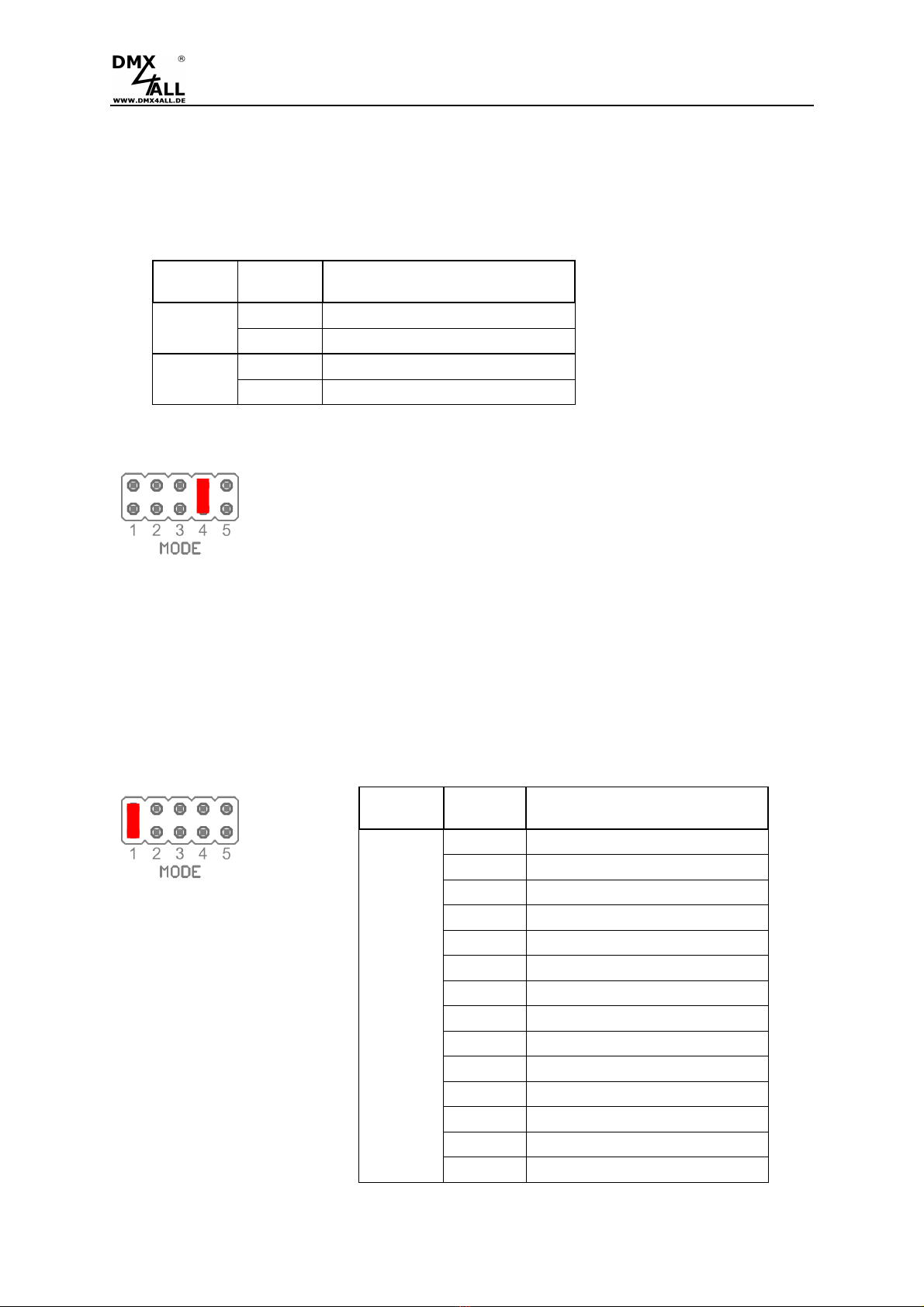

FogControl
In this operation mode both relays are controlled via one DMX channel.
Therefore, output 1 is for the heating element and output 2 for the pump. An internal
timer allows an automatically fog output.
For this operation mode choose via RDM the Personality 6 or close only MODE
jumper 1:
DMX
Channel
DMX
Value Function
1
0-7 Device off aus
8-20 Device on, no fog emission
21-40 Timer 10s on / 300s off *
41-60 Timer 20s on / 350s off *
61-80 Timer 30s on / 200s off *
81-100 Timer 40s on / 150s off *
101-120 Timer 50s on / 100s off *
121-140 Timer 60s on / 75s off *
141-160 Timer 70s on / 50s off *
161-180 Timer 80s on / 40s off *
181-200 Timer 90s on / 30s off *
201-220 Timer 100s on / 20s off *
221-240 Timer 110s on / 10s off *
141-255 Permanent fogemission
