Dometic FW3000 Bedienungsanleitung

Dometic WAECO International GmbH

Hollefeldstrasse 63

D-48282 Emsdetten

dometic.com

Ø 32 mm

32 mm

324 mm

96 mm

32 mm

123 mm

96 mm

FreshWell3000

4445101820 ST0194 825 02 01-98 03/2017

FreshWell3000-I-16s.book Seite 1 Mittwoch, 8. März 2017 9:42 21

59 mm

X + 29,5 mm

50 mm

93,5 mm

Y + 47

DC-Kit

IR LIN1 12 VLIN2

POWER

DC-Kit

1, 4 Inverter

2, 5 Remote On

3, 6 Economy

LIN

1, 3, 4, 5 GND

2 LIN

6 NC

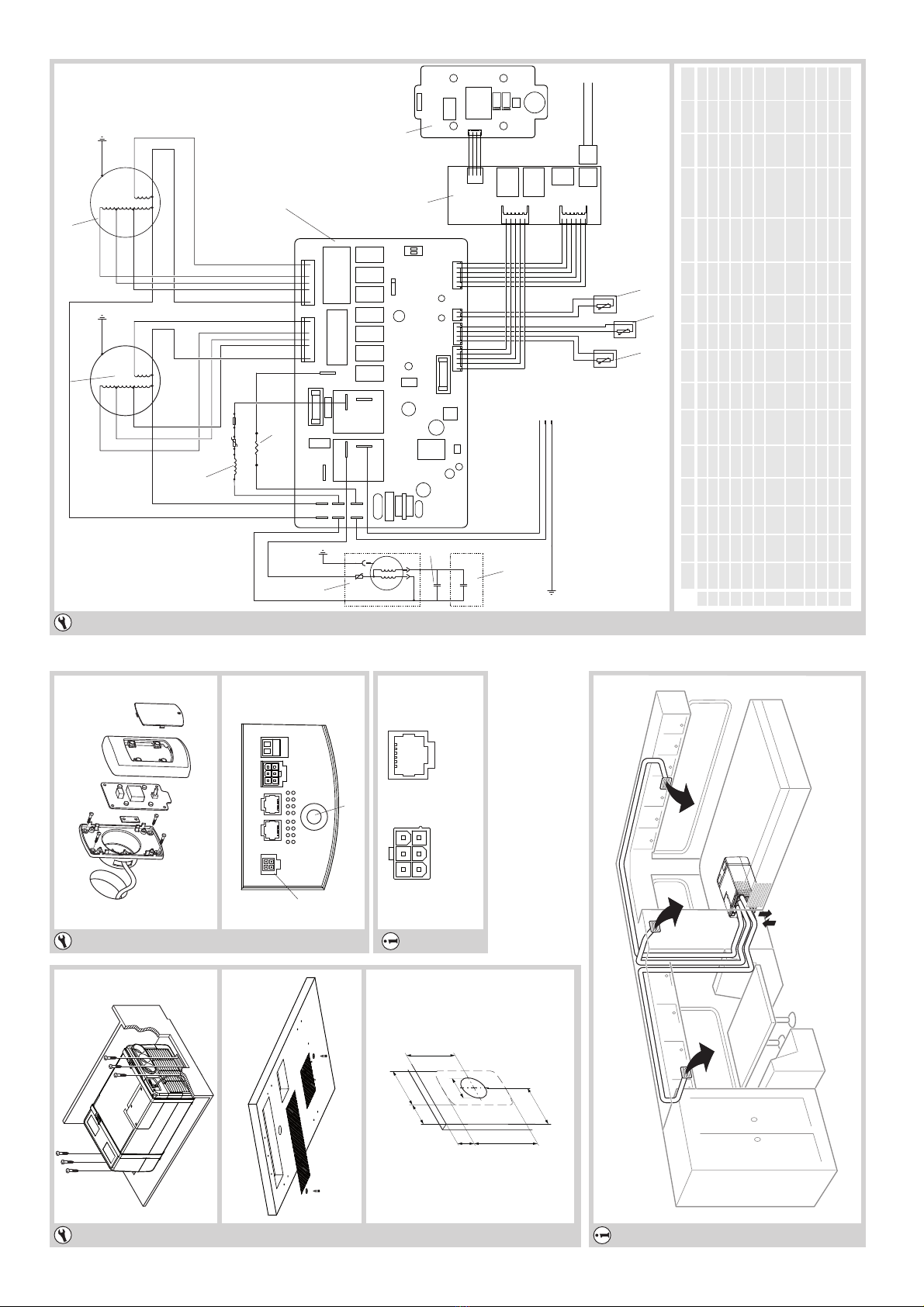

123456

CN1

COMP

COM

HEATER

4V IN FAN

CN1

CN7CN4

CN10CN3

CN2

OUT FAN

AC-L1

N2-N3

N1-N4

N5-N6

CN1

CN5 CN4

CN3

CN2

LIN1 LIN2

bl ge

LIN 1

AUX

LIN 2

–

bl ge ws

rt br

T1 – Line

T2 – Neutral

T3 – Ground

230 Vw

12 Vg

EN DE FR ES PT IT NL DA SV NO FI RU PL SK CS HU

bl Blue Blau Bleu Azul Azul Blu Blauw Blå Blå Blå Sininen Синий Niebieski Modrá Modrá Kék

br Brown Braun Marron Marrón Castanho Marrone Bruin Brun Brun Brun Ruskea Коричневый Brązowy Hnedá Hněda Barna

cy Cyan Cyan Cyan Cian Ciano Cyan Cyaan Cyan Cyan Cyan Syaani Голубой Cyjan Azúrová Azurová Cián

ge Yell ow Gelb Jaune Amarillo Amarelo Giallo Geel Gul Gul Gul Keltainen Желтый Żółty Žltá Žlutá Sárga

gn Green Grün Vert Verde Verde Verde Groen Grøn Grön Grønn Vihreä Зеленый Zielony Zelená Zelená Zöld

gr Grey Grau Gris Gris Cinzento Grigio Grijs Grå Grå Grå Harmaa Серый Szary Sivá Šedá Szürke

or Orange Orange Orange Naranja Cor de

laranja

Arancione Oranje Orange Orange Oransje Oranssi Оранжевый Pomarańczowy Oranžová Oranžová Narancs

pk Pink Pink Rosa Rose Cor de

rosa

Rosa Roze Lyserøde Rosa Rosa Pinkki Розовый Różowy Ružová Růžová Rózsaszín

rt Red Rot Rouge Rojo Vermelho Rosso Rood Rød Röd Rød Punainen Красный Czerwony Červená Červená Piros

sw Black Schwarz Noir Negro Preto Nero Zwart Sort Svart Svart Musta Черный Czarny Čierna Černá Fekete

vt Violet Violett Violeta Lila Violeta Violetto Paars Violet Violett Fiolett Violetti Фиолетовый Fioletowy Fialová Fialová Ibolya

ws White Weiß Blanc Blanco Branco Bianco Wit Hvid Vit Hvit Valkoinen Белый Biały Biela Bílá Fehér

FreshWell3000-I-16s.book Seite 2 Mittwoch, 8. März 2017 9:42 21

FW3000

Under-bench air conditioner

Installation Manual. . . . . . . . . . . . . . . . . . . . .2

Staukastenklimaanlage

Montageanleitung. . . . . . . . . . . . . . . . . . . . 17

Climatiseur de coffre

Instructions de montage . . . . . . . . . . . . . . .33

Equipo de aire acondicionado de

cajón

Instrucciones de montaje . . . . . . . . . . . . . .49

Sistema de climatização para caixa

de arrumação

Instruções de montagem . . . . . . . . . . . . . .65

Climatizzatore per vano di carico

Indicazioni di montaggio . . . . . . . . . . . . . .82

Airco onder de bank

Montagehandleiding . . . . . . . . . . . . . . . . .97

Klimaanlæg til montering i et

magasin

Monteringsvejledning. . . . . . . . . . . . . . . . 114

Klimatanläggning för

förvaringsutrymmen

Monteringsanvisning . . . . . . . . . . . . . . . . 130

Takboksklimaanlegg

Monteringsanvisning . . . . . . . . . . . . . . . . 144

Kaappi-ilmastointilaite

Asennusohje . . . . . . . . . . . . . . . . . . . . . . . 159

Встраиваемый вбагажный ящик

кондиционер

Инструкция по монтажу. . . . . . . . . . . . . . 174

Klimatyzator umieszczany

wschowku

Instrukcja montażu . . . . . . . . . . . . . . . . . . 190

Klimatizačné zariadenie do

úložného priestoru

Návod na montáž. . . . . . . . . . . . . . . . . . . 205

Klimatizace do zavazadlového

prostoru

Návod k montáži . . . . . . . . . . . . . . . . . . . . 219

Tárolóládás klímaberendezés

Szerelési útmutató . . . . . . . . . . . . . . . . . . 233

AIR CONDITIONERS

FRESHWELL

FreshWell3000-I-16s.book Seite 1 Mittwoch, 8. März 2017 9:07 21

Explanation of symbols FreshWell3000

Please read this instruction manual carefully before installation and first

use, and store it in a safe place. If you pass on the product to another

person, hand over this instruction manual along with it.

Table of contents

1Explanationofsymbols...........................................2

2Safetyandinstallationinstructions........ . . . . . . . . . . . . . . . . . . . . . . . . . .3

3Targetgroupforthisinstructionmanual..... . . . . . . . . . . . . . . . . . . . . . . . .4

4Scopeofdelivery...............................................5

5Intendeduse...................................................5

6Labels.........................................................5

7Installation.....................................................6

8Troubleshooting...............................................12

9Disposal......................................................13

10 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

1 Explanation of symbols

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or

serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair

the function of the product.

NOTE

Supplementary information for operating the product.

FreshWell3000-I-16s.book Seite 2 Mittwoch, 8. März 2017 9:07 21

FreshWell3000 Safety and installation instructions

2 Safety and installation instructions

Pleaseobserve the prescribed safetyinstructions andstipulations fromthe

vehicle manufacturer and service workshops.

The manufacturer accepts no liability for damage in the following cases:

•Damage to the product resulting from mechanical influences and excess voltage

•Alterations to the product without express permission from the manufacturer

•Use for purposes other than those described in the operating manual

Note the following basic safety information when using electrical devices to protect

against:

•Electric shock

•Fire hazards

•Injury

2.1 Handling the device

!WARNING!

•Installation and repair of the under-bench air conditioner may only be

carried out by qualified personnel who are familiar with the risks

involved and the relevant regulations. Inadequate repairs may cause

serious hazards. For repair service, please contact the service centre in

your country (addresses on the back page).

•Electrical devices are not toys.

Keep electrical devices out of reach of children or infirm persons. Do

not allow them to use electrical devices without supervision.

•Persons whose physical, sensory or mental capabilities or whose lack

of experience and knowledge prevent them from using the device

safely should not use it without supervision or instruction by a

responsible person.

•In the event of a fire only use approved extinguishing agents. Do not

use water to extinguish fires.

!CAUTION!

•The under-bench air conditioner must be installed securely so that it

cannot fall down.

•Only operate the under-bench air conditioner if you are certain that

the housing and the cables are not damaged.

FreshWell3000-I-16s.book Seite 3 Mittwoch, 8. März 2017 9:07 21

Target group for this instruction manual FreshWell3000

•Do not use the under-bench air conditioner near flammable fluids.

•Make sure no combustible objects are stored or installed near the air

outlet. A distance of at least 50 cm must be kept.

•Do not reach into air outlets or insert any foreign objects in the device.

ANOTICE!

•Only use the device as intended.

•The under-bench air conditioner isnot suitable for use in agricultural or

construction vehicles.

•Do not make any alterations or conversions to the device.

•If faults occur in this refrigerant circuit, the system must be checked by

a specialist company and repaired properly. The refrigerant must

never be released into the air.

2.2 Handling electrical cables

!WARNING!

•The electrical power supply may only be connected by a qualified

electrician (e.g. VDE 0100, Part 721 in Germany).

!CAUTION!

•Attach and lay the cables so that they cannot be tripped over or

damaged.

ANOTICE!

•Use cable ducts to lay cables through walls with sharp edges.

•Do not lay loose or bent cables next to electrically conductive

materials (metal).

•Do not pull on the cables.

3 Target group for this instruction manual

The instructions in this manual are intended for qualified personnel at workshops

who are familiar with the guidelines and safety precautions to be applied.

FreshWell3000-I-16s.book Seite 4 Mittwoch, 8. März 2017 9:07 21

FreshWell3000 Scope of delivery

4Scopeofdelivery

5 Intended use

The Dometic FreshWell3000 under-bench air conditioner (ref. no. 9105306670) is

designed for use in motorcaravans, caravans and other vehicles with habitation

compartments only. It is not suitable for houses and appartments.

The under-bench air conditioner is not suitable for installation in construction

machines, agricultural machines or similar equipment. It will not work properly if

exposed to strong vibrations.

The operating mode of FreshWell3000 is guaranteed for temperatures between

0°Cand52°C.

6Labels

Labels are attached to the Dometic FreshWell under-bench air conditioners. These

labels provide the user and fitter with information on specifications of the device.

No. in fig. 1Qunatity Description

1 1 Under-bench air conditioner

2 1 Remote control

31Receiver

4 4 Air filter

5 2 Angle section

6 4 Fastening bracket

7 14 Fastening screw

8 2 Drain pipe

9 2 External grids

– 1 Assembly template

NOTE

You can find additional information on under-bench air conditioners in

the operating manual, such as the technical description or the controls.

FreshWell3000-I-16s.book Seite 5 Mittwoch, 8. März 2017 9:07 21

Installation FreshWell3000

7 Installation

7.1 Note on installation

Read this installation manual completely before installing the under-bench air

conditioner.

The following tips and instructions must be observed while installing the under-

bench air conditioner:

Note on transport

•Always have someone help you carry the under-bench air conditioner.

•Always lift the under-bench air conditioner to move it and never drag it over the

floor (fig. 2A).

•Do not use the ventilation slots to lift it (fig. 2B).

CAUTION! Beware of injury

The under-bench air conditioner may only be installed by qualified

personnel from a specialist company. The following information is

intended for technicians who are familiar with the guidelines and safety

precautions to be applied.

DANGER! Danger of electrocution

Disconnect all power supplies when working on the under-bench air

conditioner.

CAUTION! Beware of injury

•Improper installation of the under-bench air conditioner can result in

irreparable damage to the device and put the safety of the user at

risk.

•The manufacturer assumes no liability for malfunctions and for the

safety of the under-bench air conditioner, especially for injury and/or

damage to property, if the under-bench air conditioner is not fitted in

accordance with these installation instructions.

•Always wear the recommended protective clothing (e.g. protective

goggles, gloves).

NOTICE! Beware of damage

Observe the structural engineering of the vehicle and seal of all open-

ings made when installing the under-bench air conditioner.

FreshWell3000-I-16s.book Seite 6 Mittwoch, 8. März 2017 9:07 21

FreshWell3000 Installation

Note on installation location

•To install the machine it is necessary to create openings in the floor. These open-

ings must be accessible and must not be covered by any parts of the vehicle.

•Before installing the under-bench air conditioner, check whether any vehicle

components could be damaged by the installation of the under-bench air

conditioner (such as lamps, cupboards, doors).

•Make sure no combustible objects are stored or installed near the air outlet. A

distance of at least 50 cm should be kept.

•The inclination of the installation surface may not exceed 10°.

•For safety reasons, note the location of existing wiring harnesses, wires and other

components within the installation area, in particular those which are not visible,

when installing the under-bench air conditioner (when drilling or screwing etc.).

•To obtain the optimal air-conditioning in the vehicle, install the under-bench air

conditioner in a central position, in a compartment or a similar housing.

•Choose a place that is easily accessible for servicing as well as disassembling and

installing.

•Place the assembly template into the chosen compartment and check the space

available for the openings in the floor.

•To minimize the transmission of noise and vibration during operation, the under-

bench air conditioner should have a all around minimum clearance of 30 mm to

walls and furniture.

•The under-bench air conditioner must be installed on the floor.

•Keep a distance of 200 mm between the front of the under-bench air conditioner

and the walls of the compartment to facilitate filter replacement.

•Installing the under-bench air conditioner into an external compartment (e.g.

false bottoms), the air to be treated must be drawn in from the vehicle’s

passenger compartment.

•Suctioning of outside air can significantly reduce the power of the system.

FreshWell3000-I-16s.book Seite 7 Mittwoch, 8. März 2017 9:07 21

Installation FreshWell3000

Note on electrical system (see fig. c)

•Only a qualified electrician should connect the under-bench air conditioner to

the electrical power.

•Check that the voltage specification on the type plate is the same as that of the

power supply.

•Do not lay cables which are loose or bent next to electrically conductive material

(metal).

•Install an all-pole switch with a contact opening width of at least 3 mm on the

installation side.

No. in fig. cDescription

1 Motor ventilator (inner)

2 Motor ventilator (outer)

3Capacitor

4Compressor

5 Temperature sensor

6PCB

7 PCB display

8 PCB interface

9 Soft start

10 Valve

11 Resistor

FreshWell3000-I-16s.book Seite 8 Mittwoch, 8. März 2017 9:07 21

Andere Handbücher für FW3000

Inhaltsverzeichnis

Andere Dometic Klimaanlage Handbücher

Dometic

Dometic RTX1000 Bedienungsanleitung

Dometic

Dometic B2600 Bedienungsanleitung

Dometic

Dometic MX1200C Bedienungsanleitung

Dometic

Dometic 641815 Bedienungsanleitung

Dometic

Dometic CoolAir SP950C Bedienungsanleitung

Dometic

Dometic FreshWell3000 Bedienungsanleitung

Dometic

Dometic FreshWell2000 Bedienungsanleitung

Dometic

Dometic ASCDU15HV 1161 Bedienungsanleitung

Dometic

Dometic FreshJet FJX 7 Series Bedienungsanleitung

Dometic

Dometic FreshJet Series Bedienungsanleitung

Dometic

Dometic CK36H401RI Harrier Inverter Bedienungsanleitung

Dometic

Dometic FreshWell 3000 Bedienungsanleitung

Dometic

Dometic EnviroComfort ECD Bedienungsanleitung

Dometic

Dometic Scania RTX2000 Bedienungsanleitung

Dometic

Dometic CK36H401RI Harrier Inverter Bedienungsanleitung

Dometic

Dometic CARAVAN B3200 Bedienungsanleitung

Dometic

Dometic COOLAIR SPX1200 Bedienungsanleitung

Dometic

Dometic B3351.531 Handbuch

Dometic

Dometic B3000 Plus Bedienungsanleitung

Dometic

Dometic FRESHJET FJ1100 Bedienungsanleitung

Dometic

Dometic MCS T6 Bedienungsanleitung

Dometic

Dometic Duotherm Royale Penguin 600 Series Handbuch

Dometic

Dometic DC-Kit2 Bedienungsanleitung

Dometic

Dometic FreshJet3 Series Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung
