Dometic DSP612 Bedienungsanleitung

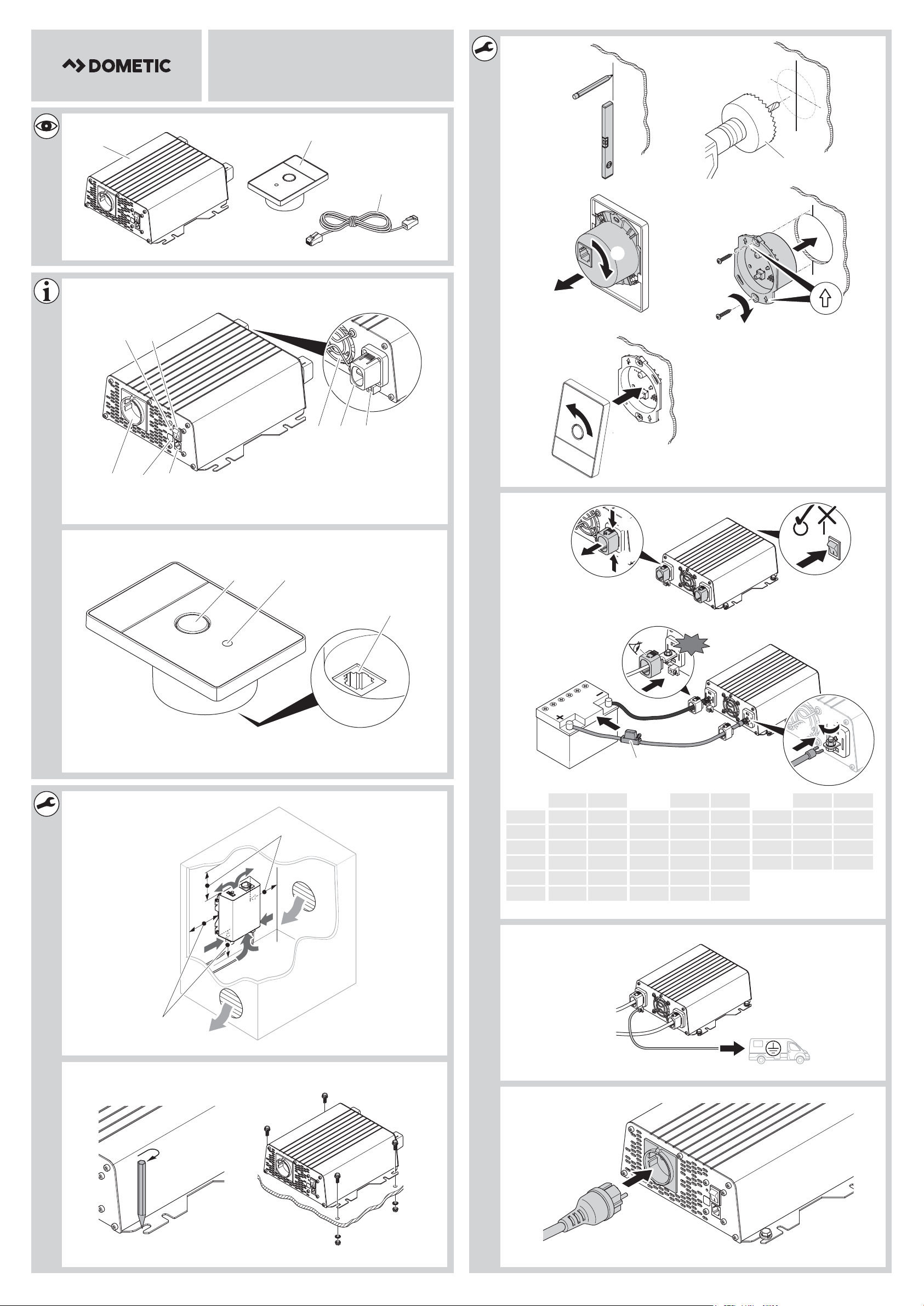

1. 1.

2. 2.

Ø 44 – 45

5 cm

68 7

1 2

1. 2.

CLICK

DSP612, DSP624, DSP1012,

DSP1024, DSP1512, DSP1524,

DSP2012, DSP2024

bk rd bk rd bk rd

EN Black Red NL Zwart Rood PL Czarny Czerwony

DE Schwarz Rot DA Sort Rød SK Čierna Červená

FR Noir Rouge SV Svart Röd CS Černá Červená

ES Negro Rojo NO Svart Rød HU Fekete Piros

PT Preto Vermelho FI Musta Punainen

IT Nero Rosso RU Черный Красный

DSP600-2000--IO-16s.book Seite 1 Montag, 7. Mai 2018 1:41 13

RCD MCB

230 V

OFF

RCD

OUT

230 V

OUT

230 V

RCD

230 V

MCB

DSP6xx: 230

DSP10xx: 230

DSP15xx: 272

DSP20xx: 272

DSP6xx: 220, DSP10xx: 240

DSP15xx: 340, DSP20xx: 360

DSP6xx: 80

DSP10xx: 80

DSP15xx: 97

DSP20xx: 97

1=ON/OFF

6=Vin

4445102438 L 07/2019

DSP600-2000--IO-16s.book Seite 2 Montag, 7. Mai 2018 1:41 13

YOUR LOCAL DEALER

dometic.com/dealer

A complete list of Dometic companies, which comprise the Dometic Group, can be found in the public filings of:

DOMETIC GROUP AB Hemvärnsgatan 15 SE-17154 Solna Sweden

YOUR LOCAL SUPPORT

dometic.com/contact

YOUR LOCAL SALES OFFICE

dometic.com/sales-offices

DSP612, DSP624, DSP1012, DSP1024,

DSP1512, DSP1524, DSP2012, DSP2024

Sine wave inverter

Installation and Operating Manual. . . . . . . . 3

Sinus-Wechselrichter

Montage- und Bedienungsanleitung . . . . . 21

Onduleur sinusoïdal

Instructions de montage

et de service . . . . . . . . . . . . . . . . . . . . . . . . .40

Convertidor de ondas seno

Instrucciones de montaje y de uso . . . . . . .60

Conversor sinusoidal

Instruções de montagem e manual de

instruções . . . . . . . . . . . . . . . . . . . . . . . . . . .80

Inverter sinusoidale

Istruzioni di montaggio e d’uso . . . . . . . .100

Sinus ondulator

Montagehandleiding en

gebruiksaanwijzing . . . . . . . . . . . . . . . . . .120

Sinus ensretter

Monterings- og betjeningsvejledning. . . 139

Sinus växelriktare

Monterings- och bruksanvisning . . . . . . . 157

Sinus vekselretter

Monterings- og bruksanvisning. . . . . . . . 175

Sinus -vaihtosuuntaaja

Asennus- ja käyttöohje . . . . . . . . . . . . . . . 193

Синусоидальный инвертор

Инструкция по монтажу и эксплуатации 211

Przetwornica sinusoidalna

Instrukcja montażu i obsługi. . . . . . . . . . . 232

Sínusový menič napätia

Návod na montáž a uvedenie

do prevádzky. . . . . . . . . . . . . . . . . . . . . . . 252

Sinusový měnič

Návod k montáži a obsluze . . . . . . . . . . . 270

Szinuszos inverter

Szerelési és használati útmutató . . . . . . . 288

ENERGY & LIGHTING

SINEPOWER

DSP600-2000--IO-16s.book Seite 1 Montag, 7. Mai 2018 1:39 13

DSP600-2000--IO-16s.book Seite 2 Montag, 7. Mai 2018 1:39 13

SinePower

Please read this instruction manual carefully before installation and first

use, and store it in a safe place. If you pass on the product to another

person, hand over this instruction manual along with it.

Table of contents

1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

2 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

4 Target group for this manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

7 Fitting the inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

8 Connecting the inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

9 Using the inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

10 Cleaning and caring for the inverter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

11 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

12 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

13 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

14 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

DSP600-2000--IO-16s.book Seite 3 Montag, 7. Mai 2018 1:39 13

Explanation of symbols SinePower

1 Explanation of symbols

2 General safety instructions

2.1 General safety

The manufacturer accepts no liability for damage in the following cases:

• Faulty assembly or connection

• Damage to the product resulting from mechanical influences and incorrect

connection voltage

• Alterations to the product without express permission from the manufacturer

• Use for purposes other than those described in the operating manual

Note the following basic safety information when using electrical devices to protect

against:

• Electric shock

•Firehazards

•Injury

DANGER!

Safety instruction: Failure to observe this instruction will cause fatal or

serious injury.

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or

serious injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair

the function of the product.

NOTE

Supplementary information for operating the product.

DSP600-2000--IO-16s.book Seite 4 Montag, 7. Mai 2018 1:39 13

SinePower General safety instructions

2.2 General safety

DDANGER!

• In the event of fire, use a fire extinguisher which is suitable for electrical

devices.

!WARNING!

• Only use the device as intended.

• Ensure that the red and black terminals never come into contact.

• Disconnect the device from the power supply:

– Before cleaning and maintenance

– Before changing a fuse

• If you disassemble the device:

– Detach all connections

– Make sure that no voltage is present at any of the inputs and out-

puts

• The device may not be used if the device itself or the connection cable

are visibly damaged.

• If this power cable for this device is damaged, it must be replaced by

the manufacturer, customer service or a similarly qualified person in

order to prevent safety hazards.

• This device may only be repaired by qualified personnel. Inadequate

repairs may cause serious hazards.

• This device can be used by childrenaged 8 years or over, as well as by

persons with diminished physical, sensory or mental capacities or a

lack of experience and/or knowledge, providing they are supervised

or have been taught how to use the device safely and are aware of the

resulting risks.

•Electrical devices are not toys.

Always keep and use the appliance out of the reach of children.

• Children must be supervised to ensure that they do not play with the

device.

ANOTICE!

• Before start-up, check that the voltage specification on the type plate

is the same as that of the power supply.

• Ensure that other objects cannot cause a short circuit at the contacts

of the device.

• Never pull the plug out of the socket by the connection cable.

DSP600-2000--IO-16s.book Seite 5 Montag, 7. Mai 2018 1:39 13

General safety instructions SinePower

• Store the device in a dry and cool place.

2.3 Safety when installing the device

DDANGER!

• Never mount the device anywhere where there is a risk of gas or dust

explosion.

!CAUTION!

• Ensure that the device is standing firmly.

The device must be set up and fastened in such a way that it cannot tip

over or fall down.

ANOTICE!

• Do not expose the device to a heat source (such as direct sunlight or

heating). Avoid additional heating of the device in this way.

• Set up the device in a dry location where it is protected against splash-

ing water.

2.4 Safety when connecting the device electronically

DDANGER! Danger of electrocution

• If you are working on electrical systems, ensure that there is somebody

close at hand who can help you in emergencies.

!WARNING!

• Make sure that the lead has a sufficient cross-section.

• Lay the cables so that they cannot be damaged by the doors or the

bonnet.

Crushed cables can lead to serious injury.

!CAUTION!

• Lay the cables so that they cannot be tripped over or damaged.

ANOTICE!

• Use ductwork or cable ducts if it is necessary to lay cables through

metal panels or other panels with sharp edges.

•Donot lay the 230 V mains cable and the 12 V DC cable in the same

duct.

•Donot lay the cable so that it is loose or heavily kinked.

DSP600-2000--IO-16s.book Seite 6 Montag, 7. Mai 2018 1:39 13

SinePower Scope of delivery

• Fasten the cables securely.

• Do not pull on the cables.

2.5 Operating the device safely

DDANGER! Danger of electrocution

• Do not touch exposed cables with your bare hands.

!WARNING!

• Only use the device in closed, well-ventilated rooms.

!CAUTION!

•Donot operate the device

– In salty, wet or damp environments

– In the vicinity of corrosive fumes

– In the vicinity of combustible materials

– In areas where there is a danger of explosions.

• Before starting the device, ensure that the power supply line and the

plug are dry.

• Always disconnect the power supply when working on the device.

• Please observe that parts of the device may still conduct voltage even

if the fuse has blown.

• Do not disconnect any cables when the device is still in use.

ANOTICE!

• Make sure the air inlets and outlets of the device are not covered.

• Ensure good ventilation.

3Scopeofdelivery

No. in

fig. 1Designation

1 Sine wave inverter

2 Remote control

3 Connection cable remote control

– Operating manual

DSP600-2000--IO-16s.book Seite 7 Montag, 7. Mai 2018 1:39 13

Target group for this manual SinePower

4 Target group for this manual

The electrical installation (chapter “Connecting the inverter” on page 12) is intended

for professionals who are familiar with the applicable regulations of the country in

which the equipment is to be installed and/or used.

All other chapters are intended for the users.

5 Intended use

The wave inverter converts direct current into a 230 V AC supply of 50 Hz:

•12 Vg:DSP612, DSP1012, DSP1512, DSP2012

•24 Vg:DSP624, DSP1024, DSP1524, DSP2024

6 Technical description

The inverters can be operated wherever a DC connection is available:

•12 Vg:DSP612, DSP1012, DSP1512, DSP2012

•24 Vg:DSP624, DSP1024, DSP1524, DSP2024

The light-weight and compact construction of this device allows for easy installation

in mobile homes, commercial vehicles or motor and sailing yachts.

The output voltage corresponds to the household voltage from the socket (pure sine

wave, THD <5 %).

Please observe the values for constant output power and peak output power as

indicated in chapter “Technical data” on page 18. Never connect devices that have

a higher power requirement.

WARNING!

Never use the inverter on vehicles where the positive terminal of the

battery is connected to the chassis.

NOTE

Note when connecting devices with an electrical drive (such as power

drills and refrigerators), that they often require more power than is

indicated on the type plate.

DSP600-2000--IO-16s.book Seite 8 Montag, 7. Mai 2018 1:39 13

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Dometic Wechselrichter Handbücher

Dometic

Dometic Go Power! PORTABLE SOLAR KITS GP-PSK-200 Bedienungsanleitung

Dometic

Dometic TEC29EV Bedienungsanleitung

Dometic

Dometic PSB150 Bedienungsanleitung

Dometic

Dometic MSI912 Bedienungsanleitung

Dometic

Dometic 9102900295 Bedienungsanleitung

Dometic

Dometic BLUTEC40D Bedienungsanleitung

Dometic

Dometic TEC 40D Operation Bedienungsanleitung

Dometic

Dometic TEC 30 Bedienungsanleitung

Dometic

Dometic Go Power! Solar All Electric Kit GP-AE-4 Bedienungsanleitung

Dometic

Dometic ECLIPSE Series Bedienungsanleitung

Dometic

Dometic Go Power! GP-1750HD Bedienungsanleitung

Dometic

Dometic BUTTNER BLACK LINE MT140MC Bedienungsanleitung

Dometic

Dometic SC 1230-PWM Bedienungsanleitung

Dometic

Dometic TEC29 Bedienungsanleitung

Dometic

Dometic BUTTNER MT 600 SI-N Bedienungsanleitung

Dometic

Dometic TEC Series Bedienungsanleitung

Dometic

Dometic SINEPOWER DSP1312T Bedienungsanleitung

Dometic

Dometic DSP212 Bedienungsanleitung

Dometic

Dometic Go Power! Solar Flex Kit GP-FLEX-55 Bedienungsanleitung

Dometic

Dometic PP 1002 Bedienungsanleitung

Dometic

Dometic SINEPOWER MSI 412 Bedienungsanleitung

Dometic

Dometic BUTTNER MT ICC Series Bedienungsanleitung

Dometic

Dometic SI 1500 Bedienungsanleitung

Dometic

Dometic Go Power! ECO SOLAR POWER KITS GP-ECO-10 Bedienungsanleitung

Beliebte Wechselrichter Handbücher anderer Marken

Fourgroup

Fourgroup Easy Bedienungsanleitung

Velleman

Velleman PI300M Bedienungsanleitung

Sungrow

Sungrow SG350HX-US Bedienungsanleitung

WilTec

WilTec 61897 Bedienungsanleitung

SMA

SMA SUNNY BOY STORAGE 2.5 Bedienungsanleitung

Simplicity

Simplicity LANDLORD 316 Bedienungsanleitung

Santak

Santak SMAX 3000 Bedienungsanleitung

ATON

ATON RA.Store-3 Bedienungsanleitung

ZIEHL-ABEGG

ZIEHL-ABEGG FXET4AMQ Bedienungsanleitung

Tektronix

Tektronix CFG250 Bedienungsanleitung

Champion

Champion 200989 Bedienungsanleitung

Vanner

Vanner 20-500 Series Bedienungsanleitung

GE GEP Bedienungsanleitung

Astrel Group

Astrel Group Power Reducer Kurzanleitung

MULTIQUIP

MULTIQUIP GDP-5H Leitfaden

GoWISE

GoWISE PS1007 Bedienungsanleitung

Promate

Promate PM13500D ES Bedienungsanleitung

Mastervolt

Mastervolt WHISPER 3.5M3000 RPM Bedienungsanleitung
