Dometic Coolmatic RPD50 Bedienungsanleitung

RPD50

Compressor refrigerator

Installation and Operating Manual

REFRIGERATION

COOLMATIC

RPD50-IO-US.book Seite 1 Montag, 24. Juli 2017 5:19 17

RPD50

Please read this operating manual carefully before starting the device.

Keep it in a safe place for future reference. If the device is passed on to

another person, this operating manual must be handed over to the user

along with it.

The manufacturer cannot be held liable for damage resulting from improper usage

or incorrect operation.

Contents

1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

6 Setting up and connecting the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . .8

7 Using the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

8 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

9 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

10 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

11 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

RPD50-IO-US.book Seite 2 Montag, 24. Juli 2017 5:19 17

RPD50 Explanation of symbols

1 Explanation of symbols

2 Safety instructions

The manufacturer accepts no liability for damage in the following cases:

•Damage to the product resulting from mechanical influences and excess voltage

•Alterations to the product without express permission from the manufacturer

•Use for purposes other than those described in the operating manual

DANGER!

Safety instruction: Failure to observe this instruction will cause fatal or

serious injury.

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or

serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair

the function of the product.

NOTE

Supplementary information for operating the product.

RPD50-IO-US.book Seite 3 Montag, 24. Juli 2017 5:19 17

Safety instructions RPD50

2.1 General safety

DDANGER!

•On boats: If the device is powered by the mains, ensure that the

power supply has a residual current circuit breaker.

!WARNING!

•Have a qualified technician perform the installation in wet rooms.

•Do not operate the device if it is visibly damaged.

•If this device's power cable is damaged, it must be replaced by the

manufacturer, customer service or a similarly qualified person in order

to prevent safety hazards.

•This device may only be repaired by qualified personnel. Inadequate

repairs may cause serious hazards.

•This device can be used by children aged 8 years or over, as well as by

persons with diminished physical, sensory or mental capacities or a

lack of experience and knowledge, providing they are supervised, or

have been taught how to use the device safely and are aware of the

resulting risks.

•Cleaning and user maintenance must not be carried out by children

without supervision.

•Children must be supervised to ensure that they do not play with the

device.

•Always keep and use the device out of the reach of children under

8 years of age.

•Do not store any explosive substances, such as spray cans with

propellants, in the device.

!CAUTION!

•Danger of crushing! Do not put your fingers into the hinge.

•Foodstuff may only be stored in its original packaging or in suitable

containers.

ANOTICE!

•Check that the voltage specification on the type plate is the same as

that of the power supply.

•Never pull the plug out of the socket by the connection cable.

•If the refrigerator is connected to the DC socket: Disconnect the

refrigerator and other electric consumers from the battery before

connecting the quick charging device.

RPD50-IO-US.book Seite 4 Montag, 24. Juli 2017 5:19 17

RPD50 Safety instructions

•If the refrigerator is connected to the DC socket: Disconnect the

refrigerator or switch it off when you turn off the engine. Otherwise

you may discharge the battery.

•The refrigerator is not suitable for storing substances which are caustic

or contain solvents.

•Keep the drainage outlet clean at all times.

•Do not open the refrigerant circuit under any circumstances.

•Never transport the device in a horizontal position, so that no oil can

leak out of the compressor.

•Make sure that the refrigerator circuit is not damaged during transpor-

tation. The refrigerant in the refrigerator circuit is highly flammable.

In the event of any damage to the refrigerator circuit:

– Avoid naked flames and sparks.

– Air the room well.

•Set up the device in a dry location where it is protected against splash-

ing water.

2.2 Operating the device safely

DDANGER!

•Do not touch exposed cables with your bare hands. This applies

especially when operating the device from the AC mains.

!CAUTION!

•Before starting the device, ensure that the power supply line and the

plug are dry.

•If you connect the device to a battery, make sure that no food comes

into contact with the battery acid.

ANOTICE!

•Do not use electrical devices inside the cooling device unless they are

recommended by the manufacturer for that purpose.

•Do not place it near naked flames or other heat sources (heaters, direct

sunlight, gas ovens etc.)

•Danger of overheating!

Always ensure sufficient ventilation so that the heat generated during

operation can dissipate. Make sure that the device is sufficiently far

away from walls and other objects so that the air can circulate.

RPD50-IO-US.book Seite 5 Montag, 24. Juli 2017 5:19 17

Scope of delivery RPD50

•Ensure that the ventilation vents are not covered.

•Do not fill the inner container with ice or fluid.

•Never immerse the appliance in water.

•Protect the appliance and the cable against heat and moisture.

•Make sure that foodstuffs do not touch the walls of the cooling area.

3Scopeofdelivery

3.1 Accessories

Available as accessory (not included in scope of delivery):

4 Intended use

The refrigerator is suitable for cooling and freezing foodstuffs. The device is also suit-

able for use on boats.

Quantity Description

1 Refrigerator

1 Instruction manual

Description Ref. no.

Rectifier EPS100 EPS-100W

Rectifier MPS35 MPS-35

CAUTION! Health hazard!

Please check if the cooling capacity of the device is suitable for storing

the food or medicine you wish to cool.

RPD50-IO-US.book Seite 6 Montag, 24. Juli 2017 5:19 17

RPD50 Technical description

5 Technical description

The CoolMatic RPD50 refrigerator is suitable for use with a 12 Vgor 24 Vg voltage

and can therefore also be used for camping or on boats. It can also be connected to

a 120 Vwmains supply via the EPS100W and MPS35 rectifiers.

When used on boats the refrigerator can be subjected to a short-term inclination

of 30°.

The refrigerator can chill products and keep themcool. Products can be deep-frozen

in the freezer compartment.

All materials used in the refrigerator are compatible for use with foodstuffs.

You can use the continuously variable thermostat to set the desired

temperature.

5.1 Control elements

No. in fig. 1Explanation

1 Temperature controller

RPD50-IO-US.book Seite 7 Montag, 24. Juli 2017 5:19 17

Setting up and connecting the refrigerator RPD50

6 Setting up and connecting the

refrigerator

6.1 Setting up the refrigerator

In continuous operation, the air humidity may not exceed 90 %.

Set up the refrigerator in a dry, sheltered place. Avoid placing it near heat sources

such as radiators, gas ovens or hot water pipes. Do not let it stand in the full sun.

The refrigerator must be positioned so that heated air can dissipate easily. Therefore

make sure there is adequate ventilation (fig. 2).

min. 50 mm

min. 30 mm

RPD50-IO-US.book Seite 8 Montag, 24. Juli 2017 5:19 17

RPD50 Setting up and connecting the refrigerator

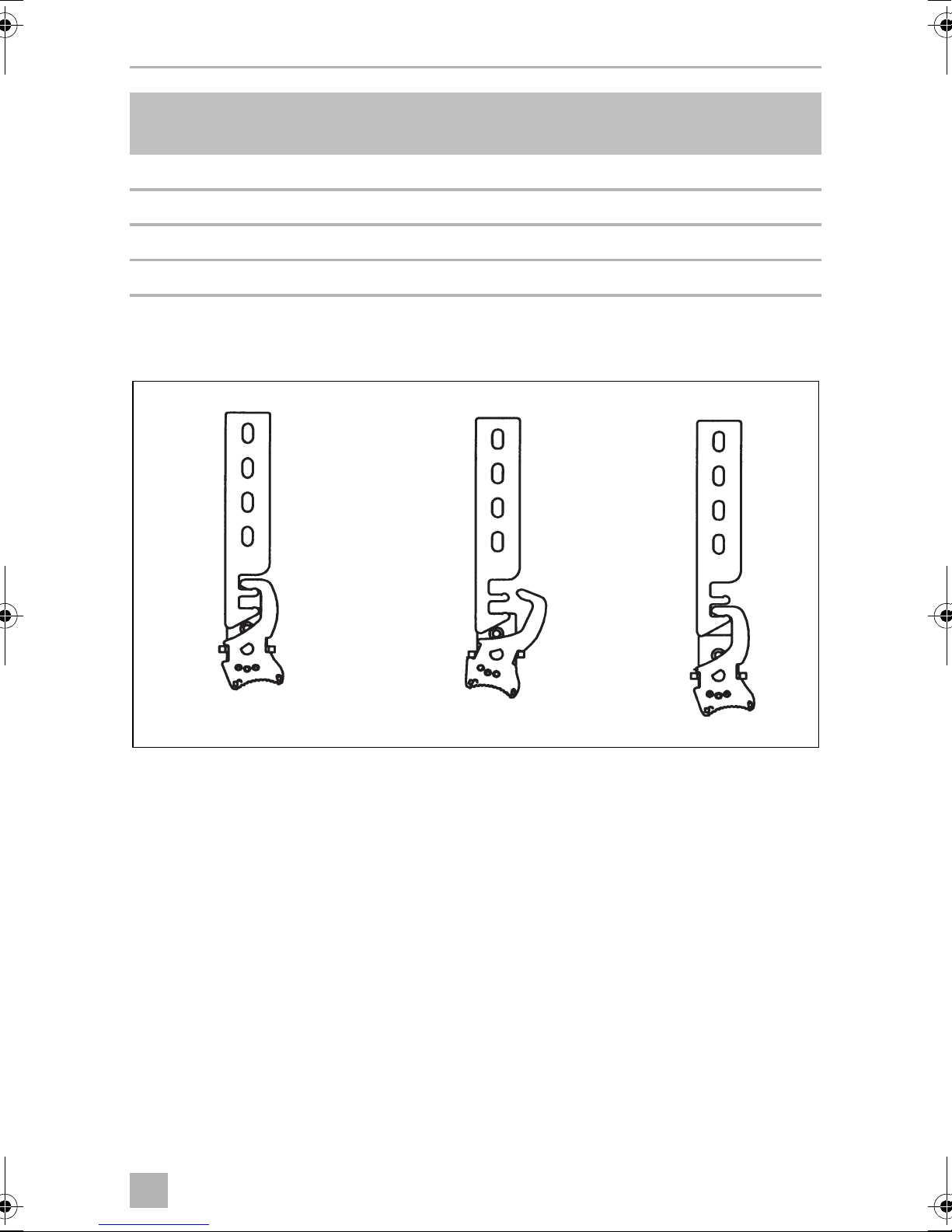

6.2 Removing the transport protection

The refrigerator has a locking mechanism to protect it during transport. The follow-

ing settings are possible:

•Position 1 (transport lock): (fig. 31) The door is locked and secured. To open

the door, turn the bolt to position 2.

•Position 2: (fig. 32) The door can be opened.

•Position 3 (VENT position): (fig. 33) The door is slightly open, but fixed. Use

this position, for example, if you are not going to use the device for a long time.

No. in fig. 2,

page 8 Explanation

1 Hot waste air

2 Cold intake air

3 Condenser

4 With cover panel 50 mm above

123

RPD50-IO-US.book Seite 9 Montag, 24. Juli 2017 5:19 17

Setting up and connecting the refrigerator RPD50

6.3 Changing the door hinge

You can also change the hinge of the door, so that it opens to the left rather than the

right.

To change the door hinge, proceed as follows (fig. 4):

➤Remove the upper door hinge (fig. 41).

➤Carefully lift out the door.

➤Remove the threaded pins (fig. 42).

➤Pull the locking hook (fig. 43) off the rod.

➤Remove the locking plate (fig. 44) and fit it on the opposite side.

➤Pull the rod downwards and out and put it in the other side.

➤Fasten the locking hook (fig. 43) back on the rod.

➤Detach the top and bottom lock holders (fig. 45) on the left side.

➤Detach the top and bottom door hinges (fig. 41) on the right side.

➤Fasten the top and bottom door hinges (fig. 41) to the left side.

➤Fasten the top and bottom lock holders (fig. 45) to the left side.

RPD50-IO-US.book Seite 10 Montag, 24. Juli 2017 5:19 17
