Dometic TYPE C40 RM 7655 L Bedienungsanleitung

Type C40 / 110

T.B. 03/2004 MB

MANUAL

ABSORPTION - REFRIGERATOR for CARAVAN and MOTORHOME

English

OPERATING INSTRUCTIONS

INSTALLATION INSTRUCTIONS

RM 601 L

RM 605 L

RM 651 L

RM 655 L

Model number .............................................

Product number .............................................

Serial number .............................................

Please state for future reference :

Dansk

Deutsch

ÅëëçíéêÜ

English

Español

Français

Italiano

Nederlands

Norsk

Português

Suomi

Svensk

via INT RN T www.dometic.com

Kundeservice

Kundendienst

ÅîõðçñÝôçóç Ðåëáôþí

Customer Service

Servicio de Atención al Cliente

Service après-vente

Servizio Clienti

Klantenservice

Kundeservice

Serviço de Atendimento a Clientes

Asiakaspalvelu

Kundservice

Instructions for storing food in a refrigerator:

No refrigerator of any kind can improve the quality of the food; refrigerators can only maintain the food's quality for a short

duration as from the time of storing it.

Please observe the following particular conditions for storing food in a refrigerator that is built into a vehicle:

- A change in the climatic conditions such as temperature fluctuations

- High temperatures inside the vehicle when it is closed and parked in direct sunlight (temperatures are possible

up to 50°C)

- Use of the refrigerator whilst travelling with the power supply of 12V--DC

- A refrigerator built in behind a window and exposed to direct sunlight

- Storing the goods too soon, i.e. shortly after switching the device on for use

Under these particular conditions the refrigerator cannot guarantee having the temperature needed for food that perishes

quickly.

Foods that perish quickly include: all the products with a stipulated use-by date and a minimum storage temperature of +4°C

or less, especially for meat, poultry, fish, sausage, pre-packed foods.

Instructions

- Pack raw and cooked foods separately (e.g. in containers, aluminium foil, etc.)

- Only remove the outside packaging of single packs if all the necessary data, such as the use-by date, for

example, can also be read on the single packs.

- Do not leave cooled goods outside the refrigerator for too long.

- Place the foods with the next use-by date at the front, accordingly.

- Pack away any left-over food again and eat at the first opportunity.

- Wash your hands before and after touching any food.

- Clean the inside of the refrigerator at regular intervals.

Information :

Please observe the instructions and information regarding the use-by date on the outside packaging of the food.

Please observe the following sections in these instructions: "5.1 Cleaning" and "5.3 Storing food".

Safety instructions

These operating instructions should be kept in a safe place.

If this device is passed on, please include these operating instructions with it.

©Dometic GmbH - 2004 - Subject to change without notice - Printed in Germany

1.0 INTRODUCTION 4

2.0 FOR YOUR SAFETY 4

2.1 Warning and safety notices 4

2.2 Coolant 4

3.0 WARRANTY AND CUSTOMER 5

SERVICE

3.1 Damages in transit 5

4.0 DESCRIPTION OF MODEL 5

5.0 REFRIGERATOR GUIDE 5

5.1 Cleaning 5

5.2 Using the refrigerator 6

5.3 Storing food 10

5.4 Making ice cubes 11

5.5 Defrosting 11

5.6 Positioning the storage racks 11

5. Door locking 12

5.8 Switching off the refrigerator 12

5.9 Winter operation 12

5.10 Interior light 13

5.11 Changing the decor panel 13

5.12 Changing the doorhang 14

5.13 Troubleshooting 15

5.14 Maintenance 16

5.15 Product liability 16

5.16 Environmental hints 16

5.1 Disposal 16

5.18 Energy-saving tips 16

5.19 Technical data 1

5.20 Declaration of conformity 1

6.0 INSTALLATION GUIDE 18

6.1 Installation 18

6.2 Draught-free installation 19

6.3 Ventilation and air extraction 20

6.4 Installation of the ventilation system 21

6.5 Installation recess 22

6.6 Securing the refrigerator 22

6. Connections gas/electrical installation 23

6.8 Gas installation 23

6.9 Electrical installation 25

TTAABBLLEE OOFF CCOONNTTEENNTTSS

Warning

Attention

Information Environmental

Advice

INTRODUCTION

You have made an excellent choice in selecting the Dometic Absorption Refrigerator.

We are sure that you will be fully satisfied with your new appliance in all respects.

The appliance, which works silently, meets high quality standards and guarantees

the efficient utilisation of resources and energy throughout its entire life cycle, during

manufacture, in use and when being disposed of.

Before you start to use the appliance, please read the installation and operating

instructions carefully.

The refrigerator is designed for installation in leisure vehicles such as caravans or

motorcaravans. The appliance has been certified for this application in accordance with

U Gas Directive 90/396/ C.

FOR YOUR SAFETY

Warning and safety notices

Never use a naked flame to check the appliance for leaks.

Protect children!

When disposing of the refrigerator, remove all refrigerator doors and leave the

storage rack in the refrigerator. This will prevent accidental locking in or suffocation.

If you smell gas:

- close the locking tap of the gas supply and the valve on the cylinder.

- open the windows and leave the room.

- do not switch on anything electrical.

- extinguish naked flames.

Never open the cooling unit; it is under high pressure.

Work on the gas, flue system and electrical components must only be

carried out by qualified service personnel.

It is imperative that the operating pressure should correspond to the data given on

the model plate of the appliance.

Compare the operating pressure data given on the model plate with the data on the

pressure monitor of the liquid gas cylinder.

Gas operation of the appliance is not permitted while travelling on ferries.

Covers ensure electrical safety and must only be removed using a tool.

The appliance must not be exposed to rain.

The refrigerator is not suitable for the proper storage of medications.

Coolant

Ammonia is used as a coolant.

This is a natural compound also used in household cleaning agents (1 litre of

Salmiak cleaner contains up to 200g of ammonia - about twice as much as is used

in the refrigerator). Sodium chromate is used for corrosion protection (1.8% of the

solvent).

In the event of leakage (easily identifiable from the unpleasant odour):

Switch off the appliance.

Air the room thoroughly.

Inform the authorised Customer Service department.

11..00

22..00

2.1

2.2

Warning Attention

WARRANTY AND CUSTOMER SERVICE

Warranty arrangements are in accordance with C Directive 44/1999/C and the

normal conditions applicable for the country concerned. For warranty or other

servicing, please contact our Dometic Service department. Any damage due to impro-

per use is not covered by the warranty. The warranty does not cover any modifica-

tions to the appliance or the use of non-original Dometic parts;

the warranty does not apply if the installation and operating instructions are not

adhered to and no liability shall be entertained. Parts can be ordered throughout

urope from our Dometic Service department. Your Service Centre contact numbers

numbers are found in the  uropean Service Network booklet

When contacting Dometic Service, please state the model, product number and

serial number together with the MLC Code, if applicable. You will find this information

on the data plate inside the refrigerator.

Damage in transit

After removing the packaging, check whether the refrigerator has been damaged

during transportation.

Any damage sustained in transit must be reported to the transportation company

concerned no later than seven days after delivery of the goods.

DESCRIPTION OF MODEL

REFRIGERATOR GUIDE

Cleaning

Before switching the refrigerator on to use it, we recommend that you clean it inside

and out, and repeat this at regular intervals.

Use a soft cloth and lukewarm water with a mild detergent.

Then rinse the appliance with clean water and dry thoroughly.

Remove dust from the refrigerator unit at yearly intervals using a brush or soft cloth.

AATTTTEENNTTIIOONN

To avoid deterioration of materials:

Do not use soap or hard, abrasive or soda-based cleaning agents.

Do not allow the door seal to come into contact with oil or grease.

33..00

44..00

55..00

5.1

3.1

RM 601 L

e.g.

Refrigerator Mobile /

Mobile Absorption Refrigerator Last digit 1 = manual energy selection

Last digit 5 = automatic and manual energy selection

L with interior light

Using the refrigerator

The cooling unit is silent in operation.

When the appliance is first put into operation, there may be a mild odour

which will disappear after a few hours.

nsure the living area is well ventilated.

The refrigerator will take several hours to reach its operating temperature

in the cooling compartment

The freezer compartment should be cold about one hour after switching on

the refrigerator.

Controls

Note:

The refrigerator is equipped to operate on mains power, DC or liquid gas (propane/

butane). The desired power option is selected by means of energy selector switch (A).

nergy selector switch (A) has four settings: AC mains power, DC (12V),

Gas (liquid gas), OFF.

Appliances with automatic energy selection have the additional setting AUTO .

5.2

5.2.1

A. Manual energy selection MES ( RM 76x1 L)

B. Automatic and manual energy selection AES (RM 76x5 L)

A= energy selection switch E = switch for frame heating with display L D

B= gas/electric thermostat AC/DC

C= operating displays (3 L Ds)

AC mains power

12V DC

Gas

A= energy selection switch

B= gas/electric thermostat AC/DC

C= operating displays (4 L Ds)

D= temperature setting display

E = switch for frame heating with display L D

F= dimmer for L D-displays

(only accessable when door opens)

OFF

Automatic energy selection

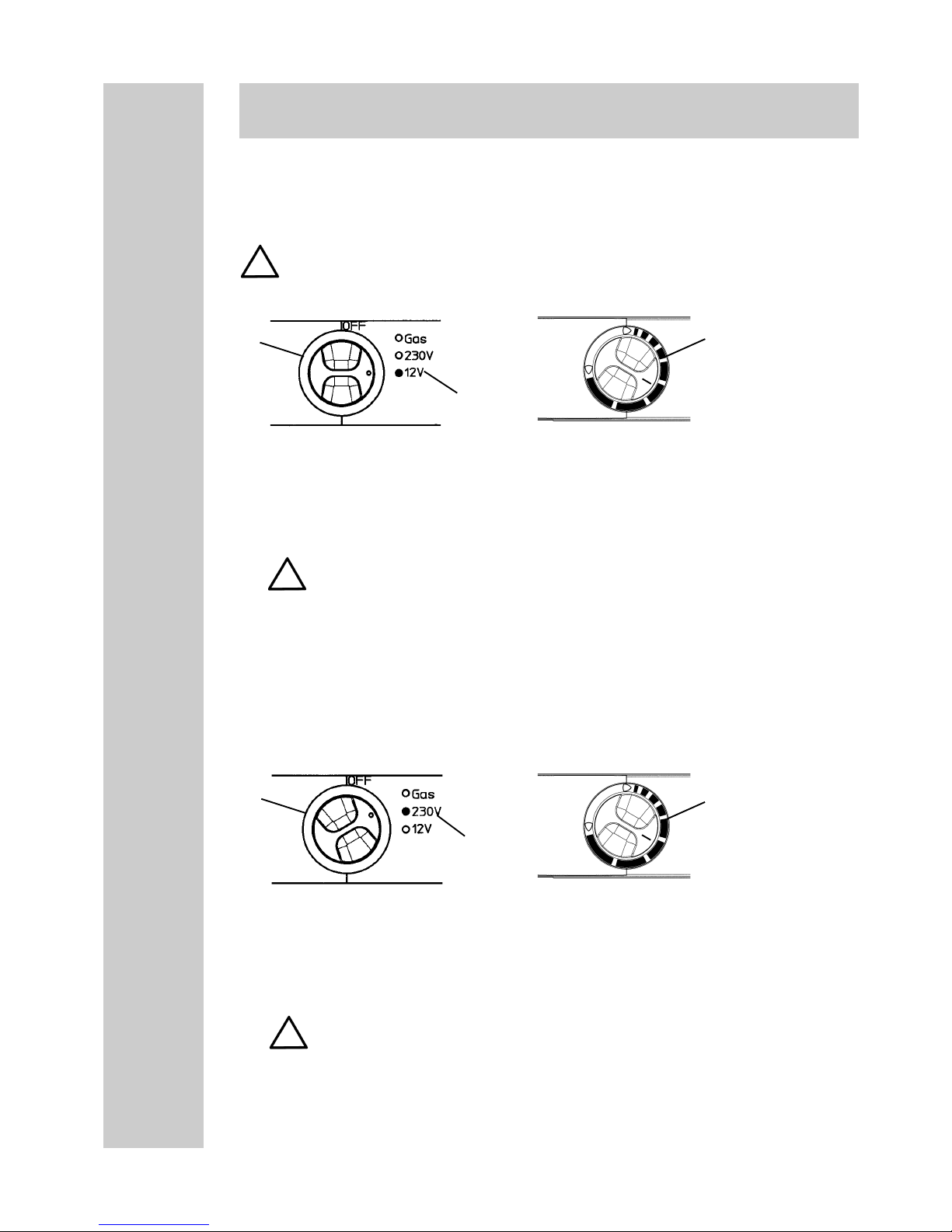

Electrical operation

1. 12V - operation (DC)

The refrigerator should only be used while the motor is running, otherwise

the on-board-battery would be discharged within a few hours!

2. Mains power

This option should only be selected where the supply voltage of the connection for

power supply corresponds to the value specified on the data plate. Any difference in

values may result in damage the appliance.

5.2.2

2. Use rotary switch (B) to regulate the

temperature in the main refrige-

rator compartment.

1. Set energy selector switch

(A) to 12V .

Operating display C, 12V

lights green.

Appliance is in function.

2. Use rotary switch (B) to regulate the

temperature in the main refrige-

rator compartment.

1. Set energy selector switch

(A) to 230V .

Operating display C, 230V

lights green.

Appliance is in function.

If the operating display fails to light up ( it lights up red at AES models )

the device is not in operation. (For troubleshooting see 5.13)

A. Manual Energy Selection

If the operating display fails to light up ( it lights up red at AES models )

the device is not in operation. (For troubleshooting see 5.13)

Gas operation

The refrigerator should only be operated using liquid gas

(propane, butane). Do not use town gas or natural gas.

If the refrigerator is operated during travel using gas, the precautions

stipulated by the legislation in the respective country must be taken (in

conformity with the European standard EN 32).

Operating the refrigerator with gas is not permitted during travel in

France and Australia.

As a basic rule, operation using gas is prohibited in petrol stations.

1. Open the valve of the gas cylinder

2. Open the shut-off valve to the gas supply.

The ignition process is activated automatically, accompanied by a ticking sound

approx. 30 sec. Upon successful ignition, the display L D (C) Gas lights yellow.

The refrigerator is in function. Use rotary switch (B) to regulate the temperature in the

main refrigerator compartment.

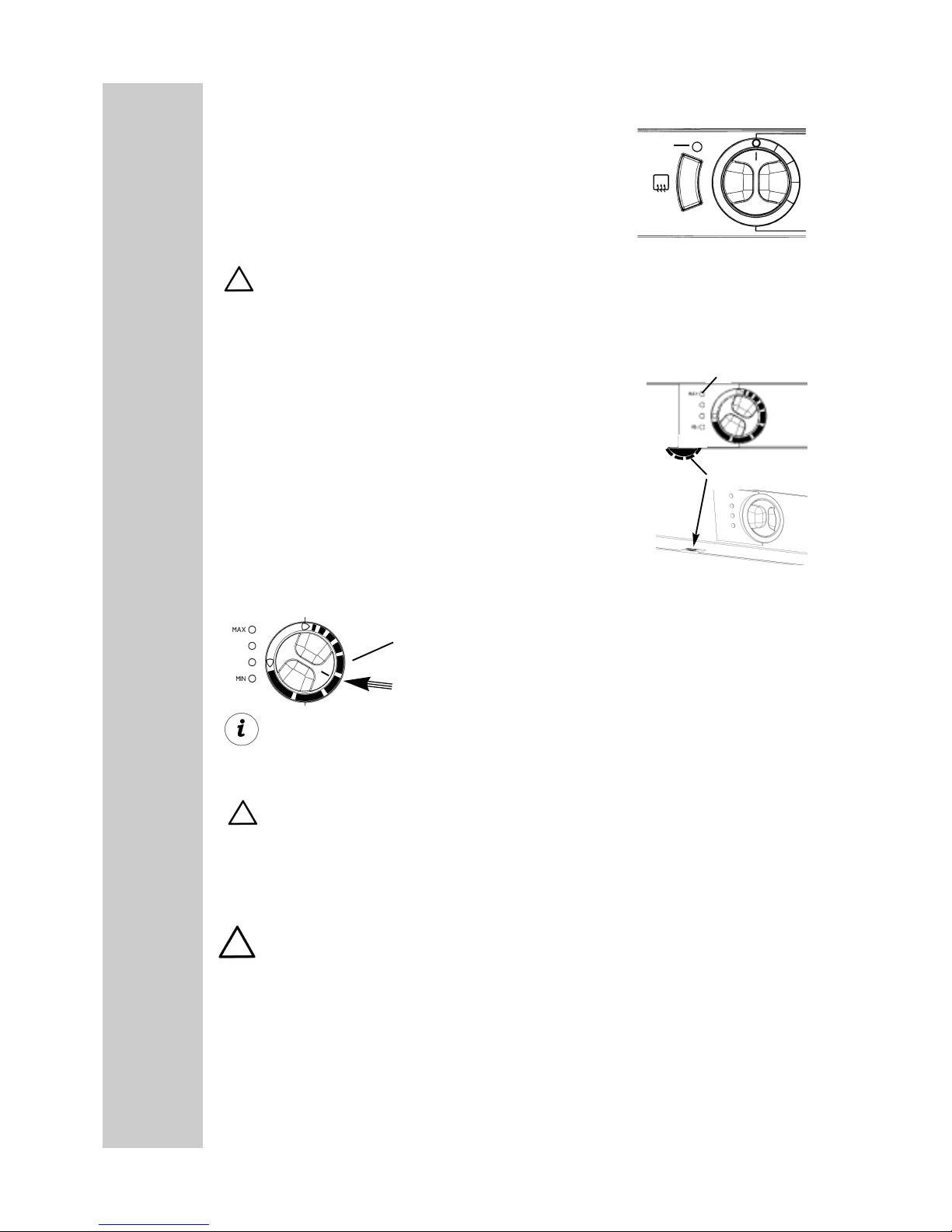

AUTO-operation

RM7XX5 L - models are equipped with an AUTO-MATIC function.

Explanations:

Upon switching on, the electronics automatically select one of the three

possible energy types: 230V - 12V - liquid gas. The control electronics

automatically ensure that the refrigerator is supplied with the optimum

source of energy in each respective case.

Priority 1.) Solar (12V DC)

2.) 230V AC

3.) 12V DC

4.) Liquid gas

The selected energy is displayed by the corresponding L D (i.e. 230V)

A1. Set energy selector switch (A) to gas

2. Set rotary switch (B) to MAX postion.

5.2.3

5.2.4

B. Automatic Energy Selection (RM 76x5 L)

1. Set energy selection switch (A) to position

AUTO .

The L D "AUTO" illuminates.

Manual operation is possible at any time.

230 V - operation

If sufficient supply voltage is available (more than 200V), this power source is

selected as the first option ( no solar-system installed).

12 V - operation

12V operation should only be selected while the vehicle motor is running or there

is sufficient voltage available from the solar system. This can be detected from

the D+ connection of the alternator to the electronics, or from the respective sig-

nal on the solar charge regulator.

Gas operation

Gas operation is selected in the following circumstances:

No supply voltage available.

The vehicle engine is not running.

Supply voltage less than 200V

REFUELLING STOP

In order to prevent unintended switching to gas operation during refuelling,

the electronic system starts gas operation of the refrigerator, after the

motor has been turned off for 15 mins. During this time the appliance is in

stand-by operation mode and only the "AUTO" L D lights up.

The use of naked flames is prohibited in petrol station environments.

If the refuelling stop lasts longer than 15 mins., the refrigerator should be

switched off at the main switch (A), or switched over to another energy

type.

Gas faults (RM 76x1 and RM 76x5)

If gas faults occur the operating L D C

flashes

yellow.

Remedies:

Set the energy selector switch (A) to position OFF.

1. Is there any gas in the gas bottle?

2. Is the gas bottle valve open?

3. Is the on-board shut-off valve open?

4. Set the main switch (A) to on

The ignition starts again.

If after about 30 seconds the operating display (C) starts flashing red

again, the gas fault has not been cleared (e.g. air in the gas pipe).

5. Briefly switch the refrigerator off and then on again using main switch (A).

To remove air from the gas pipes, repeat this procedure 3-4 times.

If these actions do not help, please call an authorised Dometic Service

Centre.

5.2.5

Frame heating

Additional functions (RM 76x5 only)

Temperature setting cooling compartment

As shown, you are able to regulate the temperature of

the cooling compartment, if necessary, by turning

rotary knob (B) .

5.2.6

5.2.

5.2.8

DOMETIC refrigerators work according to the absorption principle.

Due to physical reasons, an absorption system responds slowly to changes

made on the thermostat controller, or a loss in cooling through opening the

door, or storing food. The devices are subject to the Climatic Class SN acc. to

EN/ISO 3 1 in the temperature range of +10°C to 32°C ambient temperature.

Underneath the fascia is a knurled knob for

adjusting the brightness (see item Eabove)

TTIIPP

medium setting

The cooling units performance is influenced by ambient temperatures.

Please select the medium setting for ambient temperatures between +15°C

and +25°C. The unit operates within its optimum performance range.

Both models are equipped with a frame heating

(12VDC/3,5W) around the freezer compartment. During

summer months with high temperatures and humidity the

metal frame may have water droplets forming. To evapo-

rate these droplets switch on the frame heating with

switch (A). The L D (B) indicates that the heating is on.

The frame heating will draw 12V DC power continuously.

Observe LED (B) when the engine is shut off while parking the vehicle.

Shut off the frame heating.

5.3

 Temperature setting display (D) with 4 L D to

indicate the selected temperature (MIN - MAX)

L D - dimmer (E) for adjusting the brightness of

the display-L D

(only accessible when door opens)

Storing food

 Switch the refrigerator on approx. 12 hours before filling it.

 Always store pre-cooled foods in the refrigerator. Make sure that the food is well

cooled when it is bought and also when transporting it. Use insulated cooling bags.

 When taking food out of the refrigerator only open the refrigerator door very briefly.

Foods must be packed - best of all in closed containers - and stored separately from

each other.

 Allow foods that have been warmed up to cool down before storing.

 Store quickly perishable foods directly next to the cooling fins.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Dometic Kühlschrank Handbücher

Dometic

Dometic RM2190 Series Bedienungsanleitung

Dometic

Dometic RM 4223 Handbuch

Dometic

Dometic HIPRO CARE A30 Bedienungsanleitung

Dometic

Dometic REFRIGERATION 10-Series Bedienungsanleitung

Dometic

Dometic RC 1600 EGP Bedienungsanleitung

Dometic

Dometic NDM1062 Bedienungsanleitung

Dometic

Dometic RC 2000 Bedienungsanleitung

Dometic

Dometic RM7030 Bedienungsanleitung

Dometic

Dometic MANUAL REFRIGERATOR Bedienungsanleitung

Dometic

Dometic RH 456LDE Bedienungsanleitung

Dometic

Dometic HiPro 3000 Bedienungsanleitung

Dometic

Dometic REFRIGERATION 10-Series Bedienungsanleitung

Dometic

Dometic miniCool Bedienungsanleitung

Dometic

Dometic RM7405L Bedienungsanleitung

Dometic

Dometic ML360 CS Bedienungsanleitung

Dometic

Dometic RGE 300 Bedienungsanleitung

Dometic

Dometic NDA1402 Bedienungsanleitung

Dometic

Dometic CFF12 Bedienungsanleitung

Dometic

Dometic RH 131 Bedienungsanleitung

Dometic

Dometic RM2301 Bedienungsanleitung

Dometic

Dometic RMT 7650 Bedienungsanleitung

Dometic

Dometic REFRIGERATION 10-Series Bedienungsanleitung

Dometic

Dometic RM 4223 Handbuch

Dometic

Dometic RMS8 Series Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
