Dometic 8700 Series MasterFlush Toilet

G I

11 10

1 Notes on using the manual .................................................3

2 General safety instructions ..............................................3 - 4

3 Intended use ............................................................4

4 Components ............................................................5

5 Specications ........................................................5 - 6

6 Operation............................................................7 - 8

7 Maintenance and winterizing............................................9 - 10

8 Troubleshooting .........................................................10

9 Warranty ..........................................................11 - 12

10 Customer service........................................................12

1 Notes on using the manual

Note

Supplementary information for operating the device.

ﬁg. 1A, page 2 : This refers to an element in an illustration. In this example, item A in

gure 1 on page 2.

Caution!

Safety Instruction: Failure to observe this instruction can cause material damage and

impair the function of the device.

Table of contents

2 General safety instructions

The manufacturer will not be held liable for claims for damage resulting from the following:

• Faulty assembly or connection

• Damage to the unit from mechanical inuences, misuse or abuse

• Alterations to the unit without express written permission from the manufacturer

• Use for purposes other than those described in the operating manual

Dometic 8700 Series MasterFlush Toilet Notes on using the manual

2.1 Warning – recreation vehicle applications

The following statement must be read and understood before installing, servicing and/or

operating this product on a recreation vehicle. Modiﬁcation of this product may result in property

damage.

Dometic recommends that a qualied RV technician or electrician install or service this product with

regard to all applicable codes and regulations. Equipment damage, personal injury or death could

result from improper installation. DOMETIC ACCEPTS NO RESPONSIBILITY OR LIABILITY FOR

DAMAGE TO EQUIPMENT, OR PERSONAL INJURY OR DEATH THAT MAY RESULT FROM IMPROPER

INSTALLATION, SERVICE OR OPERATION OF THIS PRODUCT.

2.2 Warnings – marine applications

The following statements must be read and understood before installing, servicing and/or

operating this product on a boat. Modiﬁcation of this product may result in property damage.

Dometic recommends that a qualied marine technician or electrician install or service this product.

Equipment damage, injury to personnel or death could result from improper installation. DOMETIC

ACCEPTS NO RESPONSIBILITY OR LIABILITY FOR DAMAGE TO EQUIPMENT, OR PERSONAL

INJURY OR DEATH THAT MAY RESULT FROM IMPROPER INSTALLATION, SERVICE OR OPERATION

OF THIS PRODUCT.

Caution! Hazard of Flooding

If the toilet uses fresh water for ushing and is connected directly or indirectly to a shore-

side municipal water system at ANY time, shoreside water connections MUST be discon-

nected if the boat is unattended (even if boat is unattended for a brief period). Failure to do

so can result in ooding which can cause loss of property and life.

Caution! Hazard of Flooding

Before beginning any work on this product, be sure that all electrical power to the unit has

been turned off and that seacocks are in the CLOSED or OFF position. Failure to do so can

result in ooding which can cause loss of property and life.

Caution!

Overlling the holding tank can create serious damage to the sanitation system, such as

rupturing the holding tank and releasing tank contents into the bilge. To prevent this pos-

sibility, Dometic recommends using the “full” tank shut-down relay in the toilet’s electronic

control module. The “full” signal from the holding tank can be generated by an optional

Dometic DTM01C tank monitor or DTM04 four-level tank monitor system.

3 Intended use

The Dometic 8700 series MasterFlush toilet provides an electric-ush toilet that macerates waste

and pumps it to a holding tank or other efuent storage/disposal system. Operated by a wall-

mounted ush switch or electronic ush handle, the toilet allows the user to add water to the bowl

(before using or ushing) and to ush the toilet by pushing a button. The Dometic ush switch panel

includes lights to indicate when electric power to the toilet is activated, and when the holding tank (if

applicable) is full.

3.1 Beneﬁts

Convenient electronic ﬂush. Add water or ush with the touch of a button or electronic ush handle.

Choice of two water consumption settings. “Normal” ush uses 0.85 gal. (3.2 liters) per ush and adds

water to bowl after ush; “Dry Bowl” setting uses only 0.45 gal. (1.7 liters) per ush and does not add

water to the bowl.

Versatile installation. Powerful macerator pump allows toilet to be located up to 98 ft. (30 m) away and

9.8 ft. (3 m) below holding tank or other discharge line destination.

“Power on” and “full tank” indicator lights. Dometic or other ush switch panel indicates when

electrical power to toilet is activated, and when holding tank is full (when connected to holding tank level

indication system).

Automatic “full tank” shut-down. When connected to a holding tank level indication system, the 8700

series toilet control module will shut off electrical power to the toilet when the holding tank is full. This

safety features prevents overlling the holding tank, which may cause damage to the boat.

General safety instructions Dometic 8700 Series MasterFlush Toilet

Caution! Hazard of Flooding

If toilet is connected to ANY through-the-hull ttings, ALWAYS close seacocks when

toilet is not in use (even if boat is unattended for a brief period). All passengers MUST be

instructed on how to close valves when the toilet is not in use. Failure to do so can result in

ooding which can cause loss of property and life.

Dometic 8700 Series MasterFlush Toilet Intended use

5 Speciﬁcations

5.1 Materials

Toilet: vitreous ceramic

Macerator pump body: glass-lled polypropylene

Control module housing: ABS

Dometic switch panel frame: ABS

Dometic switch panel: polycarbonate resin

Flush handle: plated brass (on applicable toilet

models)

4 Components

(g. 1, page 2)

Ref. Description

A Macerator toilet

B Dometic ush switch/status panel

C Control module

D 4-wire cable to toilet

E Cable from Dometic ush switch

(RJ45 ethernet cable)

F 6-wire cable to ush switch/

status panel

G Incoming electrical power wires

H Power wires to raw water pump (opt.)

I Wire from “full tank” signal

J Floor mounting hardware kit

K Floor mounting template

L Flush handle (alternate model)

M Dometic status panel

(for ush handle model only)

N Cable for ush handle, status panel

(for ush handle model only)

Ref. Description

1 Anti-siphon valve

2 Vacuum breaker

3 Discharge loop outlet

4 Discharge adapter tting

5 Discharge hose tting

6 Macerator pump

7 Water valve

8 Water line - 0.5 in. NPT tting

9 4-pin cable connector

10 Flush handle (alternate model)

11 Flush handle cable connector

Refer to complete parts list (packed separately)

for additional information.

(g. 2, page 2)

Specifications Dometic 8700 Series MasterFlush Toilet

5.3 Dimensions (g. 3, page 2)

Models with wall-mounted

ﬂush touchpad Models with ﬂush handle

5.2 Minimum System Requirements

Ref. Dimension

A 19 in. / 483 mm

B 14 in. / 356 mm

C21.5 in. / 546 mm

D 17.5 in. / 445 mm - seat height

E 17 in. / 432 mm

F 33.5 in. / 851 mm - seat lid up

Ref. Dimension

A 19 in. / 483 mm

B 15.75 in. / 400 mm

C21.5 in. / 546 mm

D 17.5 in. / 445 mm - seat height

E 17 in. / 432 mm

F 33.5 in. / 851 mm - seat lid up

Electrical Circuit breaker 20 amps/12 V DC; 15 amps/24 V DC

Wiring* 12 ga. (up to 20 ft./6.1 m from breaker)

Water

Supply

Fitting 0.5 in. NPT

Flow rate 4 gpm/15 lpm

Maximum ow pressure 40 PSI / 276 kPa

Discharge

Inside diameter 1.5 in./38 mm or 1 in./25 mm

Horizontal run** 98 ft./30 m maximum

Vertical run** 9.8 ft./3 m maximum

* For RV installation, see Appendix on page 15.

** Horizontal and vertical run distances are not cumulative. Check for adequate discharge ow if installation nears one of these limits.

Specications are subject to change without notice.

Dometic 8700 Series MasterFlush Toilet Operation

6.1 Toilet system start-up

1. Turn on water supply to toilet.

2. Press “Flush” switch (g. 42) once. After nine seconds of water ow, macerator pump will start

and run for about six seconds to clear bowl. It will take about ve seconds to rell bowl.

3. Toss several sheets of toilet paper into bowl and repeat

cycle. The bowl should completely clear.

6.2.1 Normal toilet operation -

Dometic touchpad or other wall switch

ADDING WATER TO TOILET BOWL

Press “Add Water” switch (g. 41) until desired water level

is achieved. (Water ow will shut off automatically if switch

is pressed too long to avoid overow.) More water is usually

added only when ushing solids.

FLUSHING TOILET

Press “Flush” switch (g. 42), then release it. This activates a powerful

macerator pump that siphons water and waste from the bowl, macer-

ates, and propels the efuent through the discharge line to the holding

tank.

6 Operation

Caution – Do Not Flush Foreign Objects!

Flush only water, bodily wastes and rapid-dissolving toilet

tissue. Do not ush wet wipes, sanitary napkins, condoms,

diapers, paper cups, cotton swabs, food, hair or liquids

such as oils or solvents as clogging or damage to the toilet

or toilet system may occur.

Note

Make sure all guests understand toilet operation before use.

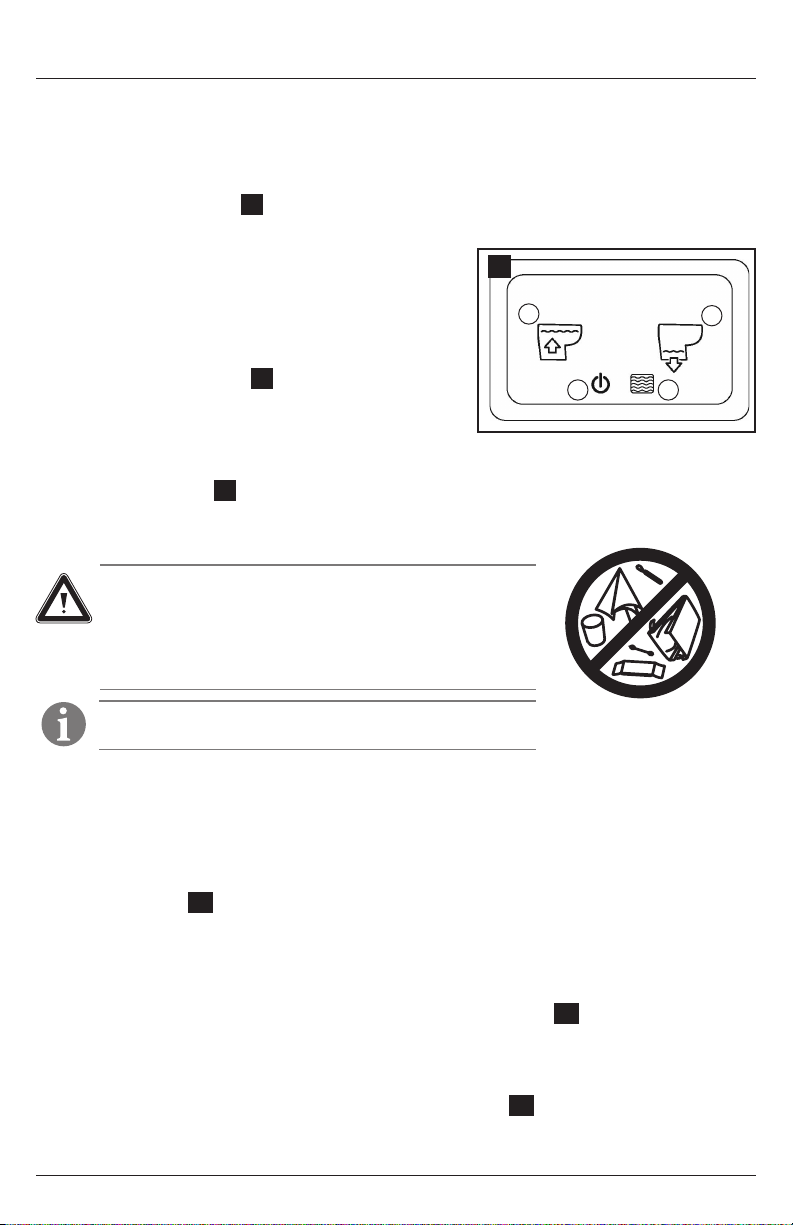

6.2.3 Indicator lights

“POWER ON” INDICATOR

On the Dometic ush switch panel, a steady green “Power On” light (g. 43) indicates when

electrical power to the toilet is activated. A momentary ashing green light indicates when ush

mode is changing.

“FULL TANK” INDICATOR

The Dometic ush switch panel includes a red “Full Tank” light (g. 44) to indicate when the holding

tank is full (if connected to a tank monitoring system) and should be pumped out. When the red light is

illuminated, electrical power to the toilet automatically shuts off to prevent overll of the holding tank.

6.2.2 Changing ﬂush modes

Dometic 8700 series MasterFlush toilets offer two ush settings to help manage water consumption:

Normal ﬂush – Uses 0.85 gal. (3.2 liters) per ush. Adds water to bowl after every ush.

Dry Bowl ﬂush – Uses 0.45 gal. (1.7 liters) per ush. Does not add water to bowl after ush.

To change from Normal to Dry Bowl ush setting, press “Flush” switch for about ve seconds. When

“Power On” light (g. 43) begins ashing, release “Flush” switch. Flush mode has been changed to

Dry Bowl setting. Change mode to Normal ush by following the same procedure.

Maintenance, Winterizing Dometic 8700 Series MasterFlush Toilet

FLUSH

ADD WATER TO BOWL

6.3.1 Normal toilet operation -

Dometic ﬂush handle and status panel

ADDING WATER TO TOILET BOWL

Lift ush handle until desired water level is achieved. (Water ow will shut off

automatically if switch is pressed too long to avoid overow.) More water is

usually added only when ushing solids.

FLUSHING TOILET

Press ush handle down, then release it. This activates a powerful macera-

tor pump that siphons water and waste from the bowl, macerates, and

propels the efuent through the discharge line to the holding tank.

Caution – Do Not Flush Foreign Objects!

Flush only water, bodily wastes and rapid-dissolving toilet

tissue. Do not ush wet wipes, sanitary napkins, condoms,

diapers, paper cups, cotton swabs, food, hair or liquids such

as oils or solvents as clogging or damage to the toilet or toilet

system may occur.

Note

Make sure all guests understand toilet operation before use.

6.3.2 Changing ﬂush modes

Dometic 8700 series MasterFlush toilets offer two ush settings to help manage water consumption:

Normal ﬂush – Uses 0.85 gal. (3.2 liters) per ush. Adds water to bowl

after every ush.

Dry Bowl ﬂush – Uses 0.45 gal. (1.7 liters) per ush. Does not add water

to bowl after ush.

To change from Normal to Dry Bowl ush setting, press ush handle for

about ve seconds. When “Power On” light (g. 51) begins ashing,

release ush handle. Flush mode has been changed to Dry Bowl setting.

Change mode to Normal ush by following the same procedure.

6.3.3 Indicator lights

“POWER ON” INDICATOR

On the Dometic MasterFlush status panel, a steady green “Power On” light (g. 51) indicates

when electrical power to the toilet is activated. A momentary ashing green light indicates when

ush mode is changing.

“FULL TANK” INDICATOR

The Dometic MasterFlush status panel includes a red “Full Tank” light (g. 52) to indicate when

the holding tank is full (if connected to a tank monitoring system) and should be pumped out. When

the red light is illuminated, electrical power to the toilet automatically shuts off to prevent overll of the

holding tank.

7.1 Cleaning the toilet

To maintain the toilet’s original, lustrous appearance, use Dometic Toilet Bowl Cleaner or other

non-abrasive bathroom and toilet bowl cleaners. Please follow label directions.

7.2 Routine maintenance

MONTHLY

1. Inspect toilet, plumbing, and plumbing connections, wires, and wire connections.

2. Open and close all plumbing valves, including seacocks.

3. Check in-line water lters and vented loops for blockage

YEARLY

Check water valve lter. Also check water valve lter if water ow into toilet becomes insufcient.

7.3 During extended periods of non-use

The macerator toilet and sanitation hoses should be protected if toilet will not be needed for an

extended period of time (more than two weeks, especially in hot weather).

1. Flush toilet in “Normal” mode and add 4 oz. (118 ml) of liquid biodegradable laundry detergent

(should NOT contain bleach or environmentally harmful substances). Note: If using sea water for

ushing, shut off power to sea water pump and add fresh water by pouring directly into the bowl

during the ush cycle.

2. Flush toilet at least ve times.

3. Turn off water supply to toilet.

4. Flush the toilet without water. Repeat three times. (This procedure will minimize any remaining

water in the macerator pump.)

5. Turn off power to the toilet.

If system will be subjected to freezing temperatures, please follow above procedure, and then

winterize system as described below.

7 Maintenance and winterizing

Caution

To avoid damaging internal seals, do not clean toilet with abrasive cleaners, caustic

chemicals, or lubricants and cleaners that contain alcohols or petroleum distillates.

PRESSURIZED FRESH WATER SYSTEM

1. Drain potable water tank and empty holding tank.

2. Add freshwater antifreeze to potable water tank.

3. Flush potable water antifreeze and water mixture through toilet(s) and into entire system,

including the waste holding tank, diverter valve connections, discharge pumps, etc. Turn off

power to toilet.

Each installation is different, so amounts may vary. User discretion is required to assure

adequate protection.

7.4 Winterizing

At the end of each season, the Dometic macerator toilet should be winterized for storage by using

potable water-safe antifreeze (if boat or vehicle will be exposed to freezing temperatures).

Caution

Never use automotive-type antifreeze in freshwater systems.

Note

Use nontoxic antifreeze designated for potable water systems. (See boat or vehicle

owner’s manual.)

Dometic 8700 Series MasterFlush Toilet Maintenance, Winterizing

8 Troubleshooting

Problem Possible Cause Service Instruction

1. Flush cycle operates correctly

but water in the bowl empties

slowly or not at all.

a. Discharge piping is pinched or

kinked.

b. Discharge piping is too high.

(Remember, all upward vertical

loops should not exceed a total

of 9.8 feet / 3 m in height.)

c. The macerator pump or

discharge piping is blocked.

a. Check discharge piping.

b. Reroute discharge piping.

c. Close seacocks and clear

blockage.

2. Macerator pump makes

unusually loud noise or

continually trips breaker.

a. Foreign material in pump

chamber.

a. Close seacocks and clear foreign

material.

3. Flush cycle is not activated

after pushing on ush switch or

handle.

a. Holding tank is full and signal

from tank has shut down

electrical power to toilet.

b. Electrical power to toilet is shut

off or disrupted.

c. Flush switch is malfunctioning.

d. Circuit board in control module is

malfunctioning.

a. Empty holding tank.

b. Check wiring and circuit

breakers (or fuses).

c. Replace ush switch.

d. Replace control module.

4. Insufcient or no water enters

the bowl.

a. Water supply line is pinched or

kinked.

b. Screen in water valve is blocked.

c. Intake water lters are blocked

(in raw water system).

d. Water valve is malfunctioning.

a. Check water supply line.

b. Clear blockage at water valve.

c. Clear water lters.

d. Replace water valve.

5. Insufcient water ow during

bidet operation.

a. Clogged inlet screen at hot or

cold connection at toilet/bidet

mixer valve.

b. Clogged aerator in bidet nozzle

inside toilet bowl.

c. Toilet/bidet mixer valve assembly

is not functioning properly.

a. Disconnect water lines from

mixer valve and clean screens.

b. Unthread aerator nozzle and

clean.

c. Replace mixer valve assembly.

Troubleshooting Dometic 8700 Series MasterFlush Toilet

RAW WATER SYSTEM

Parts required: • 1.5 in. (38 mm) ID hose, about 3 ft. (1 m) long

• 0.625 in. (16 mm) ID hose, about 3 ft. (1 m) long

• two containers

1. Close intake and discharge seacocks. See Hazard of Flooding risks in this manual.

2. Turn off power to toilet.

3. Disconnect and drain intake hose, discharge hose, and in-line lters.

4. Connect 0.625 in. (16 mm) ID hose to raw water pump intake and 1.5 in. (38 mm) ID hose to toilet

discharge.

5. Place one container under hose connected to toilet’s discharge.

6. Place hose connected to intake pump into bucket with antifreeze and pour antifreeze in other

container.

7. Turn on power to toilet and ush until antifreeze is removed from toilet.

8. Disconnect power to toilet and reconnect all intake and drain hoses.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Dometic Toilette Handbücher

Dometic

Dometic Saneo Series Bedienungsanleitung

Dometic

Dometic CT*4 series Bedienungsanleitung

Dometic

Dometic SeaLand MasterFlush 7120 Bedienungsanleitung

Dometic

Dometic SailVac VHT 5200 Series Bedienungsanleitung

Dometic

Dometic SeaLand MasterFlush IT 8100 Series Bedienungsanleitung

Dometic

Dometic SeaLand MasterFlush MF 7200 Series Bedienungsanleitung

Dometic

Dometic CT 3050 Bedienungsanleitung

Dometic

Dometic 4300 Series Bedienungsanleitung

Dometic

Dometic 9107100630 Bedienungsanleitung

Dometic

Dometic 4300 Series Bedienungsanleitung

Dometic

Dometic CT 4110 Bedienungsanleitung

Dometic

Dometic MasterFlush Series Bedienungsanleitung

Dometic

Dometic Saneo B Bedienungsanleitung

Dometic

Dometic CT 4110 Bedienungsanleitung

Dometic

Dometic CT*4 series Bedienungsanleitung

Dometic

Dometic CT 4110 Bedienungsanleitung

Dometic

Dometic MasterFlush 8100 Series Bedienungsanleitung

Dometic

Dometic VacuFlush 4700 Series Bedienungsanleitung

Dometic

Dometic 970 SERIES Bedienungsanleitung

Dometic

Dometic SANIPOTTIE 970 Series Bedienungsanleitung

Dometic

Dometic MasterFlush 8740 Bedienungsanleitung

Dometic

Dometic 4000 Series Bedienungsanleitung

Dometic

Dometic 300 Series Bedienungsanleitung

Dometic

Dometic MASTERFLUSH MF7100 Bedienungsanleitung

Beliebte Toilette Handbücher anderer Marken

Toto

Toto Washlet TCF4911 Series Bedienungsanleitung

Kohler

Kohler K-6419 Bedienungsanleitung

Grohe

Grohe Sensia ARENA Bedienungsanleitung

Kohler

Kohler K-5171K Montageanleitung

Geberit

Geberit AQUACLEAN MERA CLASSIC Bedienungsanleitung

Kohler

Kohler K-24097X Montageanleitung

Better Bathrooms

Better Bathrooms BUN/BeBa 27555/78725 Bedienungsanleitung

American Standard

American Standard CONCEPT Cube TF-2704 Bedienungsanleitung

BIOLAN

BIOLAN ECO Stücklistenhandbuch

Thetford

Thetford C260 Series Bedienungsanleitung

KELISS

KELISS T162A Series Bedienungsanleitung

Kohler

Kohler K-22241K Montageanleitung

Kohler

Kohler ESCALE K-32771T-NS Bedienungsanleitung

BIOLAN

BIOLAN GARDEN TOILET Stücklistenhandbuch

washloo

washloo Prestige Bedienungsanleitung

JABSCO

JABSCO 37010 Series Bedienungsanleitung

Drive

Drive TSE 150 Bedienungsanleitung

Olympia

Olympia EPOQUE 69209 Bedienungsanleitung
