STAND ALONE CARD READER SYSTEM
DoorKing’s Stand Alone Card Reader is designed to manage an access point without needing a access control system. Memory for 1000 cards (DK
Prox Reader). It’s relay output controls electric strikes or magnetic locks. Free exit input allows exit button to open door. 26-Bit wiegand input
allows connection of a second card reader. Programming using control cards or IR remote. 12VDC power supply included.
ADD card
DELETE card
Control Cards
(included)
Do not mount the card reader to a moving gate, or immediately next to a gate panel or pedestrian gate. Continuous vibration from slamming gates and vibration can
cause damage to the system over time. WARNING! If the card reader is used to activate a vehicular gate operator, it must be mounted a minimum of 10 feet away
from the gate and gate operator, or in such a way that the user cannot come into contact with the gate or gate operator while using the card reader.
Installation
123
456
789
0
#
EXIT
DELR
EV
ADD CALL
IR Remote
(included)
Power
Supply
(included)
Card Reader with Lighted Enclosure
(P/N 1524-080)
Optional Mounting:
Enclosure can be mounted on
a DoorKing gooseneck
mounting post (not supplied).
Important:
After installation, the card
reader will need to be
programmed for desired
features using the control
cards and/or the IR remote
(see back page).
Mounting Note:
Be sure to clean out enclosure
of any debris after installation
that can cause a short.
Mounting Note:
Can be custom
mounted directly
to a wall.
ADD card
DELETE card
Control Cards
(included)
123
456
789
0
#
EXIT
DEL REV
ADDCALL
IR Remote
(included)
Power
Supply
(included)
Card Reader Only
(P/N 1524-331)
Gray - Normally Closed (NC)
Purple - Common
Blue - Normally Open (NO)
Green - Data 0 (wiegand)
White - Data 1 (wiegand)
Yellow - Exit Push Button
Black - 12VDC Common
Red - +12VDC
8-Pin Connector Wiring
RED - +12VDC
BLACK - 12VDCCOM
PURPLE - COM
YELLOW -PUSH
GREEN - Data 0
WHITE - Data1
GRAY - NC
BLUE - NO
HM 1000
Mounting Hole
Mounting Hole
8-Pin
Connector
Mounting
Plate
Mounting Screw
Card Reader Assembly
12VDC
Power
Supply
Optional Second 26-Bit
Wiegand Card Reader
Lighted enclosure’s
factory wired
power for LED light.
(P/N 1524-080)
Push Button
(Free Exit)
Electric
Strike
Maglock
NC
NO
12VDC
Ground
Data 1
Data 0
Positive
Negative
EXIT
PUSH TO
DoorKing Part Numbers
Copyright 2015 DoorKing, Inc. All rights reserved.
120 S. Glasgow Avenue
Inglewood, California 90301 U.S.A.
Separate
Power
Supply
Separate
Power
Supply
1524-331 1524-080
card reader only card reader with lighted enclosure
Enclosure has
LED light to
illuminate
card reader
1
1524 065-M-8-15

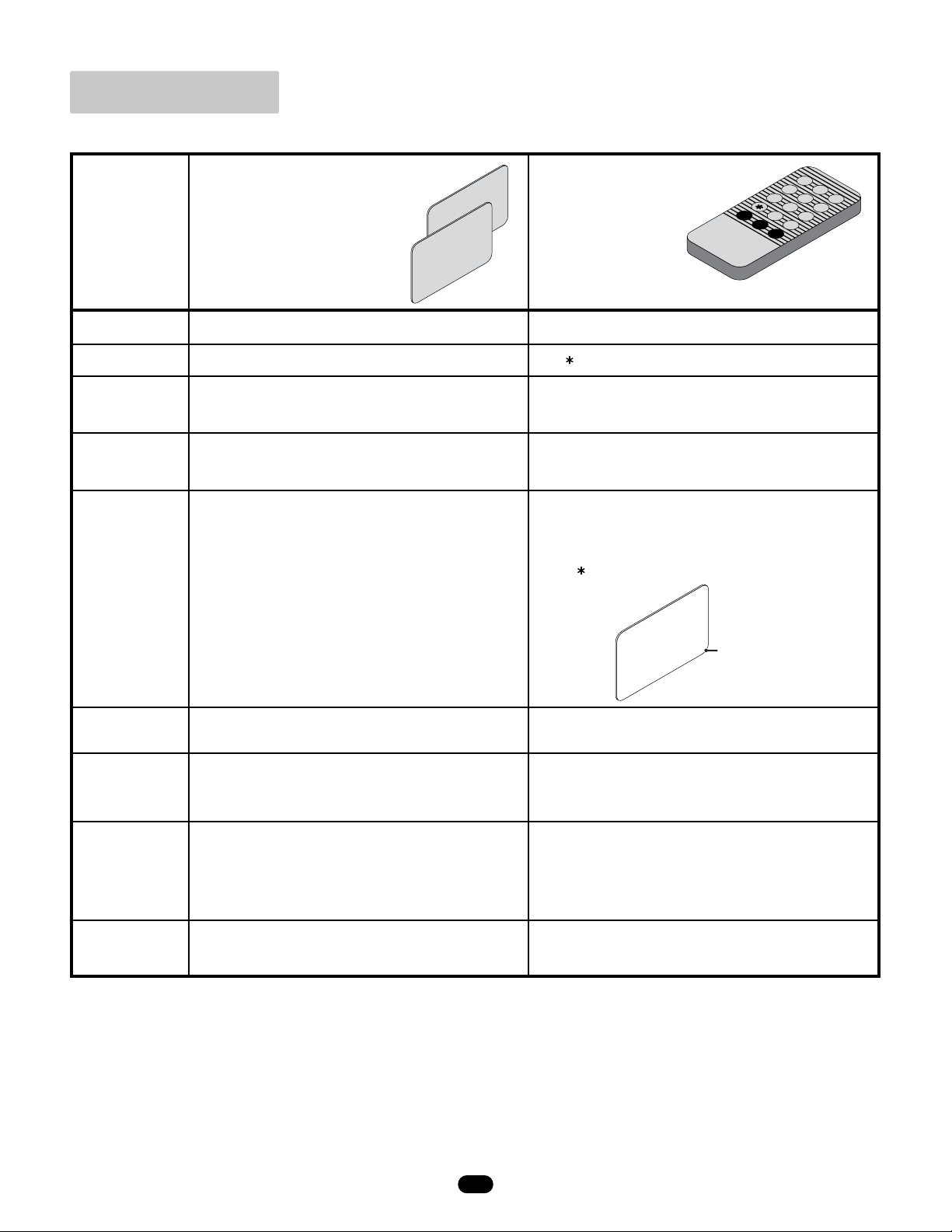

Programming
8Digit
Card Code
Registered Card
065,00678
Operation Using Control Cards Using IR Remote
Use ADD and/or DELETE card (see desired operation below).
Use ADD and/or DELETE card (see desired operation below) or wait until green
LED turns off.
1. Present ADD card (green LED flashes).
2. Present new card (reader beeps).
3. Repeat step 2 with additional new cards.
4. Present ADD card or wait until green LED turns off to exit programming.
1. Present ADD card (green LED flashes).
2. Present DELETE card (reader beeps).
3. Present DELETE card once for each second of time before door will release
(i.e. swipe DELETE card 3 times for three seconds).
4. Wait until green LED turns off to exit programming.
press “#”, followed by the 6 digit password (green LED on).
Manufacturer’s default is “000000”.
press “ ” or wait until green LED turns off.
This function is NOT programmable using IR Remote.
This function is NOT programmable using IR Remote.
NOT applicable.
NOT applicable.
Enter programming mode
Exit programming mode
Enroll one or more new
cards one at a time.
Record card #’s on log
sheet for future reference.
1. Present DELETE card (green LED flashes).
2. Present card to be deleted (reader beeps).
3. Repeat step 2 with additional cards to be deleted.
4. Present DELETE card or wait until green LED turns off to exit programming.
1. Enter programming mode with remote (See above).
2. Press “6” (green LED flashes).
3. Enter 8digit card number, 3 digit FC, 5 digit CC.
4. Repeat step 2 and 3 with additional cards to be deleted.
5. Press “ ” or wait until green LED turns off to exit programming.
1. Enter programming mode with remote (See above).
2. Press “4” TWICE. THIS CANNOT BE UNDONE.
Delete one or more cards
one at a time.
1. Enter programming mode with remote (See above).
2. Press “5” (green LED flashes).
3. Enter 3 digit release time (i.e. “001” for 1 second,
“030” for thirty seconds, “255” for 255 seconds).
Change door release time
(1 - 255 seconds)
Create new ADD and
DELETE control cards.
1. Enter programming mode with remote (See above).
2. Press “7” (green LED flashes).
3. Present first new card - this is new ADD card (reader beeps).
4. Present second new card - this is new DELETE card (reader beeps).
Note: Discard OLD ADD and DELETE control cards.
1. Enter programming mode with remote (See above).
2. Press “1” (green LED flashes).
3. Enter new 6 digit password (reader beeps).
Change Password.
1. Present DELETE card 5 times (reader beeps).
2. Present ADD card 5 times (long beep). THIS CANNOT BE UNDONE.
Delete ALL cards.
1. Present ADD card TWICE (green LED flashes).
2. Present FIRST card in the block of cards (reader beeps).
3. Present LAST card in the block of cards (reader beeps).
4. Present ADD card or wait until green LED turns off to exit programming.
Enroll a block of new
cards.
Record card #’s on log
sheet for future reference.
ADD card
DELETE card
123
456
789
0
#
EXIT
DEL REV
ADD CALL
DoorKing Part Numbers
1524-331, 1524-080
card reader only card reader with lighted enclosure
2
1524 065-M-8-15
Card Code Log Sheet
Name 8-Digit Card Code
Facility Code #, Device #
Make extra copies of this page as needed.
Name 8-Digit Card Code
Facility Code #, Device #
3
1524 065-M-8-15
