OPERATION INSTRUCTION
2-Wire Audio Intercom System
Indoor Monitor
Outdoor Units
User Manual
Base
Microphone
Unlock button
Call transfer button
Power LED
Intercom LED
1
2
5
3
6
4
INDOOR MONITOR APPEARANCE INTRODUCTION
1
1. Intercom function: When call from outdoor station, indoor monitor
will ring, answer the call can intercom with outdoor station, the green
LED is ON; Hang up the handset, restore to standby mode, the green
LED is OFF.
2. Unlock function: When intercom with outdoor station, press unlock
button to unlock the door.
3. Call transfer function: When intercom with outdoor station, press
call transfer button, hang up handset cant transfer the call to other
indoor monitors.
4. Internal call function: When in standby mode, pick up the handset,
press call transfer button, can call other indoor monitors.
Power supply: Enternal switching power supply(DC15)
Working current: 150mA
Working Temp: -40℃ ~+60℃
Product paramenter:
INDOOR MONITOR OPERATION INSTRUCTION
The back of the handset switch default dialed to the “1” position,
means the handset as the master, dialing switch to the “on” position
means the handset as an extension.
Note: when connecting extension, the master handset should switch
to “1”, the extension handset should switch to “on”.
How to setup the extension handset:
2
Switch Switch Switch
1 1 1
+ + +
+ + +
+ + +
- - -
- - -
- - -
ON ON ON
DC15V DC15V DC15V
Slave Slave Slave
Door Door Door
Door
Power Power Power
...Slave(4)

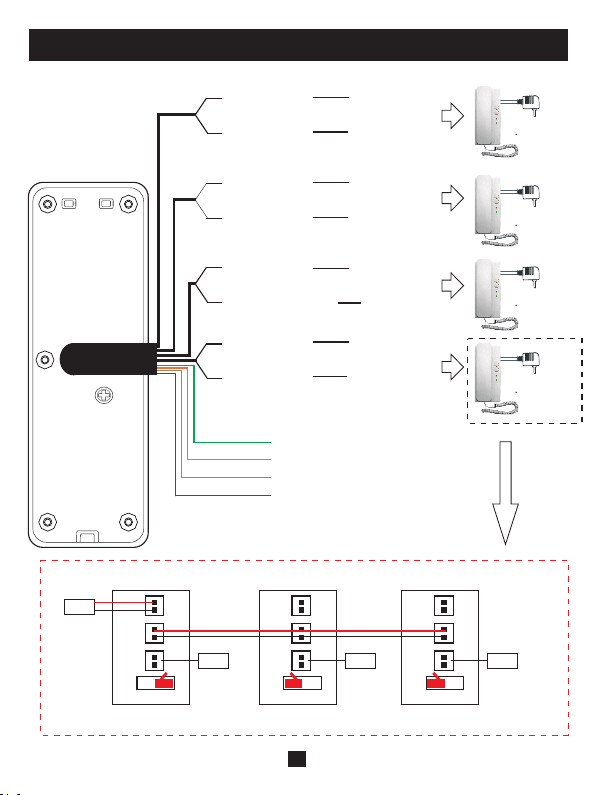

WIRING DIAGRAM
Grey(GND)
Black(GND)
Black(GND)
Yellow(GND)
Wh ite(V1+)
Re d(V2+)
Wh ite(V3+)
Bl ue(V4+)
GND(Door)
GND(Door)
GND(Door)
GND(Door)
V+(Door)
...Slave(2-4)
...Slave(2-4)
...Slave(2-4)
...Slave(2-4)
V+(Door)
V+(Door)
V+(Door)
Purple(V Lock+)
Orange(COM)
Brown(NC)
Green(NO)
3
Master Slave Slave
148mm
HOW TO INSTALL THE INDOOR UNIT
4
Note:
INSTALL THE INDOOR UNIT
Please be far from the devices
with intense radiation: TV, DVR,
etc.
Do not disassemble privately to
avoid the electric shock.
Do not drop, shake or knock the
device, otherwise will damage
the elements.
Choose the best position to install, the horizontal view is 150cm.
Please power down before installation.
Keep at a distance of more than 30cm with AC power to avoid
interference.
Away from the water, magnetic field and chemicals.
Access unit -------------------------------------------------------------
Plastic Anchors --------------------------------------------------------
Screws ------------------------------------------------------------------
User manual -----------------------------------------------------------
1PCS
2PCS
2PCS
1PCS
2 Pin line ---------------------------------------------------------------- 3PCS
INDOOR MONITOR ACCESSORIES
5
22
2
2
33
3 3
11
1 1
4
55
5
66
6
7
7
7
1 4 7
3 6 9
2 5 8
Microphone
Notice: Long press button 5s switch AHD/CVBS signal.
Speaker
Call button(Indoor1)
Call button(Indoor2)
Call button(Indoor3
Call button(Indoor4)
Volume regulator
Name Tag
System port
OUTDOOR UNITS APPEARANCE INTRODUCTION
6
9
8
OUTDOOR UNITS WIRING DIAGRAM
Switch Switch Switch
1 1 1
+ + +
+ + +
+ + +
- - -
- - -
- - -
ON ON ON
DC15V DC15V DC15V
Slave Slave Slave
Door Door Door
Door
Power Power Power
...Slave(4)
Grey(GND)
Black(GND)
Black(GND)
Yellow(GND)
Wh ite(V1+)
Re d(V2+)
Wh ite(V3+)
Bl ue(V4+)
GND(Door)
GND(Door)
GND(Door)
GND(Door)
V+(Door)
...Slave(2-4)
...Slave(2-4)
...Slave(2-4)
...Slave(2-4)
V+(Door)
V+(Door)
V+(Door)
Purple(V Lock+)
Orange(COM)
Brown(NC)
Green(NO)
7
Master Slave Slave
COM( Orange)
V Lock + (Purple)
GND( Grey)
NO(G reen)
NO(G reen)
COM( Or ange)
Power
OUTDOOR UNITS PRODUCT SPECIFICATIONS
COM(Orange)
Power
NC(Brown)
8
