Doro MoveEasy 316 Bedienungsanleitung

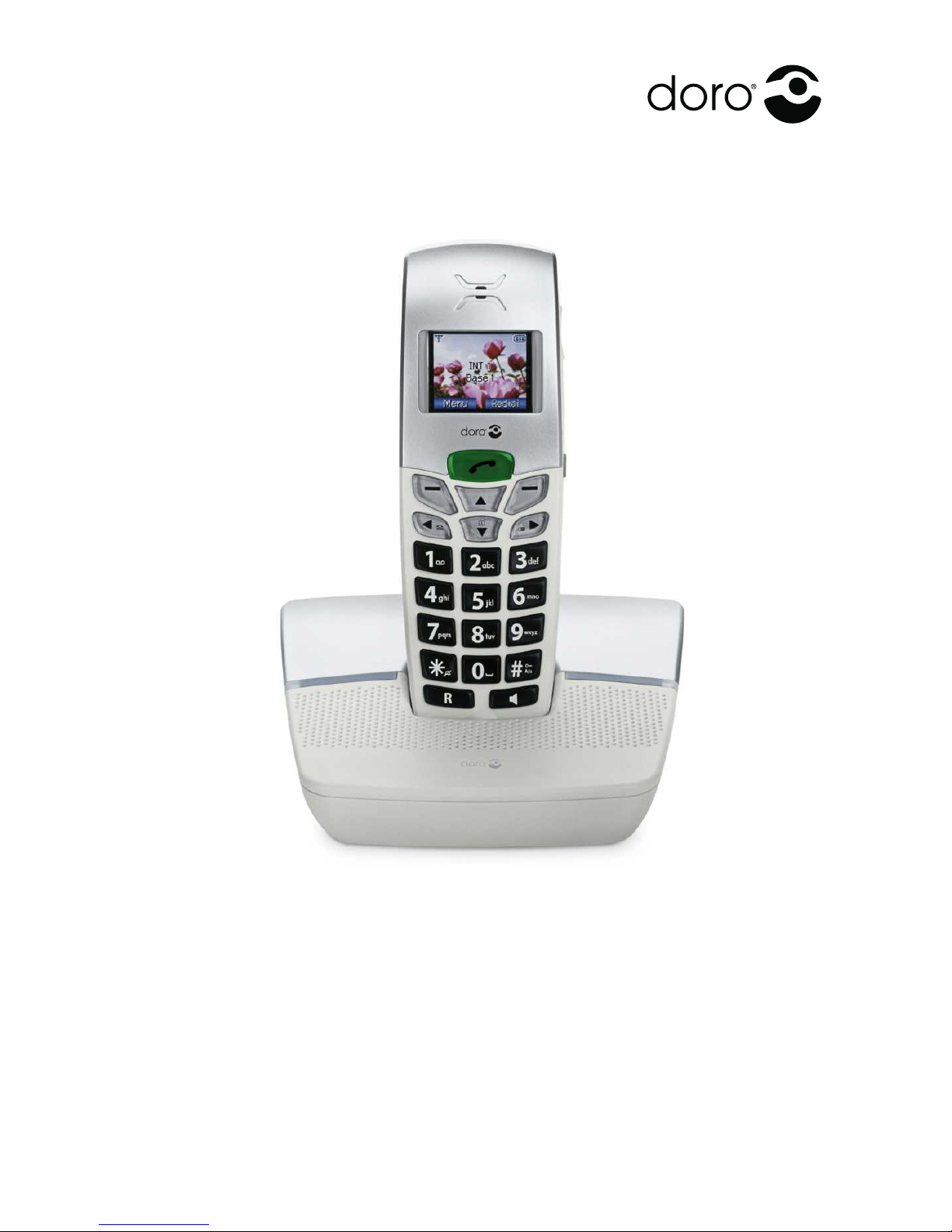

doro MoveEasy 316

English

1 Dialling indicator

2 Line button

3 Left menu button/OK

4 LEFT/messages

5 *and ringer signal off/on

6 R button (Recall)

7 Speaker

8 #and keypad lock

9 DOWN/Phone book

10 RIGHT/Redial

11 Right menu key/Delete/

Redial

12 Headset jack

13 UP/Illuminate

14 Volume

Connection................................1

The display................................2

Base unit indicators..................2

Battery.......................................3

Coverage...................................3

Making a call.............................3

Receiving a call.........................3

Volume control..........................4

Redialling...................................4

Temporary silent mode............4

Key lock.....................................4

Speaker/Group listening...........4

Paging .......................................4

Phonebook................................5

Incoming numbers (caller ID) ..6

SMS messages........................7

Handset Settings......................9

Cordless Baby Monitor ............10

System settings ........................11

Call barring................................12

Net. Provider .............................13

Network services......................13

Expanded system (+1) .............14

Specic absorption rate (SAR)15

Declaration of conformity.........15

UK..............................................15

Guarantee.................................15

Troubleshooting ........................16

English

Connection

1. Connect mains adapter and phone cable to respective wall sockets.

2. Insert the batteries(AAA 1.2V NiMH) in the handset

with plus and minus terminals as directed.

3. Charge the handset with the keypad facing

outwards (for 24 hours the rst time).

4. Select language/date by following the instructions below.

Language

5. Press {to illuminate the display.

6. Press Menu.

7. Scroll to Handset Set/Cong. Poste with

the scroll button ({/}). Press OK.

8. Scroll to Language/Langue. Press OK.

9. Scroll to required setting. Press OK.

10.Hold down Back to return to standby.

Date/Time

11.Press Menu. Scroll to Base Set. Press OK.

12.Scroll to Date/Time. Press OK.

13 Set date (DD.MM.YY). Press OK.

14.Enter time of day (HH MM). Press OK.

15.Hold down Back to return to standby.

Setting Recall Time button

16.Press Menu. Scroll to Base Set. Press OK.

17.Scroll to Dial Set. Press OK.

19.Enter the base unit PIN code (0000 on delivery).

20.Scroll to Recall Time. Press OK.

21.Scroll to desired setting. The normal setting is 98 ms for UK and Australia.

270 ms in France/Portugal. 600ms is for New Zealand). Press OK.

22.Hold down Back to return to standby.

English

The display

Indicator Function

6Shown within range of the base unit. Flashes when out of range.

INT Internal call.

Ring signal turned off with the *key.

q Handset is connected (during calls).

a Message indication*.

*Caller ID/New SMS received*.

HAlarm activated.

Battery charge indicator.

INT 1 Handset number (when using more than one handset).

Base 1 The handset is connected to base unit 1.

Press 19 Key lock activated.

Function description for the key shown below the text, e.g. OK

to conrm.

* Only functions in certain countries.

To conserve battery power the display is very dark in standby

mode, press {to illuminate.

Base unit indicators

Illuminated on standby, ashes when telephone rings.

English

Battery

Because batteries only have a certain lifespan it is quite normal that call time

and standby time will decrease somewhat compared to the specications when

the telephone is used regularly.

Fully-charged batteries (10 hours charging) will last for approx. 120 hours

standby time or approx. 10 hours call time. These operation times apply at

normal room temperature.

Full battery capacity will not be reached until the batteries have been charged

4-5 times.

The base unit has an automatic charging mechanism that prevents the batteries

from being overcharged or damaged due to prolonged charging.

The display is unlit during charging, to check battery level press {or lift the

handset.

Please note!

The base unit should not be located close to other electrical equipment, in direct sunlight or near

any other strong heat source! This is to minimize the risk of interference.

It is normal for the device to become warm during charging and is not dangerous. Use only

DORO original batteries. The guarantee does not cover any damage caused by incorrect batteries.

Coverage

The telephone’s coverage will vary normally between 50 and 300 metres,

depending on whether the radio waves carrying the conversation are blocked by

obstacles in their path. Coverage can be improved by turning ones’ head so that

the handset is aligned with the base unit.

Sound quality declines as the limit is reached until the call is nally interrupted.

Making a call

1. Enter the required number.

2. Press q, and the number will be dialled. Press qto terminate the call.

Receiving a call

1. Wait for the handset to ring.

2. Answer the call by pressing q. Terminate the call with q.

Please note!

You can press Menu during a call to access certain functions. See Operator Services for more

information.

When the battery is low or when there is too great a distance to the base unit the telephone will

be unable to connect to a line.

English

Volume control

Adjust the volume during a call with the scroll button ({/}).

Redialling

Press Redial and scroll through the 10 last dialled numbers. Press q.

Temporary silent mode

When someone calls, you can press Silent to turn off the handset ring signal.

Key lock

Lock the keypad by pressing #until Press 19 is displayed.

Unlock keypad by pressing 19.

The keypad will be unlocked if the handset is placed in the base unit.

Speaker/Group listening

The handset can be placed on the table, leaving your hands free. Group listening

means that you hold the handset to your head in the usual way, but the call will

be heard through the speaker if you want other people in the room to listen.

1. Once the call has been connected, press several times to switch

between group listening, speaker mode and handset mode.

2. Press qto terminate call.

Please note!

Please remember that in handsfree speaker mode, it is only possible for one person at a time to talk.

Paging

The handset will ring when Jon the base unit is pressed. The signal will stop

automatically after a while or if the qbutton on the handset or the Jbutton

on the base unit is pressed.

English

Phonebook

The phonebook can store 100 names and telephone numbers.

If you subscribe to a caller ID service the name in the phonebook will be

shown for incoming calls.

It is possible to choose between various ring signals (VIP) for the numbers

saved in the phonebook (only functions if you subscribe to a caller ID service).

You can select the desired VIP melody, see the Signals chapter. However, the rst

signal can sound normal before the number is compared with the phonebook.

Letters

Each number key has been allocated certain letters. The phone book is arranged

according to the order of the buttons, which is not the same for all languages.

0...........................................[Space]

#...........................................Change between upper/lower case

Store name/number in handset

1. Press b. Press Option.

2. Scroll to Add Entry. Press OK.

3. Press equivalent digit key one or more times for desired name.

4. Scroll to <Number>. Enter the telephone number,

including the area code. Press OK.

You can insert a space in the telephone number by pressing and holding R.

Dialling from the phonebook

1. Press b.

2. Scroll among the entries. It is also possible to make a

quick search in the phonebook by pressing the equivalent

numeral button for the rst letter one or more times.

3. Press O, and the number will be dialled.

Changing telephone numbers/names

1. Press b. Scroll to desired entry. Press Option.

2. Scroll to Edit Entry. Press OK.

3. Edit the name/number. Press OK.

Deleting entries

1. Press b. Scroll to desired entry. Press Option.

2. Scroll to Delete Entry or Delete List. Press OK.

3. Conrm by pressing OK.

English

Incoming numbers (caller ID)

The display shows you who is calling and the 50 most recent incoming

numbers.

New SMS message/Caller ID is indicated by *in standby mode.

If the same number calls in more than once it will be saved as only one entry.

Please note!

This function requires a subscription from your service provider.

Retrieving and dialling incoming numbers

1. Press 8. Scroll to Caller list. The number of

new calls is displayed. Press OK.

2. Select New Calls or All Calls. The number of

received calls is displayed. Press OK.

3. Scroll to selected entry. Press Oto dial number or press Back.

Caller identication messages

Date/time not set.

Unavailable No information received, e.g. an international call.

Withheld Number cannot be shown. Possibly a call from a telephone

exchange.

Deleting a number

1. Scroll to required entry according to description above.

2. Press Option and scroll to Delete or Delete List. Press OK.

3. Conrm by pressing OK.

Storing a number in the phone book

1. Scroll to required entry according to description above.

2. Press Option and scroll to Copy to Phone. Press OK.

3. Enter names in the same way as for the phonebook.
