Extend the Life of Your Dosatron
REBUILD KIT
D14MZ3000VFII
Part #: MKD14MZ3000VF
Kit includes:
Part 1: Piston Kit
Upper ange
Lower ange
Omega spring
Connecting rod
Push rod seal
Part 2: Seal Kit
Injection sleeve o-ring
Injection stem o-ring
Check valve assembly
Plunger with seal
CHAT at www.dosatronusa.com
This kit is for the Dosatron D14MZ3000VFII and consists of two parts:
Congratulations on purchasing your
Dosatron Rebuild Kit.
Part #: MKD14MZ3000VF

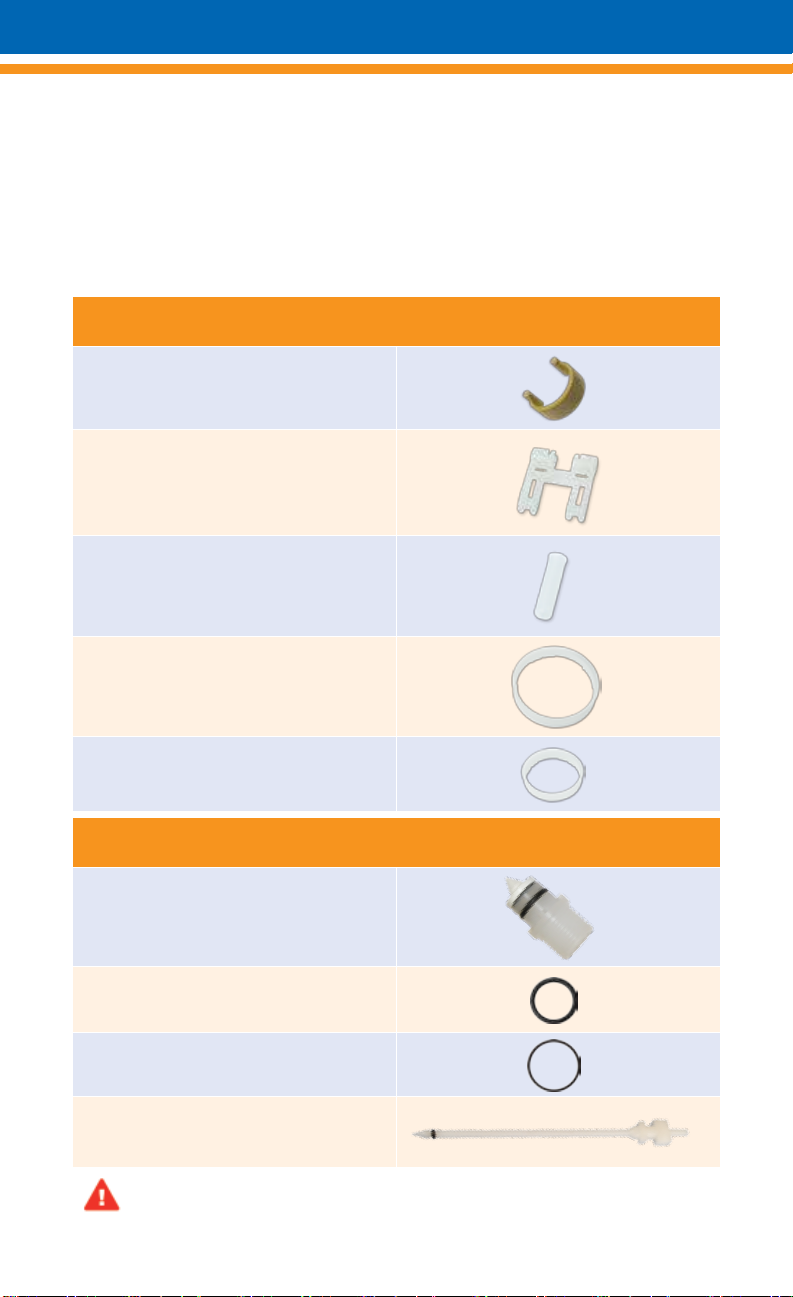

Part 1 - Piston Kit Contents:
PDI651 - Omega Spring
PDI649 - Connecting Rod
PDI648 - Push Rod Seal
PDI643 - Upper Flange
PDI644 - Lower Flange
• Part 1 - Piston Kit
Part 2 - Seal Kit Contents:
PJDI140 - Check Valve Assembly
JDI120 - Injection Stem O-Ring
JDI100 - Injection Sleeve O-Ring
PJDI138 - Plunger With Seal
• Part 2 - Seal Kit
Remember to wear proper protection when performing maintenance
such as gloves, eyewear, and apron.
800-523-8499 • 727-443-5404
MKD14MZ3000VF
Part 1: Piston Kit Instructions
Begin by removing the piston
from your Dosatron injector.
Unscrew and remove the bell
housing (you may use a
universal strap wrench), pulling
the piston out of the body. Set
the bell housing and body aside.
Position needle nose pliers
near the top of the plunger,
and carefully twist the plunger
counter clockwise to remove.
In order to remove the top or
larger diameter ange, locate the
small notch inside the black
piston shell. This is where a
tooth, on the inside of the
ange, locks it into place.
1
2
3
1
CHAT at www.dosatronusa.com
You will need to apply pressure
to the ange on either side of
the notch as you twist the ange
counter clockwise. It may be
a snug t. Lift to remove and
discard.
Flip the piston upside down
and follow steps 3 and 4 to
remove the lower or smaller
diameter ange.

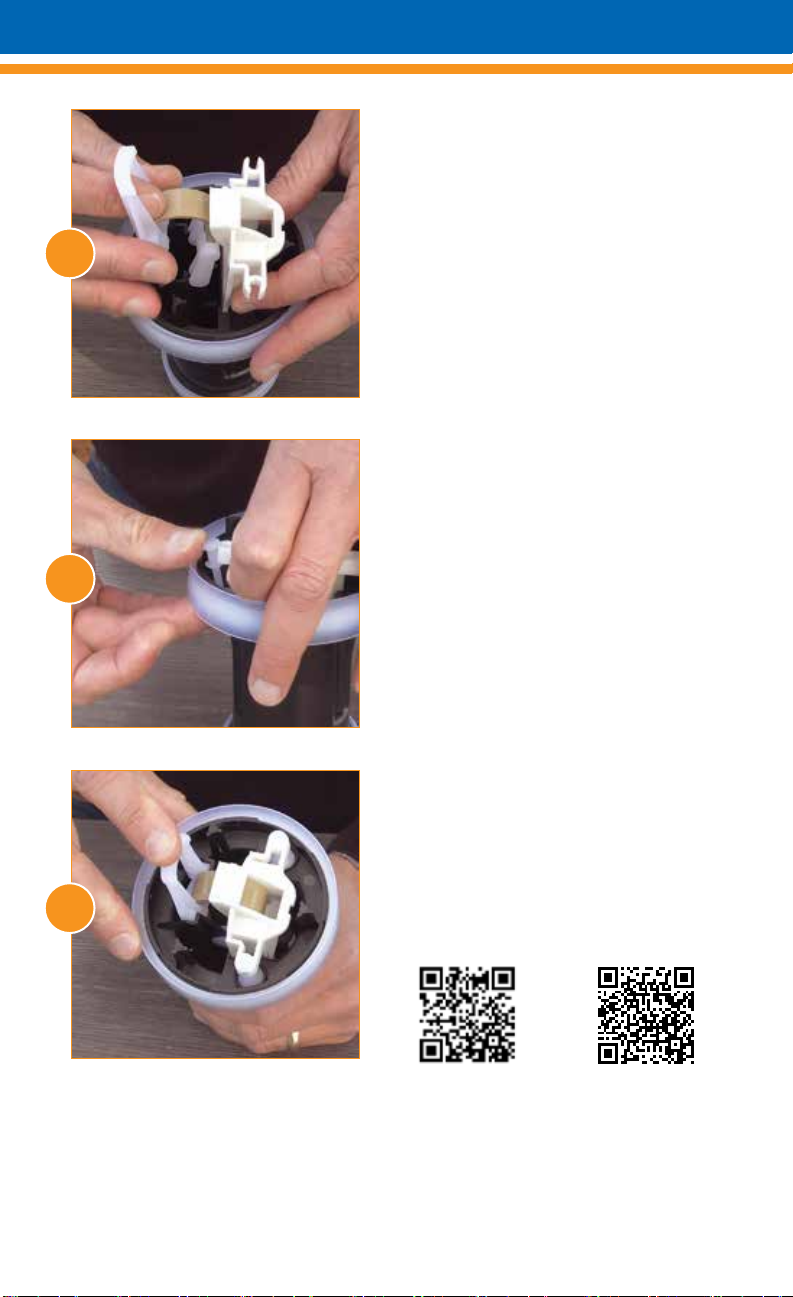

To remove the motor and valve
support assembly from the
piston shell, you will need a
at head screwdriver. Using
the screwdriver, remove the
upper valves from the guide.
The valves look like golf tees
and will drop down and out of
the piston shell. Set them aside.
4
5
6
2
800-523-8499 • 727-443-5404
Grasp the top of the white plastic
parts of the mechanism and lift
straight up.
You now have two
subassemblies – the push rod
on the left and the valve support
frame on the right.
In order to disassemble the push
rod, remove the connecting rod
off the Omega spring.
9
8
7
3
CHAT at www.dosatronusa.com
Twist to remove the Omega
spring out of the push rod.
Install the new Omega Spring
(Part #: PDI651) by carefully
pushing the Omega spring into
the push rod.
Slide the other end of the Omega
spring into the new Connecting
Rod (Part #: PDI649). The key
to this step is to make sure the
curved top of the push rod faces
in the same direction as the
Omega spring.
Replace the Push Rod Seal
(Part #: PDI648). Remove by
grasping and turning counter
clockwise. Carefully slide the
new push rod seal onto the
push rod as far as it will go and
twist a quarter turn clockwise
to lock.
10
11
12
4
800-523-8499 • 727-443-5404
Install the new Upper Flange
(Part #: PDI643) by locating the
small tooth on the inner diameter
of the ange.
Now locate the notch on the
piston shell.
Be careful not to install the
ange upside down.
14
13
15
5
CHAT at www.dosatronusa.com
Align the tooth with the shell and
press down and twist a quarter
turn clockwise to lock. If it is
difcult to twist or if the ange
lifts up easily, just remove the
ange, realign and try again.
Install the new Lower Flange
(Part #: PDI644) the same way.
Before reinstalling the push rod
and valve support assembly, look
inside the piston shell. You will
notice four holes in a line and a
single hole on the other side.
16
17
18
6
800-523-8499 • 727-443-5404
Notice how the valve support
frame aligns on the side with the
four holes, making sure it goes
into the grooves.
To demonstrate the alignment
of the push rod assembly, the
curved top would face inward,
inserting the push rod into the
single hole. This is where
the connecting rod sits in
the piston.
The key is to make sure the
white connecting rod drops into
the notches inside the
piston shell.
20
19
21
7
CHAT at www.dosatronusa.com
Now to insert both the valve
support frame and the push rod
into the piston shell, use your
index nger to push on the
spring. This will set everything
into place and you will hear
a click. If the parts aren’t
tting together, just lift both
subassemblies out and try again.
Insert the upper valves into the
bottom of the upper area,
snapping them into the valve
support frame.
To test the piston pull the push
rod up and press it down a few
times. It should click in both
directions.
22
23
24
For video instructions go to: http://www.dosatronusa.com/d14mz3000/
and view the D14MZ3000 Troubleshooting Video and the D14MZ3000
Piston Video or scan the QR codes with your smart phone.
D14MZ3000
Piston Video
D14MZ3000
Troubleshooting Video
8
Click on QR code to view video.
