DOSKO M2965020D Bedienungsanleitung
Owner’s Manual
2965020 (3700LS-H)
Instructions for Assembly, Testing, Operation,
Servicing, & Storage
Log Splitter: Outdoor hydraulic powered machine that
splits wood logs.
WARNING
READ and UNDERSTAND this manual completely before using log splitter.
All operators of this equipment must read and completely understand all safety information, operating instructions,
maintenance and storage instructions. Failure to properly operate and maintain the log splitter could result in serious
injury to the operator or bystanders from moving parts that can crush or cut, flying objects, burns, fire or explosion,
escaping high pressure hydraulic fluid, or carbon monoxide poisoning. In particular, be aware of the following
hazards: Crush and Cut Hazards
Moving parts can crush and cut hands and fingers. Keep hands clear of endplate, wedge, log strippers, and logs
while splitting. High Pressure Hydraulic Fluid Hazards
High fluid pressures and temperatures are developed in hydraulic log splitters. Hydraulic fluid escaping through
even a pin-size hole opening can puncture skin and cause severe blood poisoning. Inspect hydraulic system
regularly for possible leaks. Never check for leaks with your hand while the system is pressurized. Seek medical
attention immediately if injured by escaping fluid.
Fire Hazards
If your log splitter is intended for use near any ignitable forest, brush, or grassy covered land, the engine
exhaust should be equipped with a spark arrestor.
Keep a fire extinguisher with you, rated for ordinary combustibles and flammable liquids.
STOP!
ASSEMBLY REQUIRED: This product requires assembly before use. See “Assembly” section for instructions.
INSPECT COMPONENTS. Closely inspect upon receipt to make sure no components are missing or damaged.
See “Assembly” section for instructions on whom to contact to report missing or damaged parts.
ADD ENGINE OIL and HYDRAULIC OIL BEFORE USING: This product is shipped without engine oil or
hydraulic oil. DO NOT start log splitter before adding both oils. See “Assembly” and “Initial Unpacking & Set-
up” sections for detailed instructions.
Any Questions, Comments, Problems or Parts Orders
Call your dealer or Dosko Customer Service 1-800-822-0295
ITEM NUMBER: 2965020
SERIAL NUMBER:
_______________
M2965020D

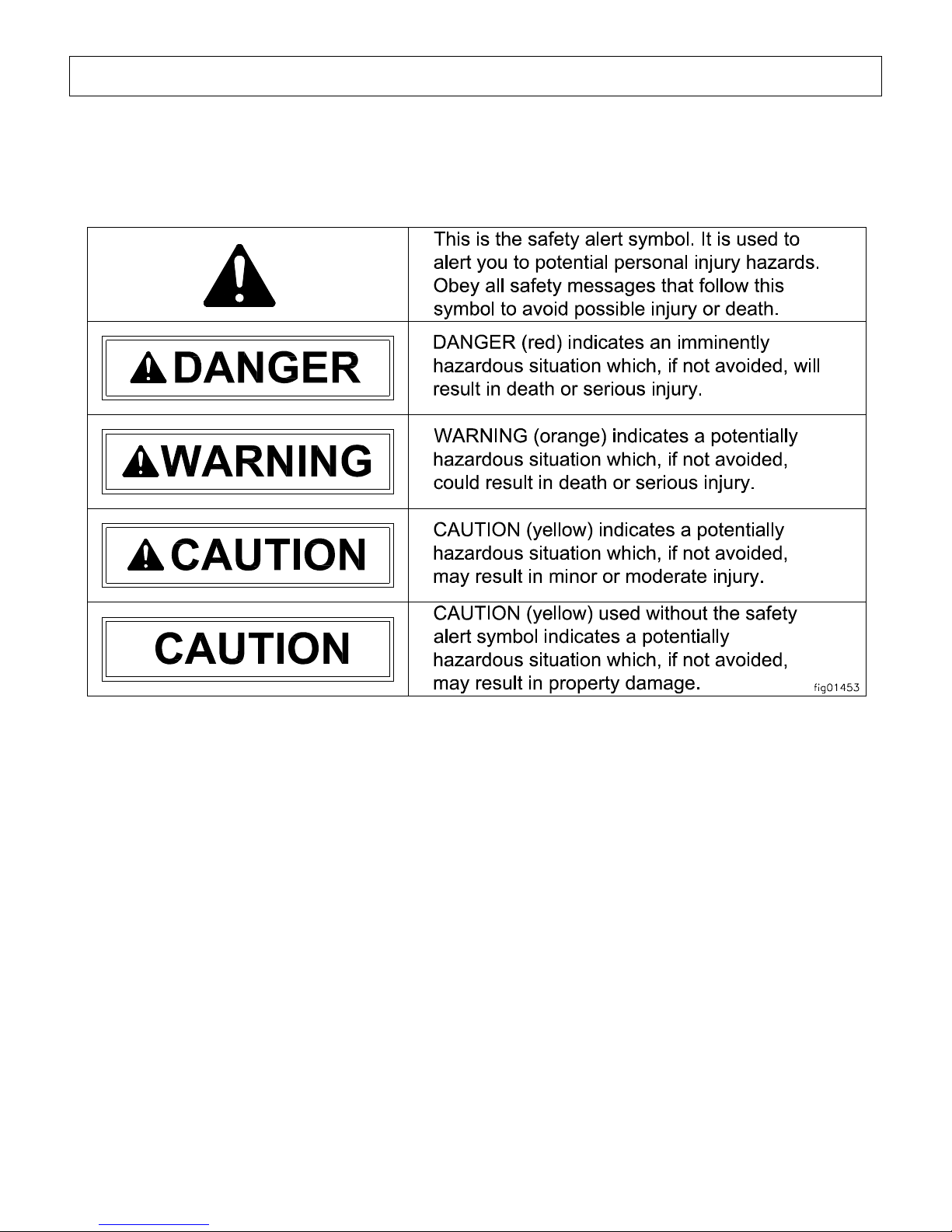

Hazard Signal Word Definitions
2
About Your Log Splitter
3
About Your Log Splitter...........................................................................................................4
Safety Label Locations.............................................................................................................5
Machine Components Identification ........................................................................................7
Initial Set-up.............................................................................................................................8
Moving & Towing to the Job Site............................................................................................10
Before Each Use:
Step One: Inspection/Maintenance.................................................................................13
Step Two: Fueling ..........................................................................................................15
Step Three: Work site Selection & Set-up......................................................................16
Splitting Operation ...................................................................................................................17
Storage......................................................................................................................................23
Periodic Maintenance...............................................................................................................24
Troubleshooting........................................................................................................................26
Specifications............................................................................................................................27
Parts Breakdown –Exploded View..........................................................................................28
Summary of Important Safety Information for Operation........................................................30
Disassembly Instructions………………………………………………………...................... 36
Assembly Instructions ..............................................................................................................37
Limited Warranty .....................................................................................................................39
About Your Log Splitter
4
Thank you for purchasing your Dosko log splitter!
About Your Log Splitter
This log splitter is a machine designed to split wood logs using a hydraulically powered moving wedge.
The gasoline-powered engine is used to pressurize the system.
This log splitter model is capable of splitting logs up to 24″long and 16″in diameter
This log splitter is designed to split logs lengthwise with the grain only.
Your splitter can be used in either a vertical or horizontal splitting position:
When the splitter is set up to operate in the horizontal splitting position, a log is placed
on the horizontal beam and the wedge moves horizontally into the end of the log to split
it.
When the splitter is set up to operate in the vertical splitting position, the log is placed on
the endplate, upright on its end, and the wedge moves down into the top of the log to split
it.
The horizontal splitting position is used for lighter logs that can be easily loaded onto the beam.
The vertical splitting position is used for heavier logs that are difficult to load onto the beam.
The technical specifications for your log splitter are provided in the “Specifications” section of this
manual.
WARNING
This log splitter uses a high-pressure hydraulic system to generate a very strong
splitting force. Read the manual completely before using the machine to understand
how to safely operate and maintain it.
Follow all safety precautions presented throughout this manual. A summary of important safety
information can be found at the end of the manual.
Contact Dosko Customer Service at 1-800-822-0295 for any questions about the appropriate use of
this log splitter or about optional accessories.
Attention: All Rental Companies and Private Owners who
loan this equipment to others!
All persons to whom you rent/loan the log splitter must have access to and read this manual. Keep this
owner’s manual in the splitter’s attached manual tube at all times and advise all persons who will operate
the machine to read it. You must also provide personal instruction on how to safely operate the splitter
and be available to answer any questions a renter/borrower might have.
Safety Label Location
5
Ref#
Part #
Description
QTY
1
778597
Horizontal Lock
2
2
778714
Vertical Lock
1
3
778609
Split Control Lever Operation
1
4
778610
Log Splitter Warning
1
5
39259
Carbon Monoxide Warning
1
6
789236
Towing and Moving Instructions
1
7
777891
High Pressure Hydraulic Fluid Hazard
1
8
777890
Fire Hazard
1
9
787944
Pinch Point Warning
3
10
777887
Operating Instructions
1
11
778717
Log Stripper Warning
2
Always make sure safety labels are in place and in good condition. If a safety label is missing or not
legible, order new labels or unsafe operation could result.
Safety Label Location
6
9
10
11
1
2
3
4
5
6
7
8
Machine Component Identification
7
Ref #
Description
Ref #
Description
1
End Plate
13
Manual Tube
2
Log Table
14
Lift Handle
3
Split Control Lever
15
Horizontal Lock
4
Wedge
16
Suction Strainer
5
Cylinder
17
Magnetic Drain Plug
6
Engine Guard
18
Hydraulic Tank
7
Engine
19
Vertical Lock
8
Hydraulic Oil Dipstick
20
Beam
9
Return Line Filter
21
Fender
10
Jack
22
Fuel On/Off
11
2” Coupler
23
Engine On/Off
12
Safety Chains
Initial Set-up
8
WARNING
Carefully read and follow all instructions for initial assembly and set-up of
this log splitter.
Failure to properly assemble and set up this equipment could result in serious
injury to the user or bystanders, or cause equipment damage.
Step One:
Assemble Log
Splitter
Assemble your log splitter.
Closely inspect all log splitter components.
If you have missing components, contact Dosko Customer Service 1-800-
822-0295.
If you have damaged components, contact the Freight Company that
delivered the unit and file a claim.
See the “Assembly” section of this manual – It will provide you with detailed instructions
on:
Inspecting shipped components and whom to contact if anything is missing or
damaged.
Assembly.
Testing.
Step Two:
Add Oil to Engine
Add oil to engine.
Using a funnel, add SAE 10W-30 oil up to the FULL mark on the dipstick. (See
engine Owner’s Manual for oil capacity and location of fill cap.)
Step Three:
Add Hydraulic Oil to
Reservoir
1. Remove hydraulic oil dipstick.
2. Refer to the Specifications section for approximate hydraulic oil capacity.
3. Fill reservoir with 10 wt AW32, ASLE H-150, or ISO 32 oil. Use a funnel
4. Replace hydraulic oil dipstick and check that oil level reads full. Note: Do not
thread in dipstick when checking oil level.
5. Start engine and use split control lever to extend and retract wedge 5 (five) times
to remove air from the high pressure lines.
6. With wedge retracted, check oil level again. Fill if necessary.
Note: If the log splitter will be run for long periods of time in outdoor temperatures above
70F, we recommend changing the hydraulic oil to DEXTRON III.
Oil dipstick
Hydraulic oil
Initial Set-up
9
Step Four:
Check Hydraulic
System
Check the hydraulic system carefully:
1. Visually inspect all hoses, tubing, clamps/fittings, pump, and cylinder for cracks,
fraying, kinks, or other damage.
2. Check all components for oily residue, which may indicate a leak.
Do NOT operate the log splitter if there is any indication of damage or oily residue.
Small leaks in hydraulic lines can cause severe injuries and can also be an indication of
catastrophic failure in the near future. The life of hydraulic hoses may be from a few
months to a few years, depending on use and storage patterns.
WARNING: High fluid pressures and temperatures are developed in hydraulic
log splitters. Hydraulic fluid escaping through a pin hole sized opening can burn or
puncture skin, resulting in wounds that could cause blood poisoning, infection,
disability, gangrene, amputation, or death. Therefore, the following instructions
should be heeded at all times when inspecting or servicing the hydraulic
components of the log splitter:
Stop the engine, disconnect the spark plug, and move the split control lever
back and forth to relieve pressure before changing or adjusting hydraulic
system components such as hoses, tubing, fittings or other components.
NEVER check for leaks with your hand. Leaks can be located by holding a
piece of cardboard or wood (at least two feet long) with your hand at one end
and passing the other end over the suspected area (wear eye protection). Look
for discoloration of the cardboard or wood.
NEVER adjust the pressure setting of the pump or valve.
If injured by escaping fluid, no matter how small the wound is, see a doctor at
once. A typical injection injury may be a small puncture wound that does not
look serious. However, severe infection or reaction can result if proper
medical treatment is not administered immediately by a doctor who is familiar
with injection injuries.
WARNING: NEVER remove the hydraulic oil fill cap when the engine is
running or hot. Hot oil can escape causing severe burns. Allow log splitter to
cool completely before removing hydraulic oil fill cap.

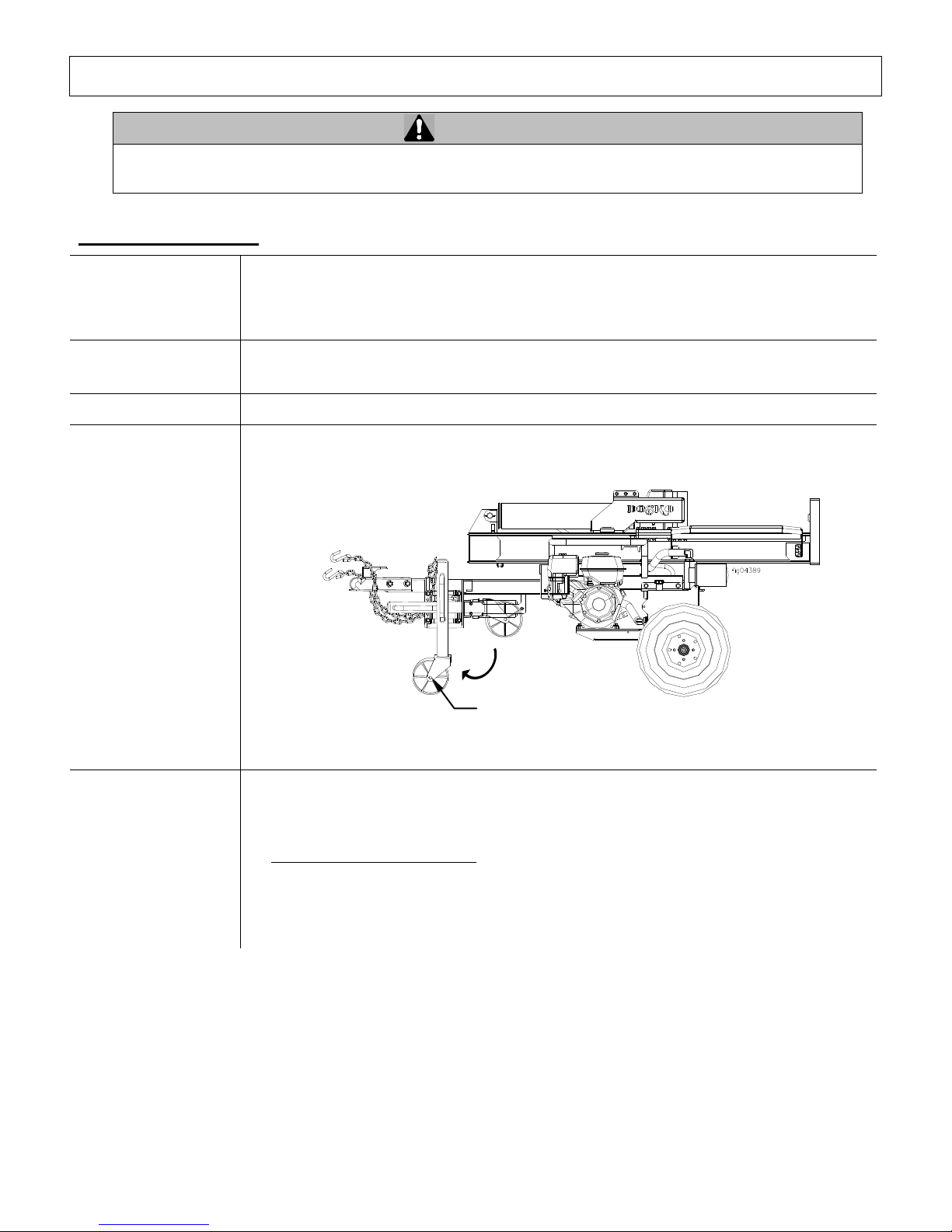

Moving & Towing to Job Site
10
WARNING
The log splitter is heavy. It can crush and cause serious injury if it rolls out of control or tips over.
Follow the instructions below for safely moving and towing the log splitter.
Moving the log splitter
1. Place in
Horizontal Position
Make sure the log splitter is locked in the horizontal position with hitch pin before
moving.
NEVER move log splitter when it is in vertical configuration because it will be unstable
and could tip.
2. Engine Off
IMPORTANT: Make sure log splitter engine is off.
Never move the log splitter with its engine running.
3. Fuel Valve Off
Turn fuel valve off to prevent carburetor flooding and reduce the chance of fuel leakage.
4. Lock Jack in
Down Position
Lock jack in down position before you move the log splitter.
5. Move Log
Splitter to Work
Site or Tow Hitch
Roll the splitter by hand either directly to chosen work site or to vehicle hitch for
towing.
(See instructions on p. 16 on selecting a work site.)
Important Safety Instructions:
Hills. Do not move the log splitter up or down hills by hand -- use a towing
vehicle.
No riding. Never allow anyone to sit or ride on the log splitter.
No cargo. Never transport cargo or wood on the log splitter.
Lock jack in
DOWN position
Inhaltsverzeichnis
Andere DOSKO Holzspalter Handbücher
Beliebte Holzspalter Handbücher anderer Marken
Scheppach
Scheppach OX 3-1000 Montageanleitung
Swisher
Swisher 21200 Bedienungsanleitung
Elem Garden Technic
Elem Garden Technic FBHT65-22TCH Bedienungsanleitung
Champion Power Equipment
Champion Power Equipment 90720 Handbuch
Boss Industrial
Boss Industrial ES5T20 Bedienungsanleitung
Villager
Villager LSP 12 T Bedienungsanleitung
