HAND-FREE COLOR
VIDEO DOORPHONE
1
2
3
4
4
7
11
13
14
14
1. Brief introduction
2. Functions
3. Descriptions as illustrated
4. Preparations before installation
5. Installation
6. Wire connection
7. Operation
8. Note
9. Trouble shooting
10. Specifications
TABLE OF CONTENTS
1
1. Brief introduction
Thanks for using our products, the four wire system video
doorphone is a luxury used to unitary flat for safety. It used advanced
technology and newest chipset, which improves the stability of the
system and far distance. The system has the function such as:
hand-free surveillance, visible phone, lock control, infrared vigil,
auto turn off, and so on. The system has multi tie-in function such as
one camera to one monitor, one to two, two to one, two to two and
,
one to three. Which satisfied by customer s require for different villa.
The products is faddish, goodliness, generous, thinner and
hanging on the wall, portable, take less place, which as a adornment.
The function is dependable and easy to use, it is the perfect family
burglarproof facility and widely used in unitary flat, villa, office and
public building, which is the best present for your friend.
For the sake of your safety, please use series burglarproof facility!
It will make your life safe and easy!
2. Functions
Powerful function
Hand-free surveillance, auto display while calling, visible phone, lock
control, infrared vigil, .Auto switching
High solution picture
Using the high resolution camera and 4 inch TFT LCD color digital screen.
The resolution is 320 RGB 240. The picture is clear, nice, colorful and
steady.
Conveniency in installation
It is very simple to install, easily using and maintain.
Thinner for hanging on the wall
Faddish, thinner for hanging on the wall, generous, portable, take less
place, which as a adornment.
The system can be installed in multi tie-in manners as one camera to one
monitor, one to two, two to one, two to two and one to three. It can satisfy
the kinds of villa.
Multi Connection
Infrared vigil: the system also can watch anything and see the visitor
clearly at night. Sure who is there before unlock, which is safer.
Security
2
Indicator
A B CD
Microphone
Camera
Call Button
Camera Up/Down
Adjust knob
Loudspeaker
Infrared LED
The in-set infrared LED
enable you to distinguish
the visitor under the
insufficient light.
When the visitor press this button,
the visitor s picture will be displayed
on the monitor and the chord ring
will remind you the visitor s coming
3

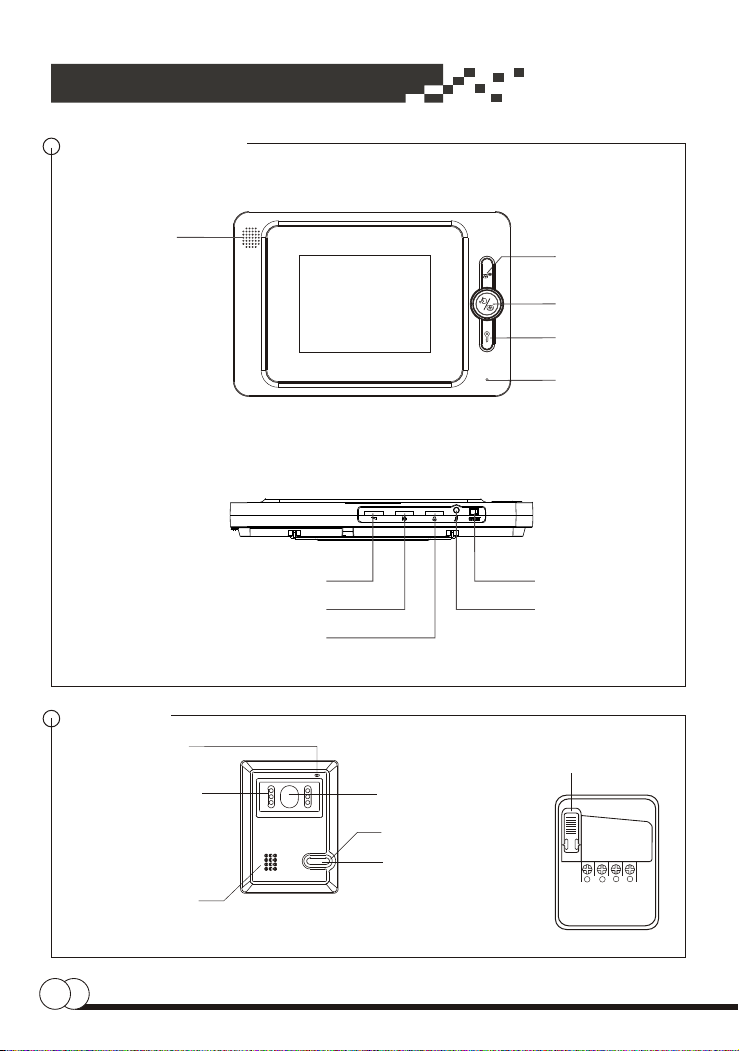

3. Descriptions as illustrated
1. Indoor-monitor
2. Camera
Screen
Front side
Loudspeaker Every household
intercom button
Monitor/answer
button
Unlock button
Hand free
microphone
Planform
Chord ring
Power on/off
Rintone volume adjust
Brightness adjust
Communication volume adjust
4
5. Installation
4. Preparations before installation
Check the pack
Indoor monitor Camera Camera accessory Monitor bracket
Operation manual AC adapter Wire Screw
HAND-FREECOLOR
VIDEODOORPHONE
1. System diagram
4 wire
Camera
2 wire
Indoor monitor
2 wire
AC:110-240V~
Electric
Lock
5
5. Installation
145cm 160cm
2. Installation of the monitor
The optimum height of the monitor for installation
is 145cm 160cm from the centre of the screen
of themonitor to the ground. (This data provides
to consult only)
Please follow the below steps before installation:
1. Take two bolts fix the bottom piece on the wall and then install the monitor
Monitor
Wall
2. Push indoor unit to mount bracket from the top dowm.
In case to pull out the indoor unit, please follow the step 1 and 2.
6
Positioning
5. Installation
3. Installation of the camera
about 180cm
about 110cm
about 80cm
Wall
Notice:
Do not install the camera on the places under the sunshine. If the street
light or other light reflect at the back of the visitor, you need to install lamps
to make the picture more clearer.
6. Wire connection
7
1. Diagram of one to one
2. Diagram of one to two
CCDDAABB
Camera
GA V B+
Yellow
Red
Black
White
Black wire for ground wire
White wire for audio wire
Yellow wire for video wire
Red wire for power wire
Monitor
G
Black
V
Yellow
B+
Red
A
White
Electric
Lock
CCDDAABB
Camera
GA V B+
Yellow
Red
Black
White
Black wire for ground wire
White wire for audio wire
Yellow wire for video wire
Red wire for power wire
Electric
Lock
G
Black
V
Yellow
B+
Red
A
White
G
Black
V
Yellow
B+
Red
A
White
Monitor 1
Monitor 2
3. Diagram of one to three
6. Wire connection
CCDDAABB
Camera
GA V B+
Yellow
Red
Black
White
Black wire for ground wire
White wire for audio wire
Yellow wire for video wire
Red wire for power wire
Electric
Lock
G
Black
V
Yellow
B+
Red
A
White
G
Black
V
Yellow
B+
Red
A
White
G
Black
V
Yellow
B+
Red
A
White
Monitor 1
Monitor 2
Monitor 3
8
