DPVIDEO D200P Bedienungsanleitung

DVD/VCD/CD/MP3/DIVX/MPEG-4

XO1525

MOD

SD CARD

USB

D200P

User’s Manual

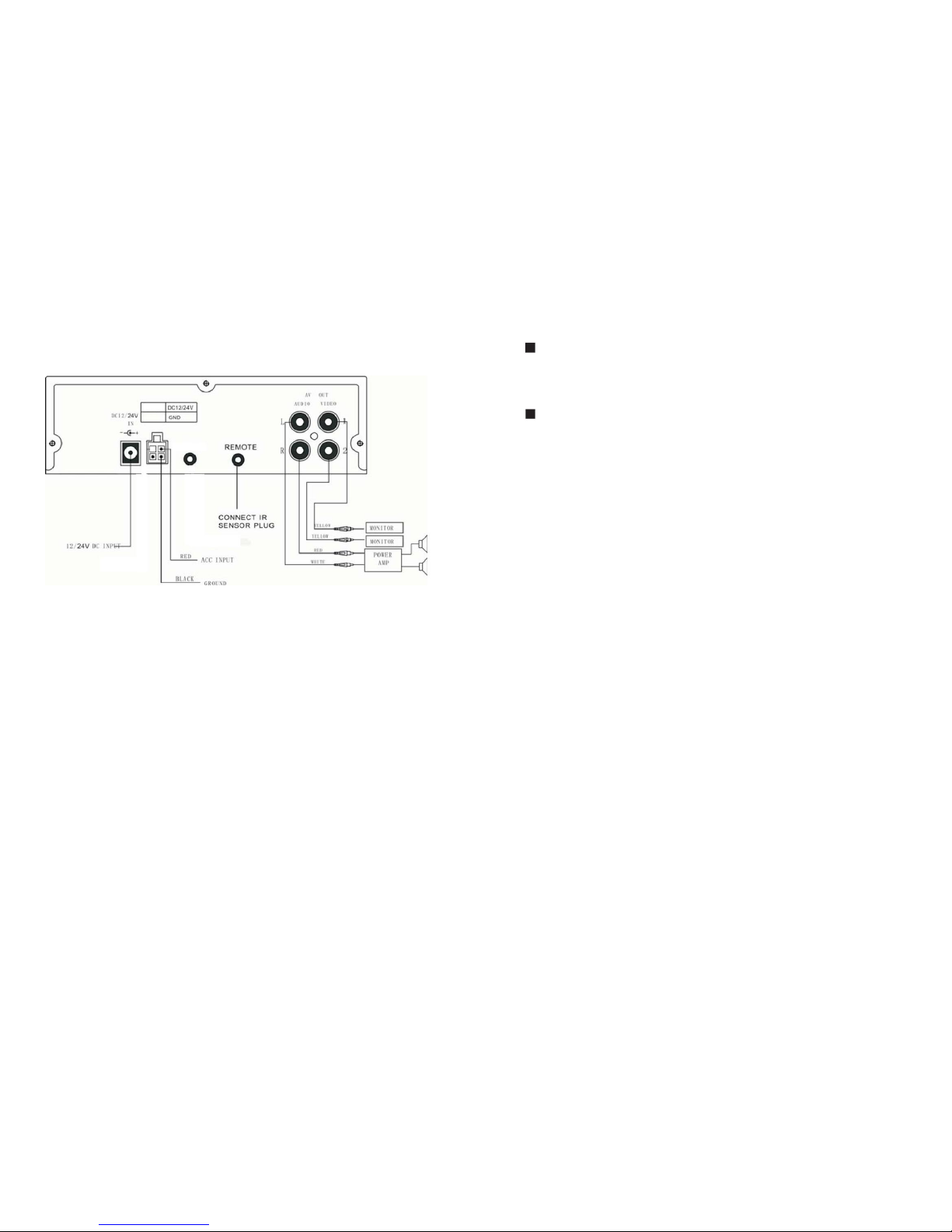

9.1 Rear Panel Connections:

BEFORE USING:

To ensure the safety of the products during transportation,

The internal mechanism was fixed by screws. Please

remove the fixing screws when you first use the product.

In case of possible damage to the components of the

product, the length of the fixing screws should be less

than 5mm when installing mounting brackets.

CONTENTS

Remote Control Description ……..………………………1

Front Panel Description

… …..… … … … … … … … … …

Display Screen Descriptions

… …..… … … … … …… …

Rear Panel Description ……..……….………………………5

Basic Operations ……..………….………….……………5-14

5.1 Turn On / Off the DVD player …..…..…………………5

5.2 Select Item Through Menu ………..…………………6

5.3 Fwd / Reverse …..…….…………………………………6

5.4 Select Track …..……….…………………………………6

5.5 Select Subtitle Language

………………………………

5.6 Select Audio Channel ……………….…………………7

5.7 OSD ……..……………………………..…………………7

5.8 System Setup Menu

… …..… … … …. … … … … … …

5.9 USB / SD Operation ………..……………..……………14

Specifications

… …..… … … … … … … … … … … … … …

Troubleshooting

… …..… … … … … … … … … … … … …

Accessories

… …..… … … … … … … … … … … … … … …

Appendix: Connections……..……………………….. 18-19

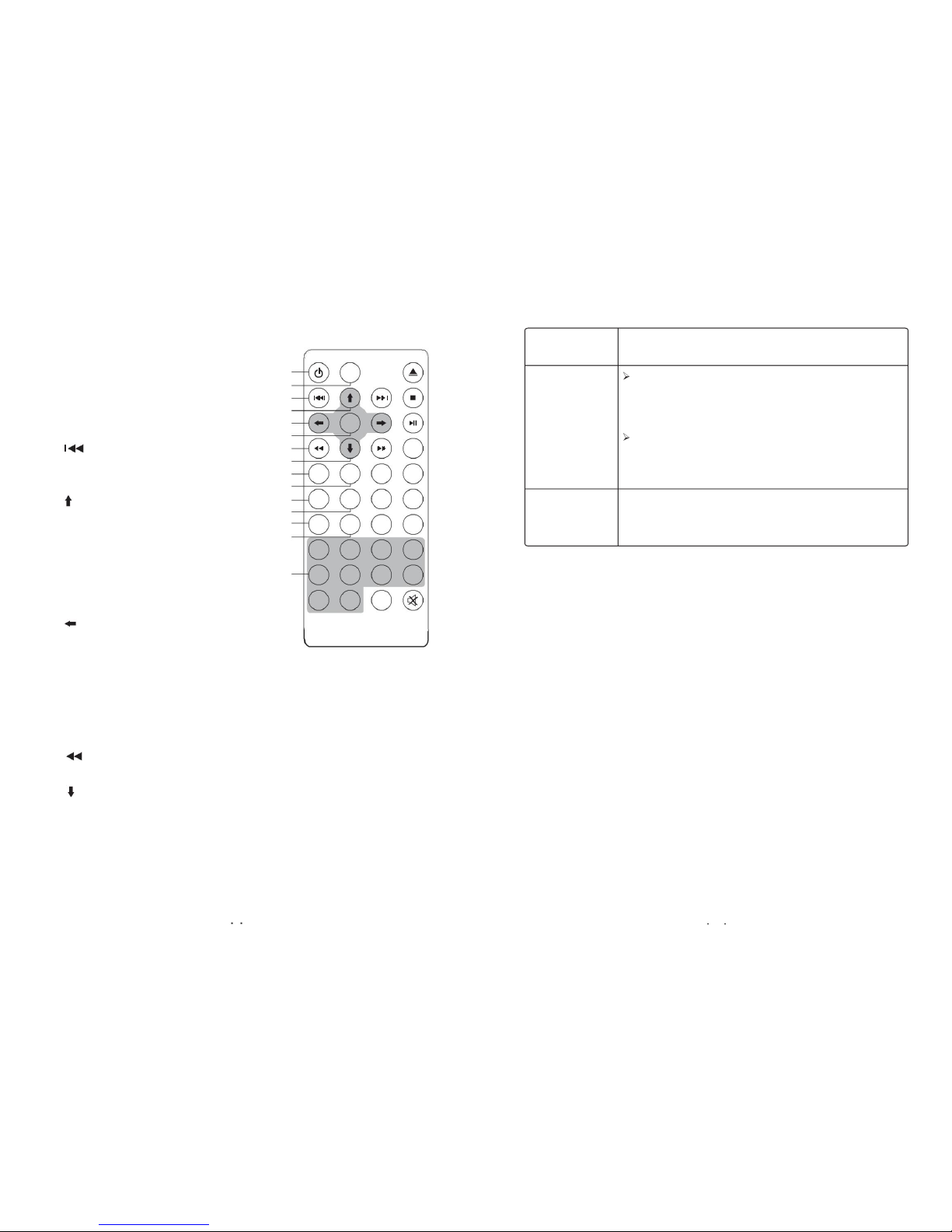

1. Remote Control Description Problem Action

(1) Power

Power On or Shut Down the machine.

(2) Mode

Press this button to select DVD,

AV In, USB, or SD mode

(3)

While playing, push this button to skip

to previous chapter or track.

(4)

Up Direction Buttons: When the screen

displays the menu of DVD Disc or

System Menu, the player is

MODE

ENTER

SLOW

REPEAT

STEP

ZOOM

SETUP

SUBTITLE

LANGUAGE

VOL +

P/N

L/R

OSD

VOL -

The player fails

to play from the

beginning.

Stop playing

automatically

Happens because the play mode is in the Program,

Random, Repeat, or Repeat A - B mode. Press these

relative functions again to restore the play mode. (Please

refer to the Advanced Operations Chapter.)

While the DVD Title/Chapter or DVD Setup menu is

displayed on the TV screen directly, or while playing Video

CD that includes PBC function, the Setup Menu is

displayed on the TV screen. Press Play.

Some discs have recorded the automatic pause signal in

the original recording. The unit will stop playing

automatically at the segment where the signal is recorded.

in waiting state; you can push these

buttons to move cursor, then select

the desired item.

(5)

Left Direction Buttons: When the

10+

If the remedies indicated above cannot solve the problem you encounter, consult

your local dealer for service.

8. Accessories

Note: Please confirm the accessories below when you purchase this unit.

₃ Remote Control 1Pc

screen displays the menu of DVD Disc or System Menu, the player is in

waiting state; you can push these buttons to move cursor, then select the

desired item.

(6) ENTER

Press this button to execute the entered number or the selected item.

(7)

Reverse to search the disc.

(8)

Down Direction Buttons: When the screen displays the menu of DVD Disc

or System Menu, the player is in waiting state; you can push these buttons

to move cursor, then select the desired item.

(9) Slow

Slowly play.

₃ Extra Infrared Remote Sensor 1Pc

₃ Power Connector 1Pc

₃ User Manual 1Pc

₃ Audio/Video Connecting Cable 1Pc

₃ Mounting Bracket 1Pc

₃ Mounting Screw some

Optional accessories: DIN bracket 1 Pc

118

Problem

Action

to return to the normal playback speed mode.

When the unit is in System Setting Menu / Program

Menu , press System Setting / PRG Play to exit the

System Menu /Program Menu. Or you can press Play

to return to the normal playback mode.

If the unit is in the mute mode, please press Mute again

to enable the normal sound play.

Turn on the unit's digital output if it is off.

If the sound track 2 of the SVCD is not recorded, no

sound will be output when the track 2 is selected. Open

up the Console Menu, and select track 1 for playback in

the audio selection.

The disc is dusty and needs to be cleaned.

Noise

The noise comes from other interfaces except for

DIGITAL OUT OPTICAL or COAXIAL interface if the

played CD is DTS standard.

No stereo sound

(10) REPEAT

Repeat the selected chapter or title.

(11) Setup

Please refer to the chapter about machine setup.

(12) Subtitle

Switch DVD subtitle channel.

(13) P/N

Switch to PAL, NTSC, or AUTO system.

(14) L/R

Switch VCD audio channel.

(15) NUMBER BUTTONS:

[0], [1]… [9] number buttons are used to enter number, e.g.

number of track, DVD chapter number, time data, etc.

effect when

Check if the digital output is turned on.

playing video CD

Press Stereo to select stereo sound.

or CD

Operations

Remove the obstacle between the DVD player and the

remote control.

The remote control is positioned too far from the DVD

The remote

video player. Operate the remote control within the

control does not

operating distance.

work properly.

Point the remote control at the remote sensor of the

DVD video player.

If the batteries in the remote control are exhausted,

please replace batteries with new ones.

No disc is inserted. (No disc symbol appears on the

screen). Please insert the intended disc.

Disc playback

The disc is placed upside down. Place the disc with the

failure

MODE

ENTER

SLOW

REPEAT

STEP

ZOOM

SETUP

SUBTITLE

LANGUAGE

VOL +

P/N

L/R

OSD

VOL -

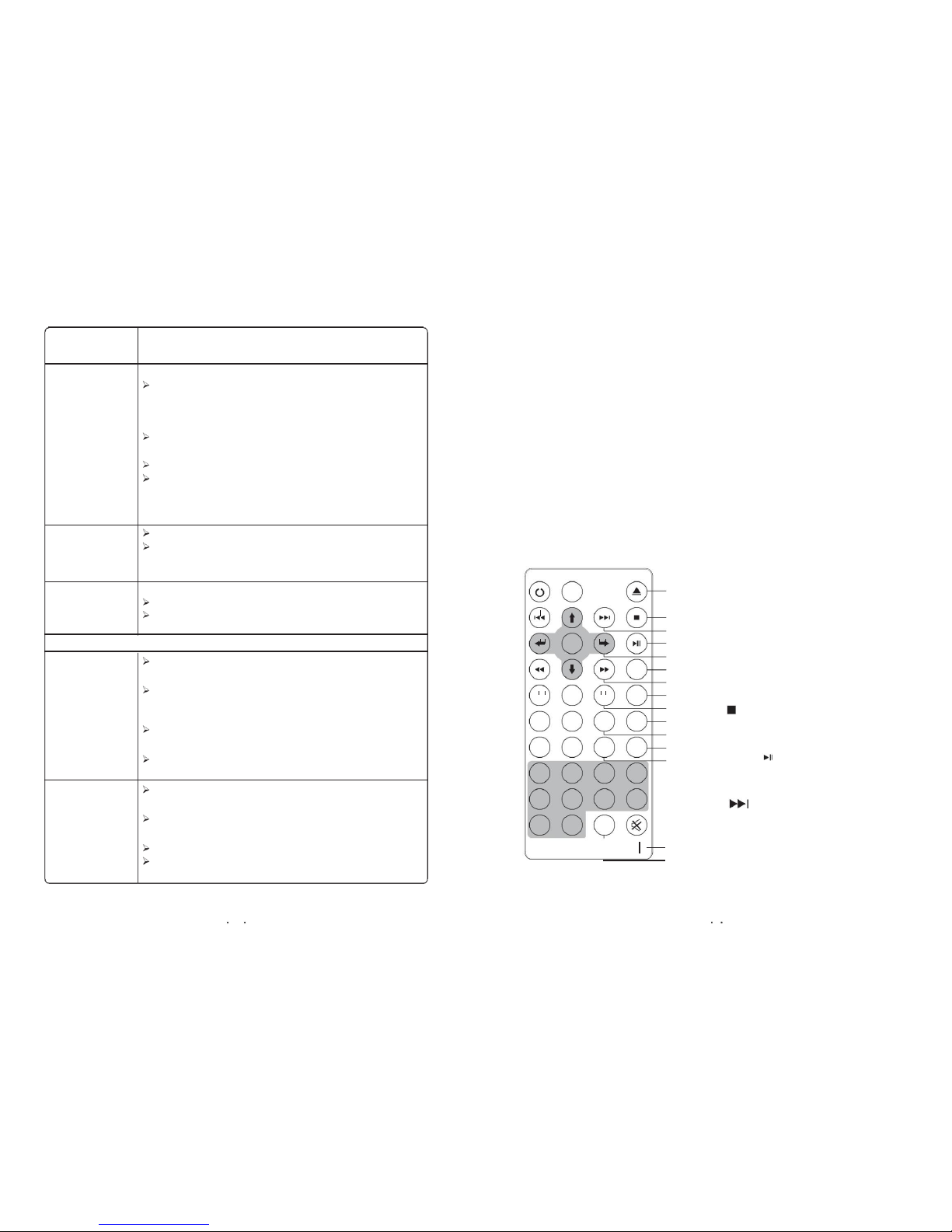

(16) Eject

Press this button, and the disc will

be unloaded from the player. Press

it again, and the disc will be

loaded.

(17)

While playing, press this button

once to pause playing, and then

press to resume playing. But

if you press it twice, the playing will

be stopped completely.

(18)

playback side down.

The disc is dusty. Please clean the disc.

There could be humidity in the unit. Please turn on the

power and stay for 30 minutes without running the disc.

While playing, push this button to

10+

skip to next chapter or track.

17 2

(19)

Play or Pause current playing.

(20)

Right Direction Buttons: When the screen display the menu of DVD

Disc or System Menu, the player is in waiting state; you can push

these buttons to move cursor, then select the desired item.

Problem

POWER

The power supply

is disconnected.


Action

Please check if the AC power cord has been connected

correctly.

(21) MENU

While playing DVD, push this button to display the option menu

included in the disc.

(22)

Search forward on the disc.

(23) ZOOM

Press this key to zoom the pictures by several multiples.

(24) STEP

Single-step play.

(25) VOL+

Volume Up.

(26) LANGUAGE

Multiple languages selectable.

(27) VOL-

No picture

Picture distortion

Picture doesn’t

fit TV screen

Replace the breakage video cable before you turn on the

player.

Re-check that the player has been properly connected to

TV set.

Connect the video cable securely into the appropriate

jacks and ensure that the equipment is connected firmly.

Ensure that the TV set is turned on.

Make sure that the appropriate video input mode is

selected on the TV, so that the video image can be

displayed on the screen properly.

The disc is dusty and needs to be cleaned.

It is normal for some distortion to occur when the

Progressive Scan Mode of DISPLAY Setup is selected,

even if the TV set is compatible with the progressive scan

mode (525p). Therefore, please change the Scan Mode to

Interlaced Scan.

The images may not fill up the whole TV screen even after

the Picture Mode of the Audio Menu is set. This is because

the DVD images are fixed in width.

Volume Down.

(28) OSD

Display the machine status, such as playing time, track

information, etc.

(29) MUTE

Switch On/Off the audio output.

(30) 10+

When you need choose songs with number over 10, press one

SOUND

Check for the proper connections of the unit with the TV

set and amplifier.

When the amplifier is connected, check if the amplifier

power has been turned on and if the cable has been

inserted into the appropriate jack.

No sound

Replace the audio cable with a new one if the cable is

damaged.

If the unit has been played in Slow or Pause mode, press

Play to return to the normal playback mode.

If the unit is played in X8, X16, X 32 modes, press Play

316

player will auto search the directories saved MP3 / JPEG files. Also we

can use USB/SD button on remote control to switch between USB

and disc.

Note: The USB/SD port function is valid for flash memory USB/SD

devices. (Supported formats: MP3, WMA, MPEG-4)

6.Specifications

Power Supply

DC 12V

General

Power Consumption

10 Watt.

Net Weight

1.2kg

Dimensions

L160 x W160 x H50 mm

Operating Temperature

Range

1 2 c m C D / C D - R / C D R W

Disc Type

12cm DVD/DVD-R/DVD+RW

12cm CPRM

Disc

C D - A u d i o / H D C D / M P 3 / W M A

Playable

VCD SVCD Kodak Picture CD

DVD DIVX MPEG/CPRM

Video Output

Composite Video

1.0 Vp-p (75 ohm load)

2 channel

Analog Audio

Dolby AC-3 or DTS downmix

2 Vrms (@1KHz)

Audio

S/N Ratio

85 dB

Dynamic

7. Troubleshooting

Before requesting services for this DVD player, please check the items

below for a possible cause of the problem you are encountering. Some

simple checks or minor adjustments on your part may eliminate the problem

and restore proper operation.

time, then press the next digits . When you need choose songs with number

over 20, press this button two times, then press the next digits, for example

"13," press this key ,then press "3."

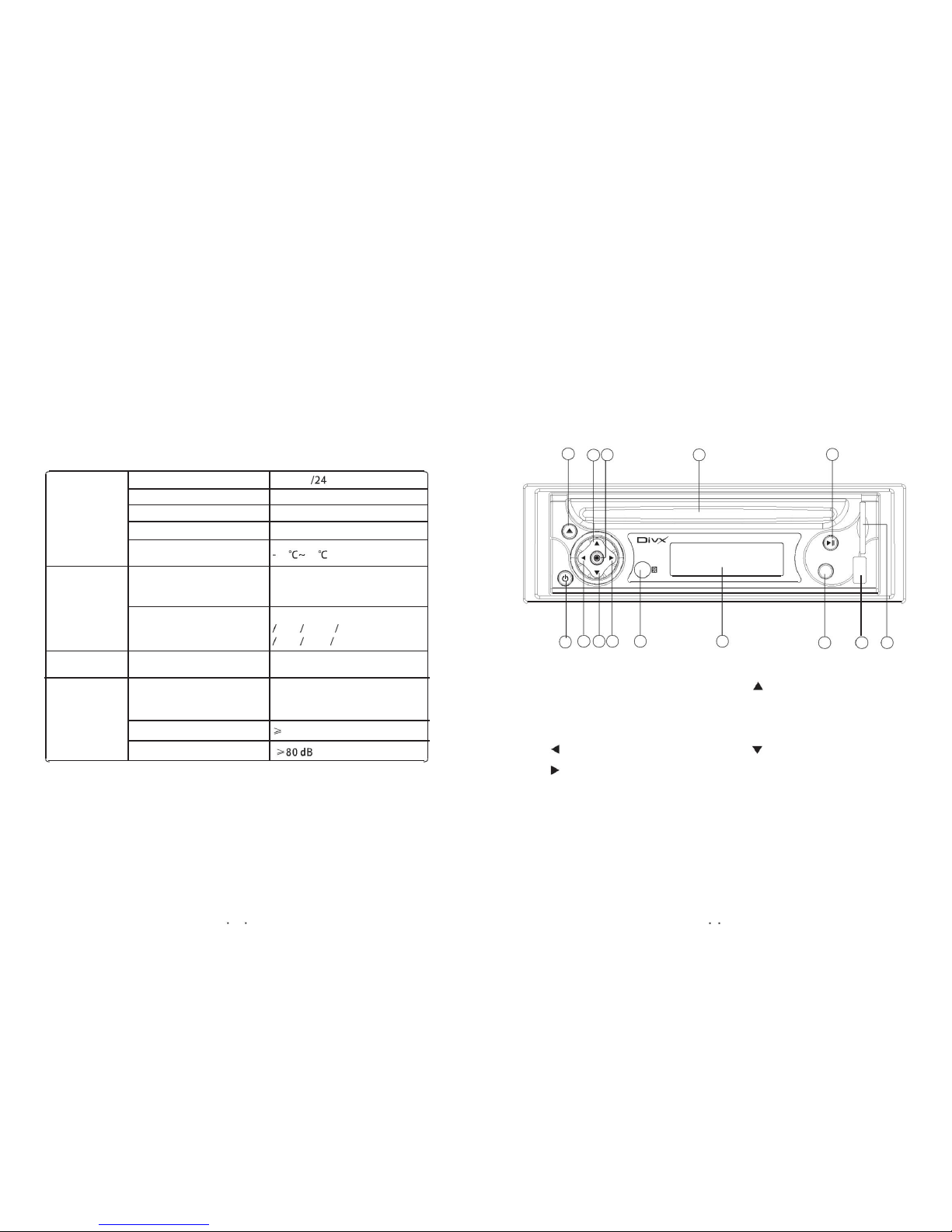

2. Front Panel Description

HDCD/MP3/MP4/WMA/DVD PLAYER

MOD

USB

7 8 9

Eject Button

Up Button (VOL+)

Enter Button

4. Disc Entrance

Play/ Pause Button

6. Power On/Off Button

Left Button (Previous Button)

Down Button (VOL-)

Right Button (Next Button )

10. IR Sensor

11. VFD Display

12. Mode Switch Button

13. USB Port

14. SD Card Slot

15 4

Display Screen Descriptions

1. DISC SYMBOL 7. REPEAT SYMBOL

2.DTS SYMBOL 8. CHAPTER OR TITLE SELECT

3.DOLBY SYMBOL 9. HOUR DISPLAY

4.RECORD SYMBOL 10. MINUTE DISPLAY

5. PBC ON/OFF SYMBOL 11. SECOND DISPLAY

6. PLAY/PAUSE SYMBOL

4. Rear Panel Description

control the types of DVDs that your family watches. There

are two rating options: NO ADULT and KID SAFE. Select

the VIEW ALL option to cancel the rating limit. The default

setting is VIEW ALL.

Miscellaneous Settings:

Press up/down/ Left / Right direction button to select an item, then press

ENTER.

Use Default Settings：

Choose this option to resume all the Setup options to default settings.

Auto Play DVD：

It can skip Title Menu and play DVD’s contents directly.

Memory Play：

The user may choose to save power when playing DVDs and not use this

option. This is to remember last place played on disc.

5.9 USB/SD Operation (optional function)

When no disc, insert the USB storage device into the USB / SD slot, the

514

Press Up/Down/ Left /Right direction button to select an item, then press

ENTER.

Set Password:

The password option is locked, and you cannot set the ratings limit or

change the password. In order for the Ratings feature to work, the password

mode must be turned on. If you want to set the ratings limit, you will need to

enter the default password, which is 8888, then press Enter to confirm. To

change the password, you will be prompted for the old password, then be

prompted for a new. Enter a 4- digit number (this is your password).

Note: Sometimes, the password is four-digit number; the default is 8888.

The Rating feature is a rating limit system, like movie ratings. It works with

DVD discs that have been assigned a rating. This helps you

AV OUT

AUDIO

VIDEO

DC12 / 24V

GND

DC12/24V

REMOTE

(Blue)

(black)

STB

ANT

AMP

5. Basic Operations

5.1 Turn On/Off the Player:

1). Press Power button on remote control or on the front panel of player.

2). To turn off, press Power button for about 2 seconds; unit will power off.

3). To play, put a disc into the disc entrance, with label side up.

4). The player will slot in the disc automatically and begin to read it. It can

identify different disc formats and display them on the TV screen. If

Directory or Menu picture display in the screen, you can press the

Direction buttons, and buttons on the remote control

to move to desired title and press ENTER button to select it. Also you

can directly press number buttons to select track.

13 6

5.2 Select Item Through Menu:

If the DVD disc has its own menu, you can display the menu by pressing

MENU button, then you can select a popular item to play according to

following procedures:

1). Press MENU –

The screen displays menu picture, the content to be selected varies with

different discs.

. Press the directory buttons

，， or

to select the desired item.

. Press ENTER to confirm the selected item.

5.3 Fwd/Reverse:

When you press FWD/REV under the Play mode, the unit will start to

advance or reverse tracks. You can play discs at various speeds. With each

consecutive press of FWD/REV, the playback speed changes. There are four

speed levels for DVD discs in FWD/REV: X2, X4, X6, and X8. There are four

speed levels for disc types other than DVDs: X2, X4, X8, and X16. Press

PLAY to resume the normal playback.

5.4 Select a Track:

There are more than one operational procedures available.

A. Press :

to skip to the next or the previous track and play.

B. For those discs with track numbers, directly press number buttons to enter

the number of desired track. If the screen displays “Φ” there may be three

possible reasons: (1) the track in the disc is not numbered; (2) the number

entered is beyond the scope; (3) the disc has no number select function.

C. Select among the song track list (such Mp3, Menu list, etc.).

Audio Settings:

Press Up/Down/ Left /Right direction button to select an item, then press

ENTER.

Digital Output Settings:

User can adjust S/PDIF terminal audio output by choosing number output

set, to make it work harmoniously with other equipment (for example,

receiver and sound box.

Off = Turn off digital audio output.

PCM = connect S/PDIF optic fiber output to receiver which

support s PCM S/PDIF

Rating Settings:

712

View Mode:

The user can choose from four display modes.

Fill: picture stretched across whole screen.

Original: the picture’s original size.

Auto Fit:the picture automatically adapts to the screen.

Pan Scan: picture stretched to fill whole screen from up and down or left and

right.

TV System:

According to the Color System of the TV, you can choose the TV System.

AUTO: Choose this settings if your DVD player is connected to a multi-system

TV.

NTSC: Choose this settings if your DVD player is connected to a NTSC TV.

PAL: Choose this settings if your DVD player is connected to a PAL TV. The

default setting is NTSC.

5.5 Select Subtitle Language:

For DVD discs, you can Press SUBTITLE to switch the subtitle language. Keep

pressing it, and the screen will display available languages alternatively.

5.6 Select Audio Channel:

For DVD discs, you can press LANGUAGE to switch the audio channel. And

for other discs, press Left /Right button to switch channel.

5.7 OSD:

Press OSD button, and TV screen will display current playing time and state,

i.e. playing time, remaining time, chapter/track information. If you press OSD

each time, the screen will show a time, alternatively.

5.8 System Setup Menu:

You can press the Setup key on the remote control to bring up the System

Setup Menu when the unit is in the STOP/PLAYBACK mode.

Language Set:

Press Up/Down/ Left /Right direction button to select an item, then press

ENTER.

11 8
