Dräger X-Plore®8000 Cleaning

and Maintenance Guide

Remove and recharge the battery

To remove the battery push down on the blue battery lock tab on the reverse of the unit and fold out. Press the ‘Test’

button to check capacity and replace or recharge as necessary (Fig 2). If charging is required, connect the battery

to the charger unit, connect to a power source and wait until fully charged (Fig 3).

For more information call 01933 672180 email: info@fullsupportgroup.com

www.fullsupportgroup.com

Fig 3. Indication explanation while charging

Fig 2. Battery indicator explanation

Fig 1. Visual inspection

Visually inspect the components

Every time before use, perform a visual inspection of your equipment by checking all parts thoroughly (Fig 1).

Pay particular attention to the lter sealing surface on the fan unit for scratches, damage or contamination.

THE RPE EXPERTS

For more information call 01933 672180 email: info@fullsupportgroup.com

www.fullsupportgroup.com

Replace the lter

Remove all packaging and blue plastic guard pieces from the new lter. Remove the used

lter and splash guard by pushing the blue lter locking tab in and folding outwards (Fig 4).

For Particle lters: Gently pry the splash guard from the old lter. Inspect the new lter’s rubber

seal for damage and click the splash guard into place. Lock the clips of the lter with splash guard

into the bottom of the blower unit and fold together until you hear an audible snap (Fig 5).

For Gas lters: Unclip the splash guard from the old lter by pushing down on the indent in the

top-middle of the guard and fold outwards (Fig 5). Inspect the new lter’s rubber seal for damage.

Locate the coloured dot on the bottom middle of the front-face of the lter, indicating the lter’s

orientation. Slide the bottom clips of the splash guard into the bottom of the lter and fold

together (Fig 5). Lock the clips of the lter with splash guard into the bottom of the blower

unit and fold together until you hear an audible snap (Fig 4).

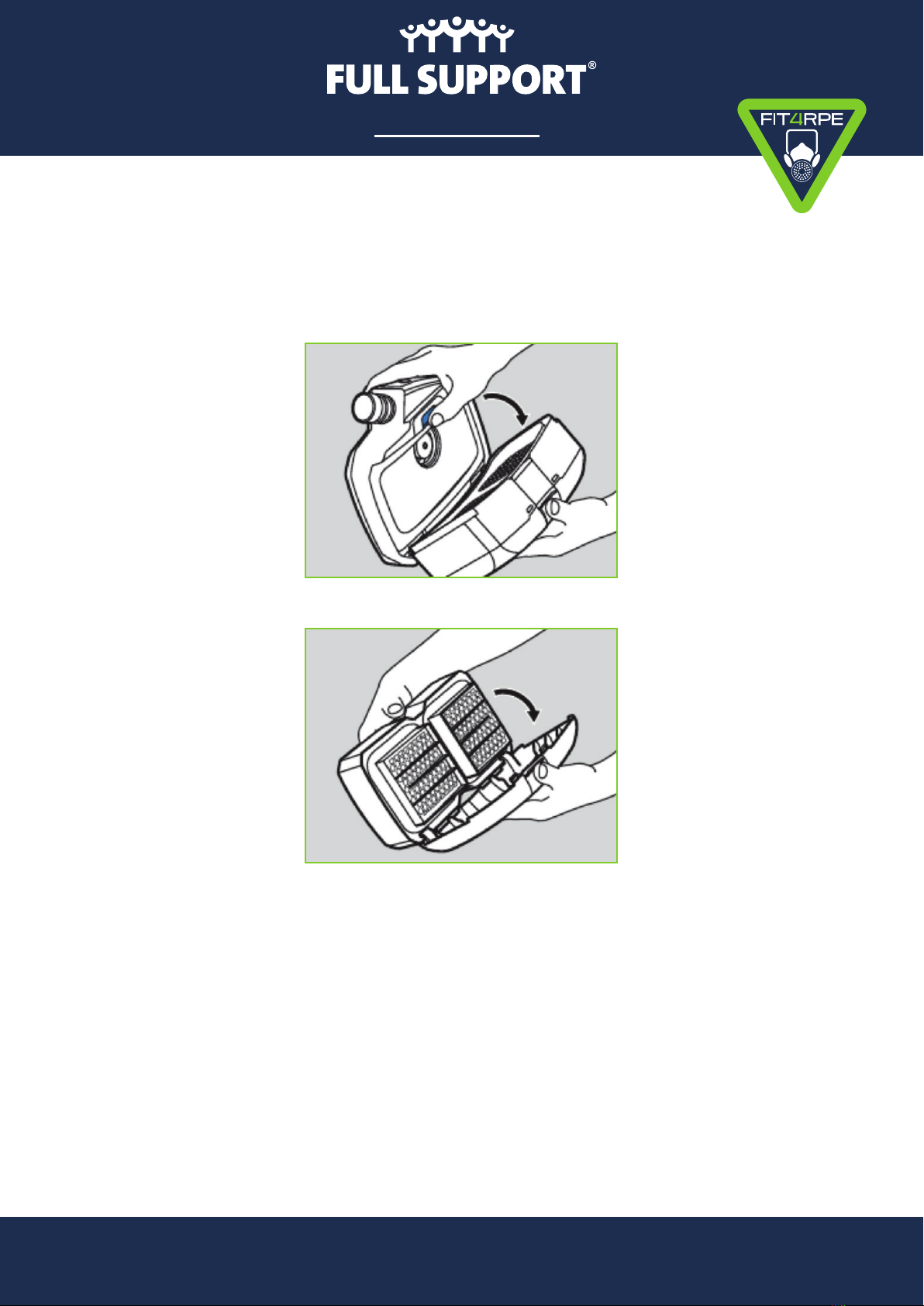

Fig. 4 Removing and attaching a

lter from the blower unit

Fig. 5 Removing and attaching the

splash guard onto a gas lter

Dräger X-Plore®8000 Cleaning

and Maintenance Guide (continued)

THE RPE EXPERTS

For more information call 01933 672180 email: info@fullsupportgroup.com

www.fullsupportgroup.com

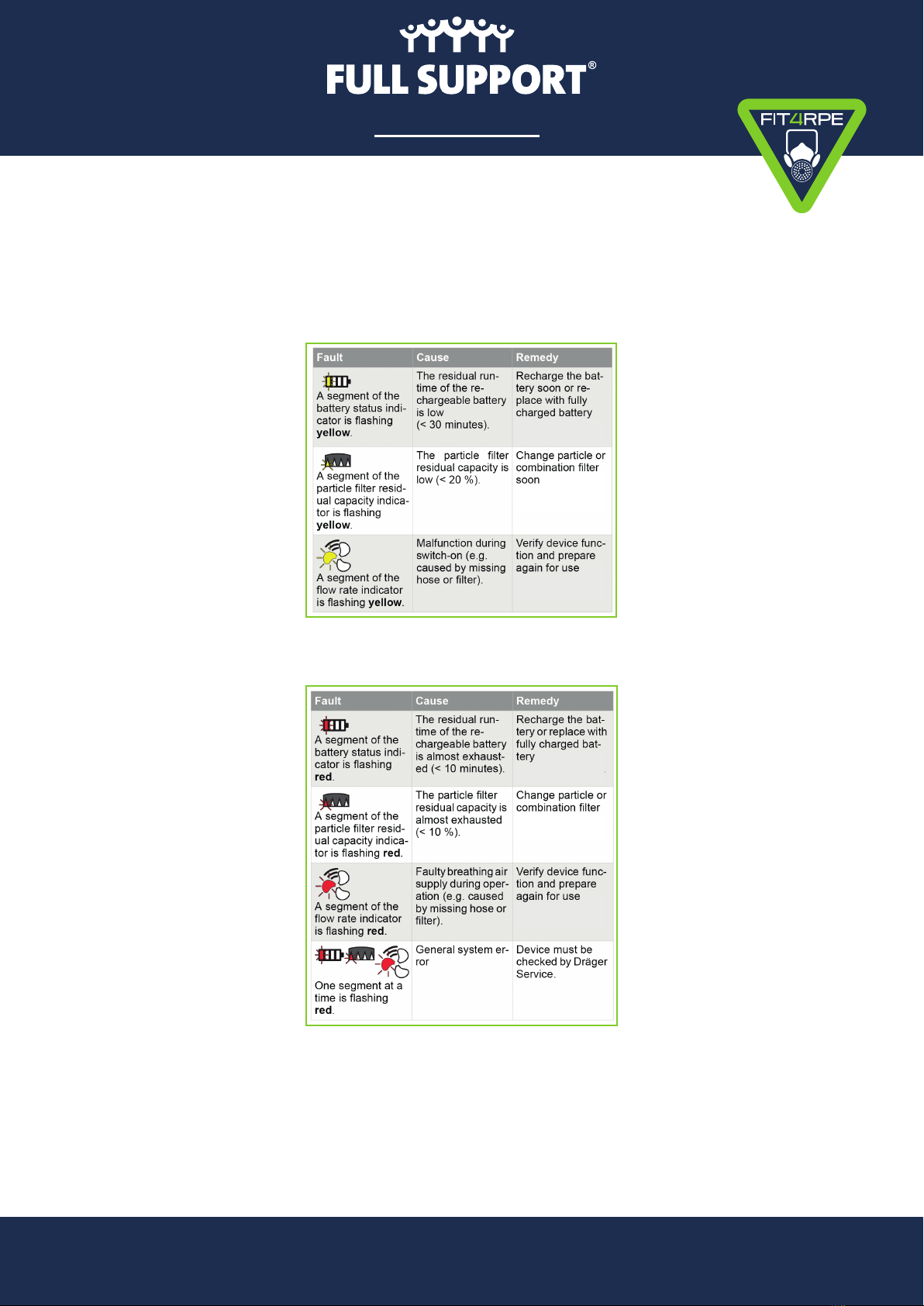

Troubleshooting

Turning the unit on will cause it to perform a self-test for malfunctions. If an error occurs, one of the indicators

on the top of the unit will ash amber (Fig 6) or red (Fig 7) accompanied by an acoustic alarm and vibration.

NB: The residual capacity of gas lters cannot be indicated by this device.

Dräger X-Plore®8000 Cleaning

and Maintenance Guide (continued)

Fig. 6 Amber lights indicate an

issue that needs addressing

Fig. 7 Red lights indicate a serious

issue that needs addressing

THE RPE EXPERTS

For more information call 01933 672180 email: info@fullsupportgroup.com

www.fullsupportgroup.com

Replacement parts

The two rubber O-rings in the hose connector should be replaced annually to reduce malfunction.

Remove the old O-ring using the removal tool and insert a new O-ring in the groove (Fig 9).

Check the ow rate

With a lter and hose attached, turn on and wait for the self-test to complete. Cover the open end

of the breathing hose with your hand. After 5 seconds you should hear the unit start to run faster and

an alarm will be triggered. The panel will ash red indicating the air supply is blocked (Fig 8). If no

alarm is triggered, the fan speed remains unchanged, or the warning does not stop after removing

your hand - do not use and consult your supplier.

Dräger X-Plore®8000 Cleaning

and Maintenance Guide (continued)

Fig. 8 The ow rate indicator

Fig. 9 Location of the O-ring

THE RPE EXPERTS

For more information call 01933 672180 email: info@fullsupportgroup.com

www.fullsupportgroup.com

Storage

When not in use, the battery and lter should be removed. Store in a clean, dry environment,

away from direct heat sources between +50˚C and -20˚C, at a humidity of less than 95% (Fig 11).

Deeply discharged batteries may get damaged during prolonged storage. For best results,

charge batteries between 50-70% prior to storage and top up intermittently.

Cleaning

The unit should be properly cleaned before being stored. Clean using a disinfectant wipe or a damp, lint-free

cloth and allow to air dry in a well-ventilated area - as detailed in the table above (Fig 10). The use of strong

cleaning products such as chemical wipes or bleach may have an adverse effect on the unit. If used, they

should be rinsed off immediately. All cleaning and maintenance should be properly recorded. In case of

strong contamination, the fan unit can be rinsed under running water. First, make sure the rechargeable

battery remains inserted - water must not enter the battery compartment. Close suction inlet and tube

connection with protective caps (available as accessories) and rinse under clean water.

* Plugs for hose connection opening and blower inlet opening required. Battery must be connected.

Dräger X-Plore®8000 Cleaning

and Maintenance Guide (continued)

Fig. 10 Cleaning

Fig. 11 Store in a clean, dry environment

Component Cleaning Drying

PAPR Unit

Pal TECH Multi Surface Antibacterial Wipes N/A

Cleaning under running water* Open air

Carrying System Soft cloth + Sekusept® Cleaner Open air or in a drying closet (max. 60ºC)

Hose Soft cloth + Sekusept® Cleaner Open air or in a drying closet (max. 60ºC)

Filter N/A N/A

Disposable Hood N/A N/A

Reusable Hoods Soft cloth + Sekusept® Cleaner Open air or in a drying closet (max. 60ºC)

Protective Visor Soft cloth + Sekusept® Cleaner Open air or in a drying closet (max. 55ºC)

THE RPE EXPERTS

For more information call 01933 672180 email: info@fullsupportgroup.com

www.fullsupportgroup.com

Maintenance

Required

Date of

Action

Fit for use?

(please circle)

Name and

Signature

Cleanliness Yes/No

Filter

Check Yes/No

Hood Yes/No

Hose Yes/No

Valves/

Diaphragms Yes/No

Belt &

Buckles Yes/No

Battery

Charged Yes/No

Fan

Unit Yes/No

Adequate

Flow Rate Yes/No

“You must keep records of examination and testing and any repairs

made for at least 5 years” Health & Safety Executive HSG53

Serial Number:

Date Commissioned:

THE RPE EXPERTS
