Draper Nocturne+ c Montageanleitung

Nocturne+C

Crank Operated Exterior Projection Screen

INSTRUCTIONS

Installation & Operation

CAUTION

1. Inspect all boxes to make sure you have received the proper screen and parts.

Controls may be shipped separately, or in same carton as screen.

2. Open cartons lengthwise.

3. All hardware must be installed level. Screen must be level and square.

4. It is the installer’s responsibility to make sure appropriate fasteners are used

for mounting surface.

5. Please read the following installation guidelines thoroughly and follow them carefully.

Failure to do so invalidates warranty.

Please Note: Custom products/installations may not be reﬂected by this document.

Call Draper, Inc. if you have questions about your installation.

Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385

draperinc.com | 765.987.7999 | 800.238.7999

FORM: Nocturne_C_Inst17

Section 1 - Preparation of Installation

TOOLS

REQUIRED

Pencil

Tape Measure

Level

Power Drill

Hardware

(by Others)

1. Make sure mounting surface is strong enough to hold the Nocturne+.

Please Note: It is the responsibility of installer to use appropriate fasteners for the mounting surface.

2. Verify unit measurements, and make sure it will ﬁt in the desired location.

Please Note: The Dowel does not retract into the Case.

This will need to be accounted for if mounting over a swinging window or door.

3. Mounting brackets MUST be installed with a gap of 1¾” (45mm) between the End Cap

and the Mounting Bracket edge (See Fig. 1). Mark wall, jamb or ceiling.

4. Drill small starter holes (if necessary) in mounting surface.

1¾”

(45mm)

END

CAP

MOUNTING

BRACKET

Figure (1)

Crank

Handle

Dowel

Cable

Guide

Crank

Operator

Viewing

Surface

Cable Mount

(Deck Mount Shown)

Wall Mounting Bracket

Wall

Mounting

Bracket

Dowel

Cable

Guide

Viewing

Surface

Cable Mount

(Deck Mount Shown)

Wall Mounting Bracket

Wall

Mounting

Bracket

Nocturne+C page 2 of 4

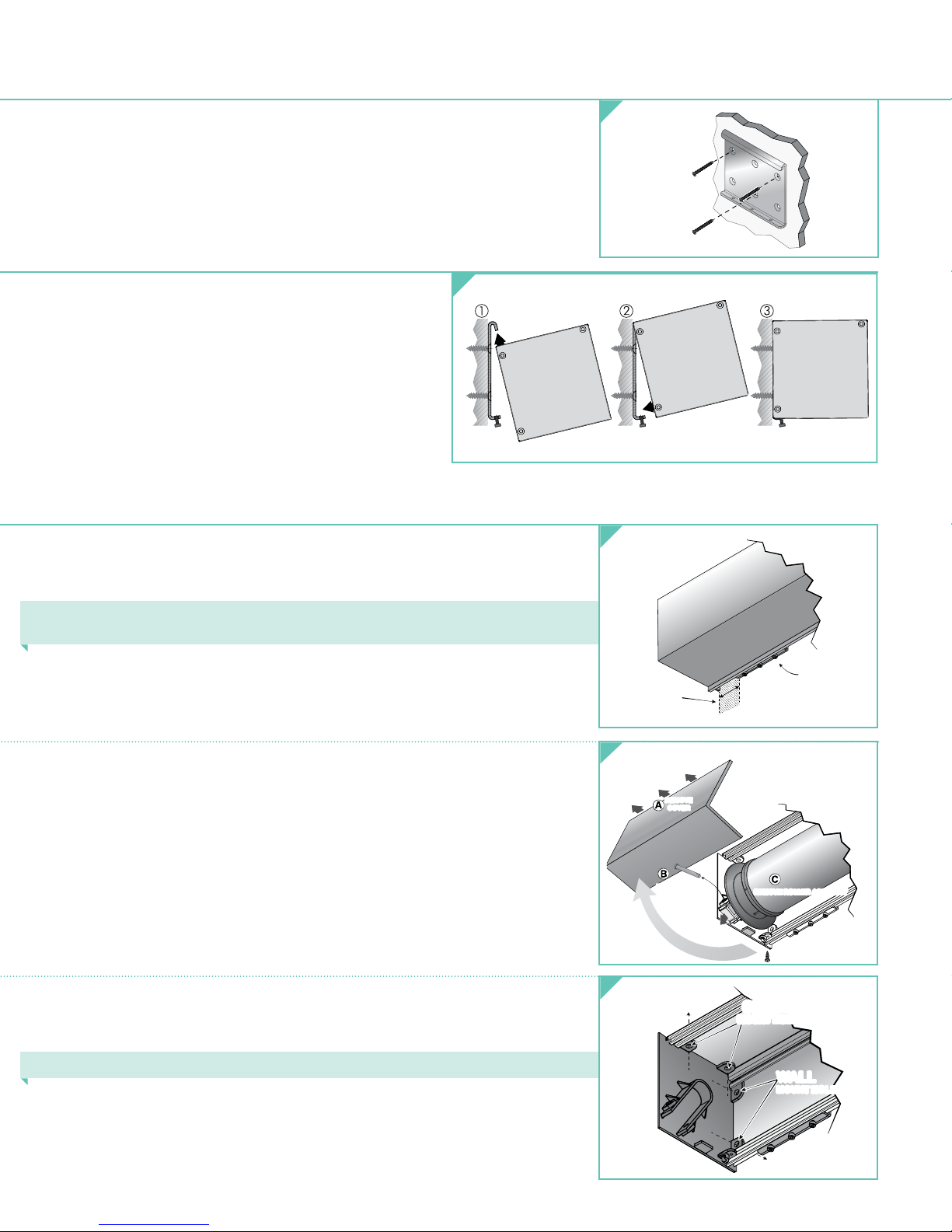

Section 3 - Mounting Case - Permanently to Ceiling or Wall

Attaching Mounting Brackets to Case

1. Attach Mounting Brackets to the Case as a spacer between the Case and the wall.

Please Note: Leave a 1¾” (45mm) gap between End Cap and Mounting Bracket (See Fig. 4),

and tighten set screws.

2. Removing Roller Assembly

A. Remove screws from bottom of Case, remove Front cover and set aside.

B. Remove Quick Release Pin from Idler End of Roller Assembly.

C. Remove Roller Assembly, Idler End ﬁrst, and set aside.

3. Mounting to Ceiling / Wall

Using the mounting holes in the end caps as a guide (See Fig. 6), drill pilot holes on both ends

of the Case. Attach to mounting surface using appropriate fasteners.

Please Note: It is the responsibility of installer to use appropriate fasteners for the mounting surface.

4. Once the Case is secured to the mounting surface, re-install Roller Assembly*,

Quick Release Pin and Front cover.

5. You are now ready to mount the Side Cables (See Page 3).

Leave a

1¾” (45mm)

GAP

Attach

Mounting Bracket

as spacer and

Tighten Set Screws

Figure (4)

REMOVE

COVER

REMOVE

COVER

REMOVE QUICK

RELEASE PIN REMOVE ROLLER ASSEMBLY

Remove screws from

bottom of Case

Figure (5)

Figure (6)

WALL

MOUNT HOLES

CEILING

MOUNT HOLES

CEILING

MOUNT HOLES

OVERHEAD

STRUCTURE

Figure (2)

Tighten Set Screws

Figure (3)

Section 2 - Mounting Case with Brackets - Wall Installation

Attaching Mounting Brackets

1. Attach mounting brackets to the wall using #10 ﬂat head screws installed ﬂush with bracket.

Be sure to use AT LEAST 2 of the top mounting holes (See Fig. 2).

Attaching Case to Mounting Brackets

1. Attach Case to brackets and tighten Set Screws (See Fig. 3).

2. You are now ready to mount the Side Cables (See Page 3).

Nocturne+C page 3 of 4

Section 4 - Installing Cable Guides

Before Installing the Cable Guides, remove the Roller assembly from the Case.

(See Removing Roller Assembly section on Page 2).

1. Thread Cable Guide through dowel and then the provided hole in the endcaps

(see Figure 7).

2. Tighten the Cable Clamp. It should rest on the endcap with no slack or kinks in the

cable guide.

3. Pull the Cable Guide taught and parallel with edge of the fabric panel.

Determine the location of the Wall or Deck Mount.

4. Attach Wall or Deck Mount to surface using appropriate hardware.

5. Insert the Jackscrew end of the Cable Guide into the Wall/Deck Mount.

Tension to 8 in-lbs, so the screen will move up and down easily along the cable.

Please Note: Depending on the height of the screen, you may need to adjust where the

Cable Clamp is located on the Cable Guide.

6. Cut off the excess cable.

7. Repeat on the opposite side of the screen.

Wall

Mount Deck

Mount

3/32” Cable

Clamp

3/32” Cable

Clamp

Dowel

5. Attach Jackscrew

Guide Cable to

Wall or Deck Mount

Guide Cable

1. Thread Cable Guide

through dowell and

then the provided hole

in the endcap.

2. Tighten Cable Clamp

3. Pull Cable Guide taught.

4. Install Wall or Deck Mount

Screen

Figure (7)

(127mm)

(102mm)

1½"

(38mm)

1½"

(38mm) ½"

(19mm)

½"

(19mm)

1½"

(38mm)

1½"

(38mm)

(102mm)

2¼"

(57mm)

1¾"

(45mm)

(25mm)

" (22mm)

(25mm)

1¾"

(45mm)

(92mm)

½"

(19mm)

½"

(19mm)

NOTE: Mounting brackets attach to surface with #10 Flat Head Screw

Mounting Bracket

Section 9 - Component Dimensions

Headbox

3 5/8"

(92mm)

3 5/8"

(92mm

)

3 5/8"

(92mm)

3 5/8"

(92mm)

Nocturne+C page 4 of 4

Surface Width

Screen Width

15/8”

(41mm)

Cable

Guide

Length

Wall

Mount

Deck

Mount

35/8"

(92mm)

Dowel Width

35/8"

(92mm)

Section 10 - Assembled Dimensions

Section 9 continued - Component Dimensions

6’ (182cm)

Crank Handle
