Pluto1.2 User Manual
Pluto1.2
User Manual
.
Fly in open areas Maintain Line of Sight Flying range - 60m
Avoid flying over or near obstacles, crowd, high voltage power lines,
trees or bodies of water and near strong electromagnetic sources
such as power lines and base stations.
Don’t use Pluto1.2 in adverse weather conditions such as rain, snow,
storm etc. and in high wind
STAY AWAY FROM ROTATING PROPELLERS
DON’T FLY IN NO-FLY ZONE
Baery Safety
CAUTION: All instrucons and warnings must be followed exactly. Mishandling of Li-Po
baeries can result in a fire, personal injury and/or property damage.
LI-PO BATTERIES: Failure to charge the baery with a compable charger may cause a fire
resulng in personal injury and/or property damage.
1
2019 Drona Aviation
Table of Contents
Introduction
Quick Flight
4
3
Assembly/disassembly
Battery charge
Trim
Control settings
Flight modes
Control Modes
Sensitivity
Max altitude
External Controller
Flight Controller Information
Updating the firmware
Developer Options
Trouble shooting
Specifications
6
11
21
21
21
20
19
22
24
31
23
26
25
28
Box Contents
22
2
2019 Drona Aviation
FAQ 27
Introduction
Note: Please read and understand this manual completely. Drona
Aviation products are to be used by ages 14 and over. The instruction
manual, warranties and other associated documentation is subject to
change without notice. Drona Aviation assumes no responsibility for
inadvertent errors in this manual.
3
2019 Drona Aviation
4
4
2
4
1
1
1
1
1
Box Contents
Pluto1.2 is a DIY Drone Kit. The Kit contains all the parts required to build
this into a nano drone and with some spares.
KIT
4
2019 Drona Aviation
PrimusV4 Flight Controller
Frame with Canopy
Motors
Set of Propellers
Pilot Badge
Propeller guards
Battery
Screws and Damper
Propeller Removal Tool
Quantity
5
2019 Drona Aviation
Assembly/Disassembly
A. Flight Controller
Pluto1.2 is a DIY drone. It can be disassembled and assembled easily.
Please follow these instructions for assembly/disassembly.
1. Take the PrimusV4 flight controller. Identify the front of the board using
the figure below.
2. Insert rubber dampers on four corners of the board.
3. Place the PrimusV4 board on the frame. Please ensure that the front
arrow on the board matches with the arrow on the frame.
4. Insert the plastic screws and fasten the flight controller. Please ensure
that the screws are not squeezing the dampers.
If the dampers are not used / improperly mounted, it will result in a
poor performance of the drone.
CAUTION
6
2019 Drona Aviation

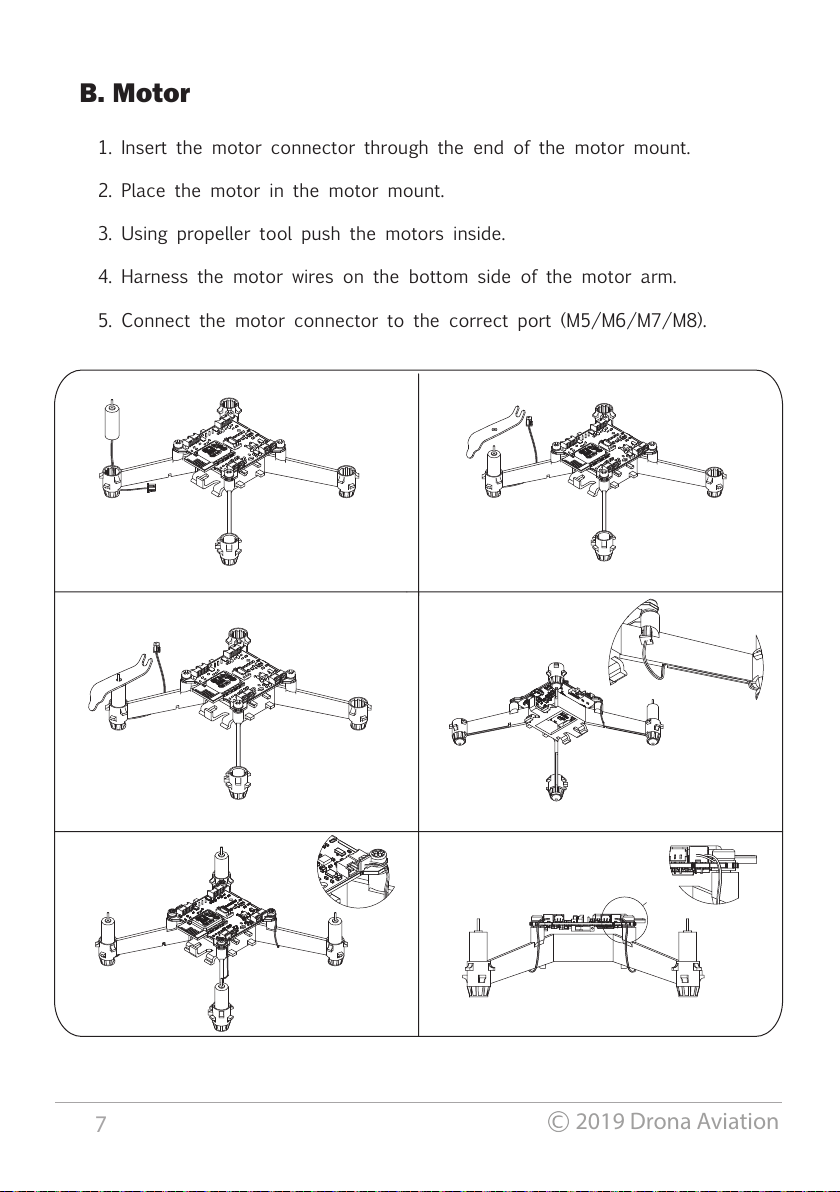

B. Motor
1. Insert the motor connector through the end of the motor mount.
2. Place the motor in the motor mount.
3. Using propeller tool push the motors inside.
4. Harness the motor wires on the bottom side of the motor arm.
5. Connect the motor connector to the correct port (M5/M6/M7/M8).
7
2019 Drona Aviation
