IMPASSA

Self-Contained 2-Way Wireless Security System

Quick-Start Installation Guide

1. Remove the Front Plate

Using a small screwdriver, insert in the bottom left and right-hand slots and

gently pry to separate the front panel.

2. Mount the Back Cover

Begin by routing telephone line wiring, Input/Output wiring and AC power

wiring through the cutout in the back cover. Determine placement location

and mount the back cover to the wall using the screws and drywall plugs.

Note: For versions supporting cellular communications, the cellular signal

strength can be ﬁrst checked in section [850], to determine the optimal

location to mount the unit.

3. Connect Wiring

Connect wiring to the terminal block on the back cover.

4. Connect the Battery

Connect the battery cable to the connector on the PCB, ensuring proper

orientation of the connector.

5. Attach the Front Cover

Place the top portion into the back cover ﬁrst and press the bottom portion

into the back cover to snap into place.

Artwork PN 30001315 / Manufacturing PN 29008215R001

6. Power Up the System

Apply power by plugging in the transformer.

8. Template Programming

The functions required for basic operation of the IMPASSA system can be

conﬁgured (4-digit code) quickly through the use of template programming in

section [899]. Code prompts exist for pre-deﬁned zone deﬁnitions, reporting

code formats, communication call directions and DLS setup. Once the code

has been programmed, you will be prompted to enter the monitoring station

telephone number and account code, DLS access code, entry and exit

delays, and the installer code.

7. Enrol Wireless Devices

Using the quick enrol feature found in section [898], wireless devices can be

enrolled into the IMPASSA system easily.

9. Perform Placement Testing

The proposed placement of each wireless device should be tested before it is

mounted by entering section [904]-[907]. Testing the signal strength between

IMPASSA and the wireless devices can be accomplished in a group (global

placement test) or individuals.

10. Cellular Conﬁguration

a. Prior to system installation, ensure the SIM card has been activated

with Connect24 (C24 Communications)

b. Conﬁgure the communications phone numbers in section [301]-[303]

and [305] to the desired conﬁguration

c. Conﬁrm the cellular communicator module by programming panel

section [382] option [5] as ON

d. Conﬁrm panel section [401] option [1] as ON in order to perform

DLS sessions through cellular

panels, keypads & modules For product information

www.dsc.com

Product speciﬁcations and availability subject to change without

notice. Certain product names mentioned herein may be trade

names and/or registered trademarks of other companies.

©2011 2011-08

Andere Handbücher für IMPASSA

2

Inhaltsverzeichnis

Andere DSC Sicherheitssystem Handbücher

DSC

DSC neo HS128 E Bedienungsanleitung

DSC

DSC WLS900 Bedienungsanleitung

DSC

DSC PowerSeries PC1864 Bedienungsanleitung

DSC

DSC Digital Security Control PC158O Bedienungsanleitung

DSC

DSC Power832 Fehlerbehebungshandbuch

DSC

DSC MAXSYS PC4020 Benutzerhandbuch

DSC

DSC iOtega Bedienungsanleitung

DSC

DSC Power632 Bedienungsanleitung

DSC

DSC PC1616; PC1832; PC1864 Bedienungsanleitung

DSC

DSC PC5102-433 Bedienungsanleitung

DSC

DSC iOtega Bedienungsanleitung

DSC

DSC TL260GS Bedienungsanleitung

DSC

DSC PG4975 Handbuch

DSC

DSC PowerSeries PTK5507 Bedienungsanleitung

DSC

DSC WS900 Bedienungsanleitung

DSC

DSC Impassa WT4911 Bedienungsanleitung

DSC

DSC PowerSeries SCW9047-433 Bedienungsanleitung

DSC

DSC Power608 Bedienungsanleitung

DSC

DSC Voice Assisted Security Control Escort 4580 Bedienungsanleitung

DSC

DSC PC2550 Bedienungsanleitung

DSC

DSC WS4938 Bedienungsanleitung

DSC

DSC Power8 PC5OO5 Bedienungsanleitung

DSC

DSC Power832 P5010 Bedienungsanleitung

DSC

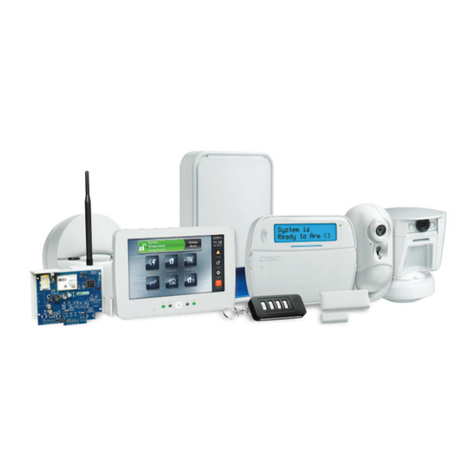

DSC Neo Power HS2016 Bedienungsanleitung
